DECOLOCK DQ1 - 3 m. i 35 mm rør - ALUTRUSS

DECOLOCK DQ1 - 3 m. i 35 mm rør - ALUTRUSS
  • Ikke på lager
  • Forventet levering om 1 uger
  • Bedømmelse for DECOLOCK DQ1 - 3 m. i 35 mm rør - ALUTRUSS
    Produktet er endnu ikke bedømt
  •
    699,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Single truss i 35mm rør med Quick-look incl samle led
Denne vare kan KUN sendes kun med fragtmand

DECOLOCK DQ1 1-point truss system
DECOLOCK DQ1 is a 1-point truss system made of aluminum. The individual elements are connected via a cone, pivot and pin.

The advantage of the conical connection system is that the cones completely fit into the main chords so that highest load capacity is guaranteed. The Quick-Lock system enables fast, efficient and highly aesthetic assembly when the truss constructions are frequently assembled and dismantled.

With DECOLOCK, you can realize compact installations with low self weight, e. g. for shop displays, shop decorations, exhibitions, interior design, fair booths, discotheques and theatres.

With DECOLOCK DQ1, decorative frames with advertising signs, transmission canvas etc. can be realized.

The documentation of this truss system is closely related to the Codes of Practice SQ P1 - Truss Systems published by the VPLT/PLASA. The load table as calculation base can be downloaded from the Internet before buying the product!

Please note: this truss system must never be combined with other systems!

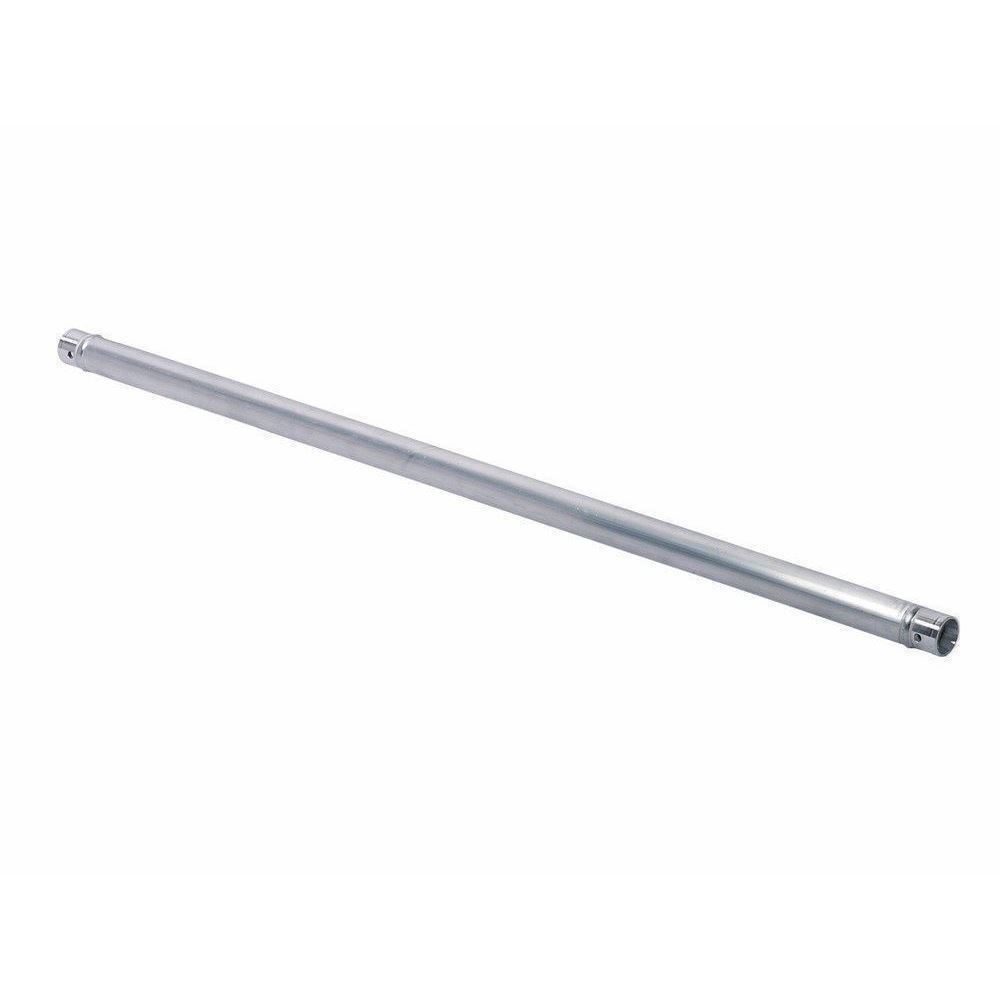

Single tube with quick-lock

  • High-quality aluminum-tubes with 35 mm in diameter
  • Easy installation
  • Low weight
  • For decoration or frame construction for projection foils
  • 1 x Connection set included
  • Made in Europe

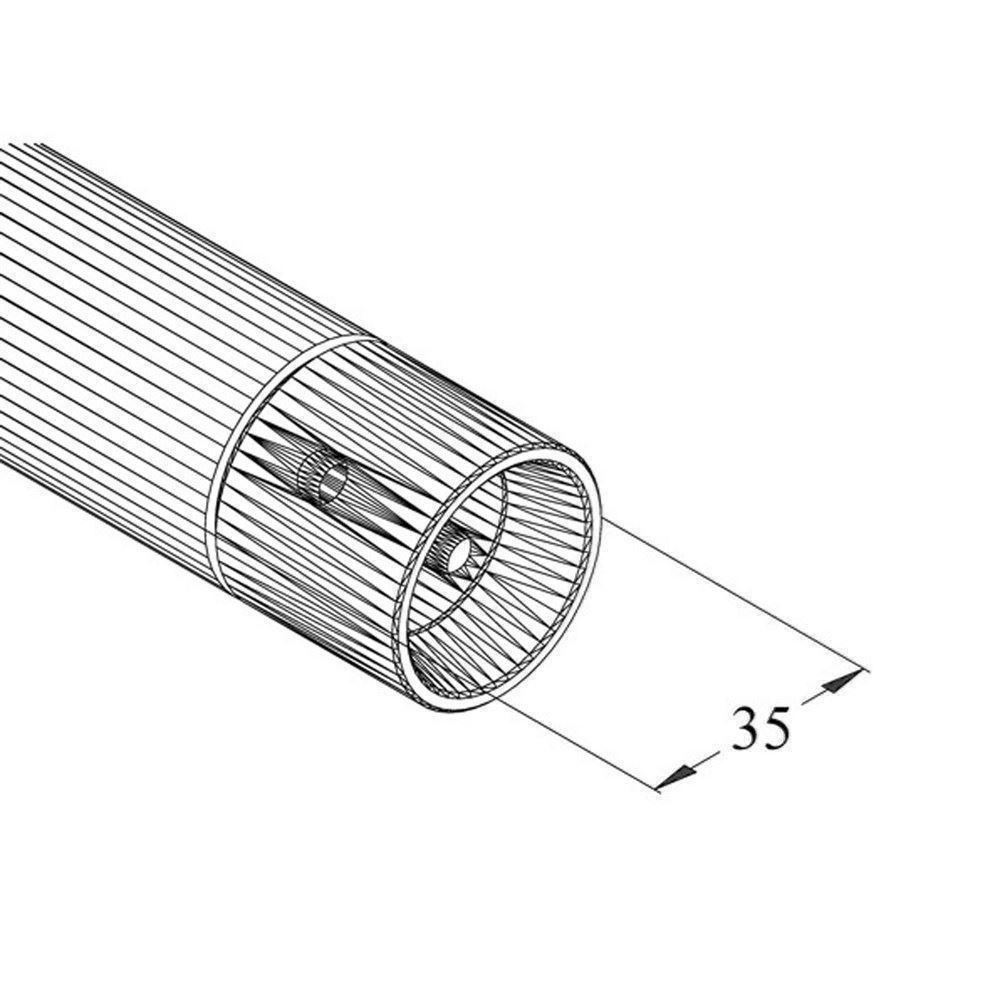

  • Trusspipe diameter: 35 mm




Main chords: 35 x 2 mm
Alloy:AlMgSi 0.5
Welding material:AlMg 5
Welding technique:TIG-welding
Outer dimensions:
Width:35 mm
Height:35 mm
Length:3000 mm
Trusspipe:35 mm x 2 mm
Color:Alu colored
Weight:1.94 kg
Varenr.: E-60301489
