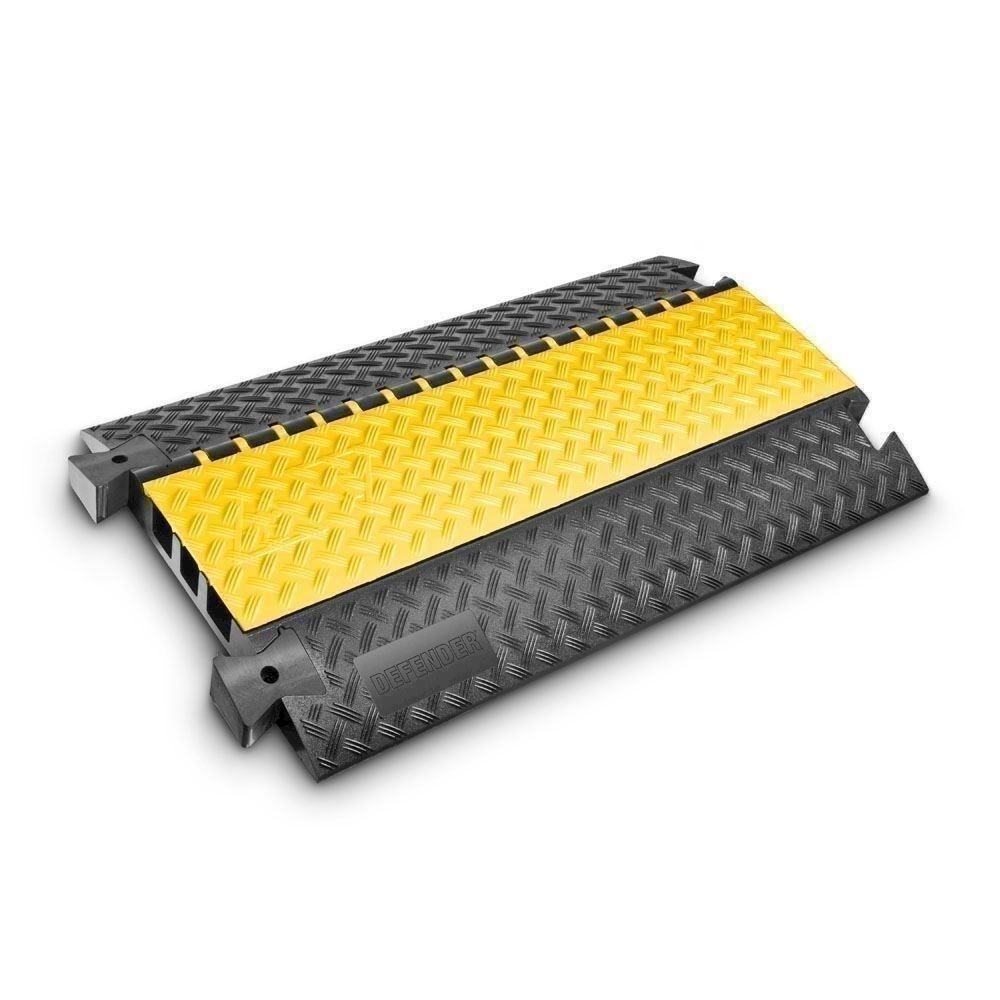

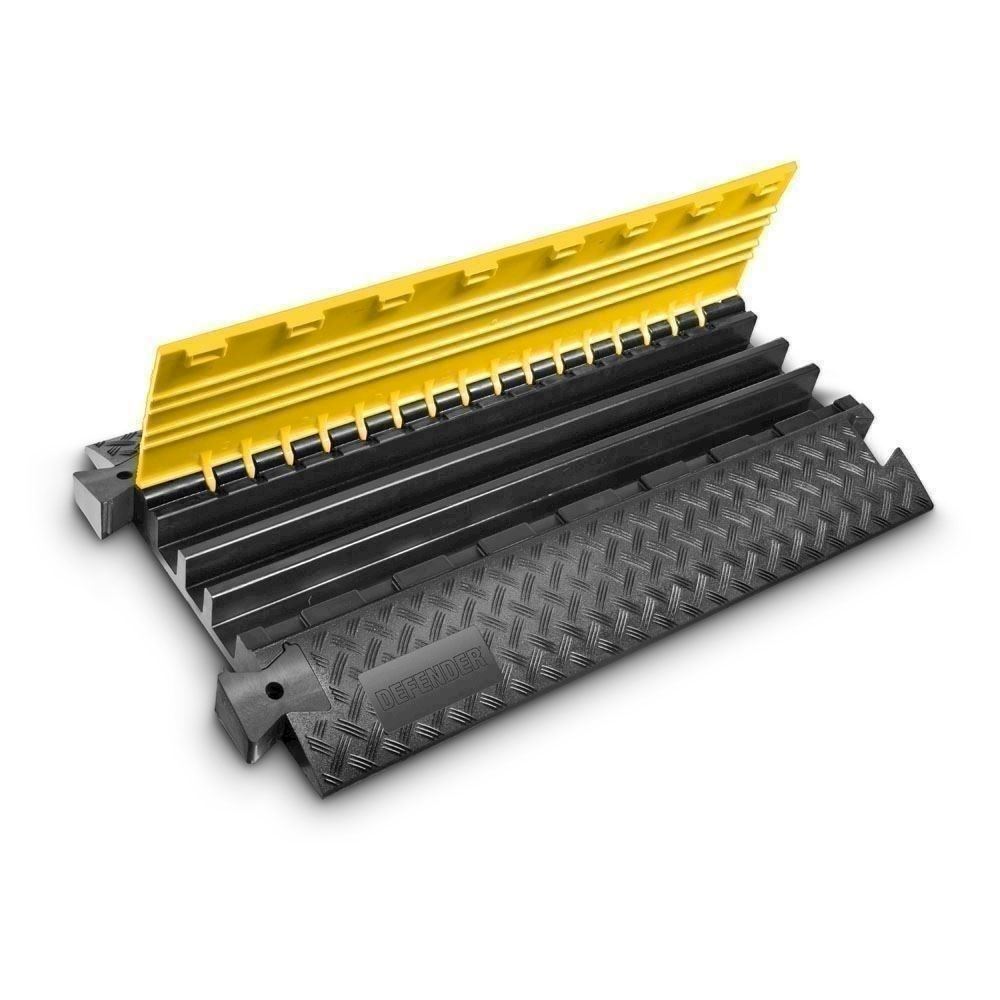

Defender Cable Protector 3-channel LUX - 3 LUX

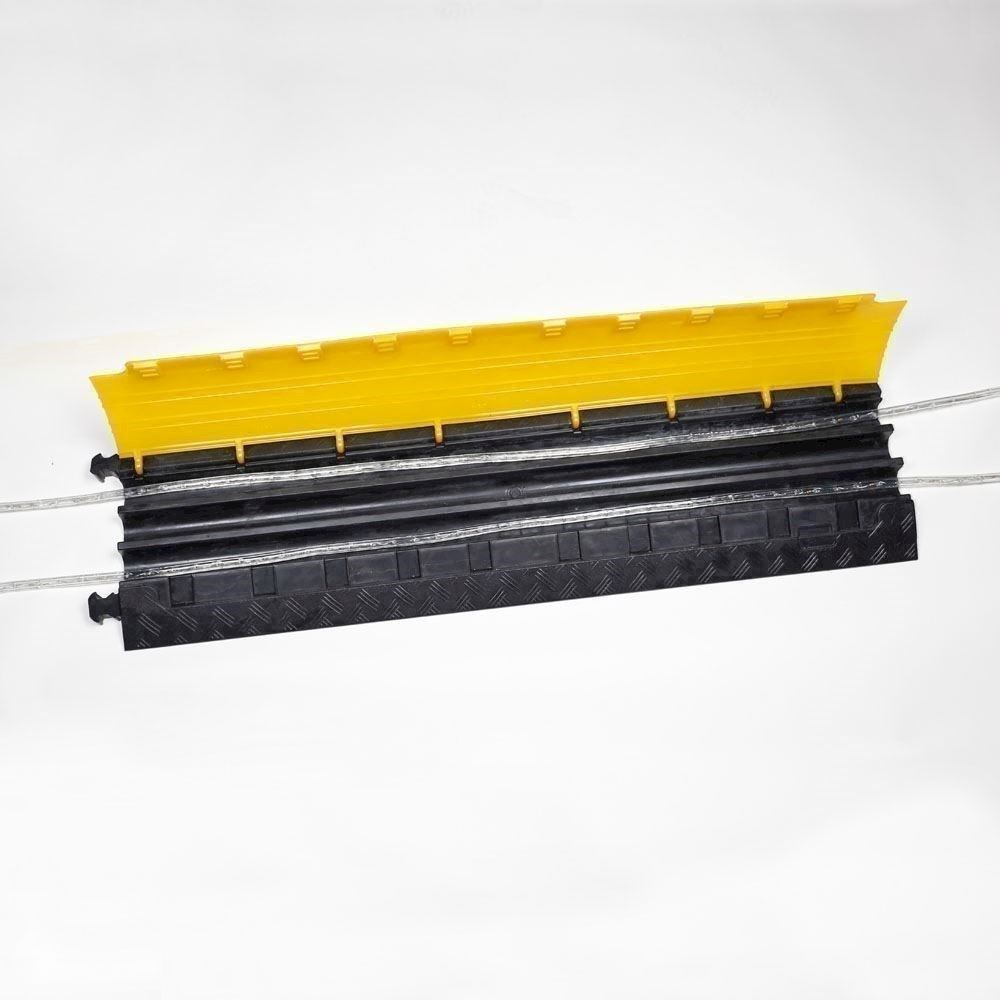

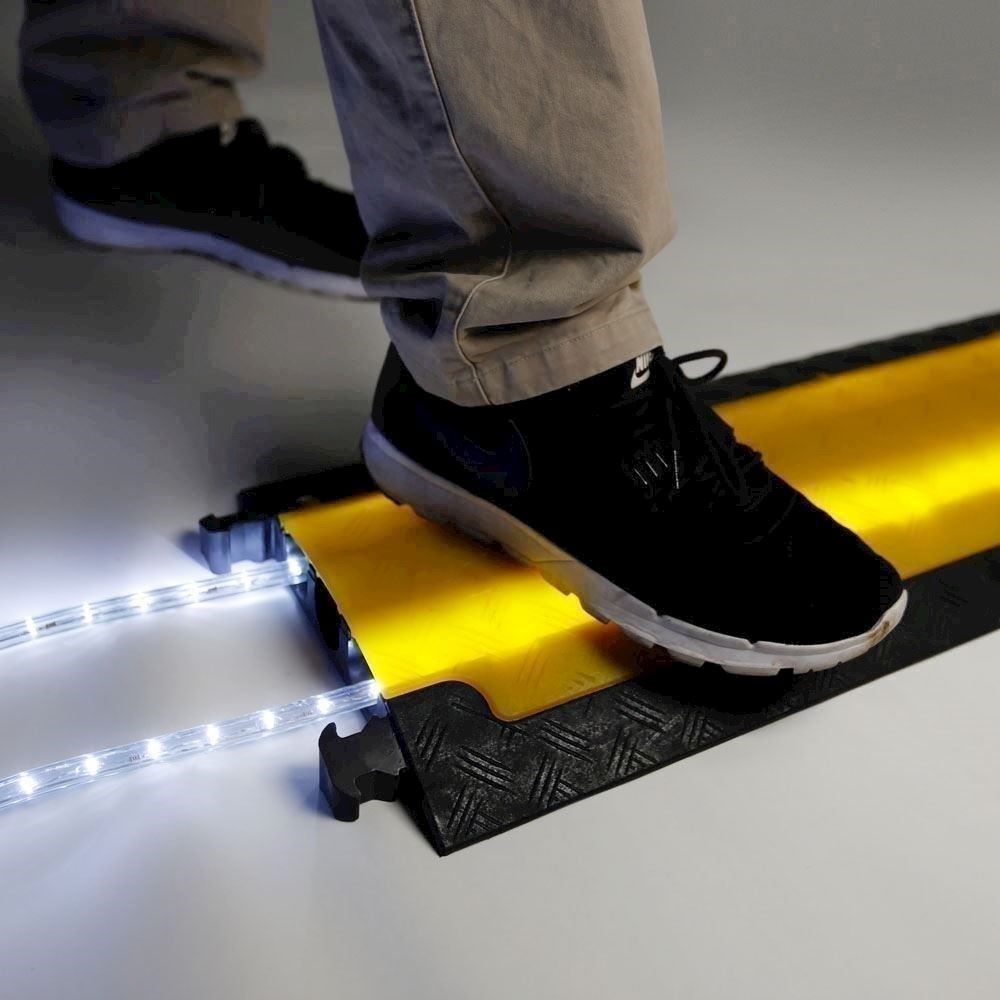

The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers from the Defender LUX Series have highly transparent, yellow-tinted lids, where LED light tubes can be inserted parallel tocables and other pipes. Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues according to the latest state-of-the-art technology and also ensure the highest possiblelevel of safety and visibility in the dark, both indoors and outdoors. LED light tubes from the Defender Series are available as separate accessories. For more information, please refer to our price list for Defender LUX cable crossovers and lighttubes, or contact your Defender representative directly.

3 Big Channels - Most Popular

Featuring a 73 mm profile, 45° curve and end ramps with detachable dovetail connectors the Defender® III cable protection system provides versatile cable routing and safe crossing for vehicles and pedestrians. With 3 medium large channels, built-in handles for easy portability and a 5 t per 20 x 20 cm load capacity the 73 mm profile Defender® III cable protectors are the perfect all-round choice for a wide variety of applications including heavy wheeled traffic, construction sites, warehouses, carnivals, fairs, trade shows, exhibitions, shopping malls and music events.

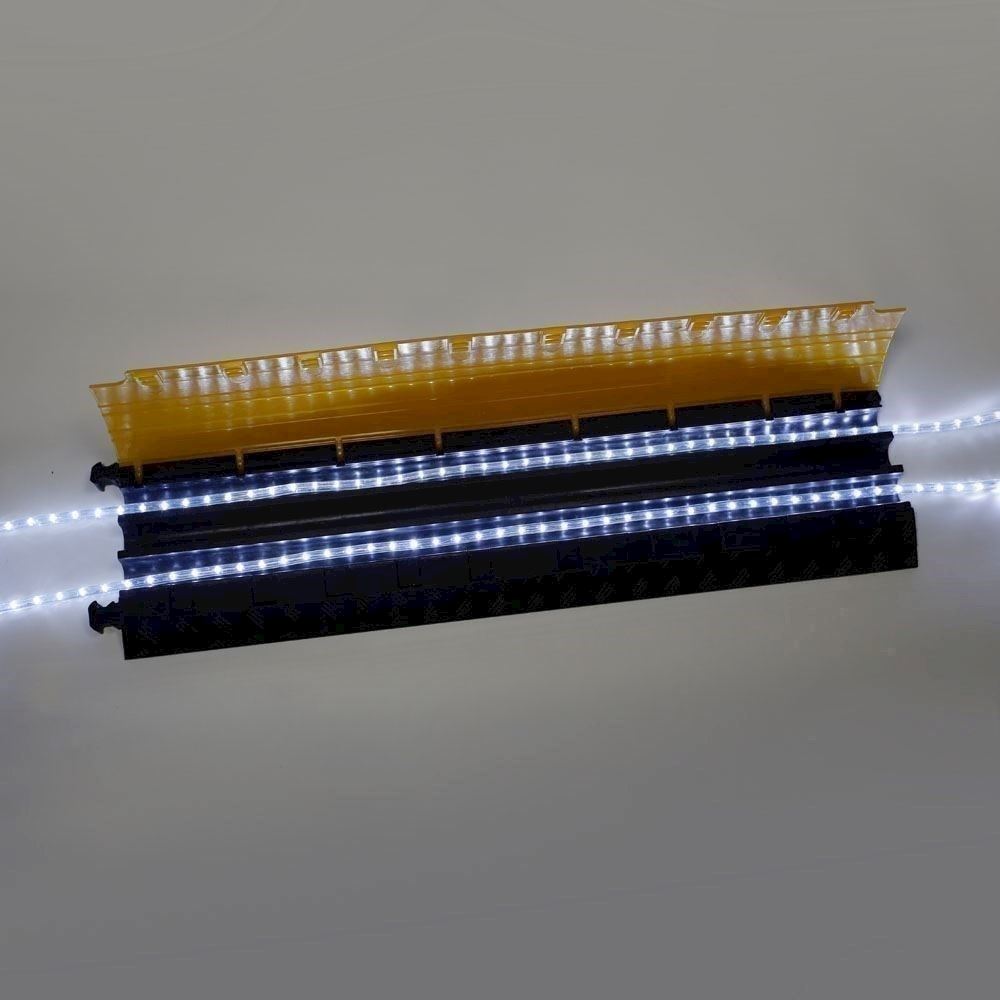

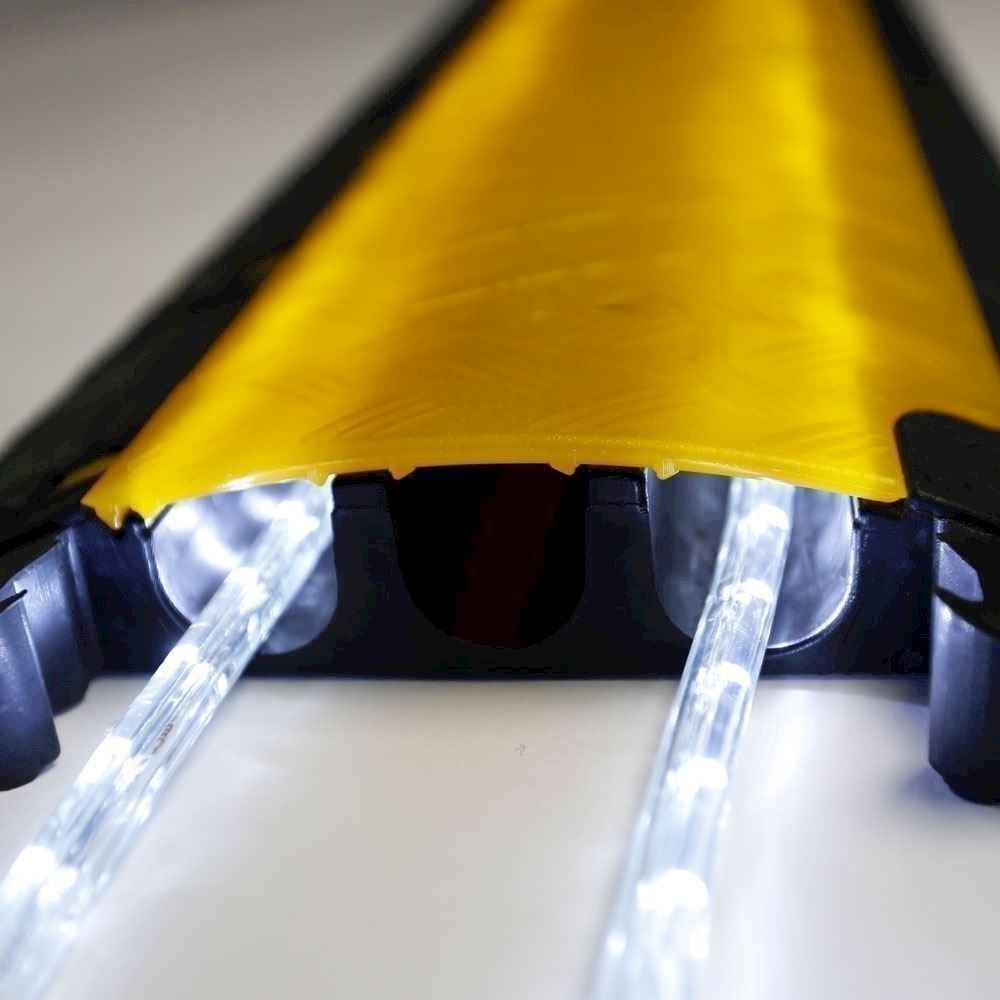

Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are especially recommended since the individual LEDs are less visible and this provides for particularly homogeneous lighting.For outdoor use, please mind the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended.

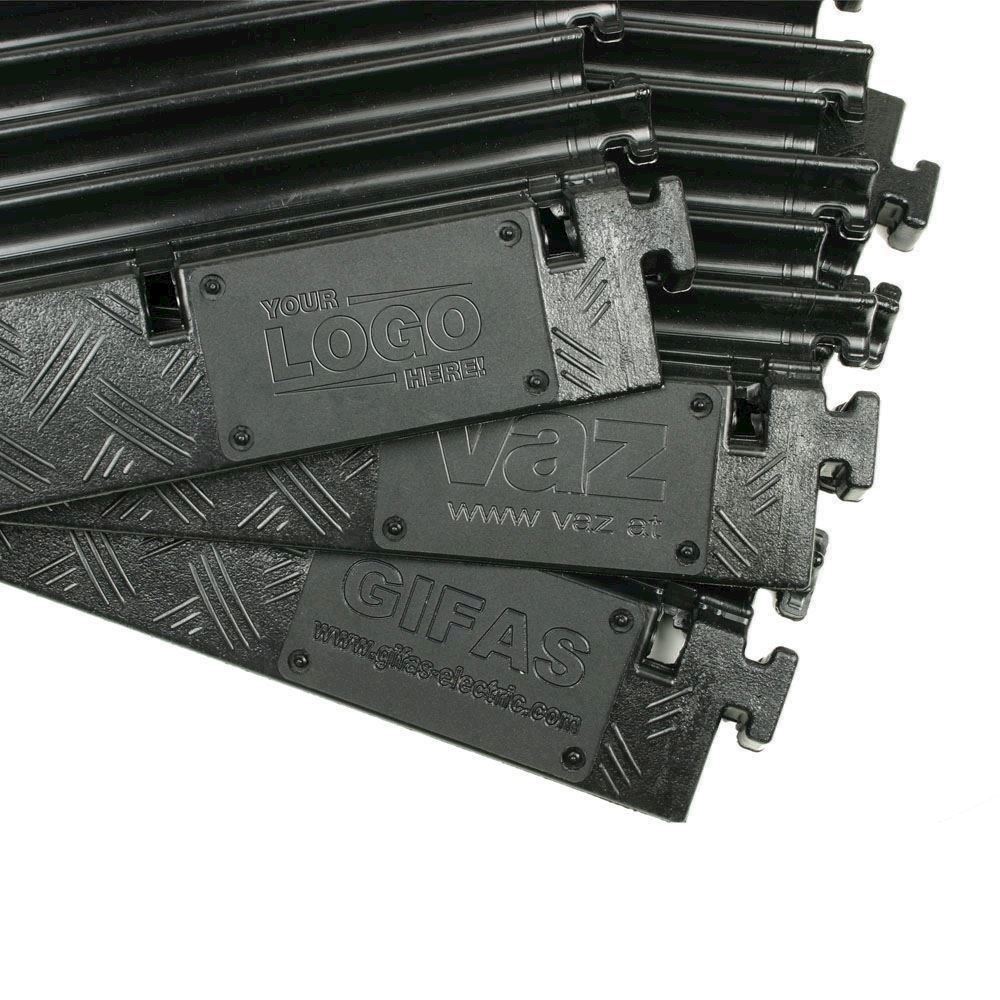

Label your cable crossovers! Customise the Defender cable crossovers with your company logo for orders ex 30 pieces for each product. You will find the format requirements in the download pool above the text. Feel free to contact us for more information.

• heavy-duty,non-slip all-round cable protector made of black, recyclable polyurethane with built-in carrying handles
• Highly transparent yellow-tinted lid for use in the dark with light tubes
• yellow polyethylene lid with high warning effect and secure closure
• patented, self-cleaning lid hinge
• 3 channels: 1 channel 45 x 50 mm, 2 channels 52 x 49 mm
• load bearing capacity approx. 5 t / 20 cm²
• fire resistance class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)
• resistant to oil, acids, solvents, and petrol
• dimensions 100 x 60 x 7.3 cm; Weight 22 kg
• reliable protection for cables and personnel for indoor and outdoor use
• curves, end ramps, and connector plugs are available as accessories
