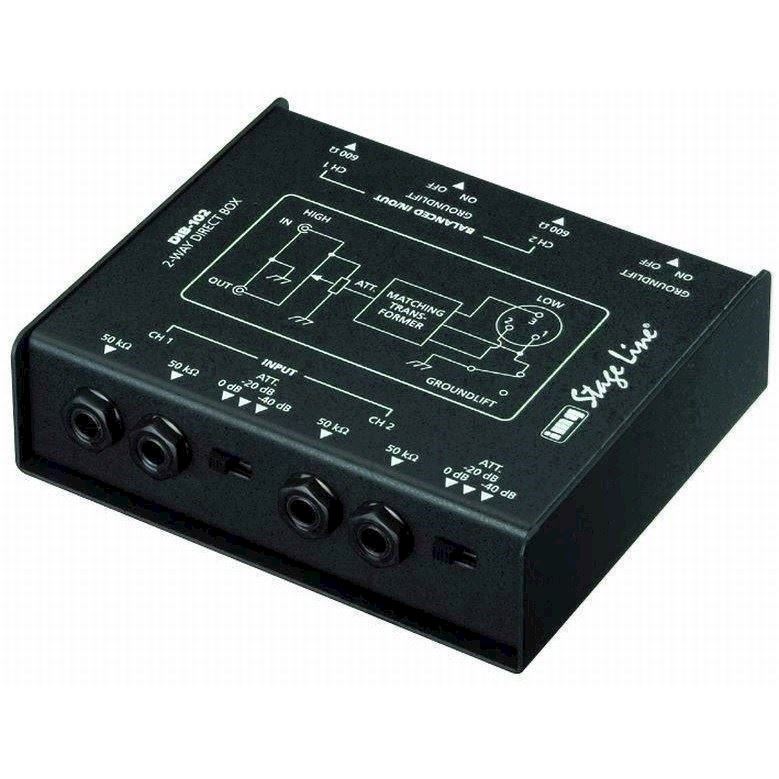

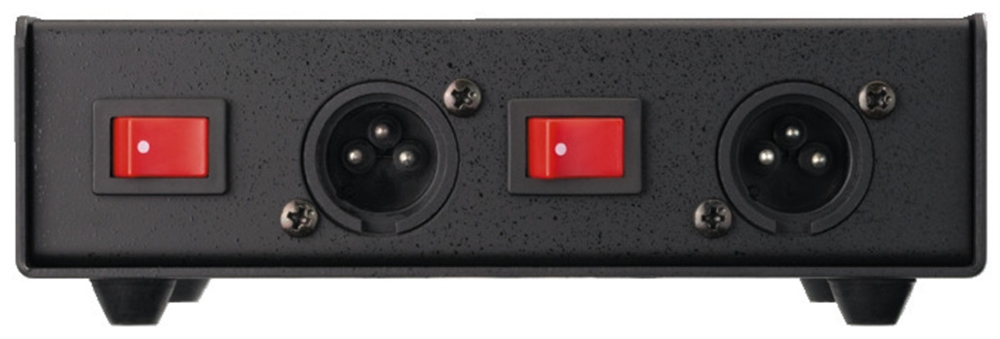

DI-box - DIB-102 - IMG STAGE LINE

DI-box - DIB-102 - IMG STAGE LINE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for DI-box - DIB-102 - IMG STAGE LINE
    Produktet er endnu ikke bedømt
  •
    509,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


DI box

DI-boxe
Til optimal transmission af signaler fra musikinstrumenter til en mixer eller forstærker. Forstyrrelser, der skyldes tilpasningsproblemer, fx brum, undgås bedst ved brug af en transformerkobling. Indgang og udgang er her galvanisk adskilt.
Til line-enheder benyttes LTR serien!

2-kanals DI-box

  • Niveaukontrol (0/-20/-40 dB) for hver kanal
  • Ground lift for hver kanal
  • Feed-through udgang for hver kanal
  • Balanceret transformer
  • Robust metalkabinet

tools4music 06/2009 on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102
"Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the ever accompanying tool case."

tools4music 02/2010 "The DIB-102 from IMG Stage Line impresses by both the attractive price and the very stable housing. The frequency curve is exemplary."





TypeDI box
Frequency range15-30,000 Hz, ±0 dB
Control range-
Control frequencies-
Input signal-
Input sensitivity-
Input impedance50 kΩ
Output signal-
Output impedance600 Ω, XLR
50 kΩ, jack
Gain-
Phantom power-
Compression-
Gate ratio-
Crossover frequency-
High-pass filter-
Low cut-
Transmission ratio10:1
S/N ratio-
Channel separation-
THD-
Admiss. ambient temp.0-40 °C
Power supply-
Dimensions148 x 50 x 130 mm
Weight755 g
Inputs2 x 6.3 mm jack, unbal.
Outputs2 x 6.3 mm jack, unbal.,
par. out
2 x XLR, bal.
Other features-
Varenr.: 247060
