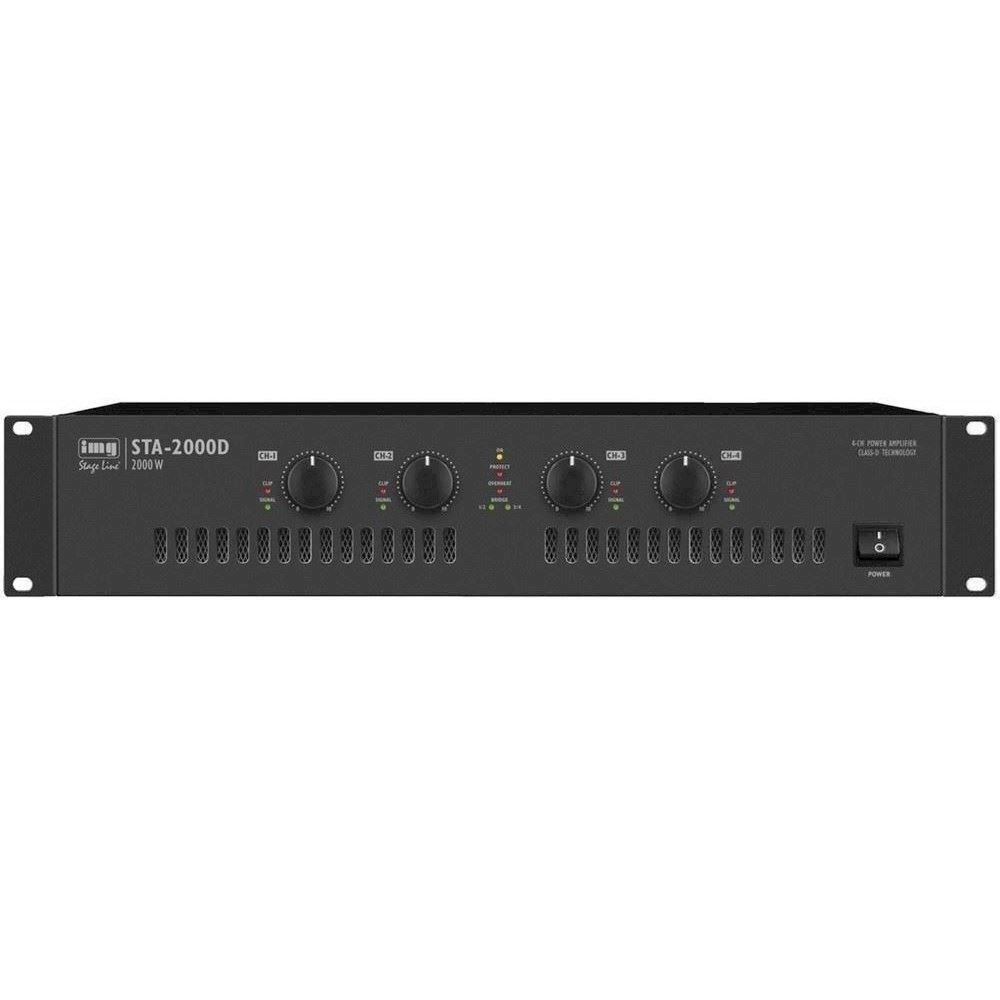

Digital forstærker 4x500Wrms - STA-2000D - IMG STAGE LINE

På lager
På lager, 2-4 dage
Bedømmelse for Digital forstærker 4x500Wrms - STA-2000D - IMG STAGE LINE
Produktet er endnu ikke bedømt

8.899,00DKK ved 1 stk.

4 x 500 WRMS 4 Ohm
4 x 580 WMAX 4 Ohm

4 x 280 WRMS 8 Ohm
4 x 310 WMAX 8 Ohm

Den nye generation af class D PA-forstærkere fra IMG STAGELINE imponerer med høj effekt og høj energieffektivitet. Andre fordele som lydløs drift og lav vægt gør denne forstærkerserie velegnet til både faste installationer og mobil anvendelse.

4-kanals digital PA-forstærker

Class D teknologi med PASCAL-forstærkermoduler
Fremragende akustisk ydeevne
Stort dynamikområde med meget lav forvrængning
Fremragende impulsgengivelse - også i basområdet
482 mm (19") rack installation, 2 U
2 eller 4 kanaler (ved brokobling)
Lydløs i brug: den temperaturstyrede ventilator aktiveres kun, hvis temperaturen overstiger 85 °C
Letvægtsdesign og med kompakt strømforsyning
Energibesparende takket være høj effektivitet
4 x volumenkontrol
Beskyttet mod kortslutning, overophedning, overspænding og overbelastning
LED-indikator for strøm, signal, bridge, overbelastning (clip), overophedning og beskyttelse
Mulighed for brokobling
85-265 V∼
NEUTRIK POWERCON og SPEAKON højttalertilslutning

SOUNDCHECK 03/2015
"The STA-1000D and STA-2000D provide an unobtrusive sound reproduction of a high quality. No matter whether classical music, rock music or voice reproductions, the power amplifier perfectly meets any requirement."
tools4music 02/2015
"The power amplifiers STA-200D and STA-1000D from IMG Stage Line impress by an elaborated selection and configuration of the inner components. Due to the low weight and the mounting depth of 335 mm only, this series is suitable for both rack mounting and installation into shelves. With these test results, they are also suitable for hi-fi applications. I consider these 'lightweights' to be very well-suited for small to medium-sized entertainment applications, PA applications at conferences and for speech transmissions well as a multi-channel power amplifier for stage monitoring."
+ Operating reliability
+ Weight
+ Test results: low THD, perfect frequency response and S/N ratio
+ Low-maintenance design
+ Protective circuits
+ Very wide operating voltage range
+ Workmanship
+ Efficiency
- No XLR feedthrough connector

Channels	4
Zones	-
Power rating	2,000 W
Power rating at 2 Ω	-
Power rating at 4 Ω	4 x 500 W
Power rating at 8 Ω	4 x 280 W
Power rating at 100 V	-
Power rating with 4 Ω bridged operation	2 x 1,000 W
Power rating with 8 Ω bridged operation	2 x 1,000 W
Peak music power output (P_MAX)	2,400 W
Output impedance	-
Inputs	1 V/10 kΩ (XLR, bal.), 1 V/5 kΩ (RCA)
Attenuation factor	-
Frequency range	20-20,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	-
Equalizer midrange	-
Equalizer treble	-
S/N ratio	> 119 dBA
Crosstalk attenuation	-
THD	< 0.05%
Power supply	∼ 85-265 V/50 Hz/2,320 VA
Mains voltage	∼ 85-265 V
Mains frequency	50 Hz
Power consumption, operation	2,320 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	-
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C
Dimensions	482 x 335 x 89 mm, 2 RS
Width	482 mm
Height	89 mm
Depth	335 mm
Rack spaces, RS	2
Weight	6.4 kg

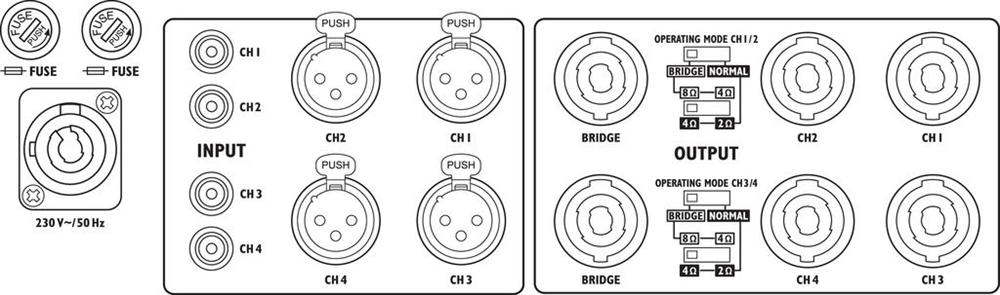

Connections	1 x NEUTRIK POWERCON 4 x 3-pole XLR 4 x RCA 4 x NEUTRIK SPEAKON 2 x NEUTRIK SPEAKON bridge
