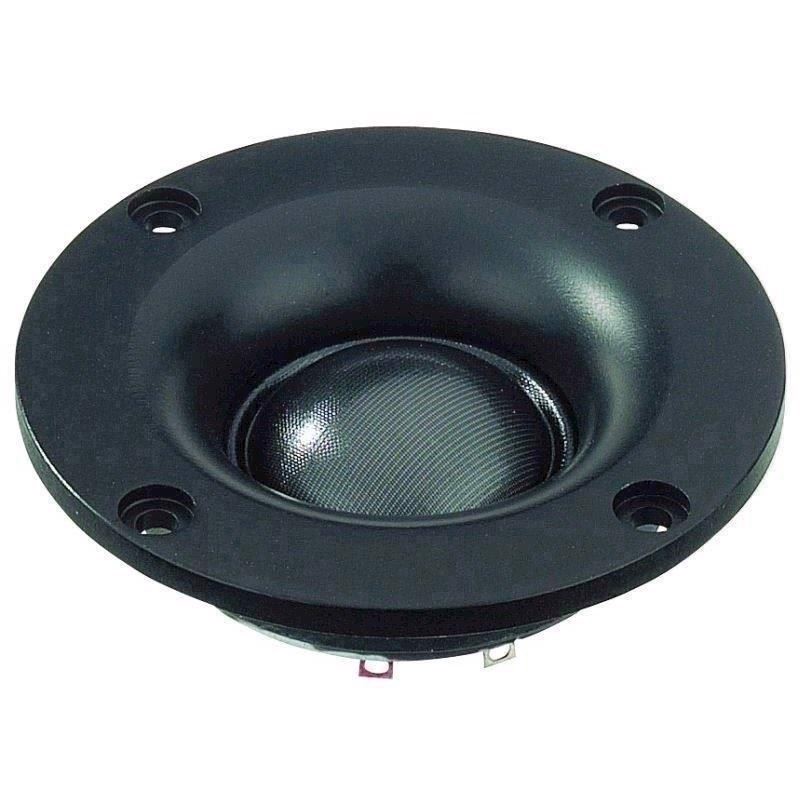

Dome tweeter - DT-25N - NUMBER ONE

Dome tweeter - DT-25N - NUMBER ONE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for Dome tweeter - DT-25N - NUMBER ONE
    Produktet er endnu ikke bedømt
  •
    311,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




Neodymium hi-fi tweeter, 40 W, 8 Ω
  • Outstanding sound characteristics
  • Silk soft dome cone with optimised geometry
  • Front plate with a specially adapted design
  • Very linear reproduction even of lower frequencies
  • High efficiency
  • Low magnetic dispersion and mechanically very compact due to the application of a high-performance neodymium magnet
  • Ideally suited for building smaller speaker systems
  • For high-quality standing hi-fi speakersy, e.g. in D'Appolito arrangements
  • Very fine and natural sound


Impedance (Z)8 Ω
Transmission method-

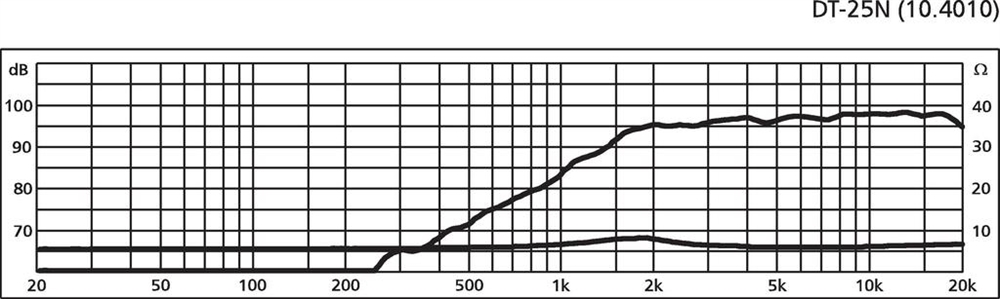

Frequency rangefx-20,000 Hz
Resonant frequency (fs)1,600 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)2,500 Hz
Power rating40 W
Peak music power output80 W
Sensitivity95 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 25 mm
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameterØ 46 mm
Mounting cutoutØ 50 mm
Mounting depth17.7 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

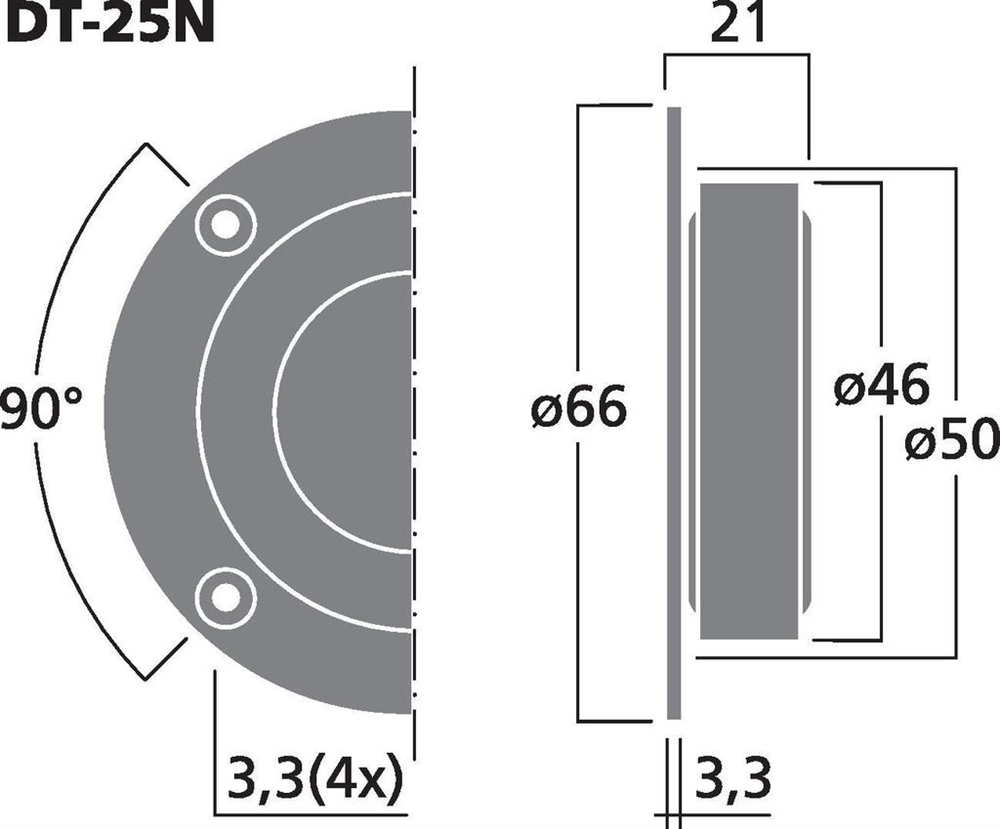

DimensionsØ 66 x 21 mm
Outside diameterØ 66 mm
WidthØ 66 mm
Height-
Depth21 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight65 g
Packing unit1
Type of speaker-

Varenr.: 104010
