ELA-højttaler EN54 - EDL-612EN - MONACOR

ELA-højttaler EN54 - EDL-612EN - MONACOR
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for ELA-højttaler EN54 - EDL-612EN - MONACOR
    Produktet er endnu ikke bedømt
  •
    459,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

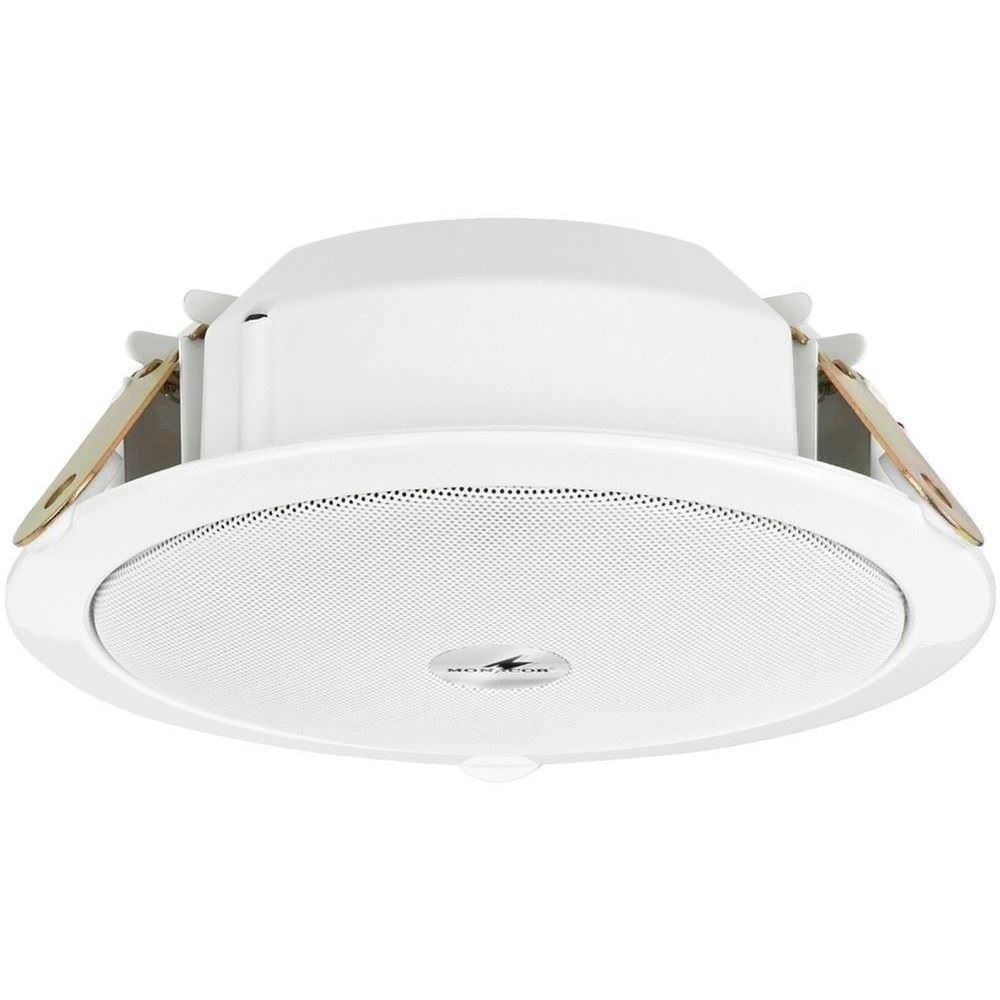

PA ceiling speakers, with EN 54-24 certification.
  • 100 V line technique with 3 power taps
  • Full range speaker with optimised voice reproduction
  • Plastic cover with low mounting depth
  • For a ceiling thickness from 5 to 22 mm
  • Quick installation
  • Robust metal basket and protective grille


Impedance (Z)-
Transmission method100 V
Frequency range120-15,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating12/6/3 W
Peak music power output-
Sensitivity93 dB
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-

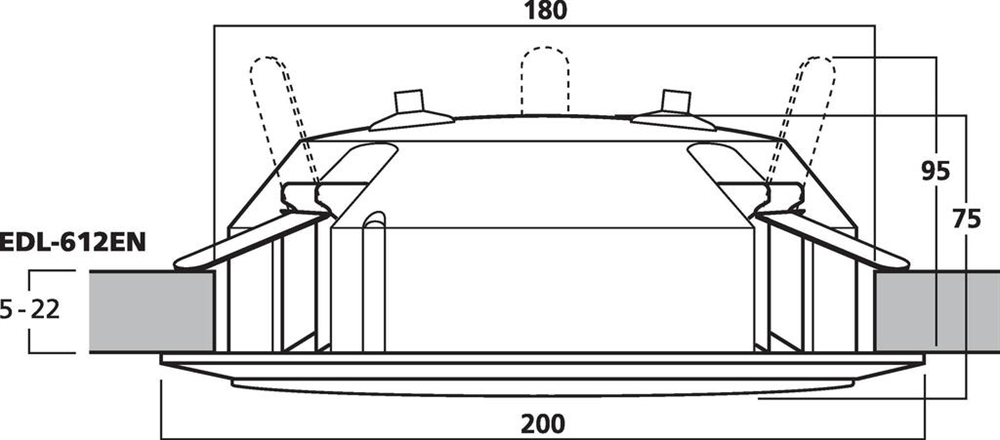

Mounting cutoutØ 180 mm
Mounting depth60 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 200 mm x 70 mm
Outside diameter-
WidthØ 200 mm
Height-
Depth70 mm
Protective class-
Admiss. ambient temp.-
Weight950 g
Packing unit-
Type of speaker165
Varenr.: 163170
