ELA-højttaler EN54 - EDL-620EN - MONACOR

• På lager
• På lager, 2-4 dage
• Bedømmelse for ELA-højttaler EN54 - EDL-620EN - MONACOR

  Produktet er endnu ikke bedømt

•
  469,00DKK ved 1 stk.

Vis uden moms

Betal med XpresPay

Trustpilot

Spørg til denne vare

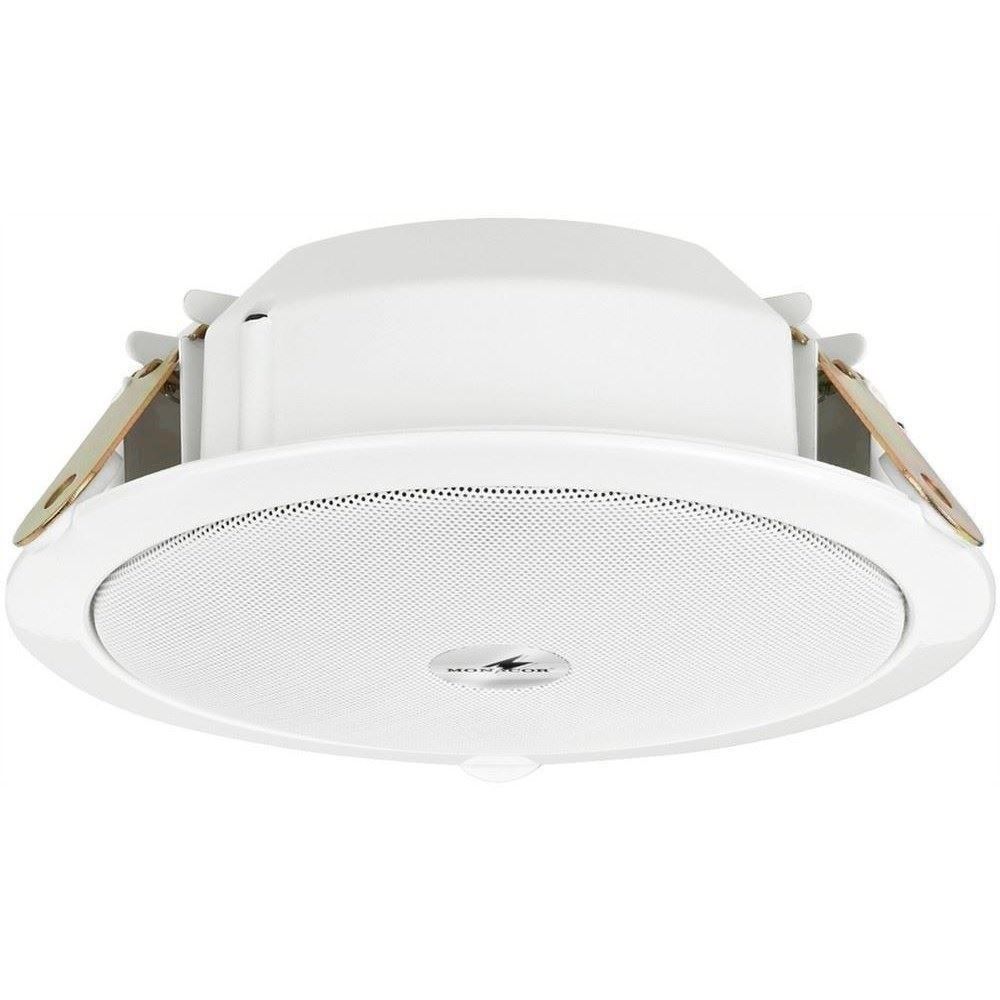

PA ceiling speakers, with EN 54-24 certification.

• 100 V line technique with 3 power taps
• Full range speaker with optimised voice reproduction
• Plastic cover with low mounting depth
• For a ceiling thickness from 5 to 22 mm
• Quick installation
• Robust metal basket and protective grille

Impedance (Z)	-
Transmission method	100 V
Frequency range	120-15,000 Hz
Resonant frequency (fs)	-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	-
Power rating	20/10/5 W
Peak music power output	-
Sensitivity	93 dB/W/m
Max. rated SPL	-
Max. voltage	-
Radiation angle, horizontal	-
Radiation angle, vertical	-
Suspension compl. (Cms)	-
Moving mass (Mms)	-
Mech. Q factor (Qms)	-
Electr. Q factor (Qes)	-
Total Q factor (Qts)	-
Equivalent volume (Vas)	-
DC resistance (Re)	-
Force factor (BxL)	-
Voice coil induct. (Le)	-
Voice coil diameter	-
Voice coil former	-
Linear excursion (XMAX)	-
Eff. cone area (Sd)	-
Magnet weight	-
Magnet diameter	-

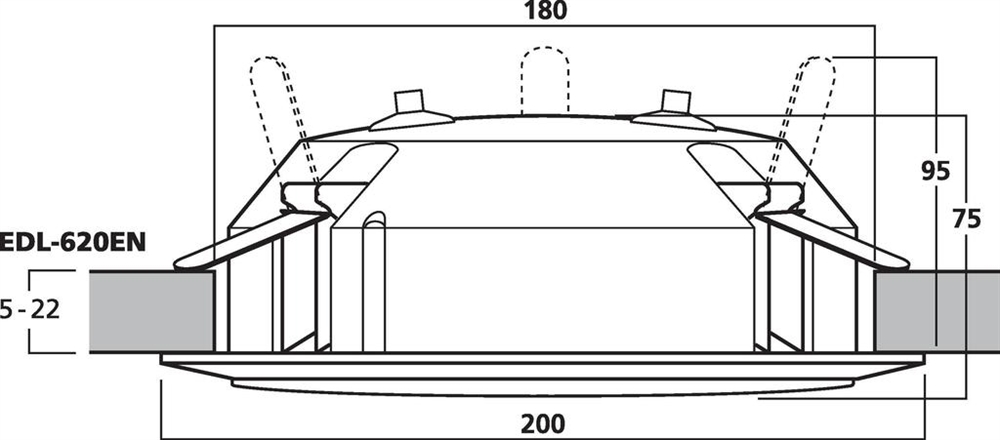

Mounting cutout	Ø 180 mm
Mounting depth	60 mm
Mounting hole diameter	-
Hole spacing X-axis	-
Hole spacing Y-axis	-
Dimensions	Ø 200 mm x 70 mm
Outside diameter	Ø 200 mm
Width	Ø 200 mm
Height	-
Depth	70 mm
Protective class	-
Admiss. ambient temp.	0-40 °C
Weight	1.1 kg
Packing unit	1
Type of speaker	165

Varenr.: 163180
