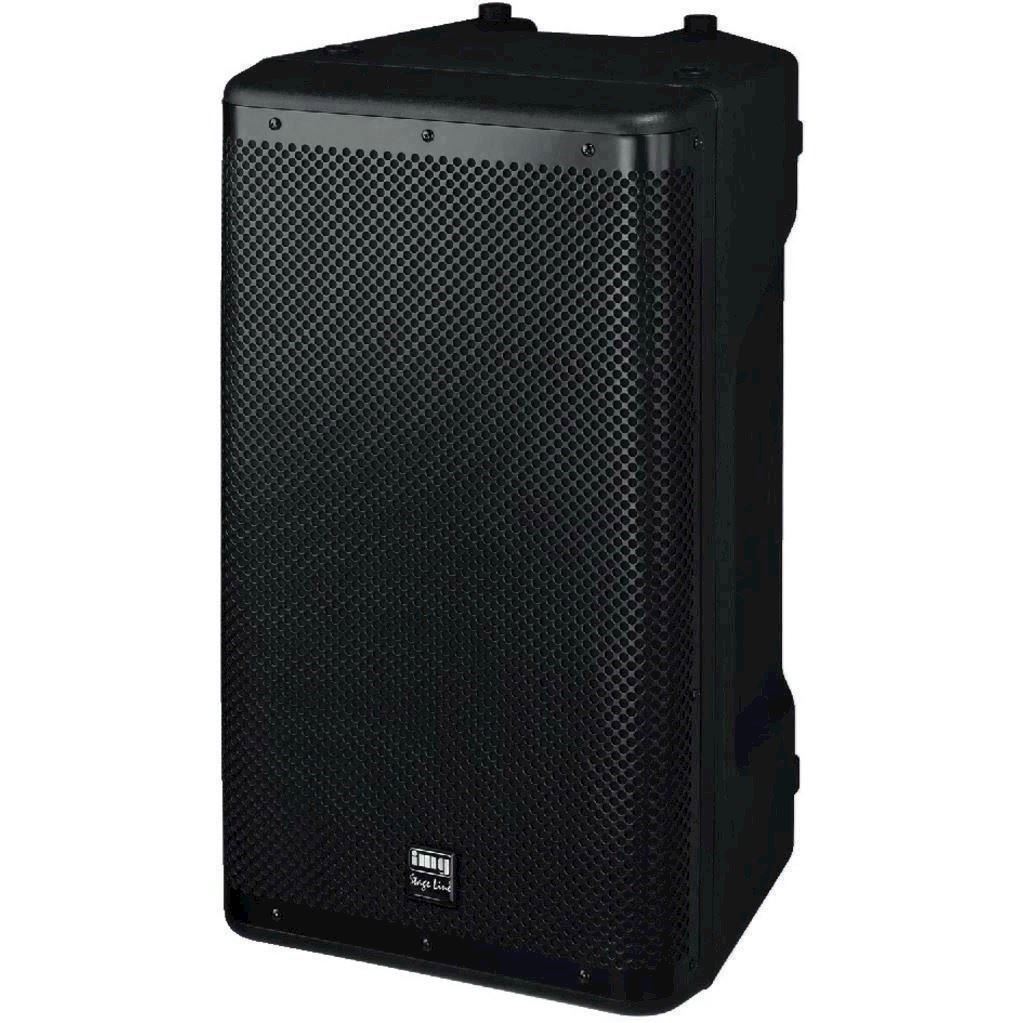

ELA-højttaler IP45 - PAB-120WP/SW - IMG STAGE LINE

ELA-højttaler IP45 - PAB-120WP/SW - IMG STAGE LINE
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for ELA-højttaler IP45 - PAB-120WP/SW - IMG STAGE LINE
    Produktet er endnu ikke bedømt
  •
    8.429,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


High-performance 2-way bass-reflex system with cabinet made of ABS plastic, 100V line technique
30cm (12") PA bass speaker with impregnated paper cone & 25mm (1") horn tweeter system


Weatherproof PA speakers with IP classification.
Exactly the right speakers whenever a high sound quality, a high volume capability and a respective resistance to all weather conditions are required. Ideally suited for permanent open-air applications, e.g. at fairground attractions, PA applications in pedestrian areas, at sports facilities and wherever a weather-protected installation of the speakers is not possible.
Weatherproof high-performance PA speaker system, 120 W
  • High-performance 2-way bass-reflex system in an ABS cabinet
  • 100 V line technique
  • 30 cm (12") PA bass speaker with impregnated paper cone
  • 25 mm (1") horn tweeter system
  • Excellent sound characteristics
  • Front grille with water-repellent gauze
  • SPEAKER in and parallel out
  • Metal parts made of stainless steel
  • 4 x M10 threaded insert each at the top and bottom for suspended installation
  • Stand sleeve
  • Ball-proof according to DIN 18032, part 3
Production Partner 04/2012
"With the PAB-12WP/SW, the product range of IMG Stage Line now includes a weatherproof (IP45) 12/2 speaker system. It is available at an attractive price yet has plenty to offer. The speaker system provides impressive test results and a great sound experience. Overall, the PAB-12WP/SW and the PAB-120WP/SW can definitely be recommended for purchase, especially if you need a solid 12/2 speaker system which is able to still operate effectively even under difficult boundary conditions." Test author Anselm Goertz


Active/passivepassive
Transmission method100 V
Impedance
Frequency range42-20,000 Hz
Power rating-
Max. power-
THD-
S/N ratio-
Input signal-
System2-way bass-reflex
Full range speaker-
Bass speaker30 cm (12") PA bass speaker
Midrange speaker-
Tweeter25 mm (1") horn tweeter
Number of speakers2
Speaker size30 cm (12")
Power rating120/60/30 W
Peak music power output
Sensitivity98 dB/W/m
Max. rated SPL119 dB
Radiation angle, horizontal-
Radiation angle, vertical-
Features
Housing materialABS
Colourblack
Mounting facilityM10 threaded inserts, stand sleeve
Protected against ball reboundyes
Protective classIP45
Admiss. ambient temp.-10 °C to +40 °C
Power supply-
Width370 mm
Height655 mm
Depth410 mm
Weight21 kg
Inputs1 x SPEAKER
Outputs1 x SPEAKER, par. out
Replacement voice coil
Other features-
Accessories
Varenr.: 253750
