FEATURES

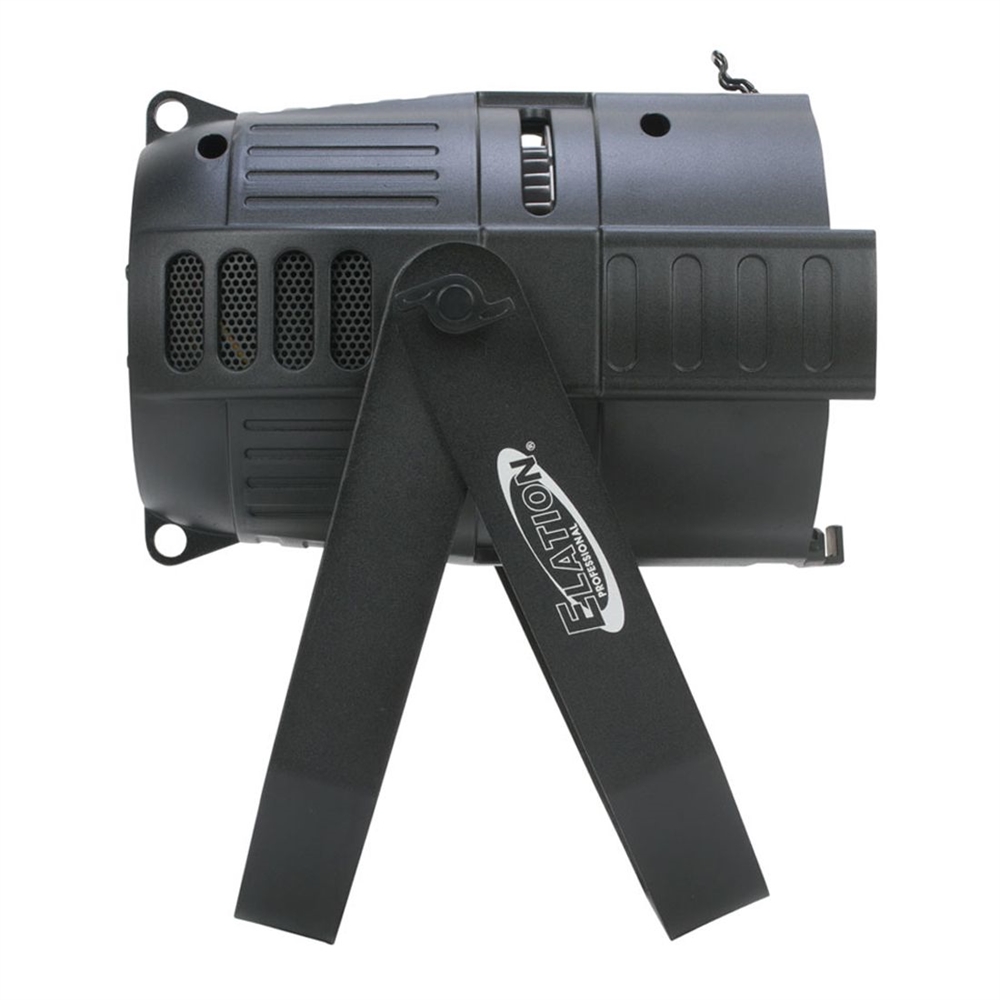

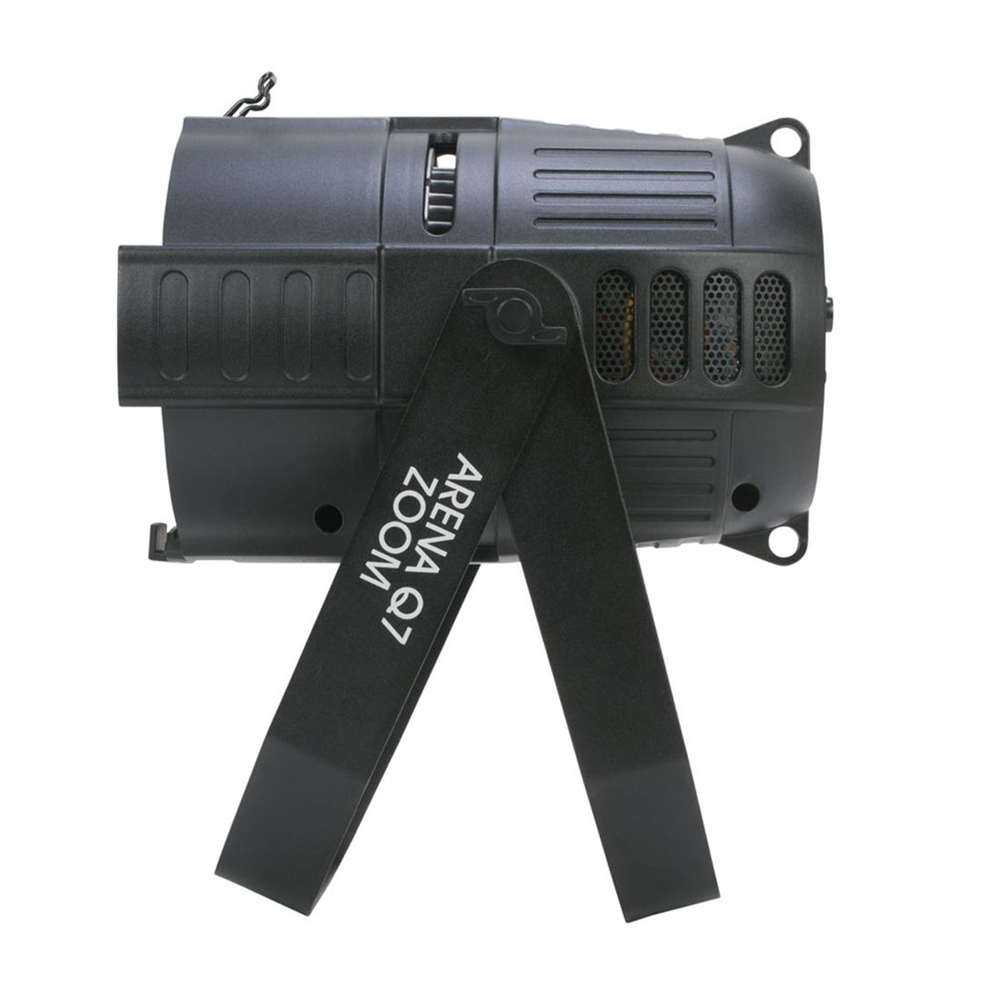

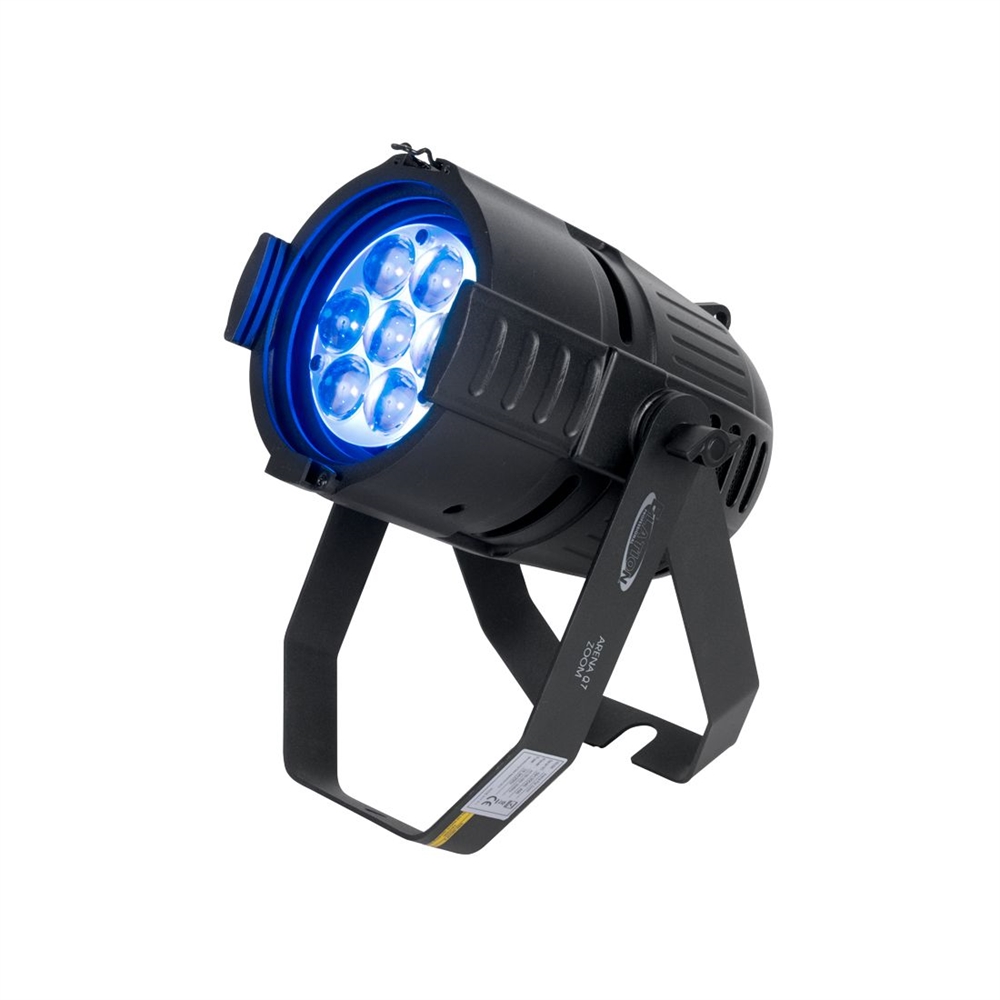

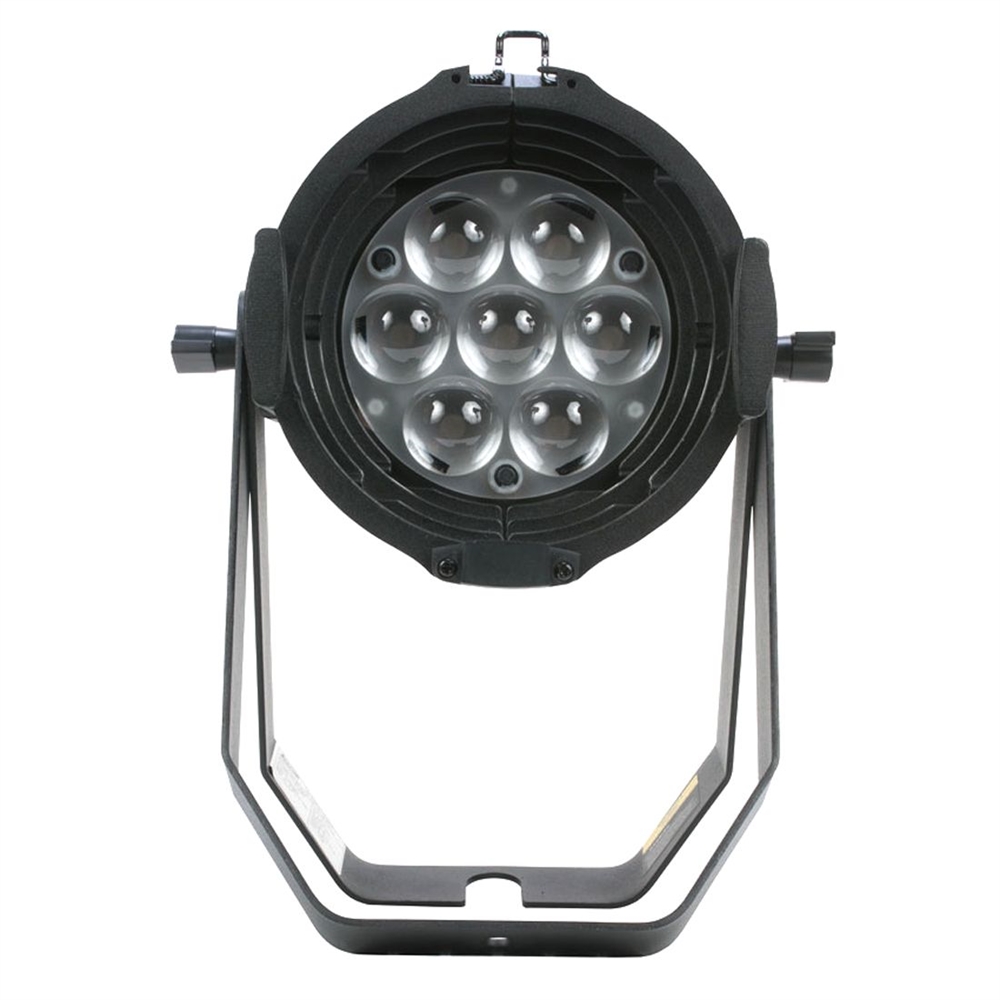

Versatile LED Zoom Par Luminaire
Motorized 10° - 60° Zoom
Full RGBW Color Mixing
Variable Dimming Curves
Flicker Free Operation for TV and Film
SOURCE
7 x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average LED Life*
PHOTOMETRIC DATA
47,500 LUX 706 FC @ 3.3’ (1m) (10° Beam Full On)
3680 LUX 342 FC @ 3.3’ (1m) (60° Beam Full On)
EFFECTS
64 Colour Macros
Strobe & Variable Strobe Macros
Electronic Dimming & Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
4 Button Control Panel
LCD Menu Display
5pin DMX In/Out
Power cable In/Out
Power Link Up To (15) Units at 120V, (28) Units at 230V
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.3” (388mm)
Width: 7.5” (190mm)
Vertical Height: 7.1” (180mm)
Weight: 13.2 lbs. (6 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
95W Max Power Consumption
Max Ambient Temperature 104°F (40°C)
OPTIONAL ACCESSORIES
1236100156 Barndoor for Arena Q7 Zoom
1322000058 A-Loader HH
