FEATURES
270W Cool White 12,000 Lumen LED Spot Luminaire
6° to 48° Motorized Zoom
Full CMY Color Mixing and Linear CTO Color Correction
7 Dichroic Colors including CTB and Violet
6 Rotating and 9 Static-Stamped Interchangeable Gobos
3-Facet and Linear Rotating Prisms and Frost Filter
Full 360° Bi-Directional Animation Wheel
High Speed Electronic Shutter and Strobe
Motorized Iris, Focus, and Auto-Focus
Variable Dimming Curve Modes
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM
Pan Angle: 540°, 630°
Tilt Angle: 255°
SOURCE
270W Cool White LED Engine
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
12,000 Total Lumen Output
CRI 72+
Zoom Range 6° - 48°
Beam Angle 7.3° - 41.5°
Field Angle 8.4° - 46.1°
EFFECTS
6° - 48° Motorized Zoom
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360° Bi-Directional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus and Auto-Focus
High Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness
COLOR
7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (40 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-Net, sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver

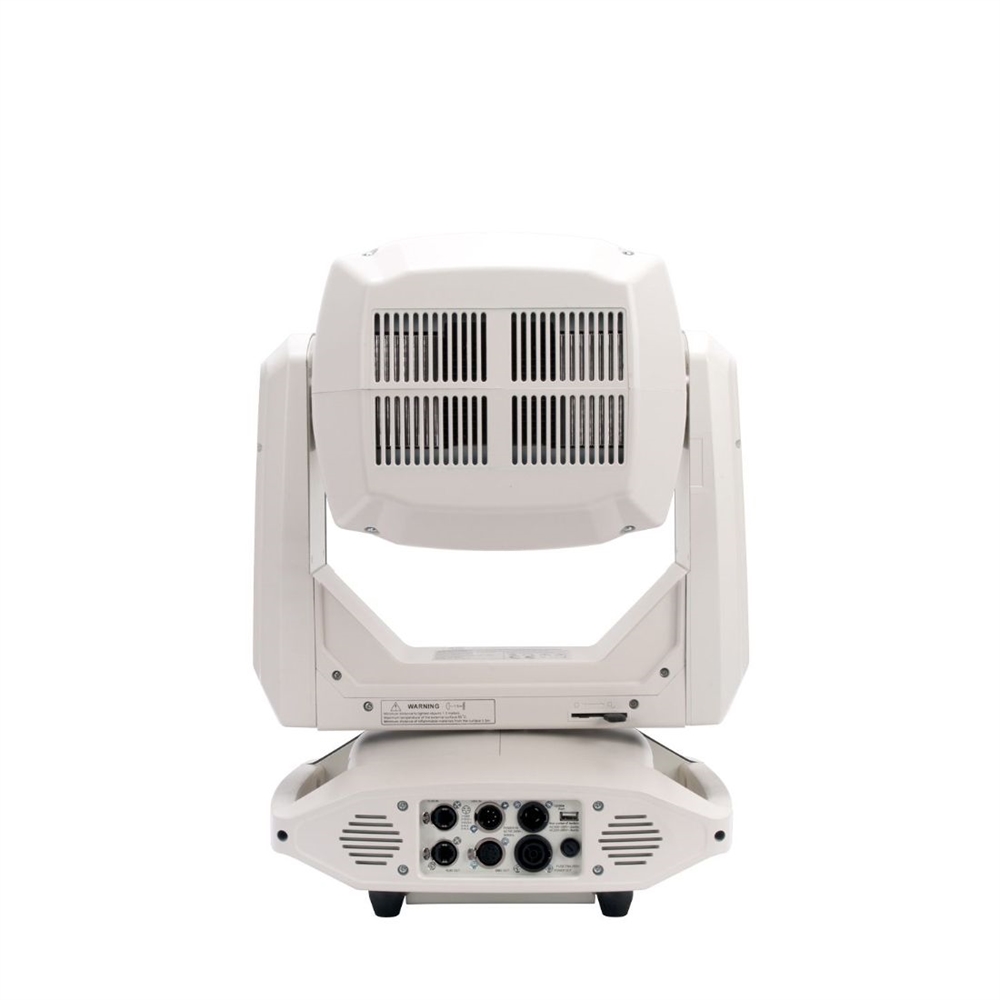

Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 416mm (16.4”)
Width: 284mm (11.2”)
Vertical Height: 645mm (25.4”)
Weight: 25.4 kg (56.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
470W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1602.7
