SOURCE

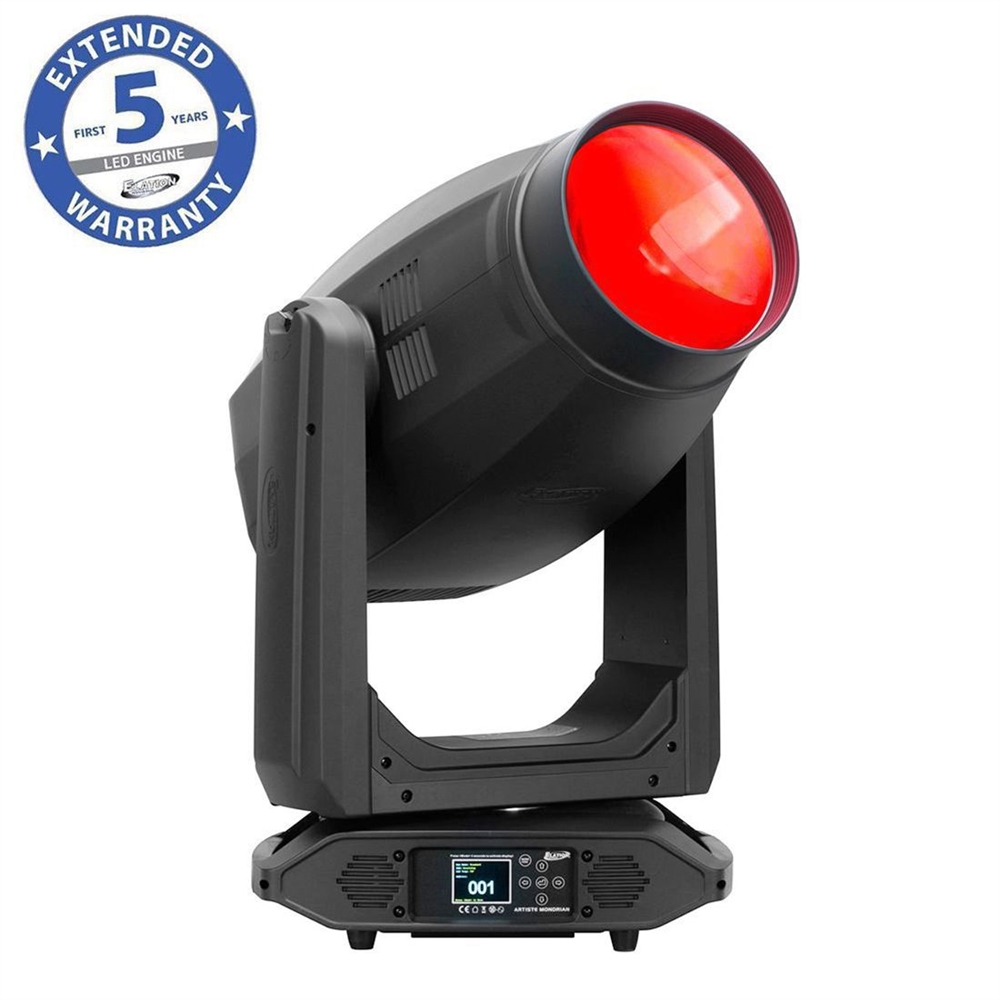

950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (84+ with HCRI Filter)
Zoom Range 3° - 45°
Beam Angle 2.8° - 34.9°
Field Angle 4° - 46.1°
EFFECTS
Motorized Zoom (226mm / 8 3/4" front lens)
4 Rotating Full Blackout Framing Blades
360° Continuous Framing Index and Rotation
Full 360° Bi-Directional Animation Wheel
Internal Color, Framing, Prism, and Frost Macros
2 Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
High Speed Electronic Shutter and Strobe
Variable 16-bit Dimming Curve Modes
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
SpectraColor CMY + RGB Color Mixing Array
6 Dichroic Colors including High CRI Filter and UV
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
12 Rotating / Indexing Interchangeable Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes (42 / 68)
Motorized Focus and Auto-Focus Presets
16-bit Pan, Tilt and Dimming Control
DMX, RDM, Art-NET, sACN Protocol Support
Full Color 180° Reversible LCD Menu Display
(6) Button Touch Control Panel
Hibernation Mode (Power Save)
USB Connection (Firmware Updates)

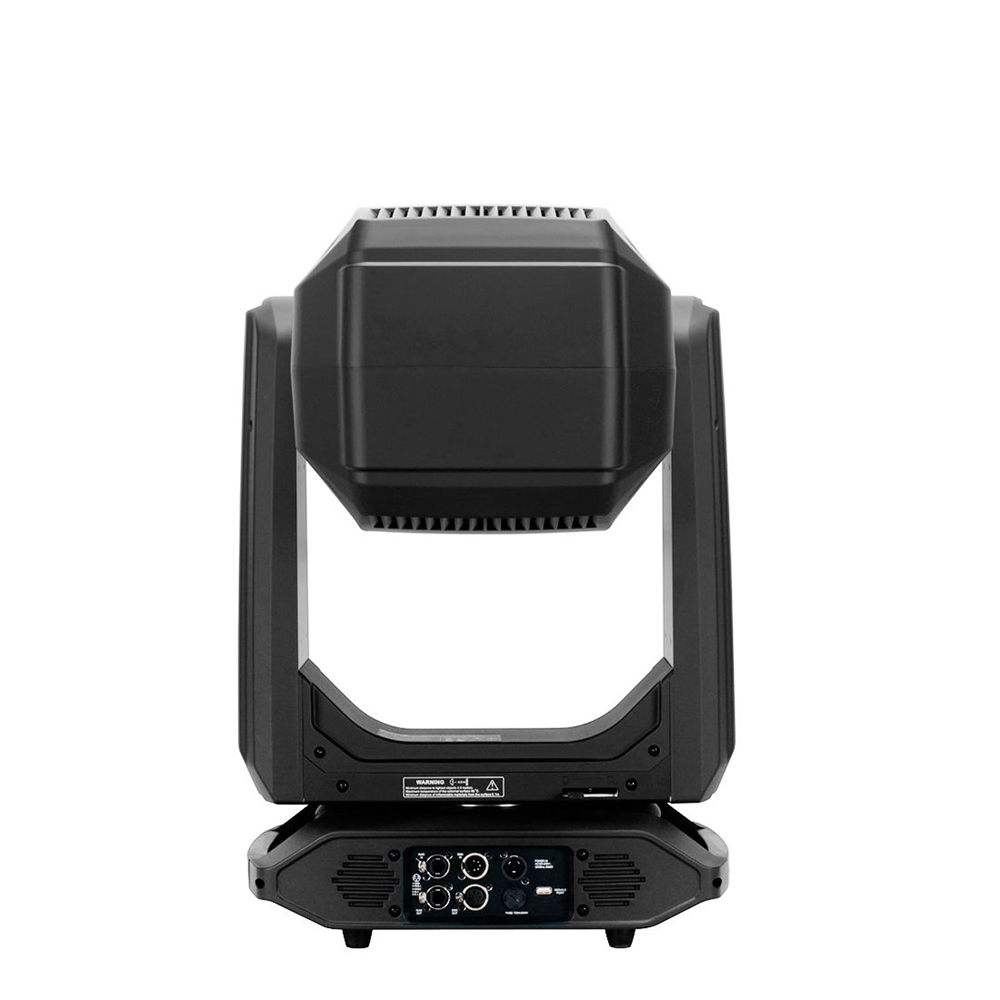

Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network
SIZE / WEIGHT
Width: 673mm (26.5 in.)
Length: 472mm (18.55 in.)
Height: 870mm (34.2 in.)
Weight: 47.5kg (104.7 lbs.)
ELECTRICAL/THERMAL
1,500W Max Power Consumption
AC 120-240V 50/60Hz
BTU/hr (+/- 10%) 5115
