FEATURES
High Efficiency 950W 6,500K White LED Engine
Up to 45,000 Total Lumen Fixture Output
SpectraColor CMYRGB Array and Variable Linear CTO
6 Position Color Wheel, High CRI, UV Filter
Full Blackout Framing System with 360° Continuous Index and Rotation of Shapes
Complete FX System Featuring Rotating & Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost

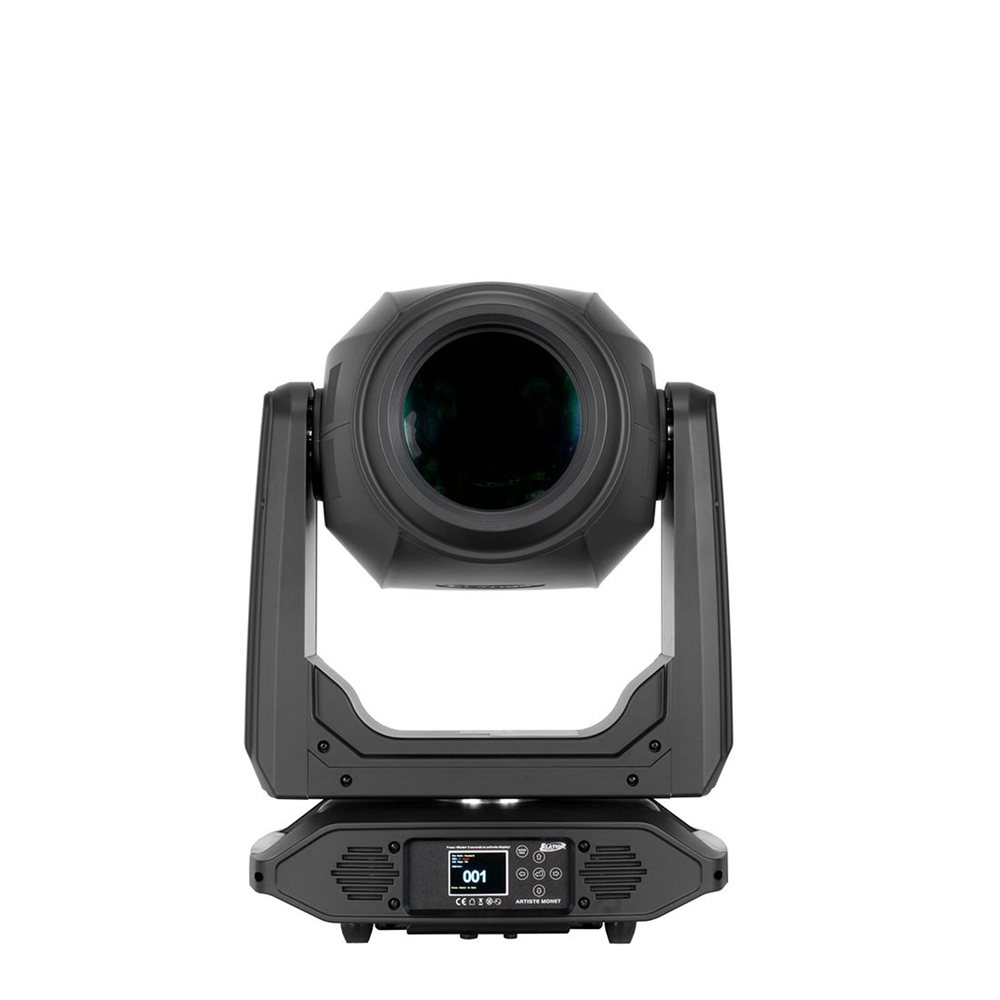

Wide Zoom Range from 6.8° to 55° / Large 160mm Front Aperture Lens
DMX Controllable Variable Fan Modes / Low Noise Operation, Studio (37db @ 1M 50% output) and Mute (33db @ 1M 25% output) mode options

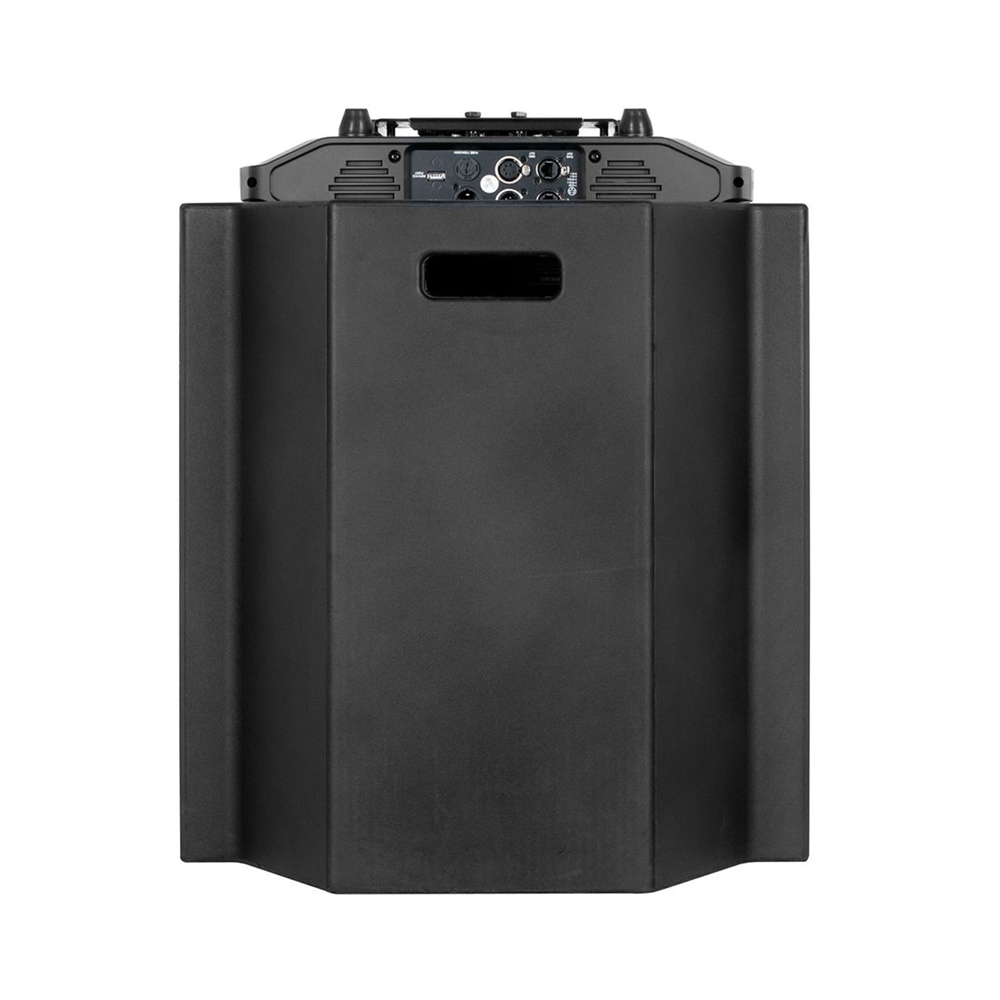

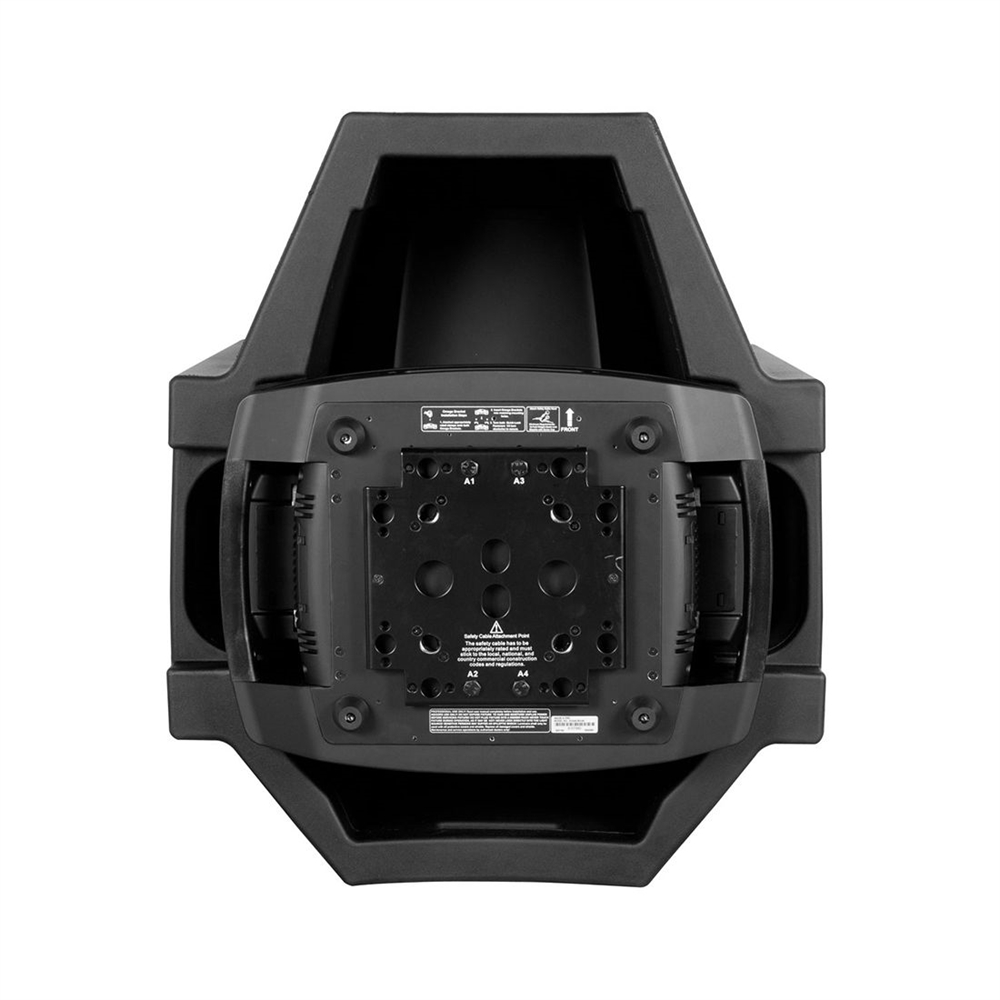

FIL (Foam In Lay) Polyurethane Foam Packaging Included
SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
45,000 Total Output Lumens
CRI 72+ (84 with HCRI Filter)
Zoom Range 6.8° - 55°
Beam Angle 4.8° - 41.2°
Field Angle 6.1° - 51°
COLOR
SpectraColor CMY + RGB Color Mixing Array
6 Dichroic Colors including High CRI Filter and UV
Linear CTO Color Correction
EFFECTS
Motorized Zoom (large 160mm front lens)
4-Rotating Full Blackout Framing Blades
360˚Continuous Framing Index and Rotation
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear, Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Internal Color, Framing, Prism, and Frost Macros
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°/630°
Tilt Angle: 250°
GOBOS
2 Gobo Wheels
7 Static interchangeable Glass Gobos
7 Rotating / Indexing interchangeable Glass Gobos
CONTROL / CONNECTIONS
Two DMX Channel Modes (40 / 67 channels)
Motorized Focus and Auto-Focus Presets
DMX Controllable Variable Fan Modes
16-bit Pan, Tilt and Dimming Control
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel

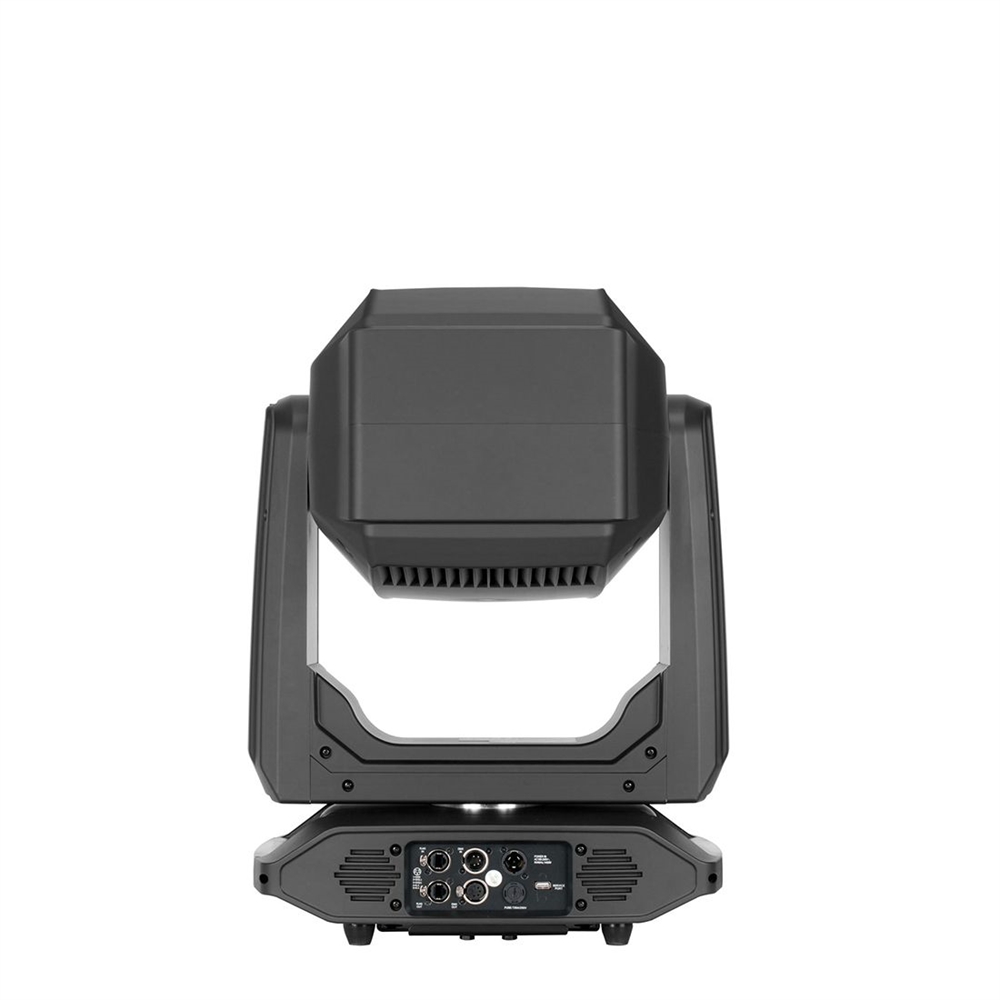

Locking 5pin XLR DMX, RJ45 Ethernet and Power
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
USB Connection for Firmware Updates
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 471.09mm (18.55 in.)
Width: 583.37mm (22.97 in.)
Height: 800.40mm (31.51 in.)
Center Spacing: 751.00mm (29.57 in)
Weight: 42.6 kg (94.0 lbs.)
ELECTRICAL / THERMAL
1400W Max Power Consumption
AC 100-240V - 50/60Hz
BTU/hr (+/- 10%) 4456.87
