SOURCE
950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
51,000 Total Lumen Fixture Output
CRI 72+ (85+ with HCRI filter)
Fresnel
Zoom Range 11° - 55°
Beam Angle 6.1° - 43.1°
Field Angle 51.9° - 64.9°

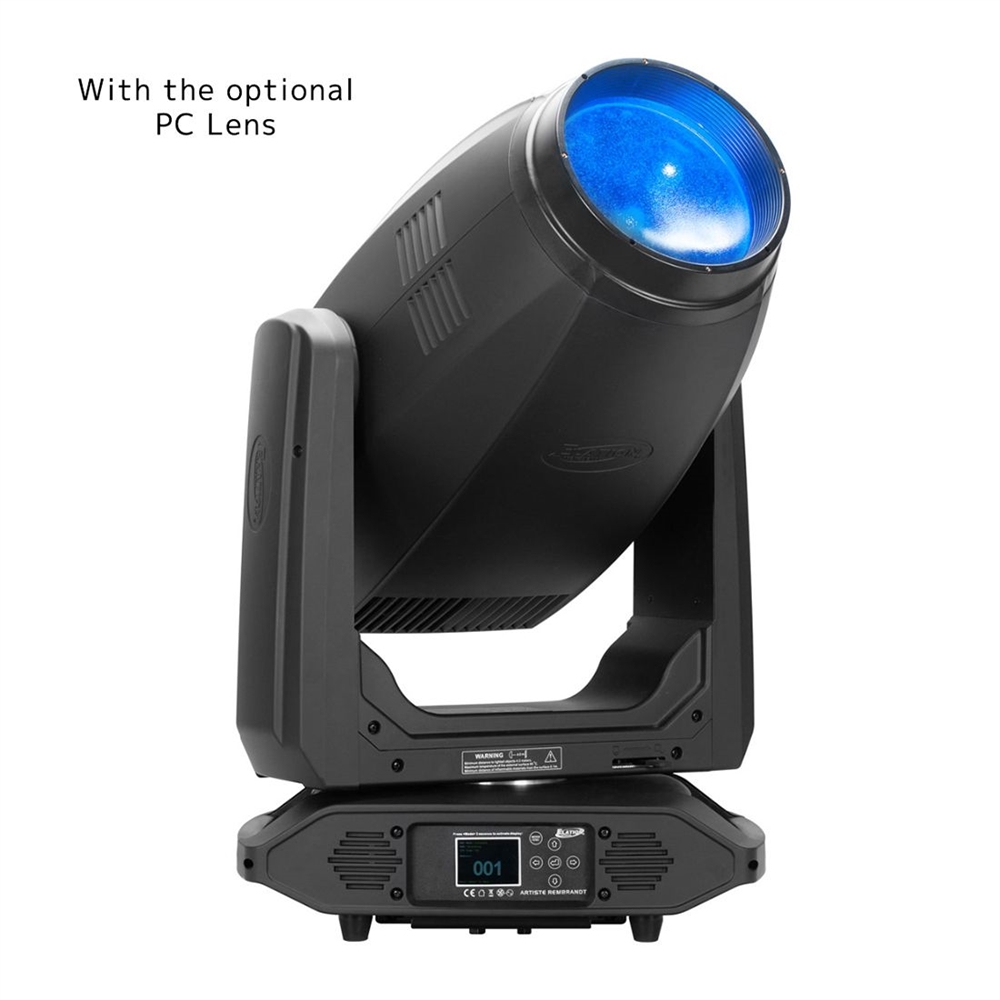

PC (optional)
Zoom Range 8° - 50°
Beam Angle 6.5° - 45°
Field Angle 10.8° - 75.7°
EFFECTS
Motorized Zoom
4 Full Blackout Framing Blades
360° Framing Index - Continuous Framing Rotation
2 Variable Frost Filters (Medium, Heavy)
2 Bi-Directional Animation Wheels
High Speed Iris
Variable 16-bit Dimming Curve Modes
Focus Edge Control
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency
Pan Angle: 540°/630°
Tilt Angle: 250°
COLOR
6 Dichroic Colors including High CRI Filter, UV
SpectraColor CMY + RGB color mixing array
Linear CTO Color Correction
CONTROL / CONNECTIONS
2 DMX Channel Modes (35/59 Ch.)
16-bit Pan, Tilt, and Dimming Control
DMX, RDM, Art-NET, and sACN Protocol Support
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)

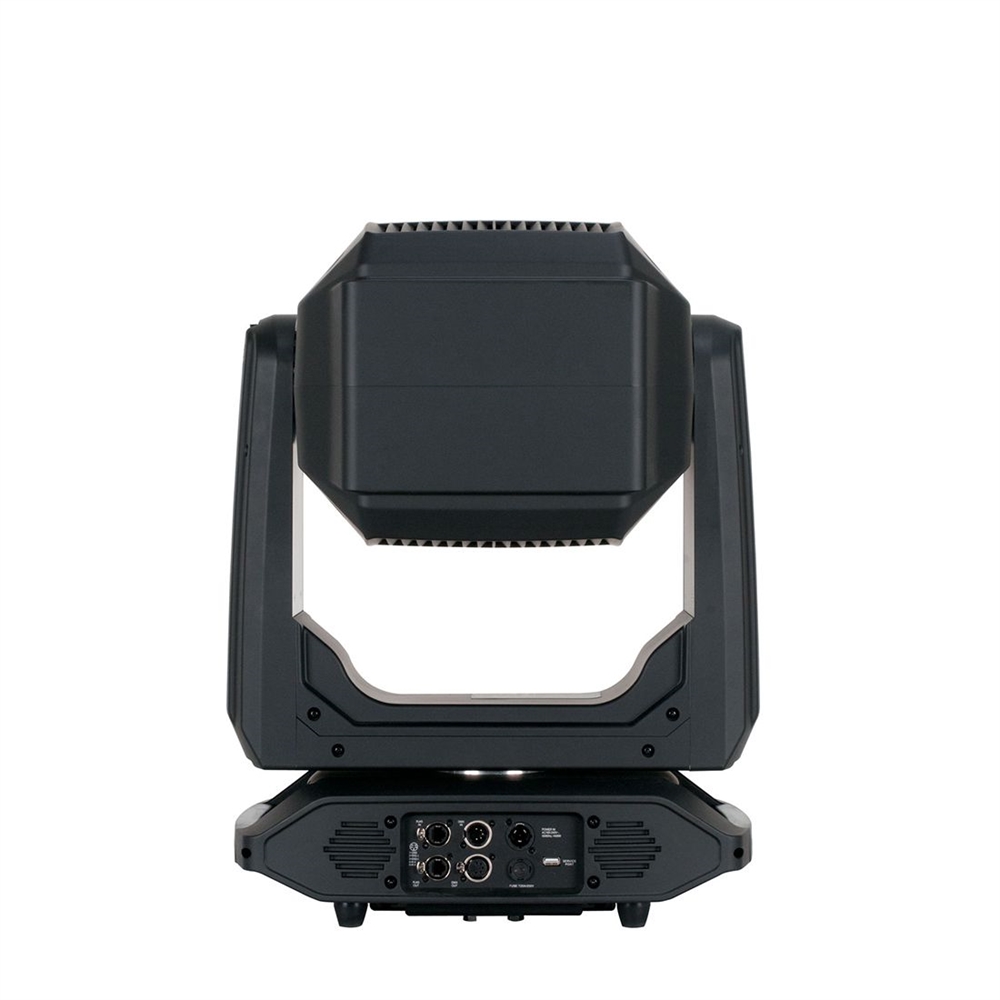

Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 471mm (18.54 in)
Width: 333mm (13.11 in)
Vertical Height (Fresnel Lens): 805mm (31.69 in)
Vertical Height (optional PC Lens): 793mm (31.22 in)
Weight: 43 kg (94.7lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 4433
OPTIONAL ACCESSORIES
1237000248- PC Lens (See below in Related Products)
