FEATURES
High Output Bright White LED Engine with excellent color rendition
CMY and CTO color mixing
7 Position Color Wheel

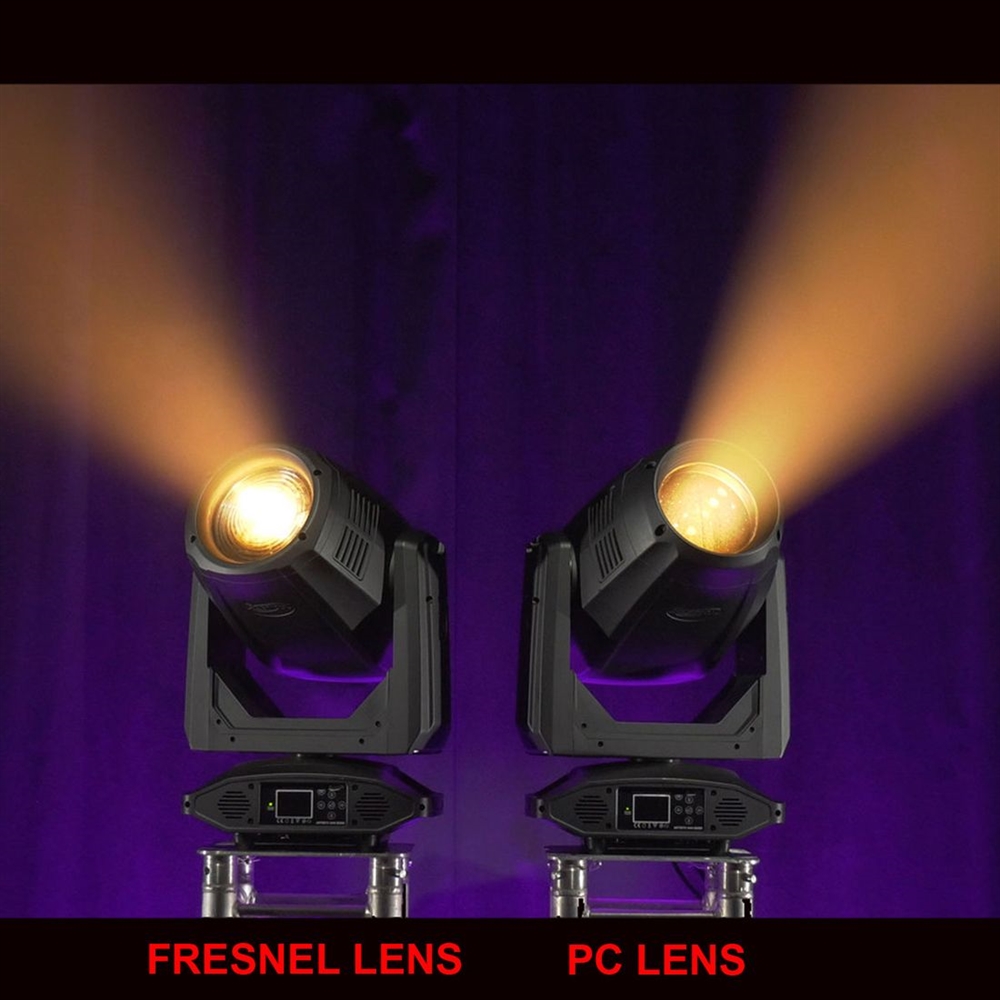

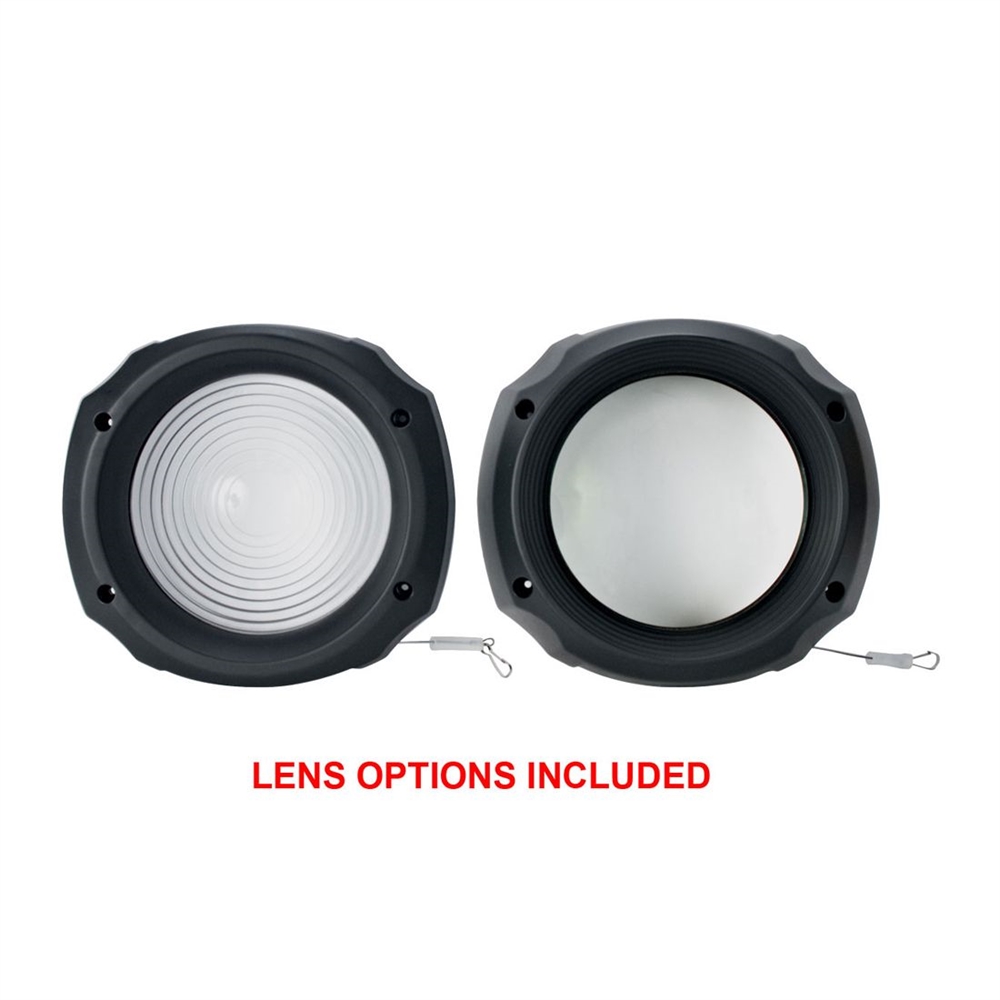

Interchangeable PC and Fresnel Lens options included for even washes and powerful illumination
Internal indexable barn door system for beam shaping and light control at any angle
Seamless Frost Filter
Silent and Cool Operation
SOURCE
380W 6,500K LED Engine
20,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
16,000 Total Output Lumen
CRI 91
Fresnel Lens
Zoom Range 11° - 66°
Beam Angle 7.5° - 45.2°
Field Angle 16.5° - 68.2°
PC Lens
Zoom Range 7° - 55°
Beam Angle 5.6° - 43.2°
Field Angle 7.1° - 58°
EFFECTS
Motorized Zoom
CMY+ CTO Color Mixing
7 Position Fixed Color Wheel including UV
4 Independent Barn Doors
Barn Door Index Adjustment
Frost Filter
Remote Focus Adjustment
Electronic Strobe and Variable Dimming Curves
16-bit Dimming
Pan Angle: 540°/630°
Tilt Angle: 260°
CONTROL / CONNECTIONS
2 DMX Channel Modes (22 / 36 Channels)
DMX Adjustable Refresh Rate (900 -25,000 Hz)
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net, sACN Protocol Support

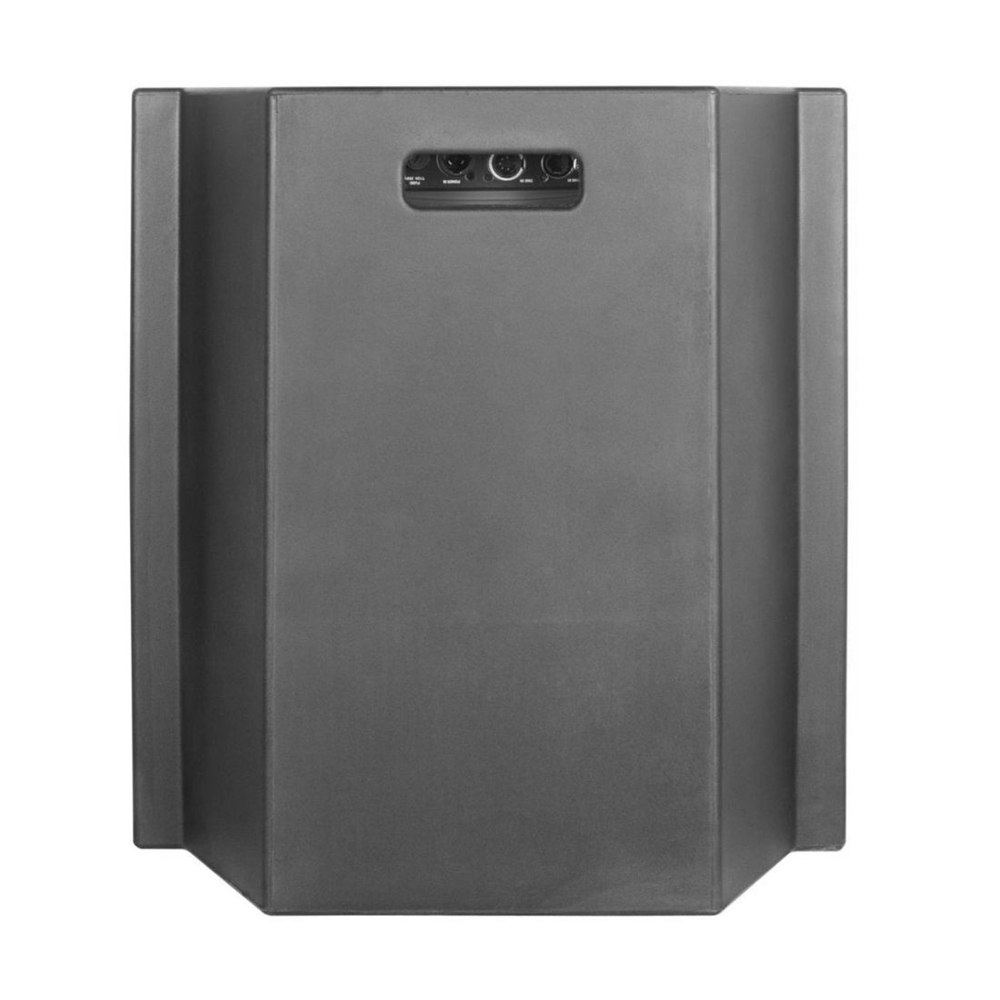

Locking 5pin XLR DMX, RJ45 Ethernet and Power
USB Connection (Firmware Updates)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 399.6mm (15.73 in)
Width: 447.3mm (17.61 in) (Fresnel Lens)
Height: 669mm (26.34 in)
Weight: 28.5kg (62.8 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
600W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 2046
