FEATURES
High CRI >94, 4,100 Total Lumens*

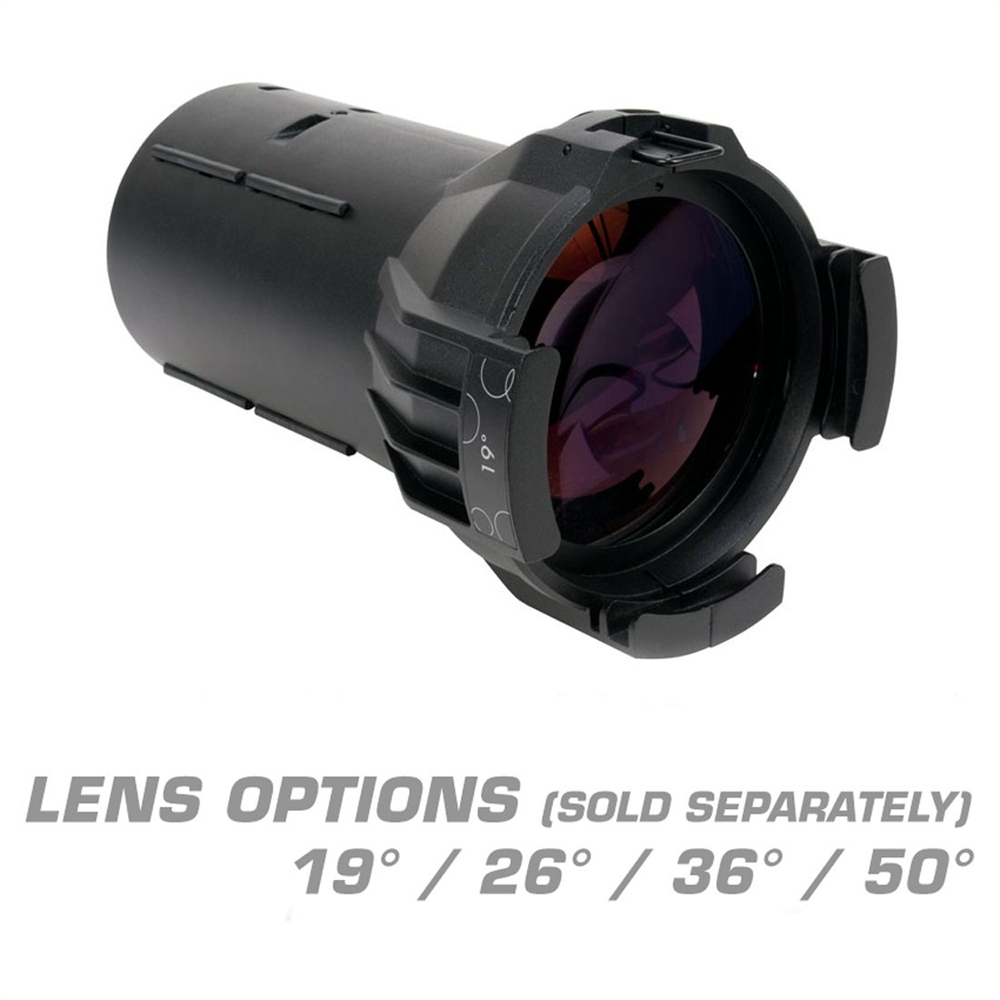

Interchangeable Lens Options** (19°, 26°, 36°, 50°)

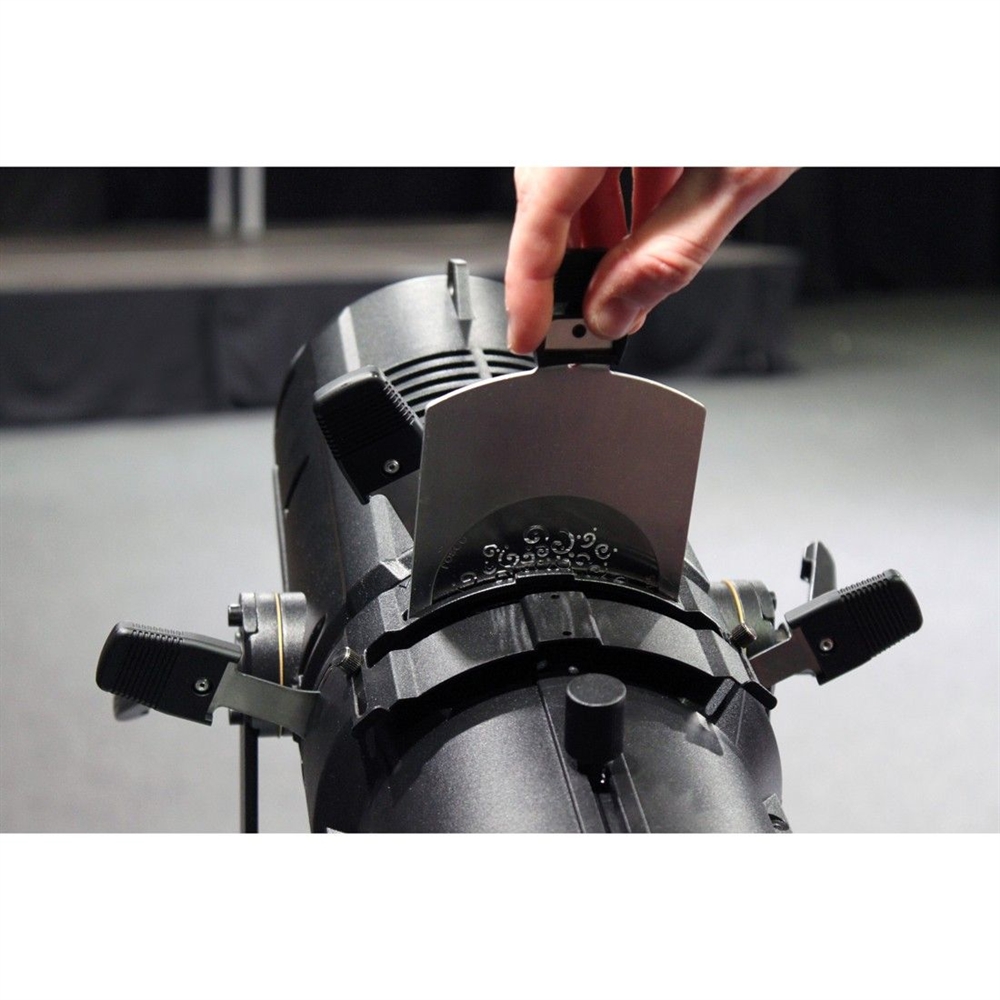

(4) Blade Manual Framing Shutters
Variable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
(*with 26° lens)(**sold separately)
SOURCE

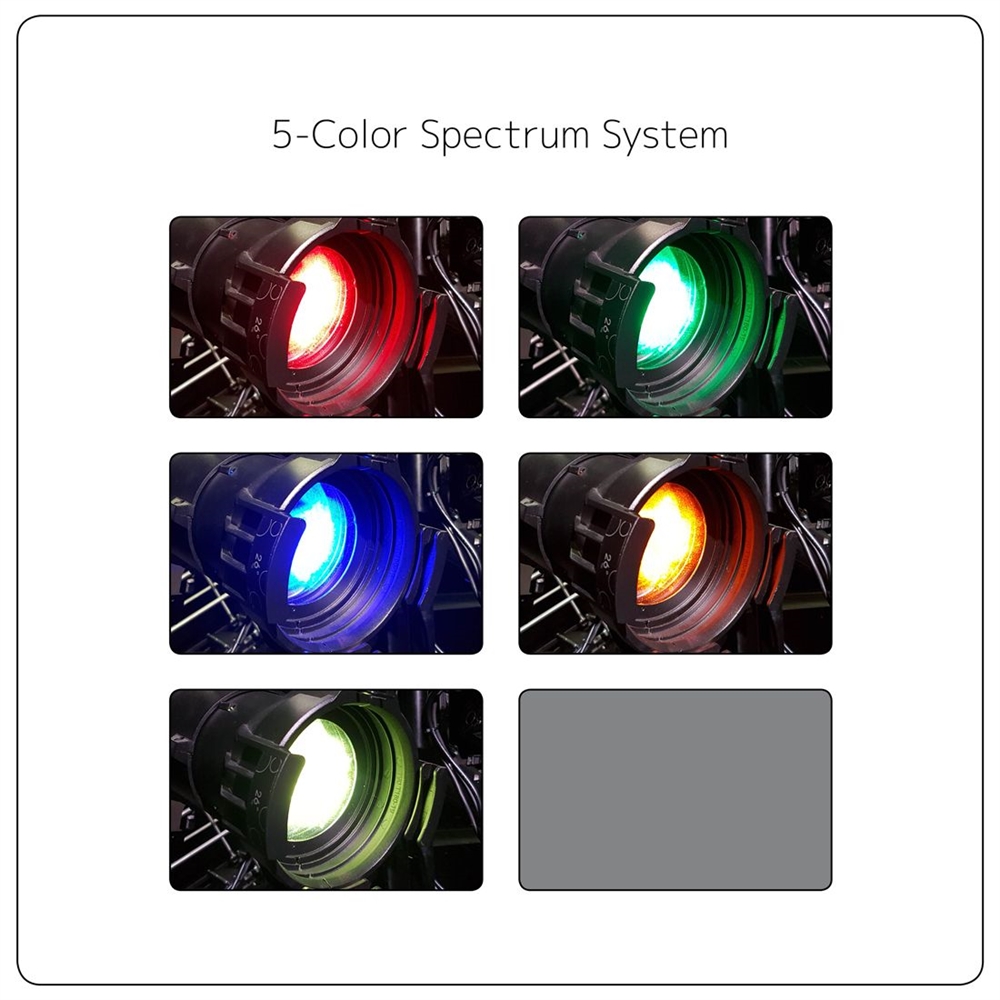

180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
>94CRI 4,100 Total Lumens*
(*with 26° lens)
COLOUR
RGBMA
EFFECTS
Electronic Strobe and Dimming
Variable Dimming Curve Modes
GOBOS
Supports “B” Size Metal, HT Transparency Gobos*
*Gobos and Holder not included.

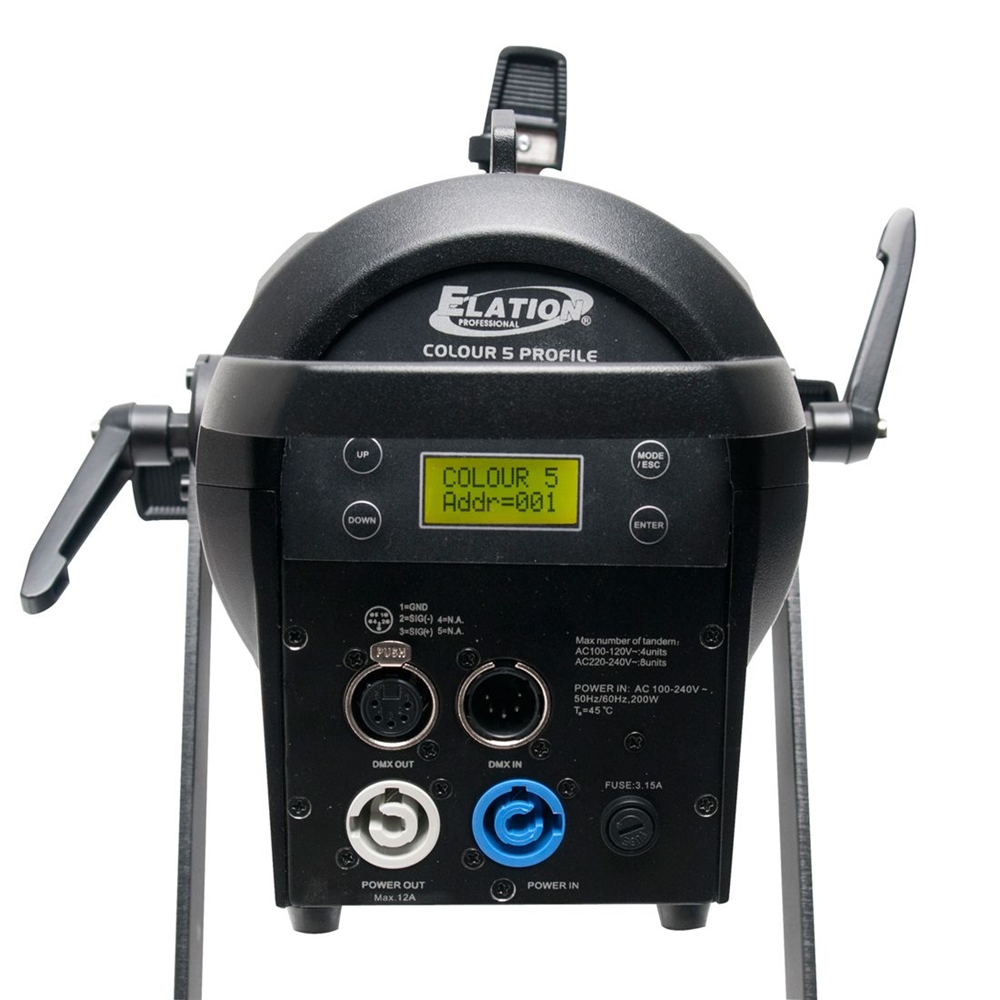

CONTROL / CONNECTIONS
(5) DMX Channel Modes (5 / 6 / 8 / 13 / 19) & RDM
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Control Panel
LED Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 618mm (24.3”) / 674mm (26.5”) Fully Extended
Width: 310mm (12.2”)
Vertical Height: 398mm (15.7”)
Weight: 9.5 kg (21.0 lbs.)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
225W Max Power Consumption
Power Linking: 4pcs Max @120V / 8pcs Max @240V
-10° to 45°C (14° to 113°F)
BTU/hr (+/- 10%) 767.25
