FEATURES

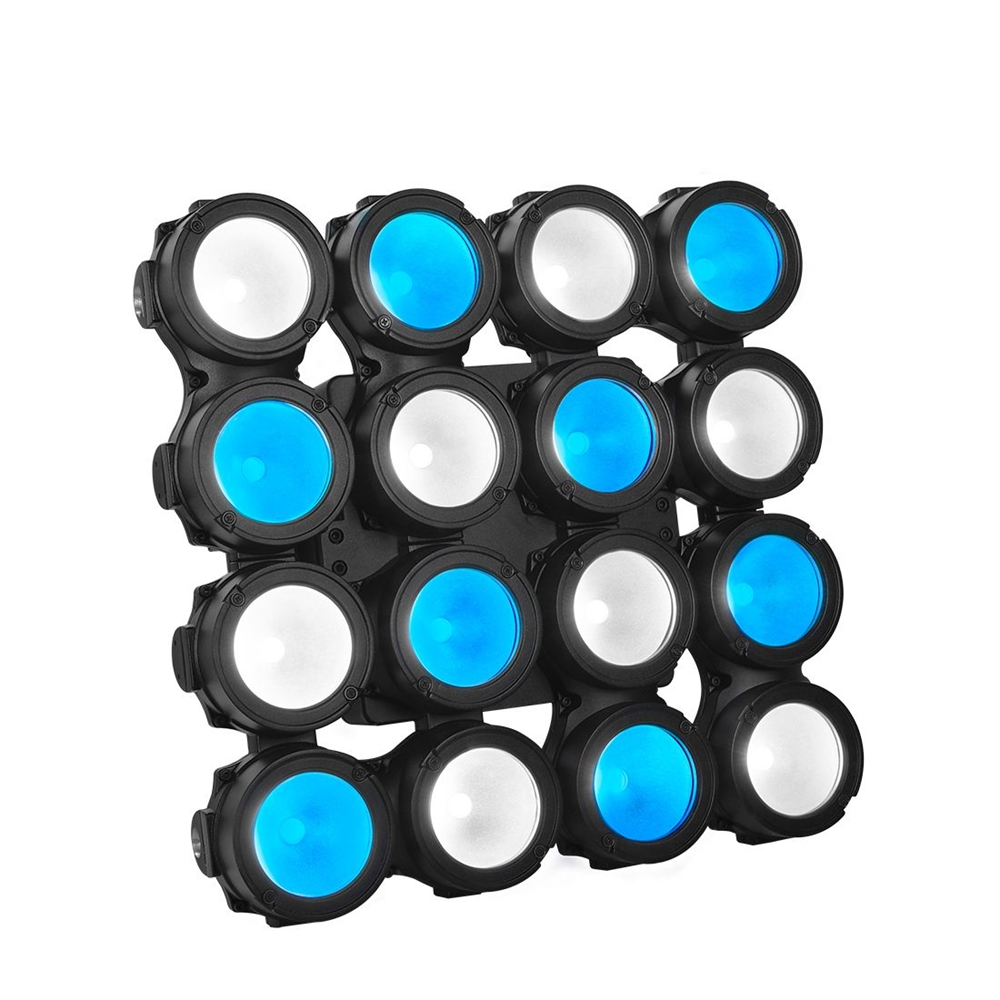

Versatile IP65 Outdoor Rated Effect Panel Luminaire

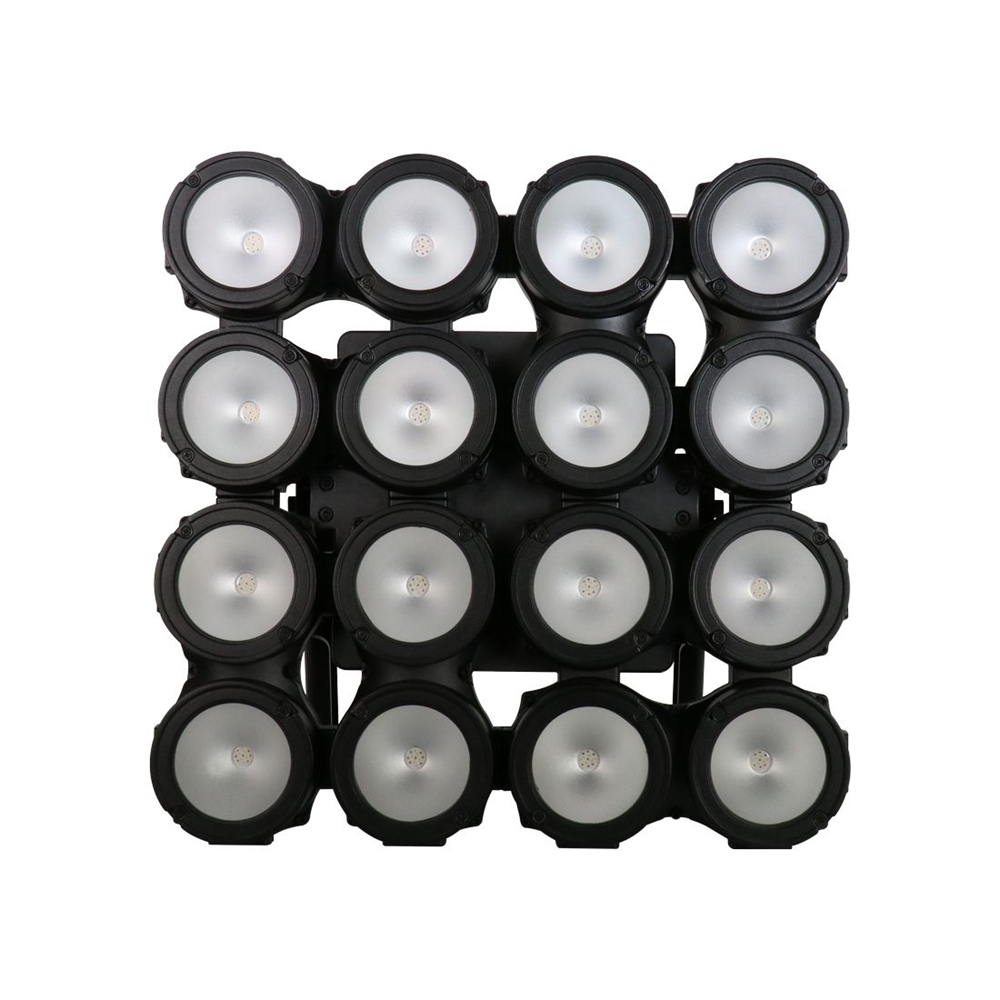

4x4 Array of (16) 30W 4-in-1 RGBA COB LEDs
62° Beam and 87° Field Angles
Full Pixel Control with Pixel Flip Modes
RGB+ Dynamic Amber Channel Mode
16-bit Dimming and Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation for Broadcast TV and FILM
No Fans for Noise-Sensitive Applications
DMX, RDM, Kling-NET, and Art-NET Protocol Support

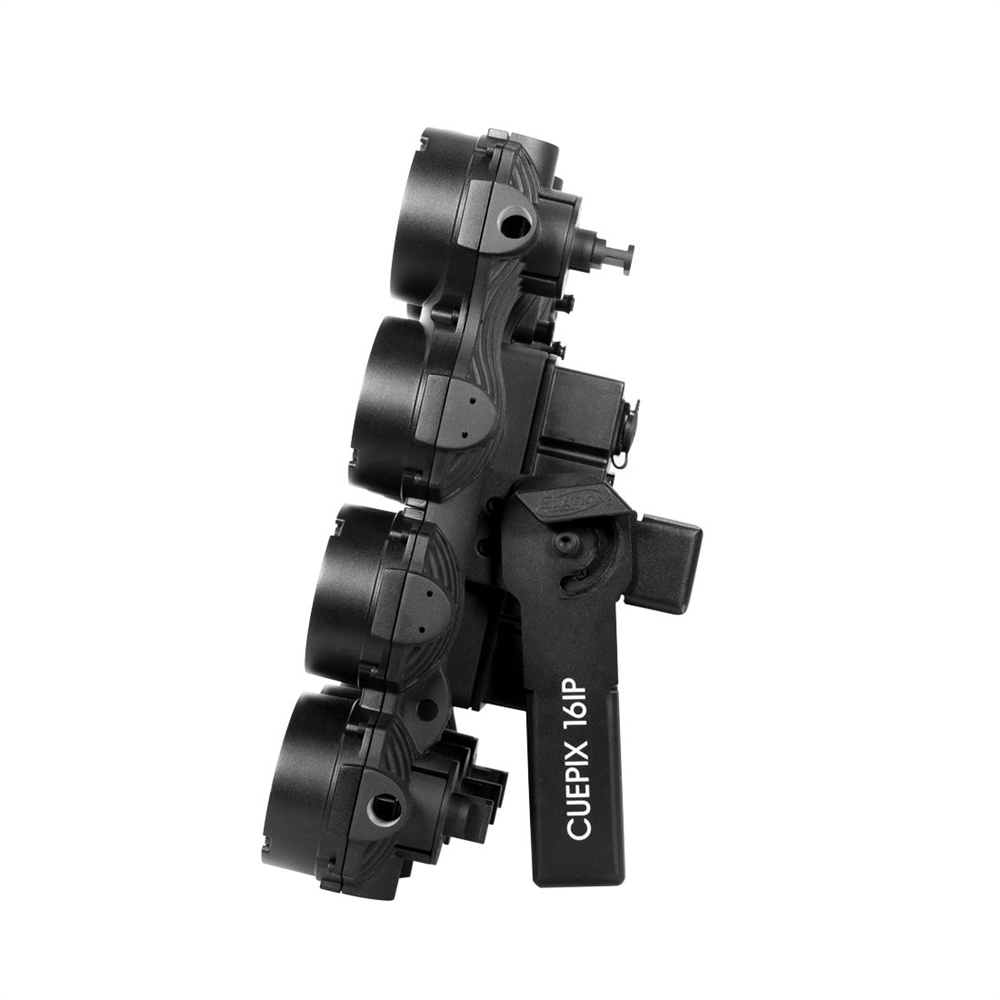

90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

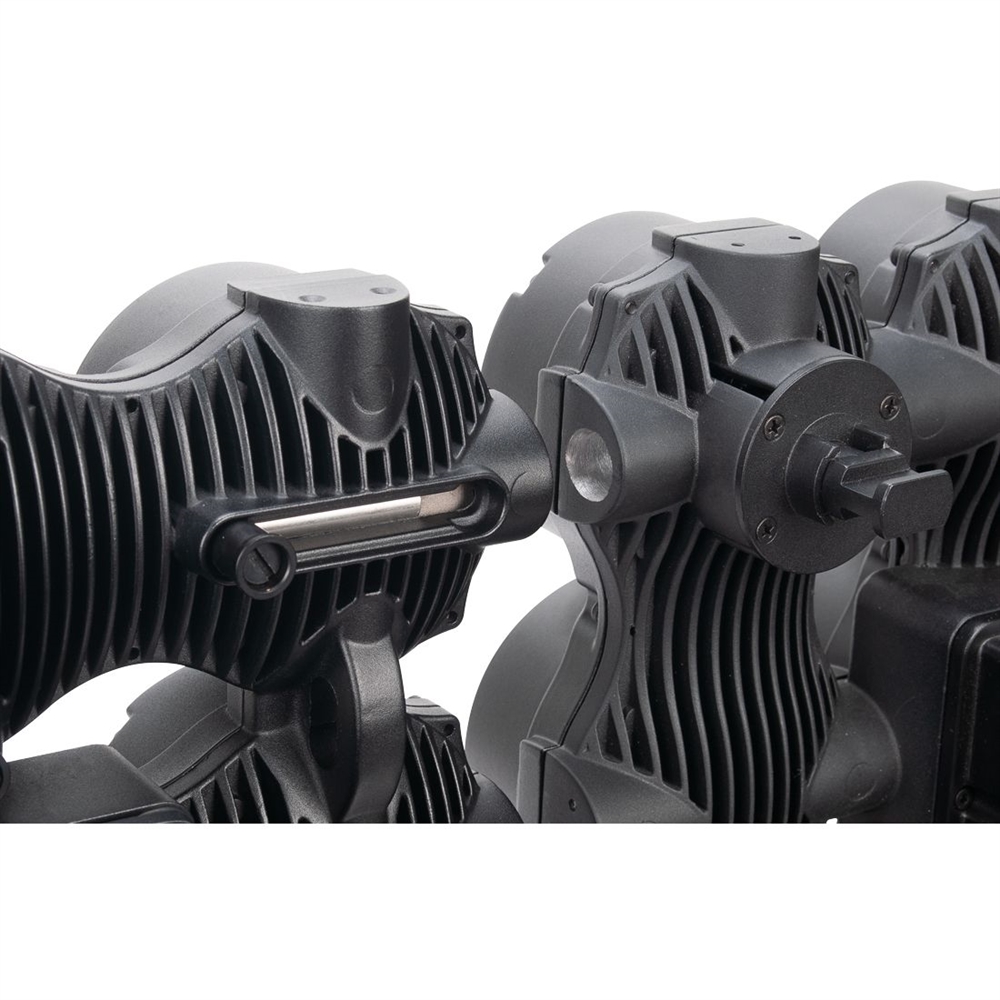

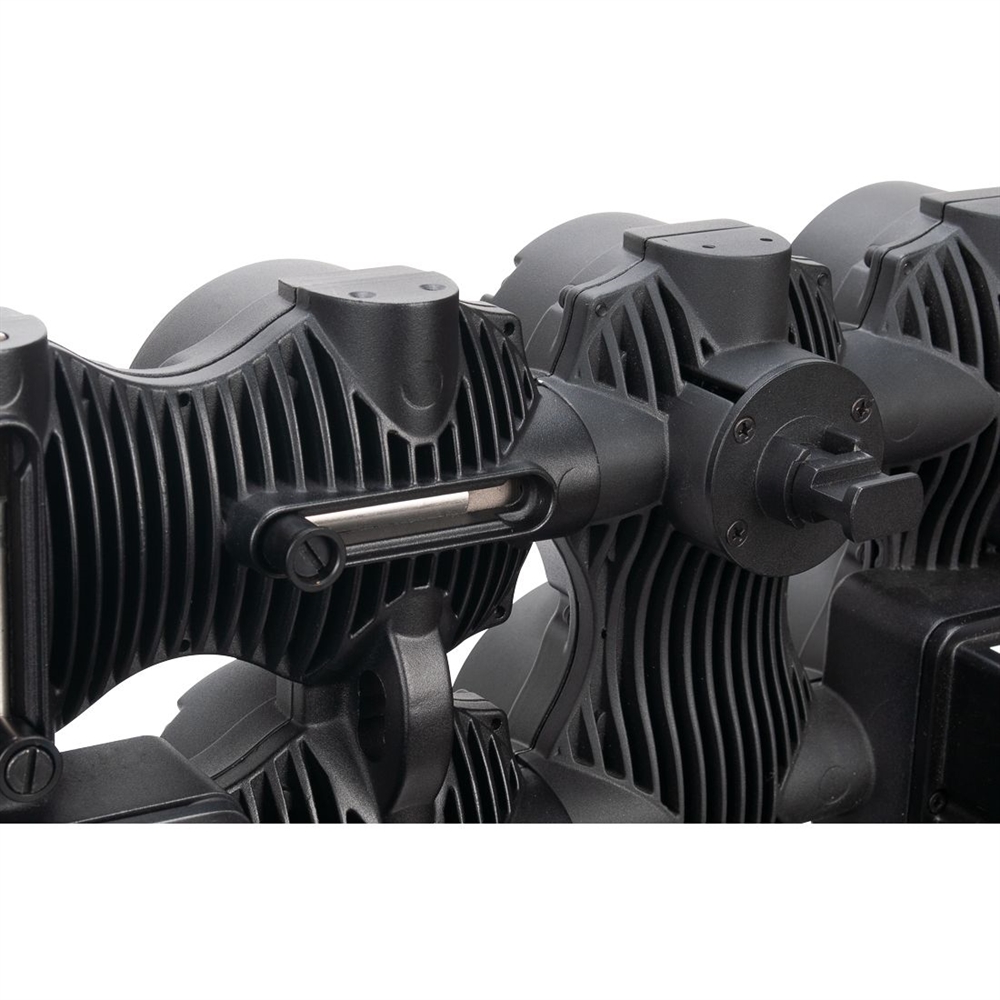

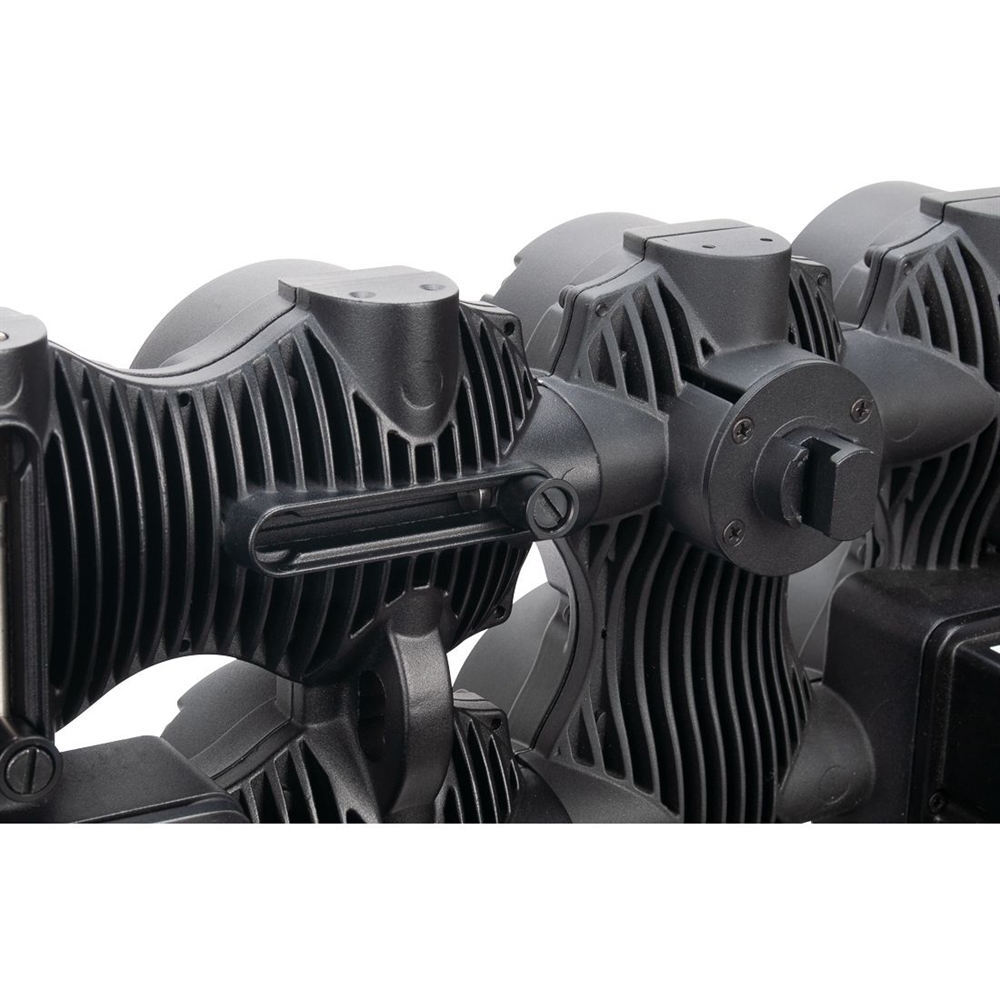

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available
SOURCE
(16) 30W RGBA COB LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
6,400+ Total Lumen Output
62° Beam / 87° Field Angles
6,809 LUX 633 FC @ 1m (3.3') (Full ON)
EFFECTS
Full Pixel Control with Pixel Flip Modes
RGB + Dynamic Amber Channel Modes
Smooth Color Mixing and 64 Internal Color Macros
High Speed Electronic Shutter and Strobe
Dimming and Variable Dimming Curve Modes
COLOR
RGBA
CONTROL / CONNECTIONS
14 DMX Channel Modes (128) total channels)
Adjustable Refresh Rate (900 - 25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button OLED Menu Control Display
DMX, RDM, Kling-Net, and Art-Net Protocol Support

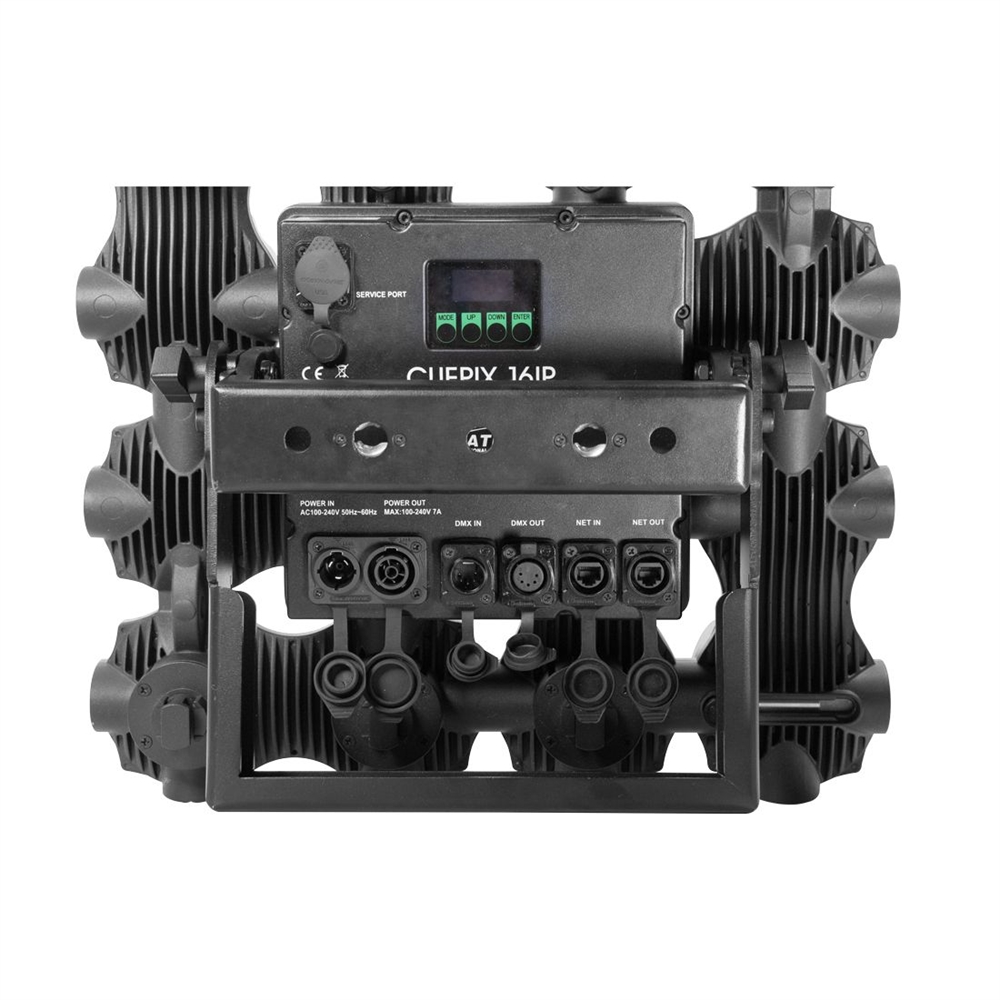

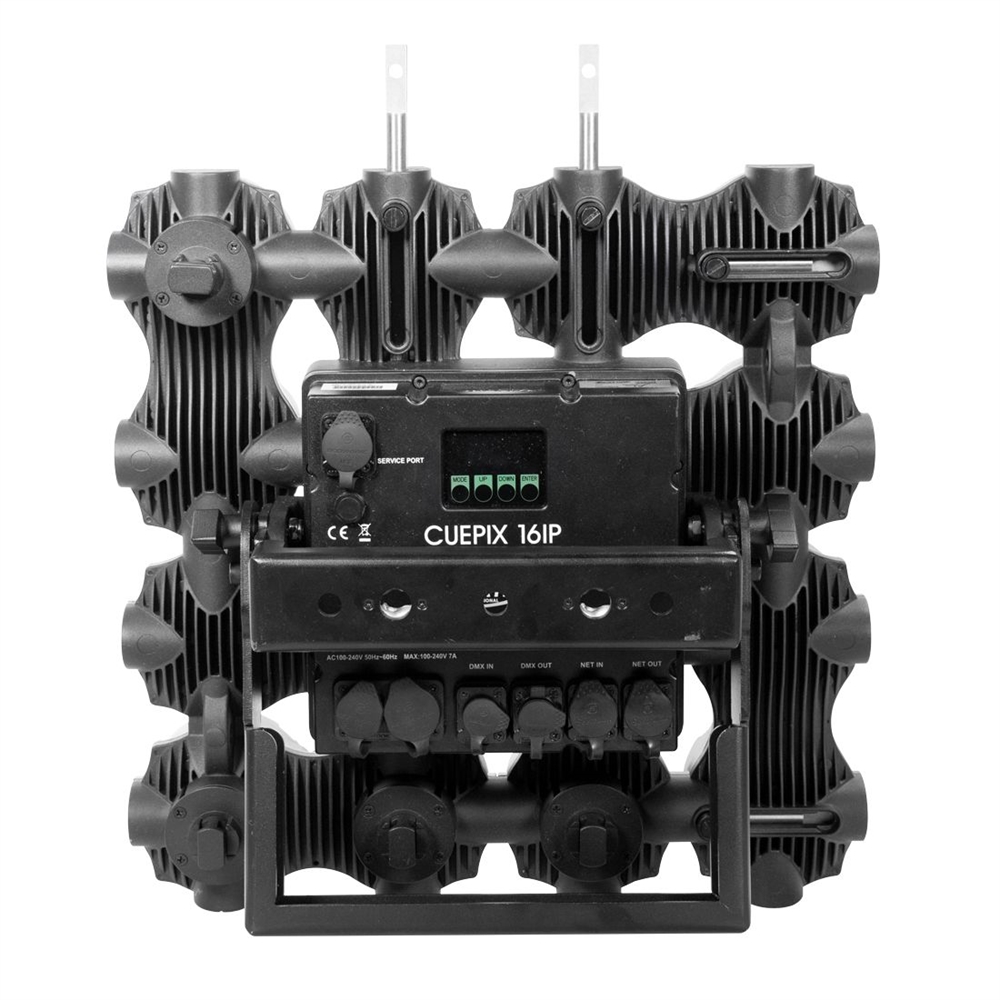

IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 440mm (17.3”)
Width: 206mm (8.1”)
Vertical Height: 440mm (17.3”)
Weight: 15.0 kg (33.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
520W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
