FEATURES
Versatile IP65 Outdoor Rated Effect Panel Luminaire

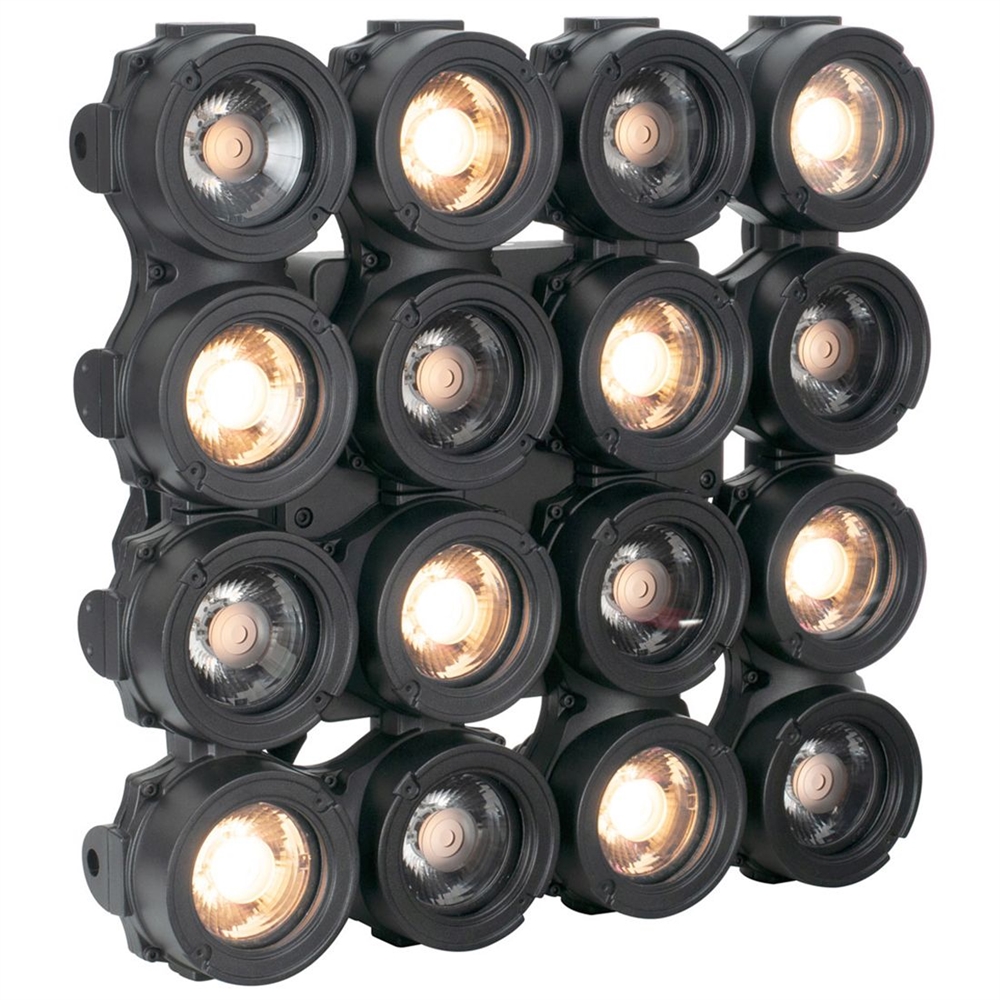

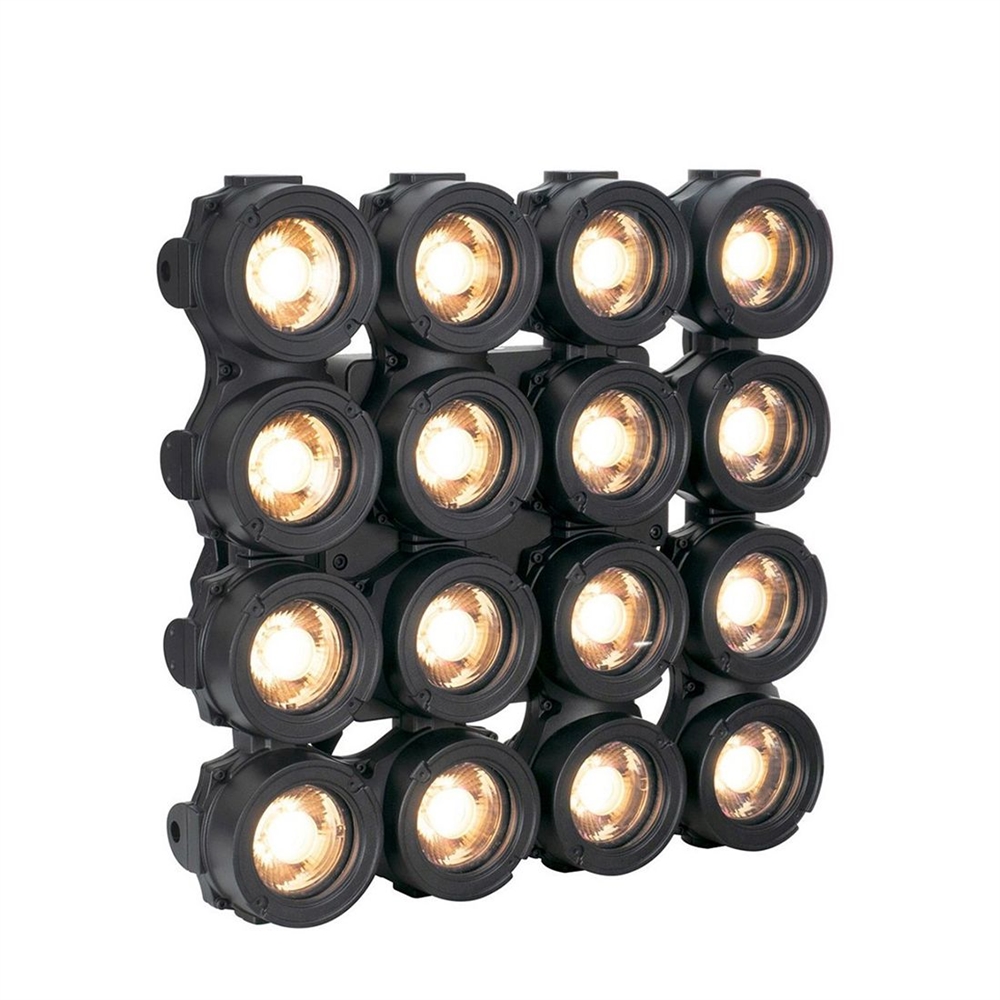

4x4 Matrix Array of (16) 40W DTW COB LEDs

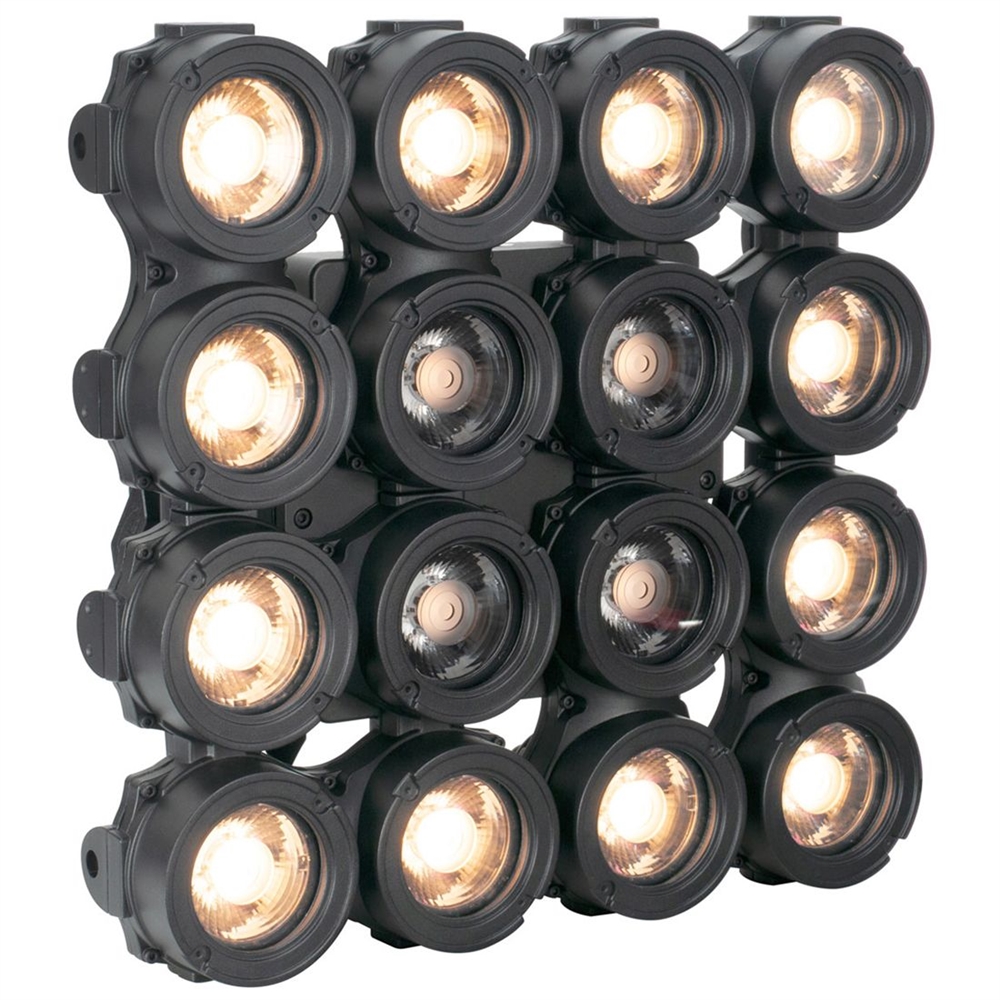

Full Pixel Control with Pixel Flip Modes
16-bit Dimming and Variable Dimming Curve Modes
Convection Cooled - No Fans for Noise-Sensitive Applications

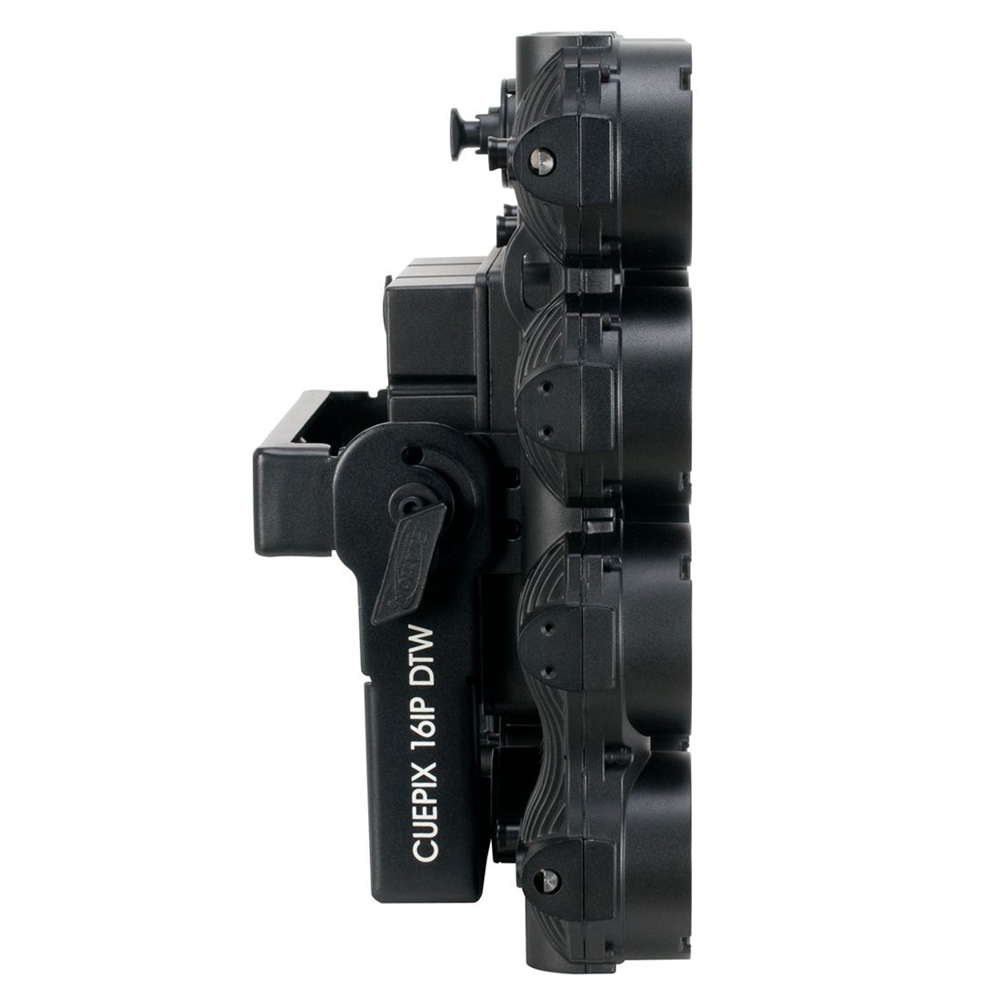

90° Adjustable and Fixed Yoke Brackets w/3-Position Holes

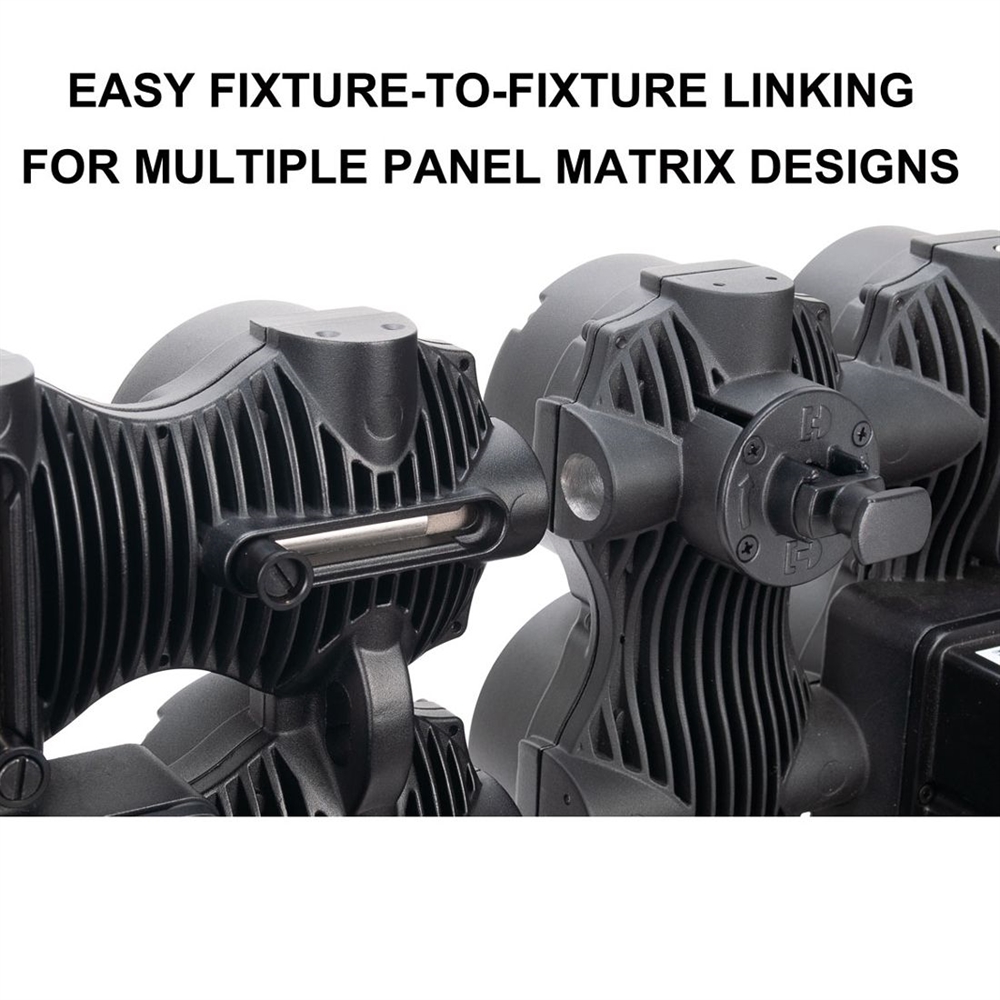

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks
Optional 1/4 Turn Omega Brackets Available
SOURCE
(16) 40W DTW COB LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
10,000+ Total Lumen Output
22.6 ° Beam / 41.3° Field Angles
1929 LUX 179 FC @ 5m (16.4') (Full ON)
EFFECTS
Full Pixel Control with Pixel Flip Modes
High Speed Electronic Shutter and Strobe
16-Bit Dimming and Variable Dimming Curve Modes
COLOR
DTW
CONTROL / CONNECTIONS
7 DMX Channel Modes (64 total channels)
Adjustable Refresh Rate (900 - 25,000Hz)
4 Button OLED Menu Control Display
DMX, RDM, and Art-Net Protocol Support

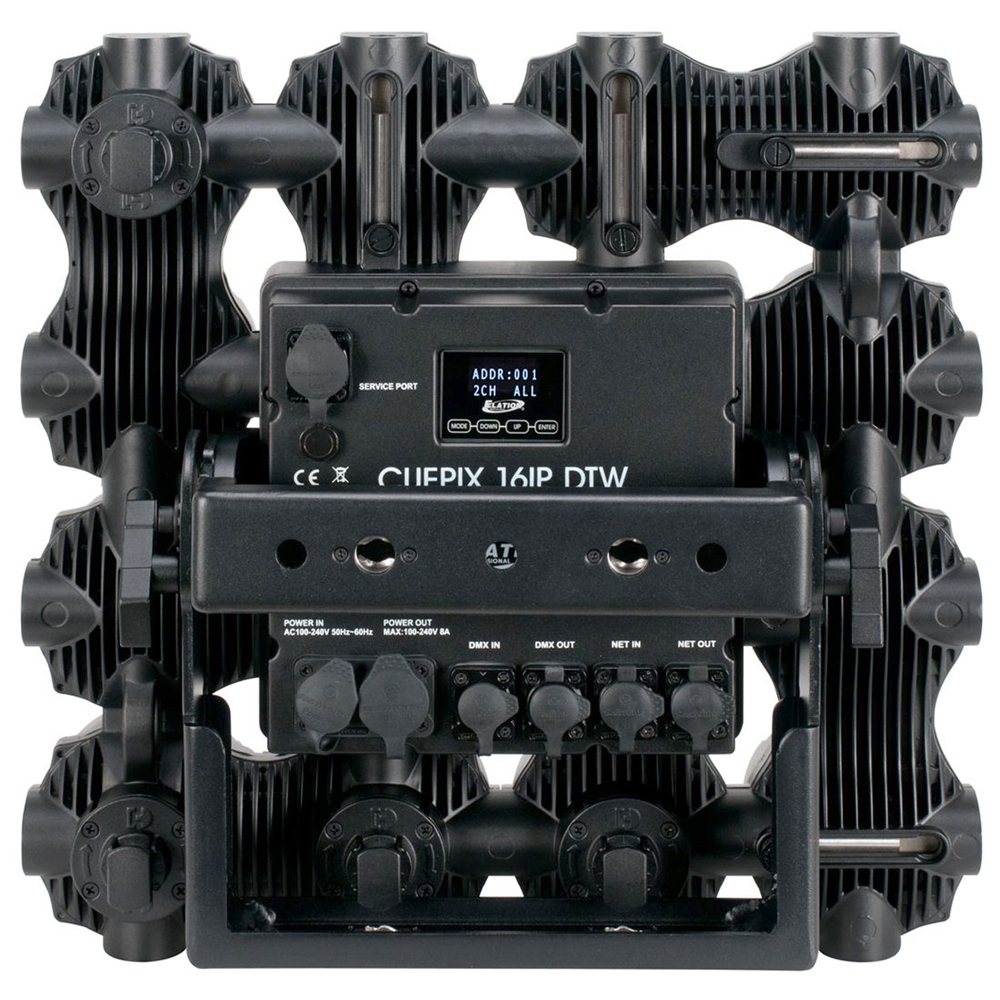

IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out

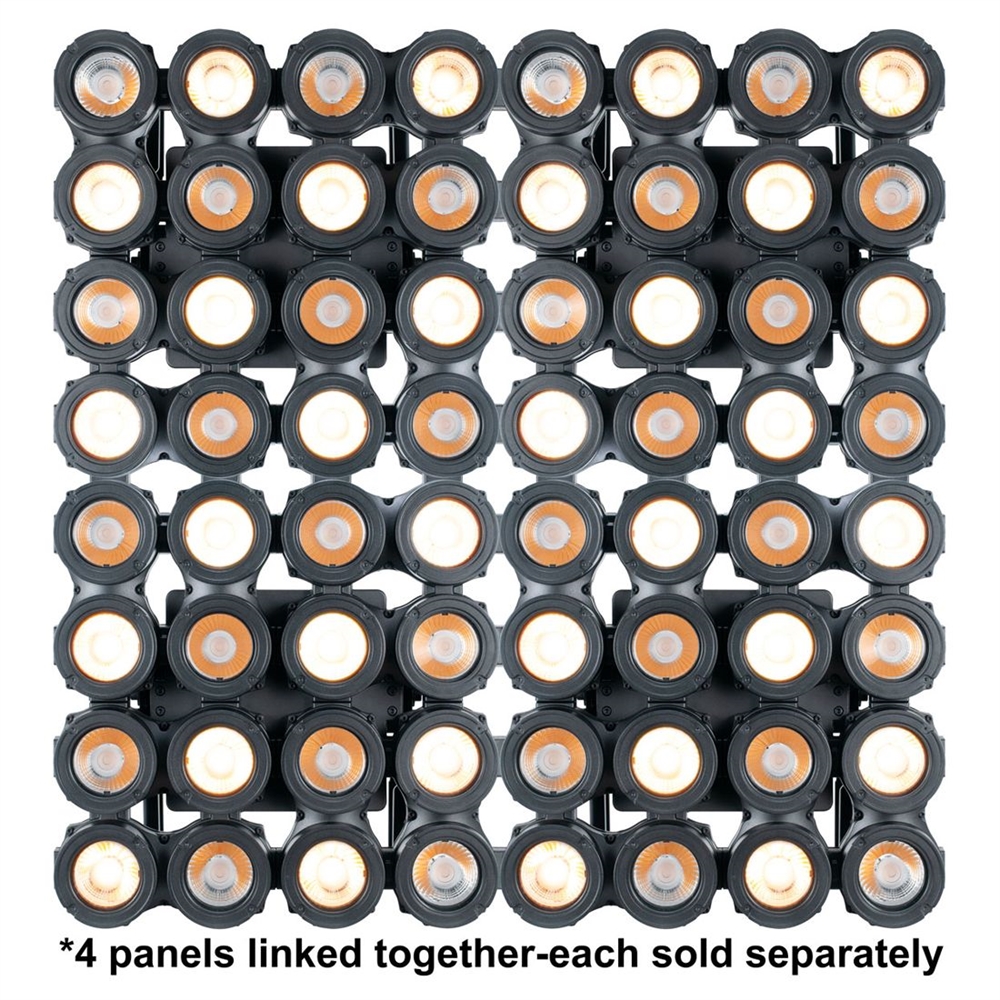

Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 440mm (17.32”)
Width: 207mm (8.1”)
Vertical Height: 440mm (17.31”)
Weight: 15.0 kg (33.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
