FEATURES

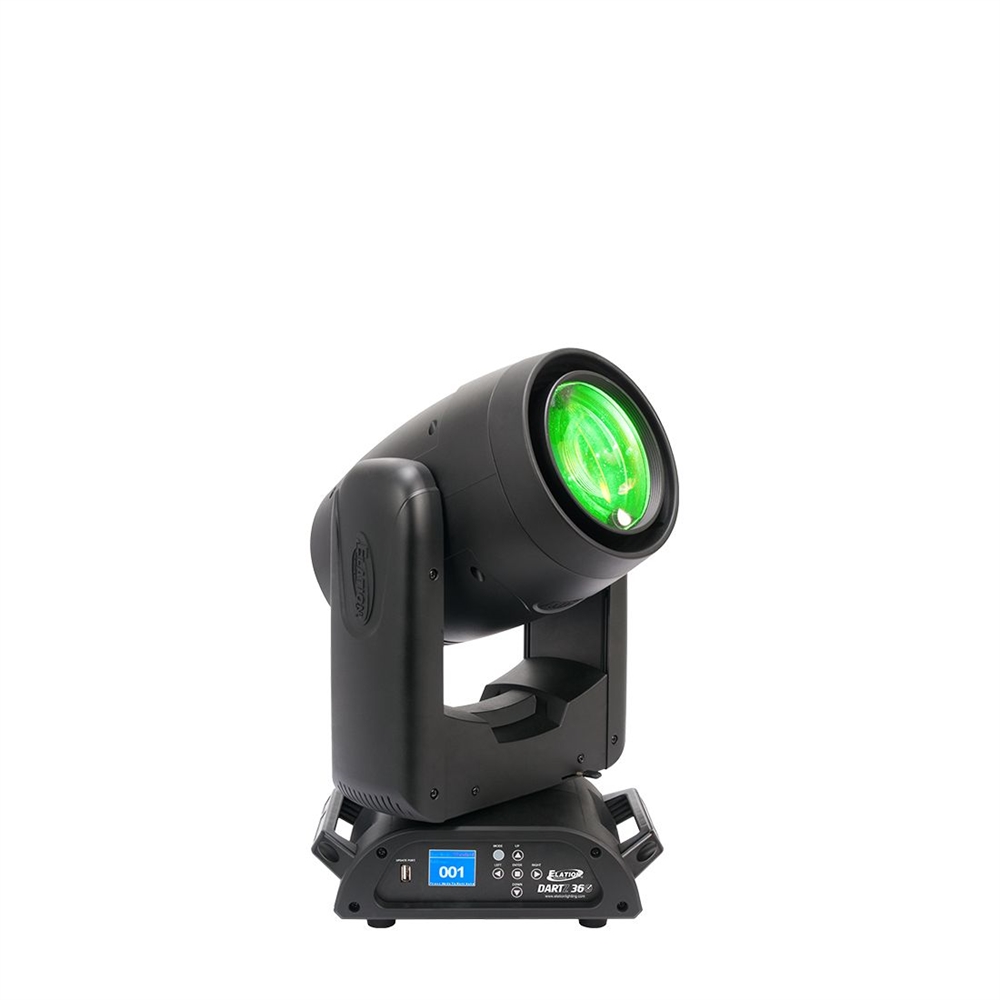

Compact Precise 360° Pan/Tilt Moving Beam Luminaire
Patent Pending Single Source 50W RGB LED Engine
No Minimum Safe Project Distance Like Discharge Fixtures

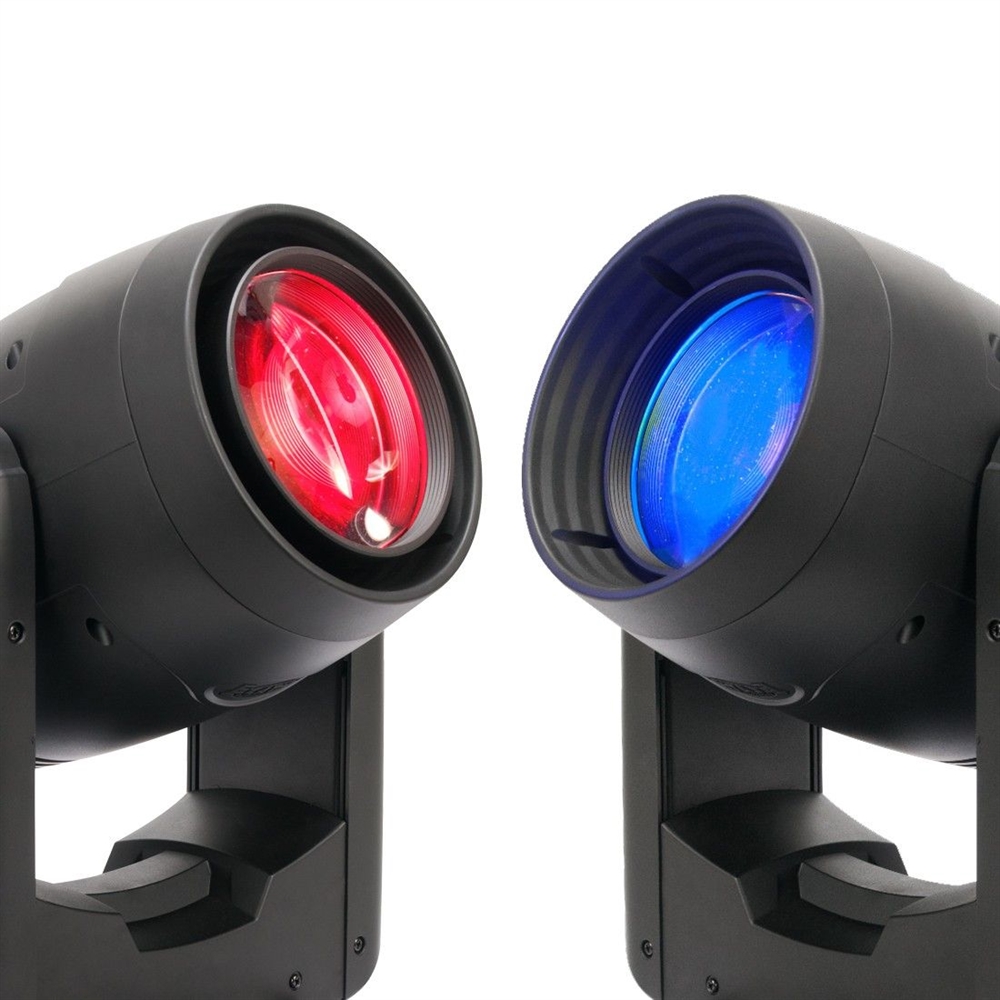

3° Sharp Aperture with Motorized Focus
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
14 Static-Stamped Metal Gobos
6 Facet Linear and 8 Facet Circular Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
Electronic Dimming and Variable Dimming Curve Modes
DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
Adjustable Refresh Rate Frequency and Gamma Brightness
Flicker Free Operation for TV and FILM
SOURCE
Patent Pending 50W RGB LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
29,562 LUX 2,746 FC @ 5m (16.4’) (3° Full ON)
EFFECTS
Motorized Focus
6 and 8 Facet Independent Rotating Prisms
0-100% Linear Frost Filter for Wash Effects
High Speed Electronic Shutter and Strobe
16-Bit Variable Dimming Curve Modes
Adjustable LED Refresh Rate and Gamma Brightness
COLOR
RGB Smooth Color Mixing
GOBOS
14 Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 22 / 25)
360° Continuous Pan and Tilt 8 / 16 Bit Movement
Adjustable Refresh Rate (900-25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
6 Button Menu Control Panel

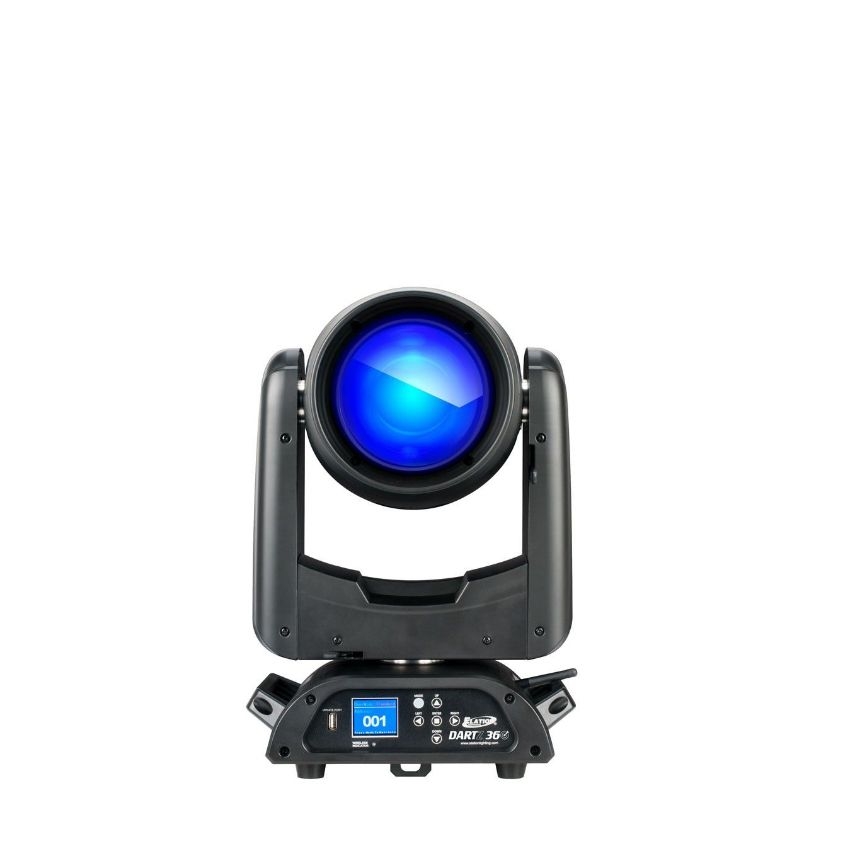

Full Color 180° Reversible LCD Menu Display
DMX, RDM, Kling-net, Art-NET and sACN Protocol Support

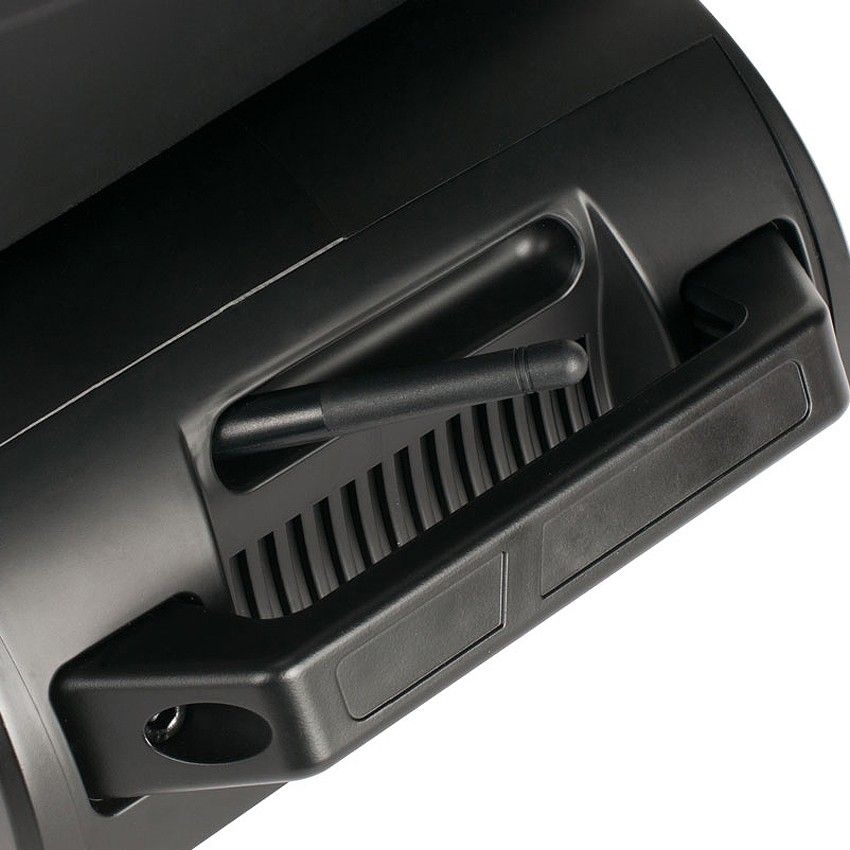

Elation E-FLY™ Internal Wireless DMX Transceiver
5pin DMX, RJ45 Ethernet In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 284.15mm (11.2 in)
Width: 195.97mm (7.7 in)
Vertical Height: 454.7mm (17.9 in)
Weight: 12.7 kg (28.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V 50/60Hz
154W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 525.14
