FEATURES
IP65 Rated
Pixel Control
67° Wide Beam Angle
15° Narrow Beam Filters (included)
Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
RDM (Remote Device Management)
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SOURCE
(4) 175W 2-in-1 Warm White/Amber COB LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
7,719 LUX 717 FC (15° @ 3m (9.8 ft) w/Fresnel lens)
1,104 LUX 94 FC (67° @ 3m ( 9.8 ft) w/No Fresnel lens)
EFFECTS
Pixel Control
15° Narrow Beam Angle with included Fresnel Lens
67° Wide Beam Angle with Fresnel Lens Removed
Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
Independent Dimming of Each COB LED Module
Electronic Strobe and Variable Dimming Curves
COLOR
Warm White / Amber
CONTROL / CONNECTIONS
(9) DMX Channel Modes (13 Total Channels)
RDM (Remote Device Management)
4 Button Control Panel and LCD Menu Display
IP Rated locking 5pin XLR DMX In/Out
IP Rated locking power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 400mm (15.7”)
Width: 244mm (9.7”)
Horizontal Height: 410mm (16.1”)
Weight: 12.7 kg (28.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
680W Max Power Consumption

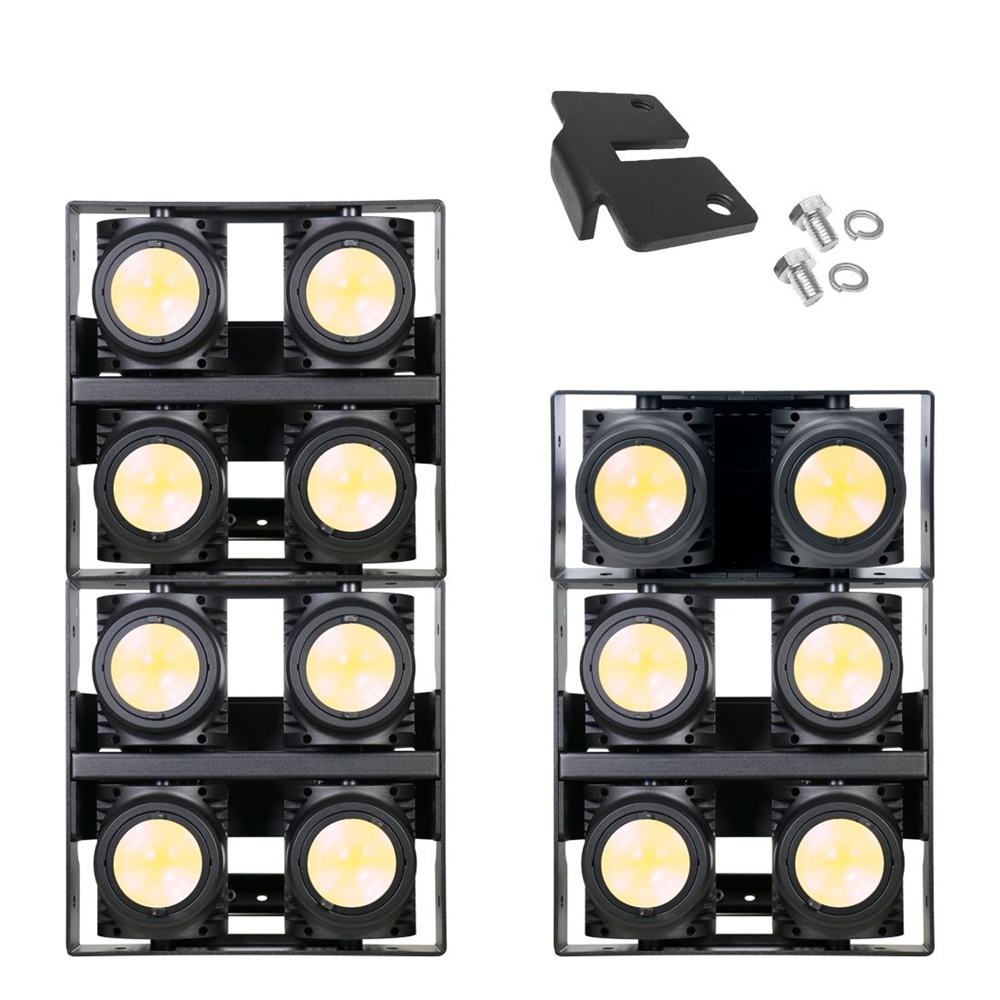

Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
