FEATURES

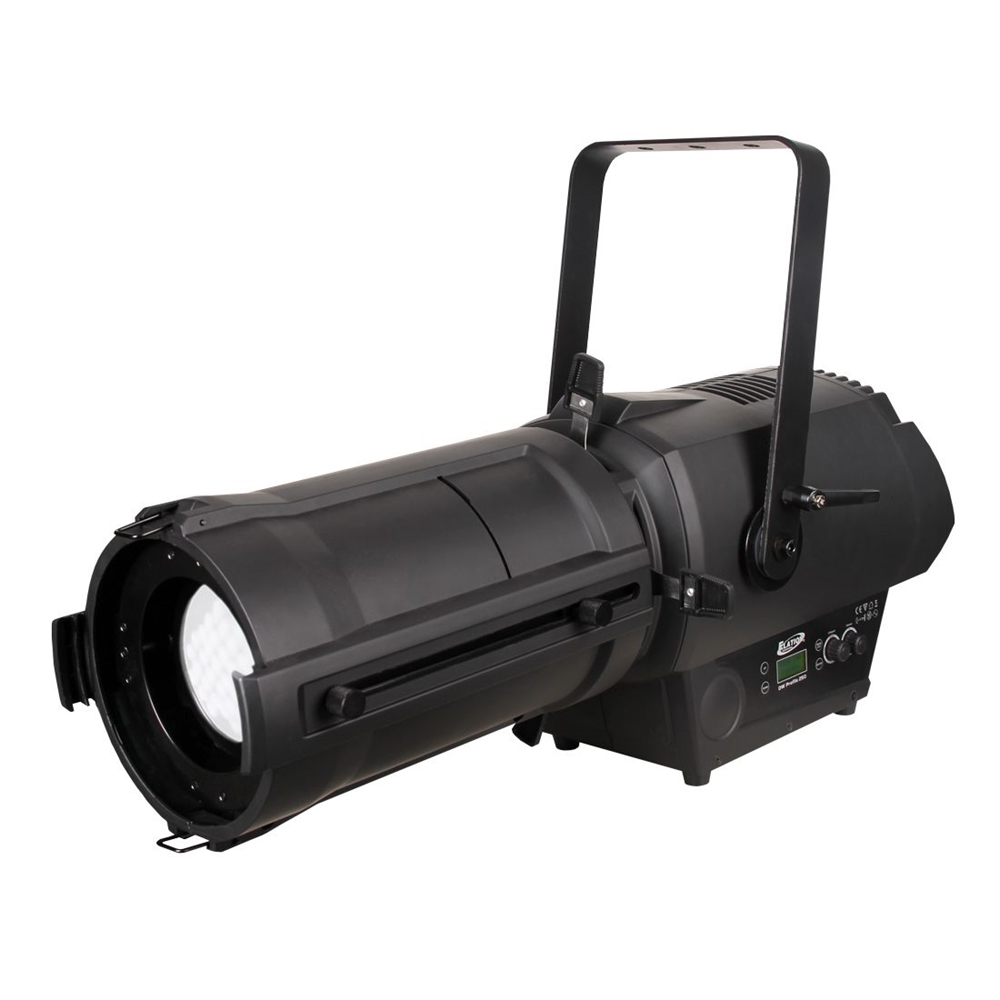

High Powered Dynamic LED Profile

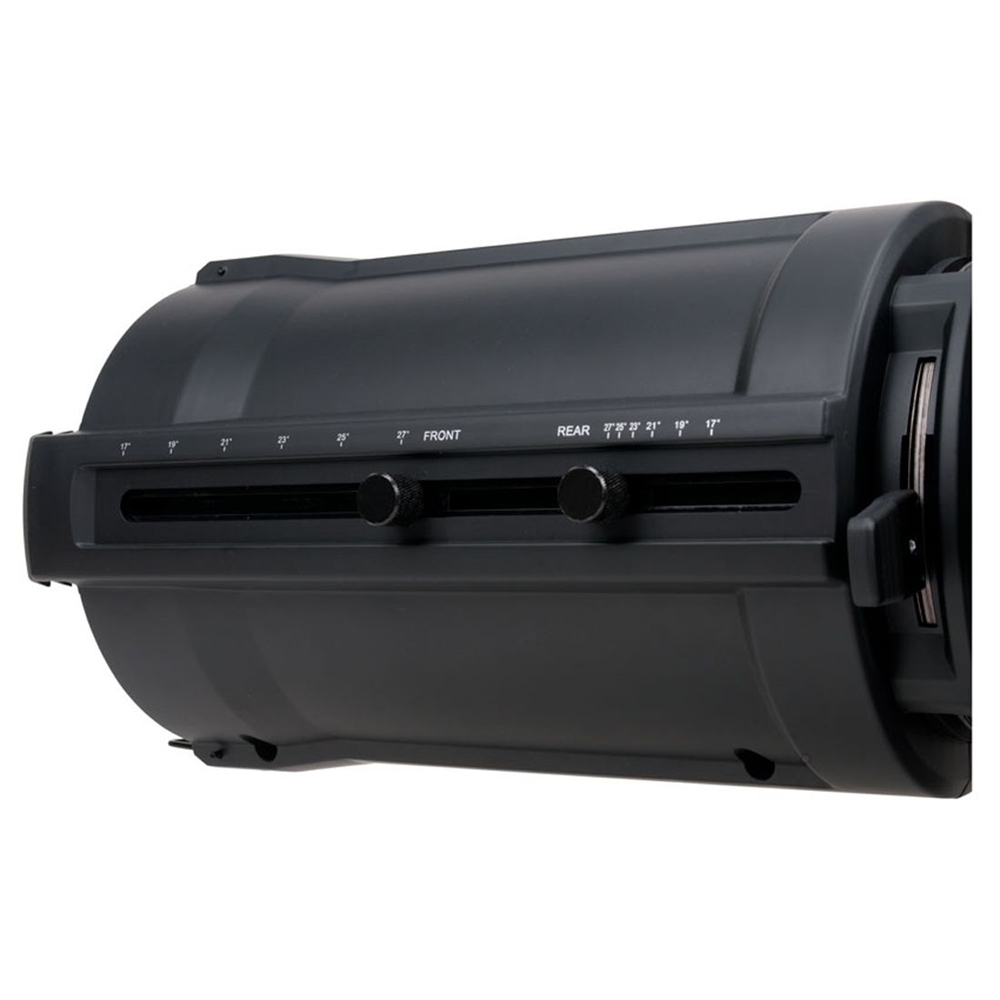

4-Blade Manual Framing Module
17° - 27° Manual Zoom
Variable Color Temperature (3,200K - 6,000K)
Manual and DMX Controlled Color Temperature and Dimming
Supports B Size Metal or HT Transparency Gobos
Thermo-Optical Cooling Technology
No Noise – Silent Operation
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management
SOURCE
250W Dynamic LED Engine
>93 CRI 3,200K – 6,000K
100,000 Hour Average LED Life*
PHOTOMETRIC DATA
12,368 LUX 1,149 FC @ 3m (9.8’) (4,800K Min. Zoom)
5,877 LUX 546 FC @ 3m (9.8’) (4,800K Max. Zoom)
EFFECTS
Strobe: 1-18fps
Electronic Dimming: 0% - 100%
Variable Dimming Curves
COLOR
Cool White + Warm White
Variable Color Temperatures (3,200K - 6,000K)
GOBOS
Supports B Size Metal or HT Transparency Gobos
Gobo Size: OD 86mm / ID 64mm / Thickness 0.15mm
CONTROL / CONNECTIONS
(3) DMX Channel Modes (2 / 3 / 8)
RDM (Remote Device Management)

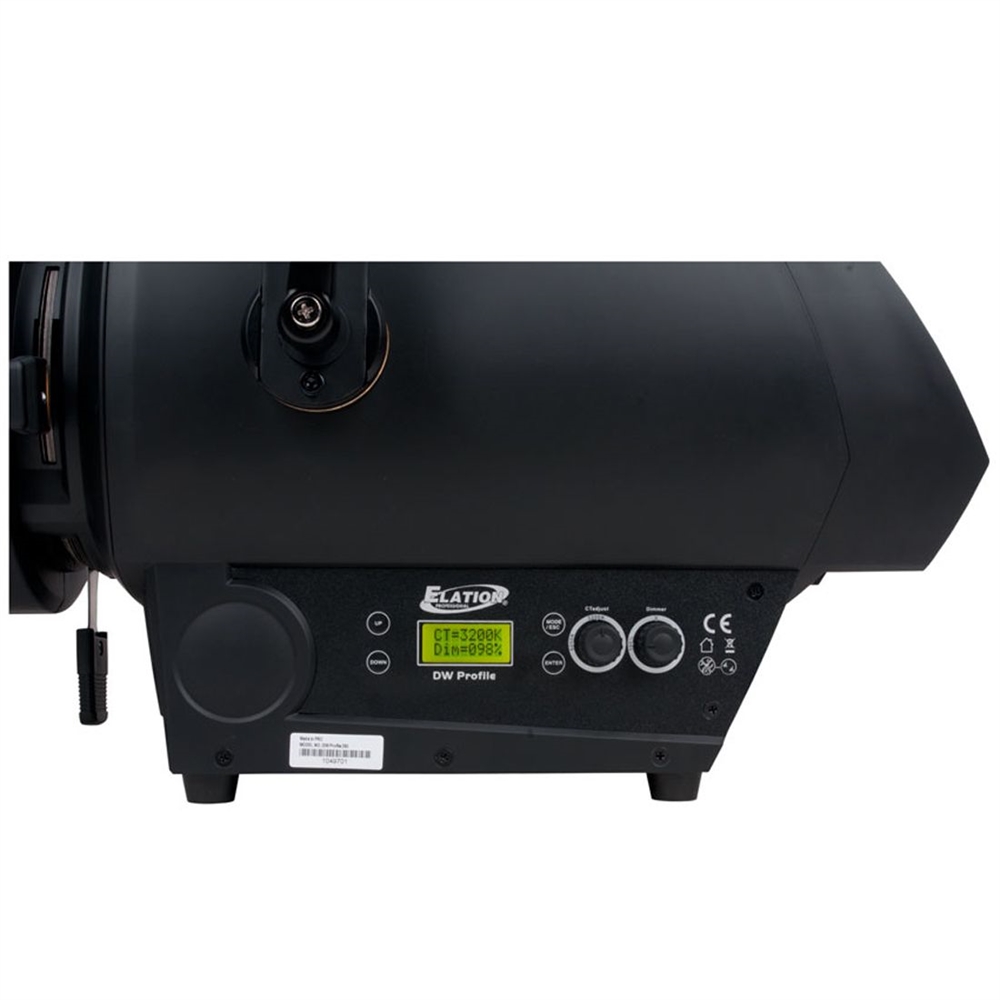

4 Button and (2) Dial Control Panel
LCD Menu Display
Manual and DMX Controlled Color Temperature and Dimming
Locking 3/5pin DMX In/Out
Locking power connector In
SIZE / WEIGHT
Length: 764mm (30.1”)
Width: 325mm (12.8”)
Vertical Height: 458mm (18.0”)
Weight: 13.6 kg (30.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
OPTIONAL ACCESSORIES
1236100128 Goboholder for LED Profile
1322000054 E Loader III
