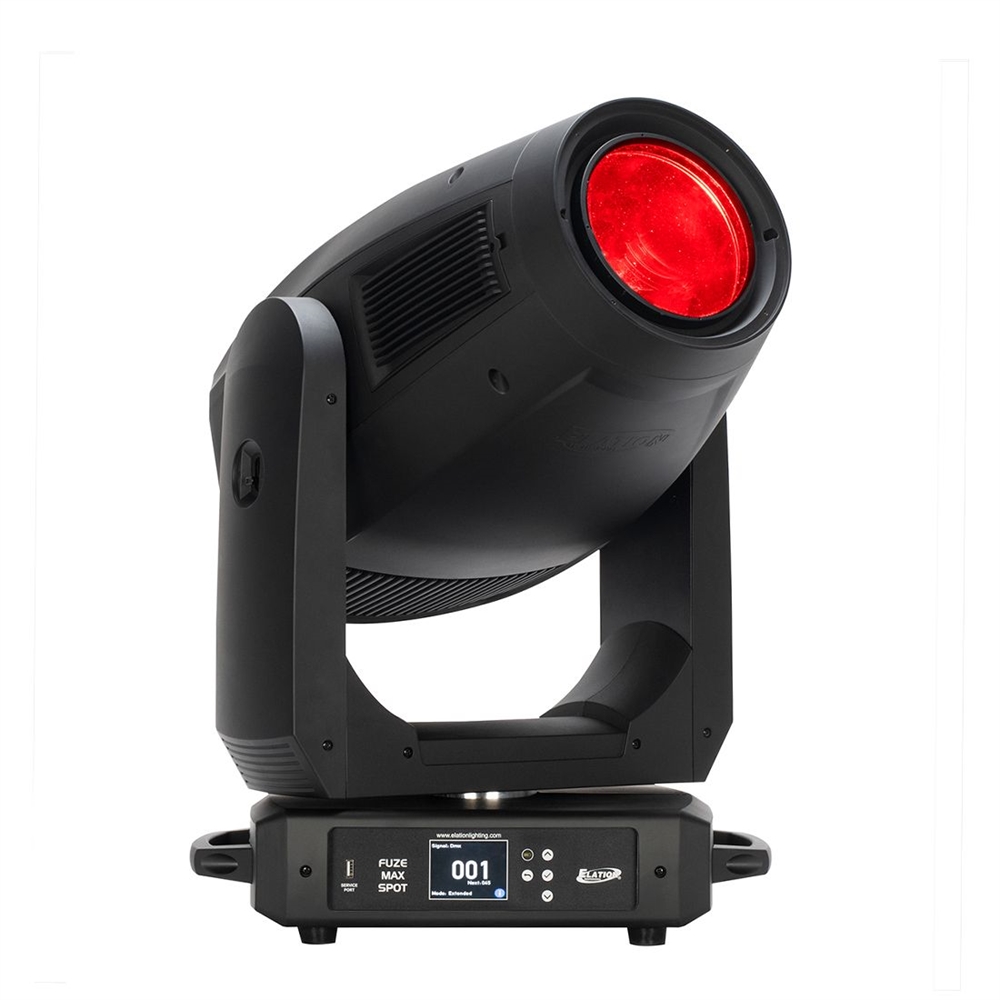

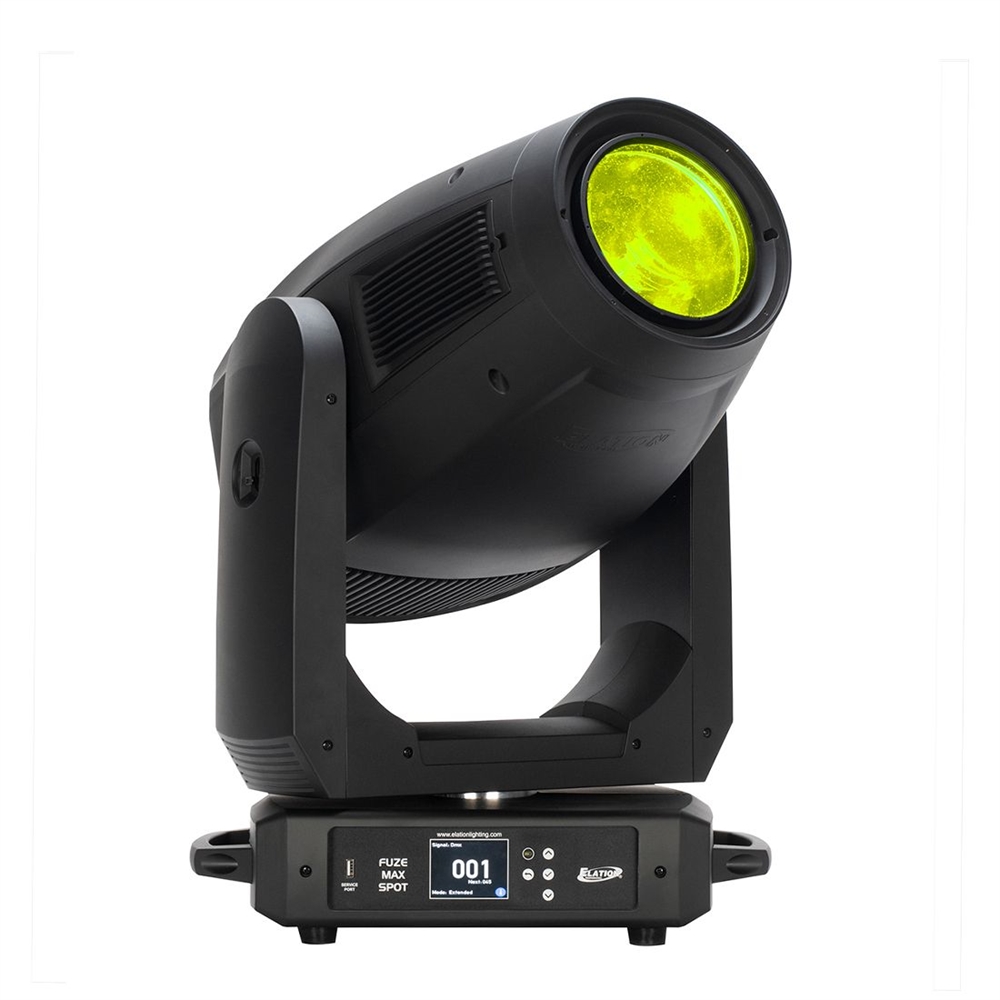

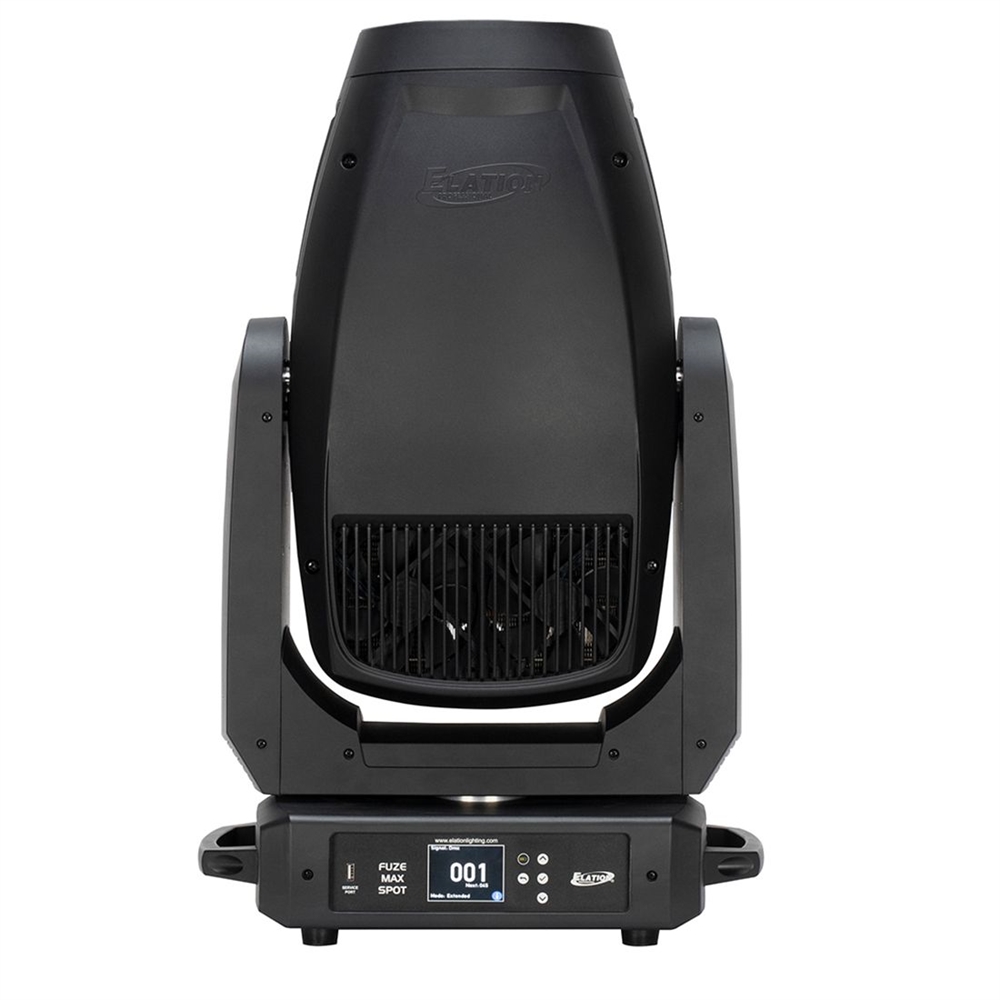

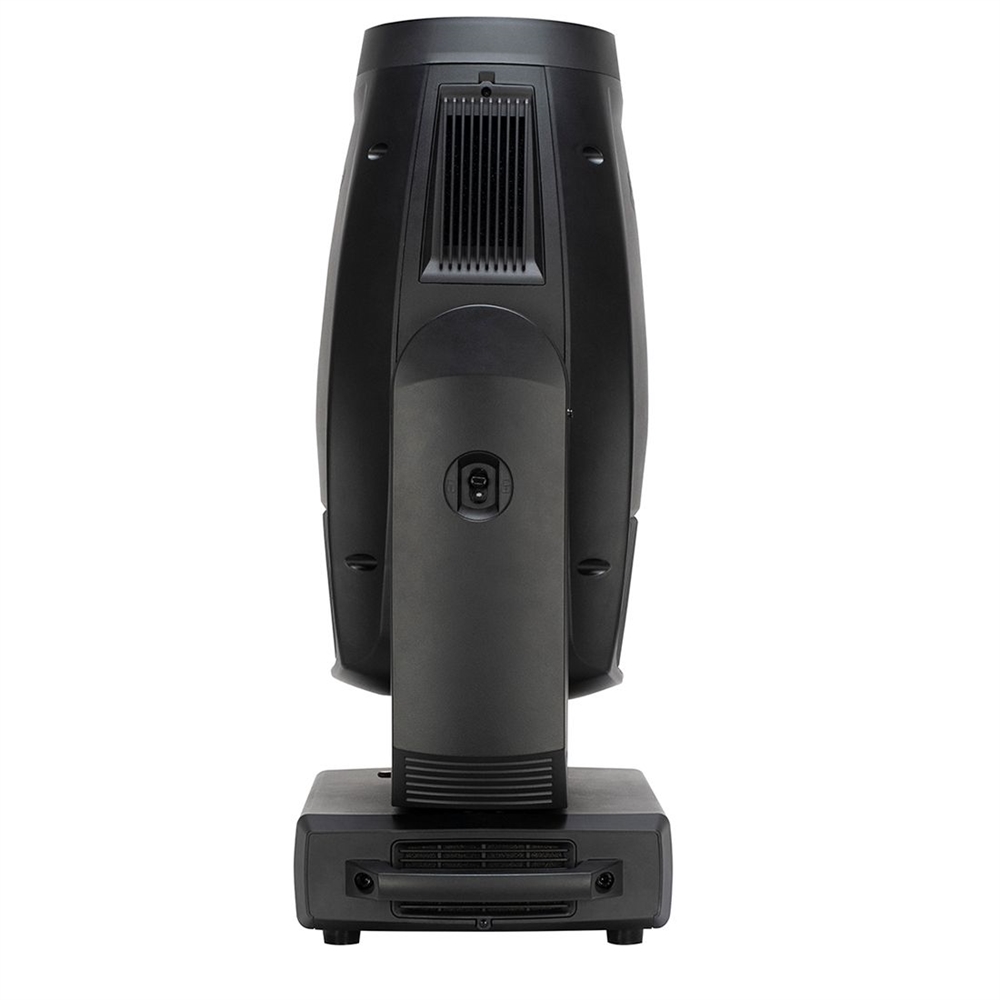

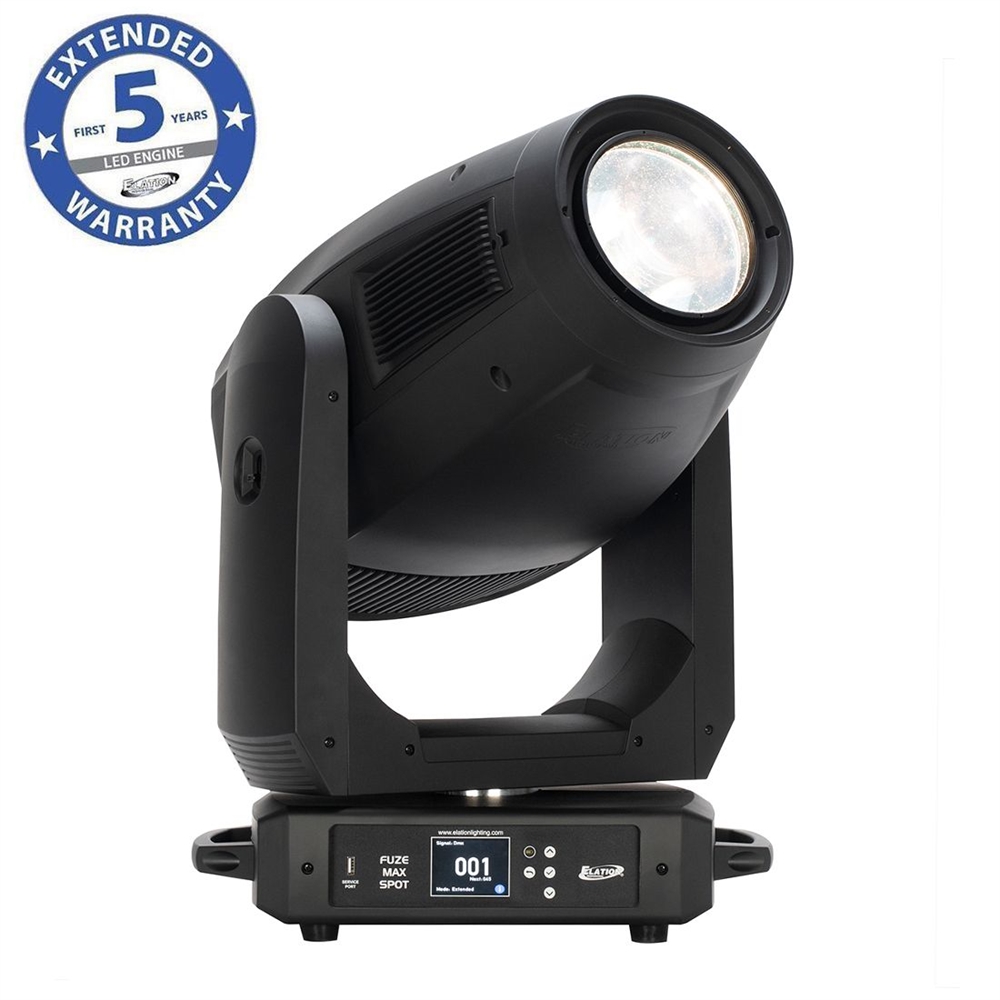

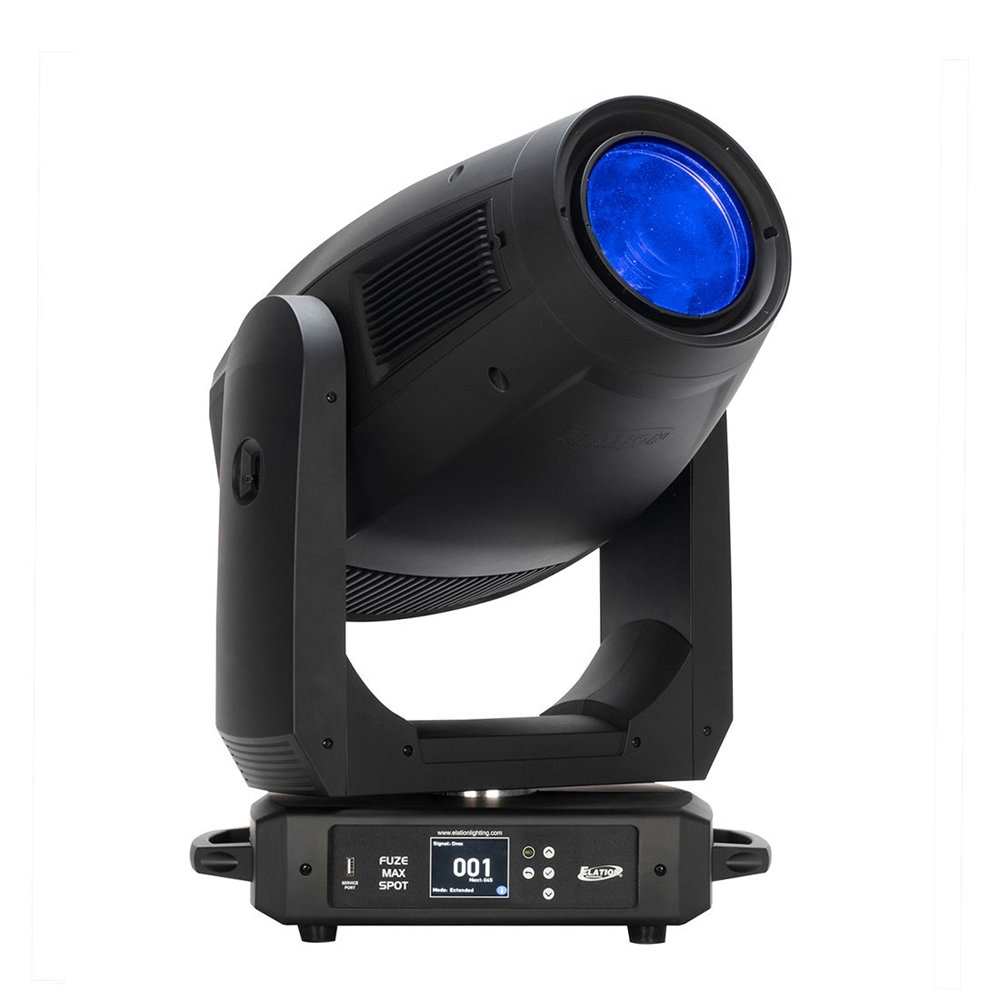

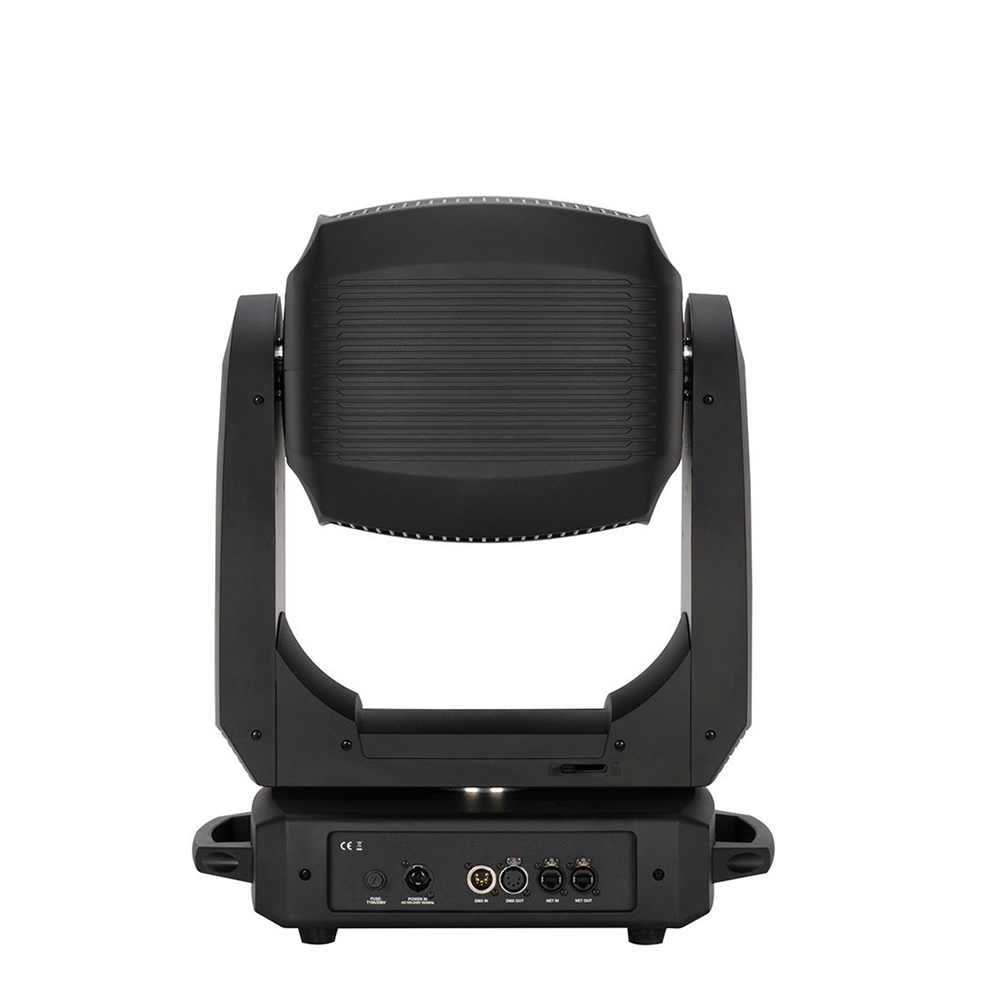

Elation FUZE MAX SPOT, 800W RGBMA LED Engine

Fjernlager
Kontakt os om leveringstid
Bedømmelse for Elation FUZE MAX SPOT, 800W RGBMA LED Engine
Produktet er endnu ikke bedømt

63.495,00DKK ved 1 stk.

Vis uden moms

The FUZE MAX SPOT™ is a full spectrum automated LED Spot fixture designed for theater, television and a wide array of other precision lighting applications. The 92 CRI engine utilizes a 800W 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction and dynamic whites while delivering a powerful output of over 21,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

FEATURES

Full Spectrum 800W RGBMA LED Engine
Precise dynamic whites from 2,400 - 8,500K
Instant color changes, Natural color transitions
Rich and intense primary colors
Dual Rotating and Fixed Gobos plus Animation Wheel
Iris, Prism, and Dual Frost
Wide Zoom Range from 7° to 53°
Large 140mm front aperture

SOURCE

800W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

21,000 Total Lumen Output
CRI 92
Zoom Range 7° - 53°
Beam Angle 6.6° - 50.3°
Field Angle 7.8° - 55°

EFFECTS

Motorized Zoom
Dual Variable Frost Filter (Medium/ Wash)
4 Facet Round, 4 Facet Linear Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Pan Angle: 540° / 630°
Tilt Angle: 250°

COLOR

RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS

2x 6 Rotating / Indexing Interchangeable Glass Gobos
1x 7 Fixed Glass Gobo
Animation Wheel

CONTROL / CONNECTIONS

4 DMX Channel Modes (RGBMA 34/44) (CMY 32/40)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, Art-NET, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit Resolution Adjustable Movement
5pin DMX In/Out
Locking Ethernet In/Out
IP65 Locking Power Cable In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 462mm (18.19”)
Width: 540mm (21.26")
Vertical Height: 590mm (23.2")
Vertical Heigh with Snoot: 771mm (30.4")
Center Spacing (No Snoot): 662mm (26.1")
Center Spacing (With Snoot): 757mm (29.8")
Weight: 34.5kg (76.2 lbs.)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz
1214W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 3839.66

Dataark / Info Blad

Varenr.: M-1237000257
