FEATURES
IP65 Rated

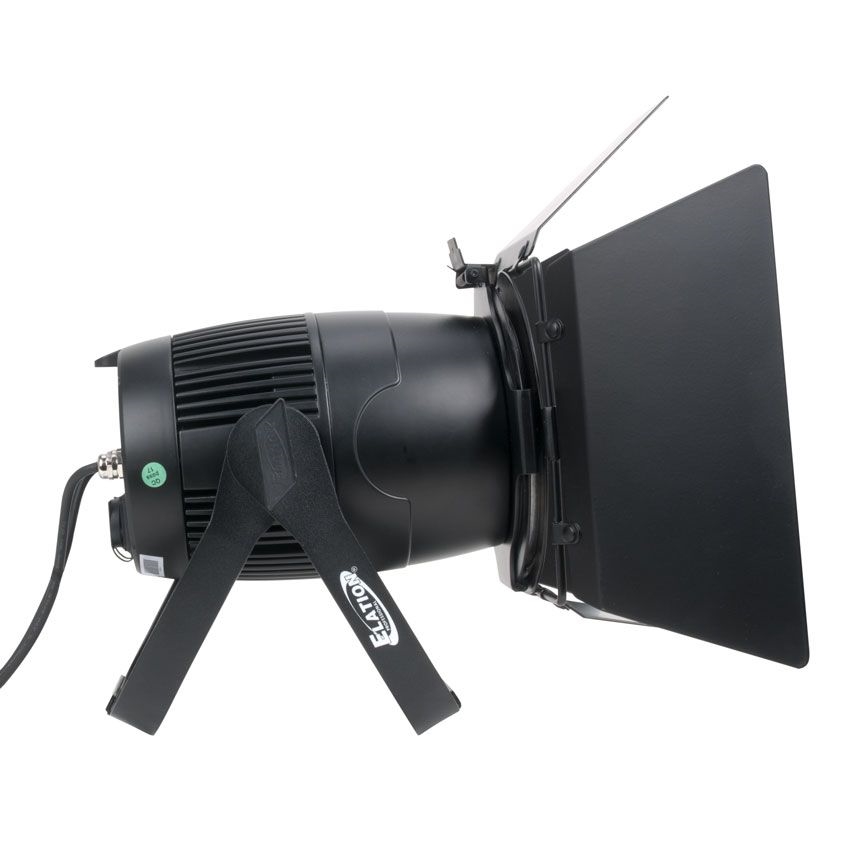

60W RGBW COB LED Par Luminaire
7° to 39° Motorized Zoom Range
RGBW Color Mixing

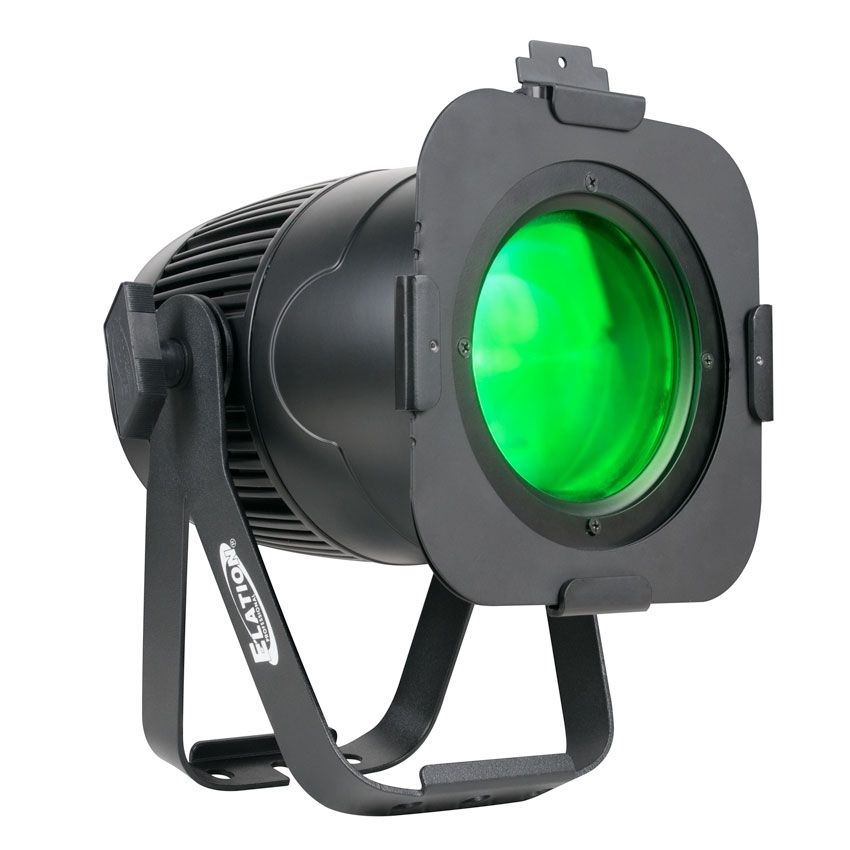

Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM
SOURCE
60W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3,813 LUX 354 FC @3m (9.8’) (7° Full ON)
228 LUX 21 FC @3m (9.8’) (39° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 39° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)

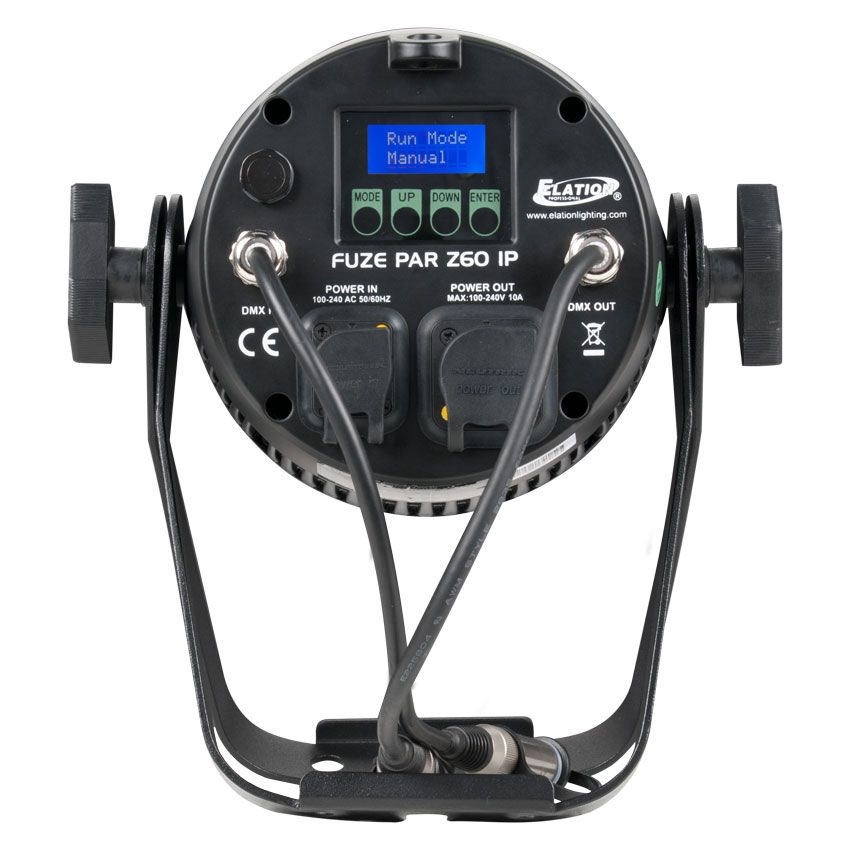

4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 253mm (10.0”)
Width: 252mm (9.9”)
Vertical Height: 282mm (11.1”)
Weight: 4.5 kg (10.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
78W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
INCLUDED ITEMS
Removable Gel Frame

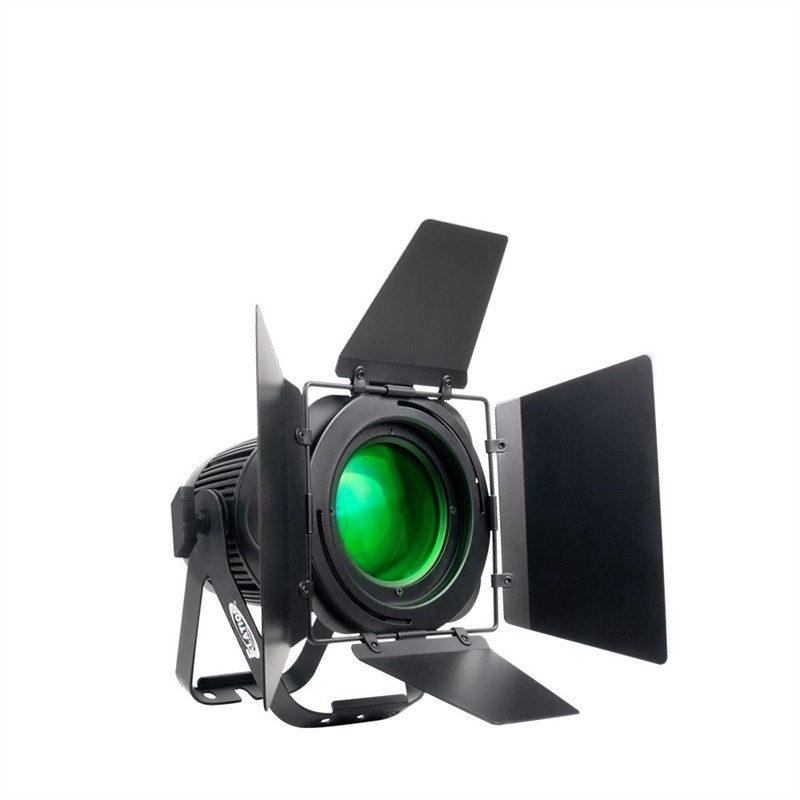

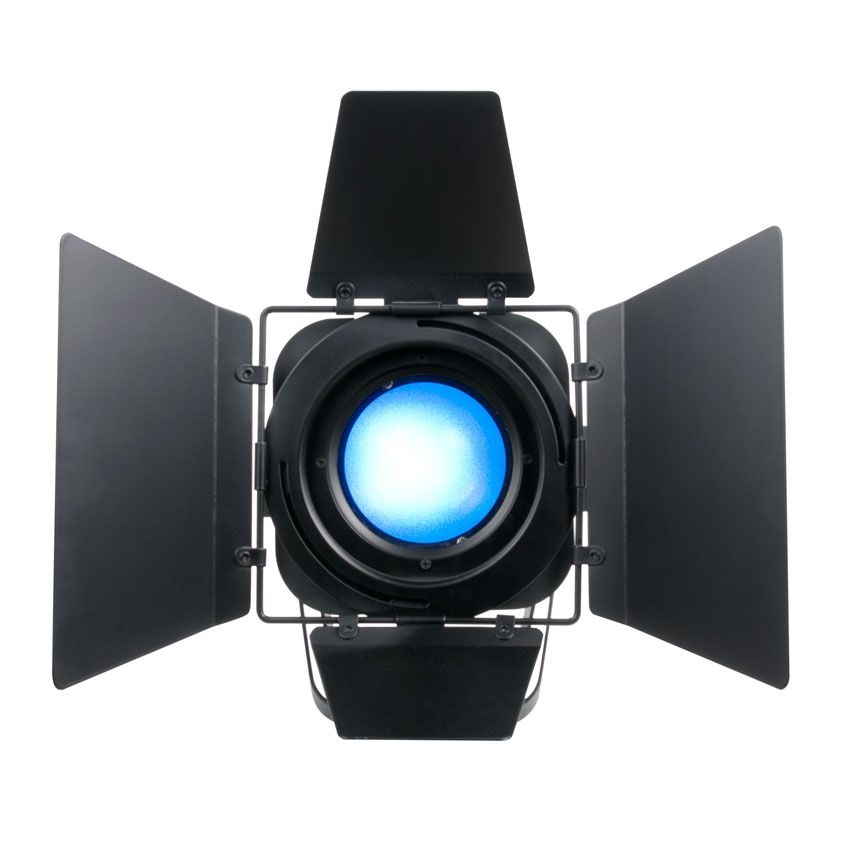

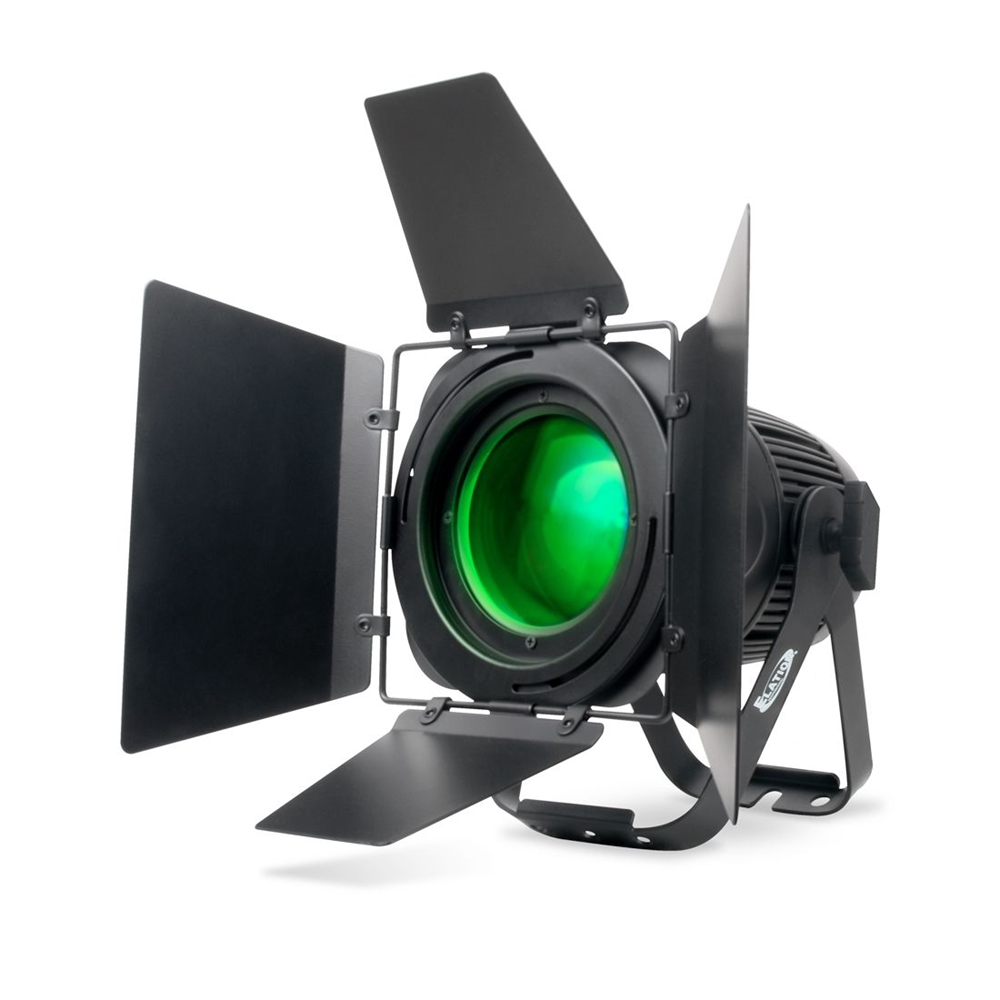

Removable Barn Doors
