FEATURES
Single Source Par
175W RGBW COB LED Engine
8° to 35° Motorized Zoom
Advanced Cooling System
Smooth RGBW Color Mixing
Variable 16-Bit Dimming Curve Modes
Flicker Free Operation for TV and FILM

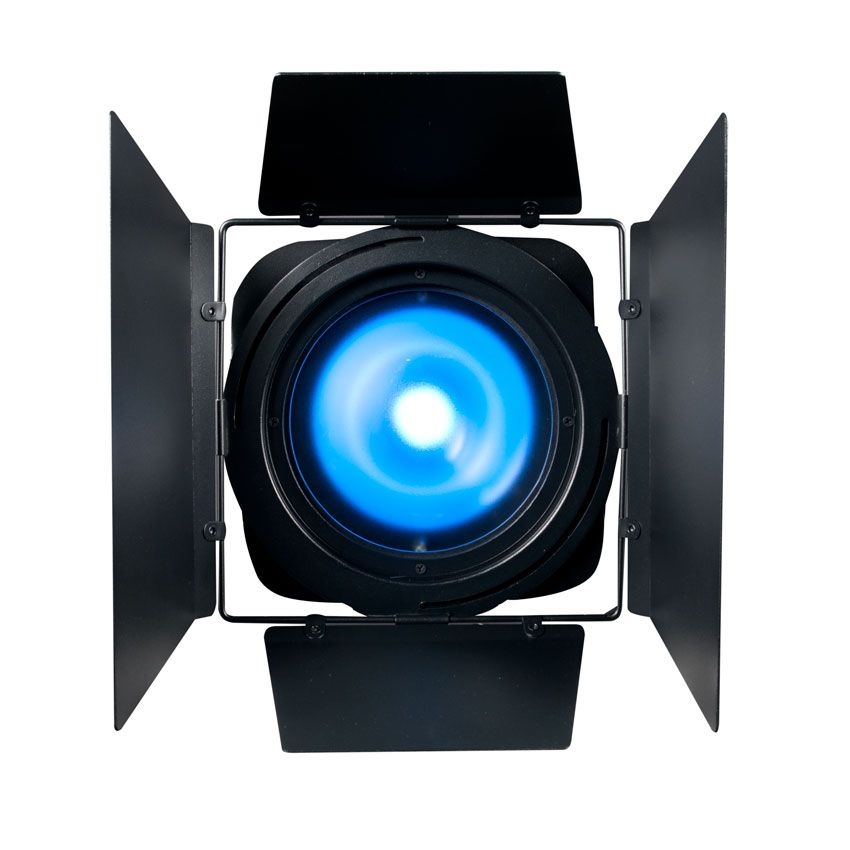

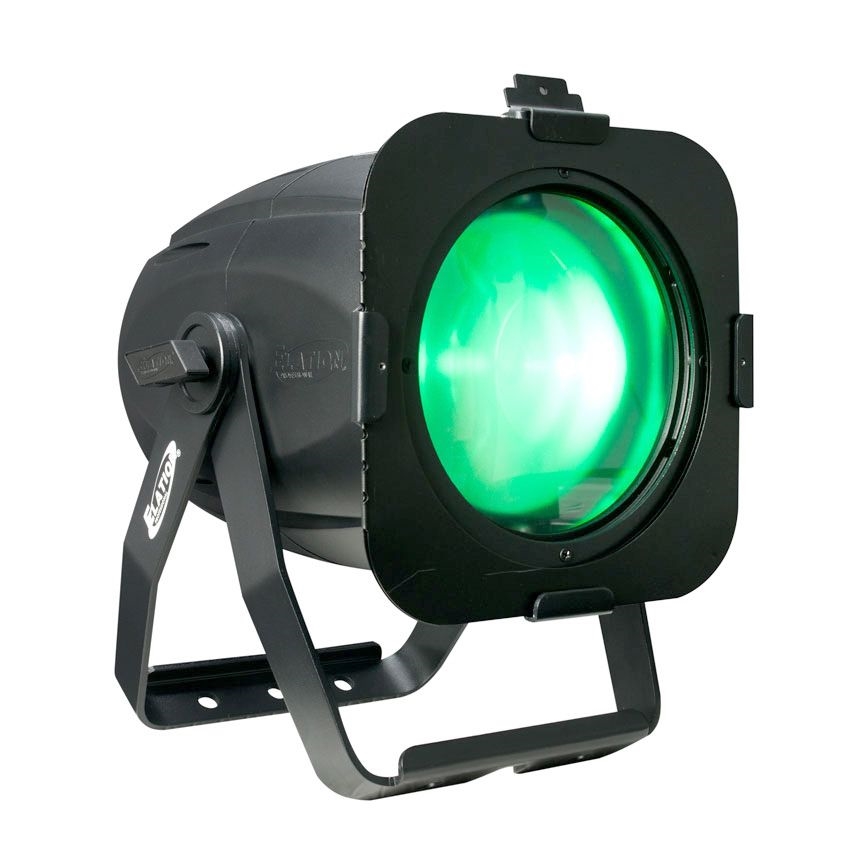

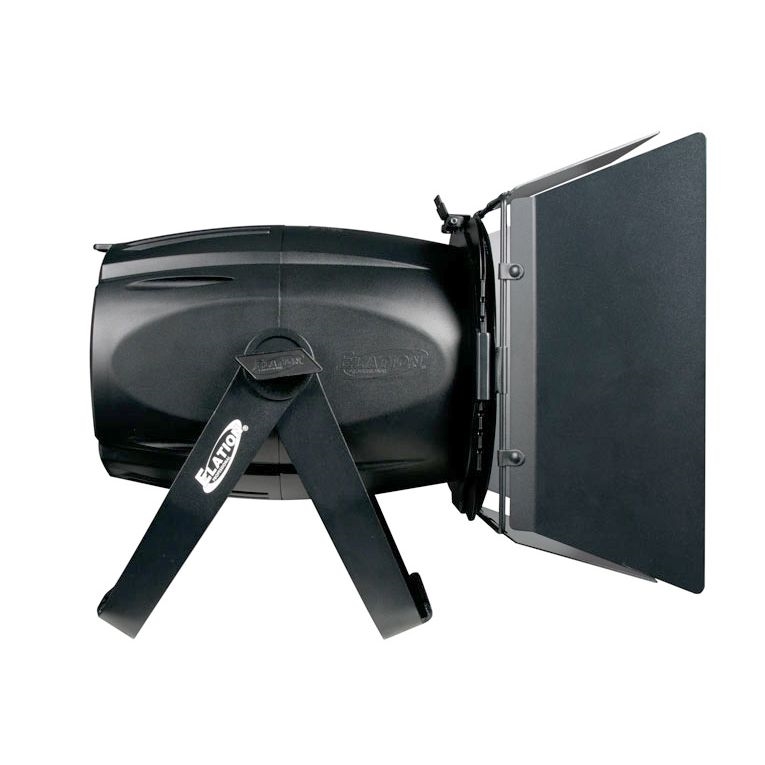

Gel Frame and Barn Doors Included
SOURCE
175W RGBW COB LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
15,026 LUX 1396 FC @2m (6.6 ft) (Full ON 8°)
3,481 LUX 323 FC @2m (6.6 ft) (Full ON 35°)
EFFECTS
8° - 35° Motorized Zoom
64 Color Presets and Color Macro Programs
Electronic Strobe
16-bit Variable Dimming Curve Modes
COLOR
RGBW
CONTROL / CONNECTIONS
12 DMX Channel Modes (14 Total Channels)

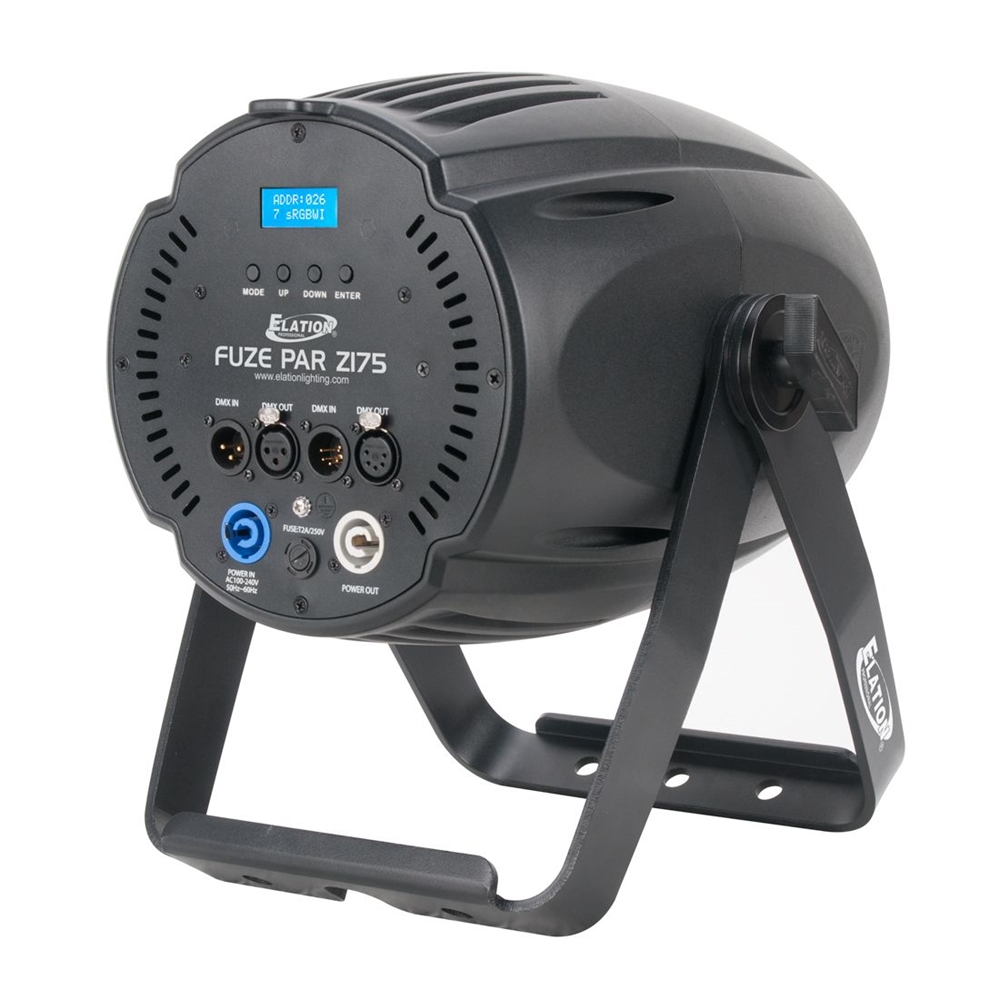

4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 463mm (18.2”)
Width: 411mm (16.2”)
Vertical Height: 431mm (17.0”)
Weight: 9.07kg (20.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
