FEATURES

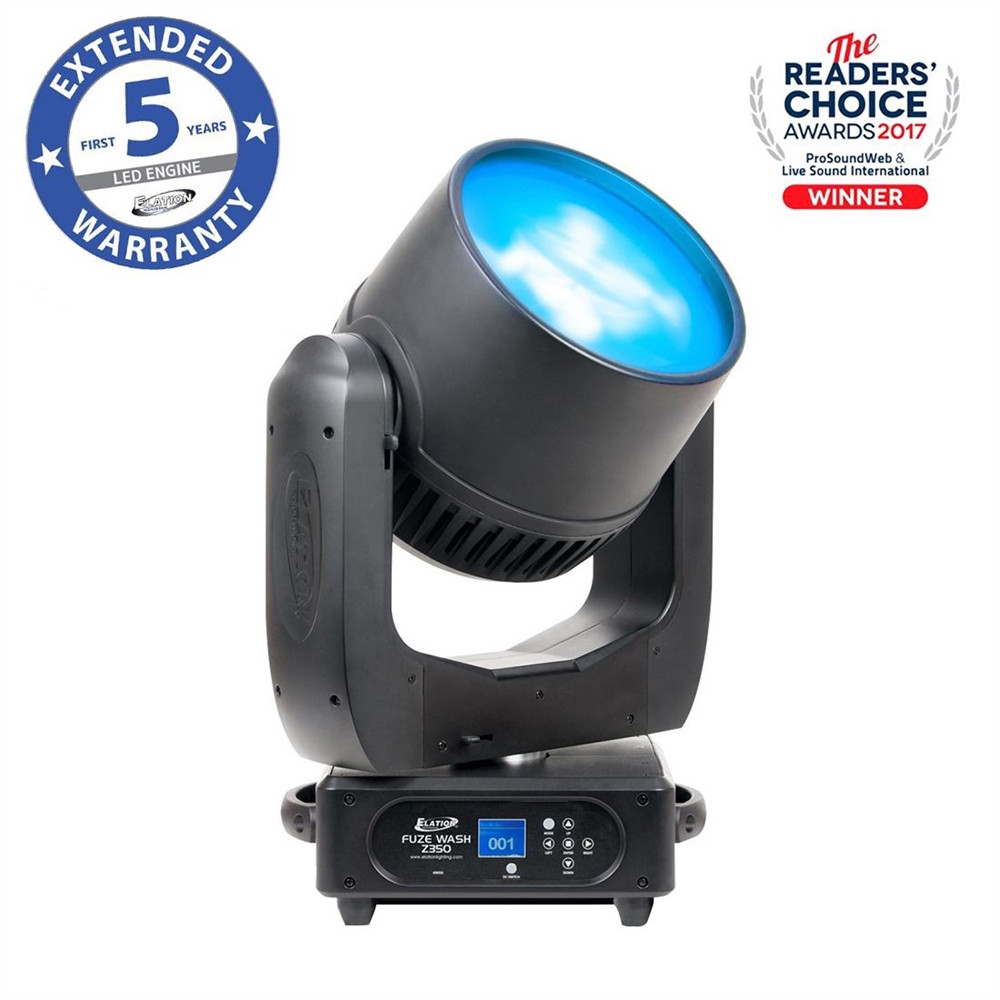

350W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
6° to 46° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
SOURCE
350W RGBW COB LED
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
60,280 LUX 5,600 FC @ 2m (6.6’) (6° Full ON)
3,735 LUX 347 FC @ 2m (6.6’) (46° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
6° to 46° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540°/630°
Tilt Angle: 250°
CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

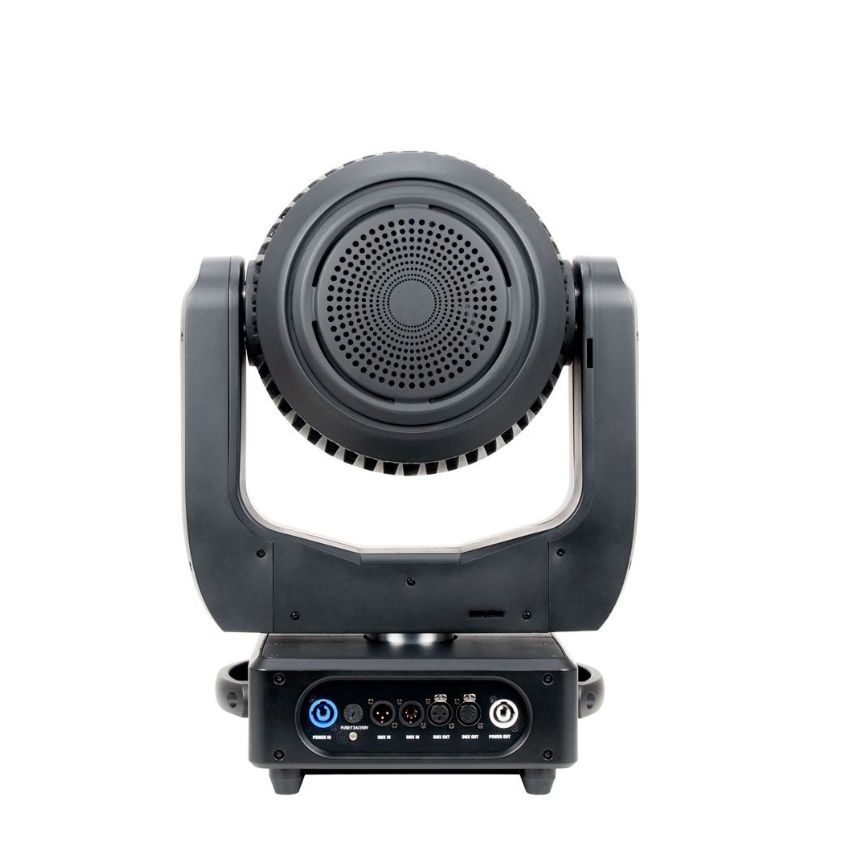

3pin/5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 414mm (16.3”)
Width: 294mm (11.6”)
Vertical Height: 578mm (22.7”)
Weight: 20.4 kg (45 lbs.)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
399W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 1360.59
