FEATURES
120W RGBW COB LED Moving Head Wash Luminaire
RGBW Color Mixing
7° to 55° Wide Motorized Zoom Range
Variable Dimming Curves
Multiple Unit Power Linking
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
SOURCE
120W RGBW COB LED
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
10,640 LUX 988 FC @ 3m (9.8’) (7° Full ON)
692 LUX 64 FC @ 3m (9.8’) (55° Full ON)
COLOR
RGBW
EFFECTS
RGBW Color Mixing
7° - 55° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
Pan Angle: 540/630
Tilt Angle: 250
CONTROL / CONNECTIONS
4 DMX Channel Modes (19 Total Channels)
7 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

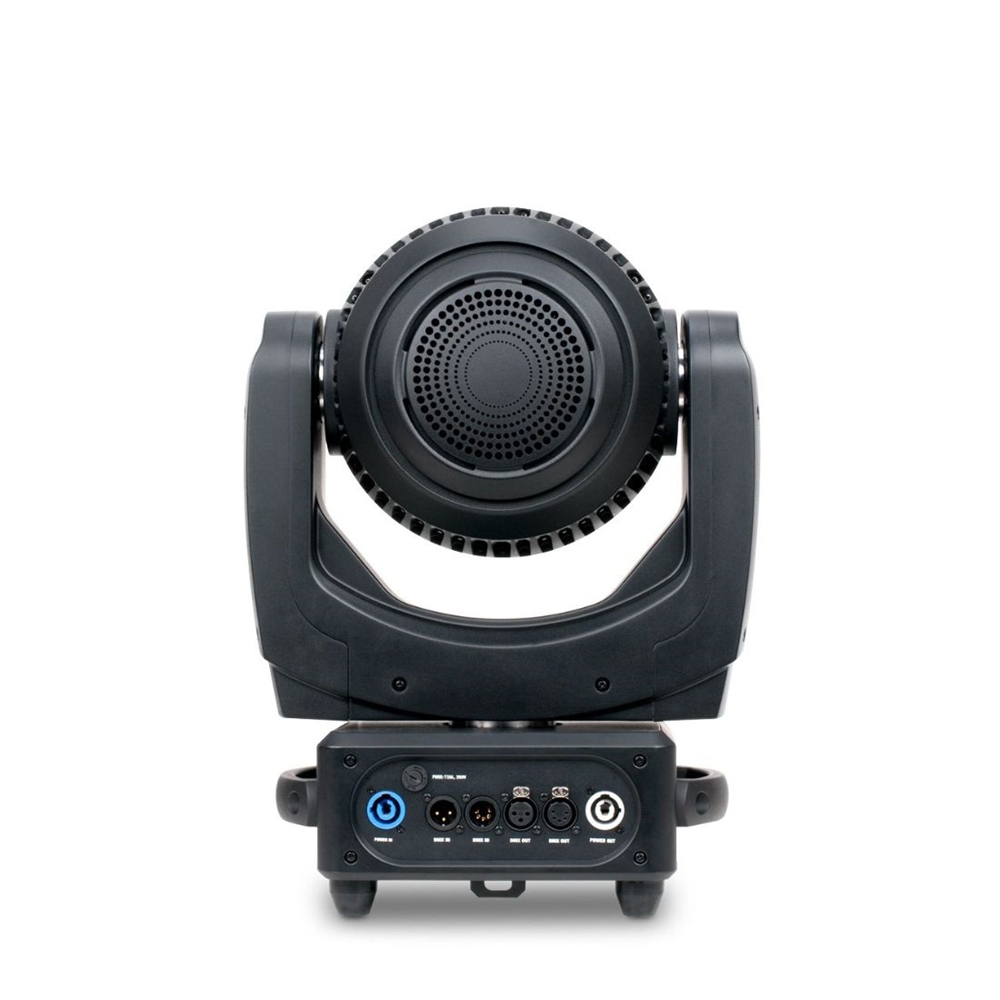

3pin/5pin DMX and Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 338mm (13.3")
Width: 229mm (9.0")
Vertical Height: 466mm (18.2")
Weight: 10 kg (22 lbs.)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
157W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 535.37
