FEATURES
5,600K Cool White LED Fresnel Luminaire
150W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
16° - 39° Manual Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
150W Cool White LED Engine
8,500 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
8,500+ Total Lumen Output
9,269 LUX 861 FC @ 3m (9.8’) (Min. Zoom)
2,334 LUX 217 FC @ 3m (9.8’) (Max. Zoom)
Zoom Range 16° - 39°
Beam Angle 16.1° - 38°
Field Angle 39.1° - 53.9°
EFFECTS
Manual Zoom
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
Manual and DMX Controlled Dimmer and Shutter
Dimmer and Zoom Rotary Dials
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
4 Button Control Panel LCD Menu Display
RDM (Remote Device Management)

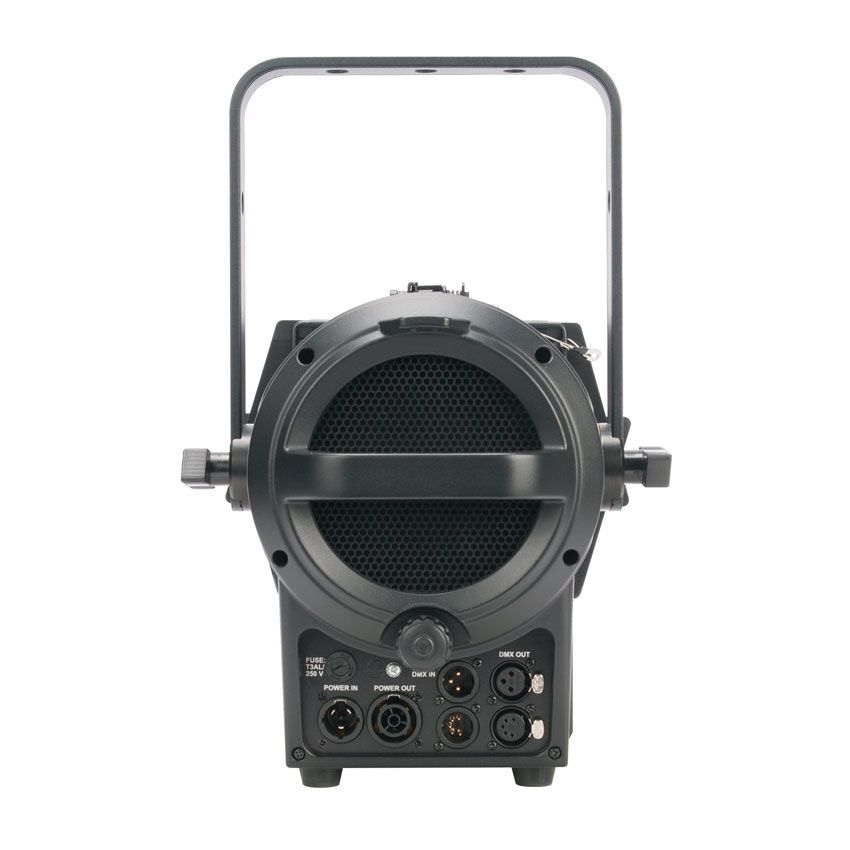

3/5pin DMX and IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 344mm (13.5”)
Width: 273mm (10.8”)
Vertical Height: 393mm (15.5”)
Weight: 8.4 kg (18.5 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
170W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
Power Linking: 6Pcs @ 110V / 14Pcs @ 240V
INCLUDED ITEMS

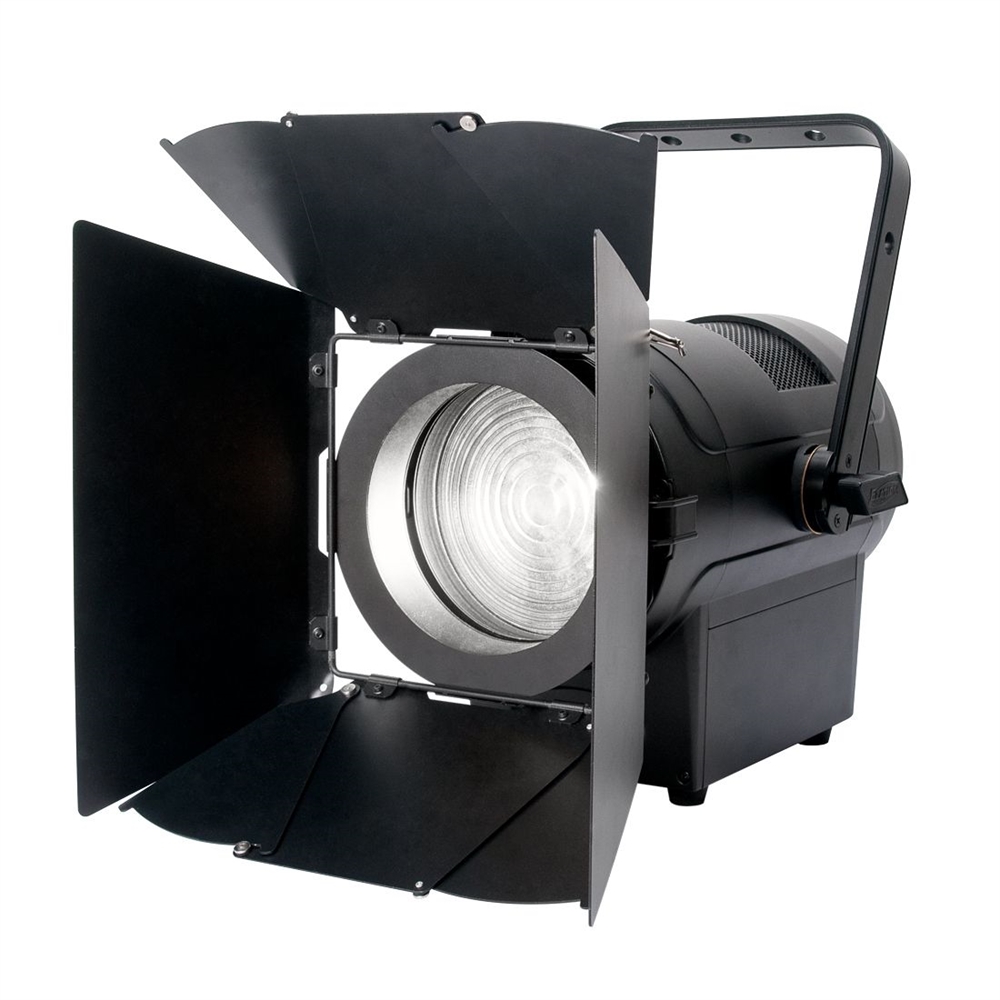

Gel Frame and Rotating Barn Doors
