FEATURES

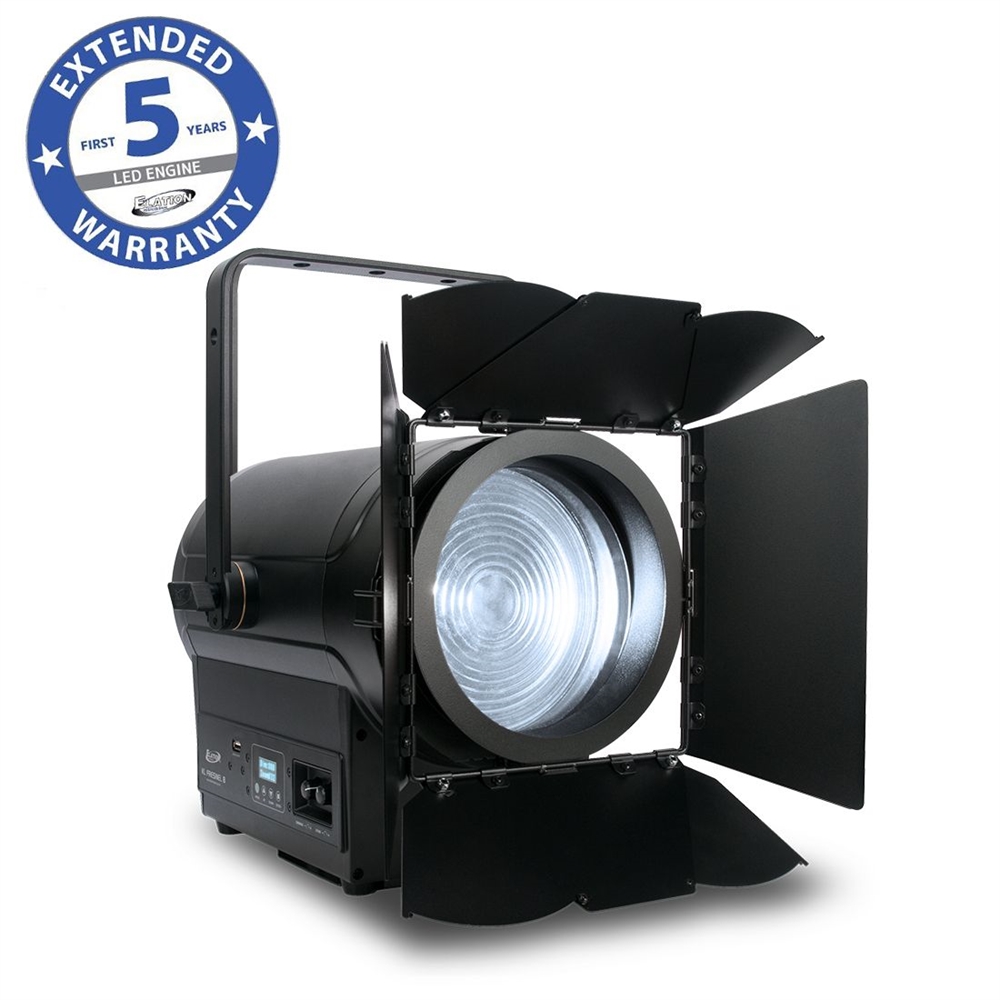

5,600K Cool White LED Fresnel Luminaire
350W Single Source LED
Manual and DMX Controlled Dimming
Quick Single Press Light Output for Focusing
11° - 56° Wide Motorized Zoom
Including 8-Leaf Barn Doors and Gel Frame Holder
Adjustable Refresh Frequency
Silent Operation
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
350W Cool White LED Engine
14,000 Total Output Lumens, 5,600K, 97CRI
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Up to 14,000 Total Lumen Output
16,762 LUX 1,557 FC @ 3m (9.8’) (Min. Zoom)
1462 LUX 136 FC @ 3m (9.8’) (Max. Zoom)
Zoom Range 11° - 56°
Beam Angle 11° - 56.2°
Field Angle 17.9° - 77°
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
5,600K Cool White LED
CONTROL / CONNECTIONS
5 DMX Channels Modes (2 / 3 / 4 / 6 / 7)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900–25,000Hz)
8 / 16 Bit Dimming Control

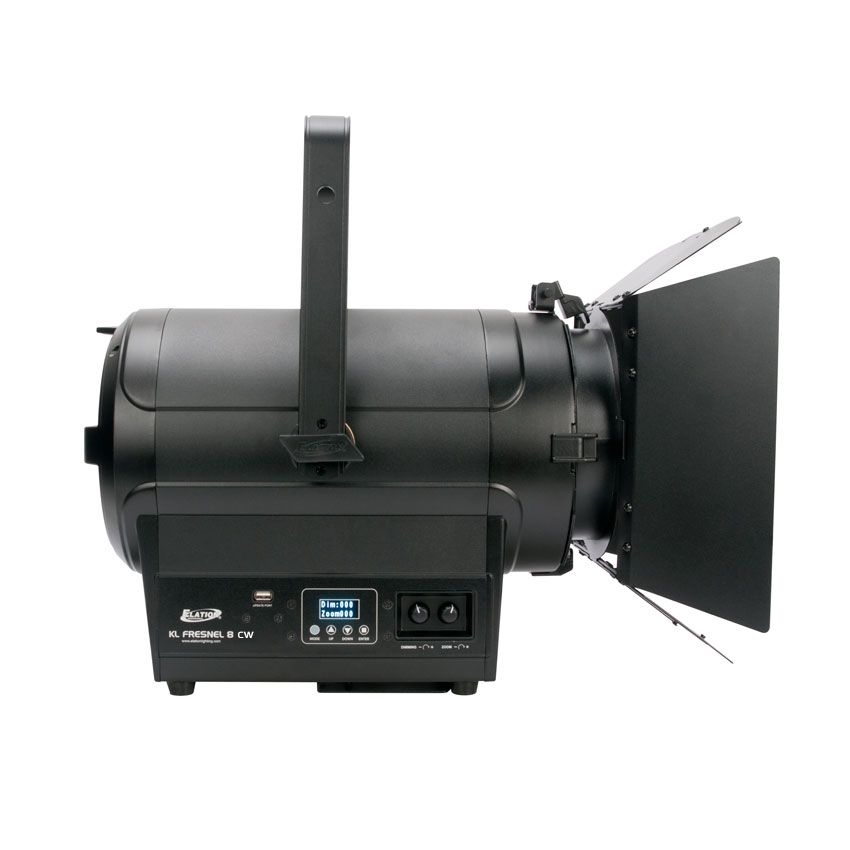

4 Button and 2 Dial Control Panel
Manual and DMX Controlled Dimming
180° Reversible LCD Menu Display
USB Firmware Service Port

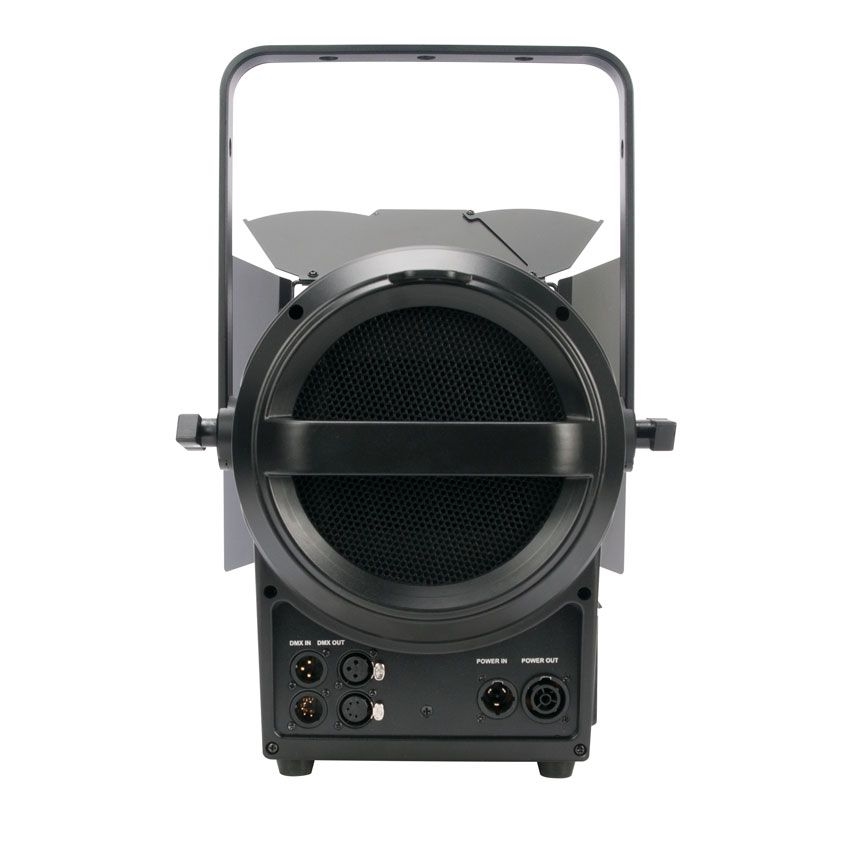

Locking 3/5pin XLR DMX In/Out and Power In/Out Connection
SIZE / WEIGHT
Length: 445mm (17.5”)
Width: 328mm (12.9”)
Vertical Height: 456mm (18.0”)
Weight: 12.7 kg (28.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
360W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
Power Linking: 3Pcs @ 110V / 6Pcs @ 240V
INCLUDED ITEMS
Gel Frame and Rotating Barn Doors
