FEATURES
220W RGBMA LED Engine
Dynamic White + Full Spectrum Color Control
8,000 Total Fixture Lumen Output
10° to 32° Wide Manual Zoom
Stand-Alone control with Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
8-leaf Barn Doors, Gel Frame included
SPECIFICATIONS
SOURCE
220W 6500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
8,000 Total Lumen Output
CRI 92.2
Zoom Range 10° - 32°
Beam Angle 9.7° - 32.2°
Field Angle 18.7° - 49.3°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBMA Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
6 DMX Channel Modes (1 to 18 channels)
Manual and DMX Controlled Dimmer, Color and Zoom
Direct Access Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)

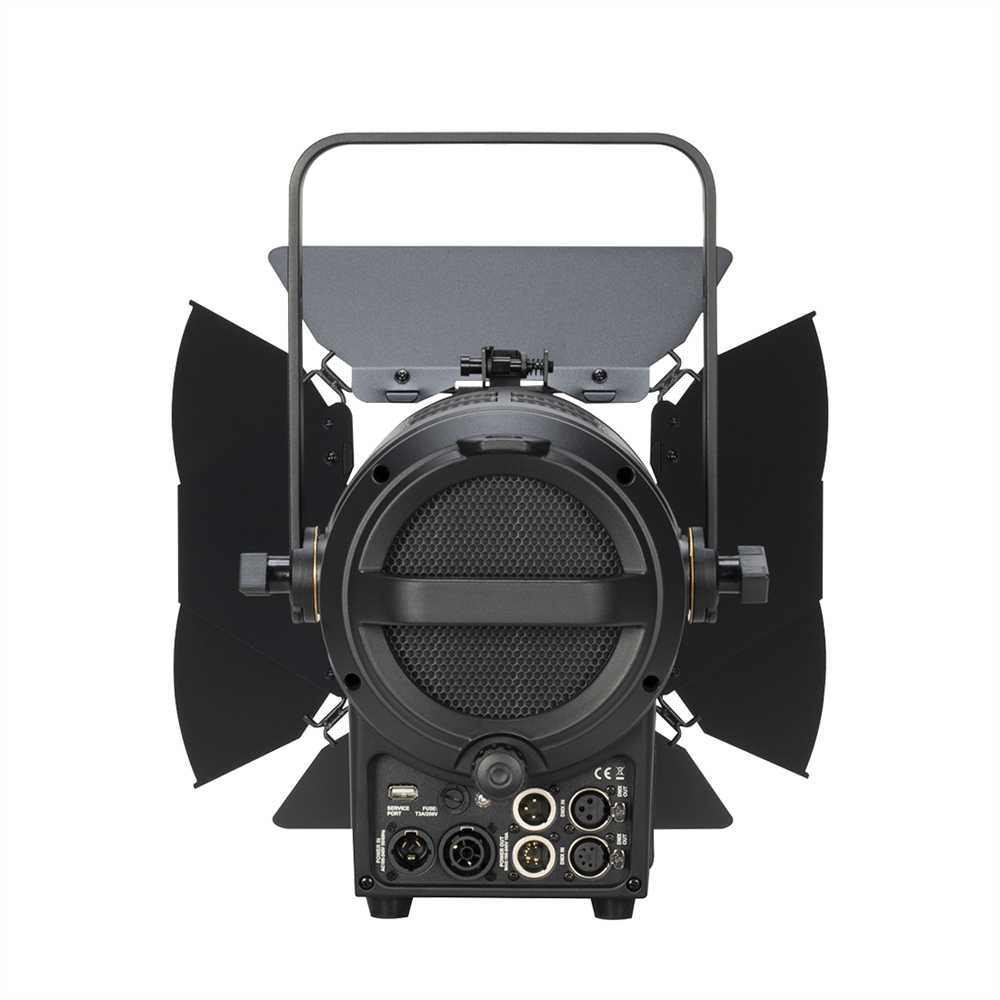

3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length: 344mm (13.5”)
Width: 272mm (10.7”)
Vertical Height: 398mm (15.6”)
Weight: 7.3kg (16.10 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
219W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 687.66
INCLUDED ITEMS
Gel Frame and Rotating 8-leaf Barn Doors
IP65 Locking Power Cable
