FEATURES
544W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array
CRI 95, CCT Adjustment from 2000 to 10000K
44,000 Total Lumen Fixture Output
4x2 Section control option
Internal Power Supply with Power Pass-Through
24-36 VDC Battery Operation (Battery not included)
DMX/RDM, Art-Net and sACN Protocol Support
E-FLY™ Internal Extended Range Wireless DMX Transceiver
Stand-Alone Control with 3 Encoders and OLED Display
Barn Doors, Diffuser, and Junior Pin (28mm - 1 ⅛”) included
SPECIFICATIONS
SOURCE
6-in-1 (Red, Green, Blue, White, Lime, Cyan) Full Spectrum LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
up to 44,000 Total Lumen Output
Diffuser
Beam Angle 101°
Field Angle 159.4°
Without Diffuser
Beam Angle 111°
Field Angle 155.4°
EFFECTS
Variable CCT 2000K - 10000K
Green-Shift Adjustment

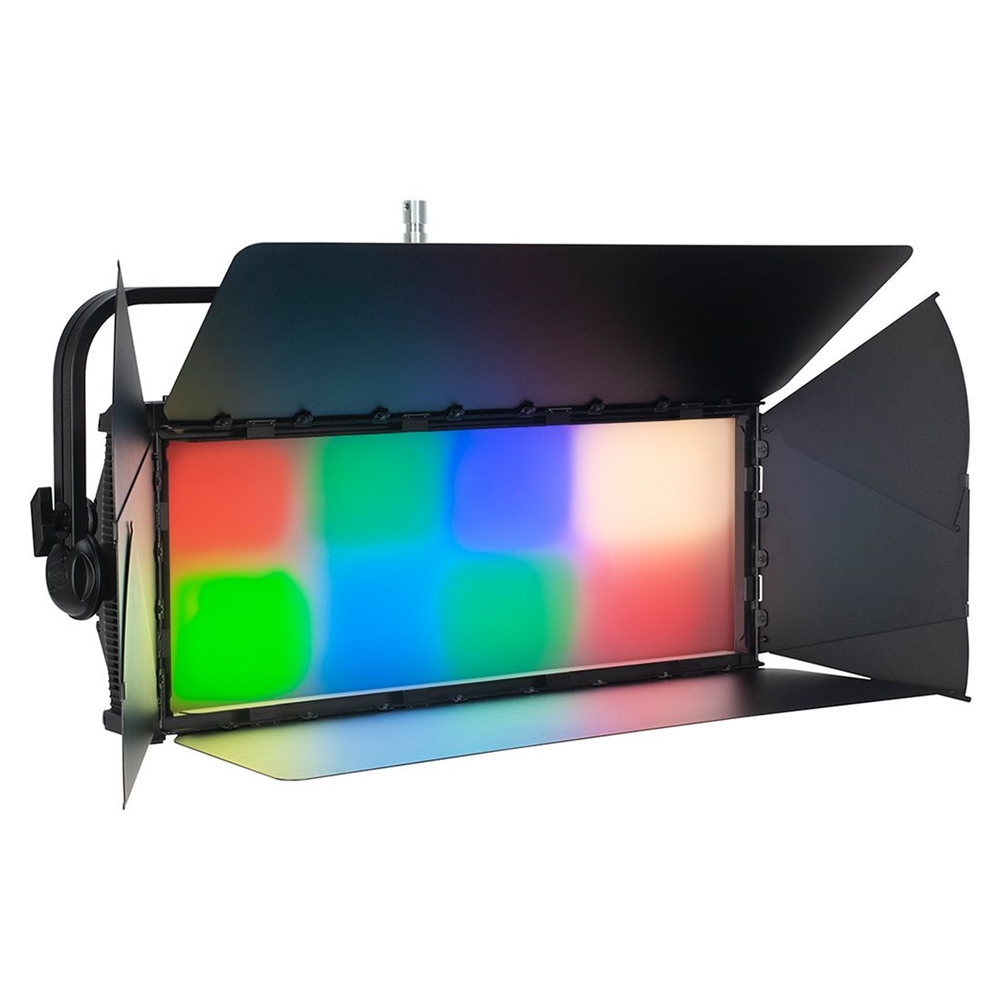

4x2 Section Control
Virtual Gel Library
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Remote Adjustable LED Refresh Rate Frequency (900-25kHZ)
CONTROL / CONNECTIONS
12 DMX Channel Modes (1-96 Ch.)
1 or 8 cell control sections
3 Manual Adjustment Encoders
4 Button Control Panel and OLED Menu Display
DMX, RDM, Art-NET, sACN Protocol Support
E-FLY™ Internal Extended Range Wireless DMX Transceiver
Locking 5pin XLR Connector In/Out
Locking 3pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates, External 5V power for accessories)
4pin XLR External Battery Connection (battery not included)
SIZE / WEIGHT
Length: 858mm (33.18”)
Width: 155.5mm (6.1”)
Height: 306.3mm (12.1”)
Height (with yoke): 426.8mm (16.8”)
Weight: 17.2 kg (37.9 lbs.)
Weight: (Junior Pin) 0.46 kg (1.02 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
24-36 VDC (Battery operation - Battery not included)
Max Power Consumption 544W
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1708.2
