FEATURES

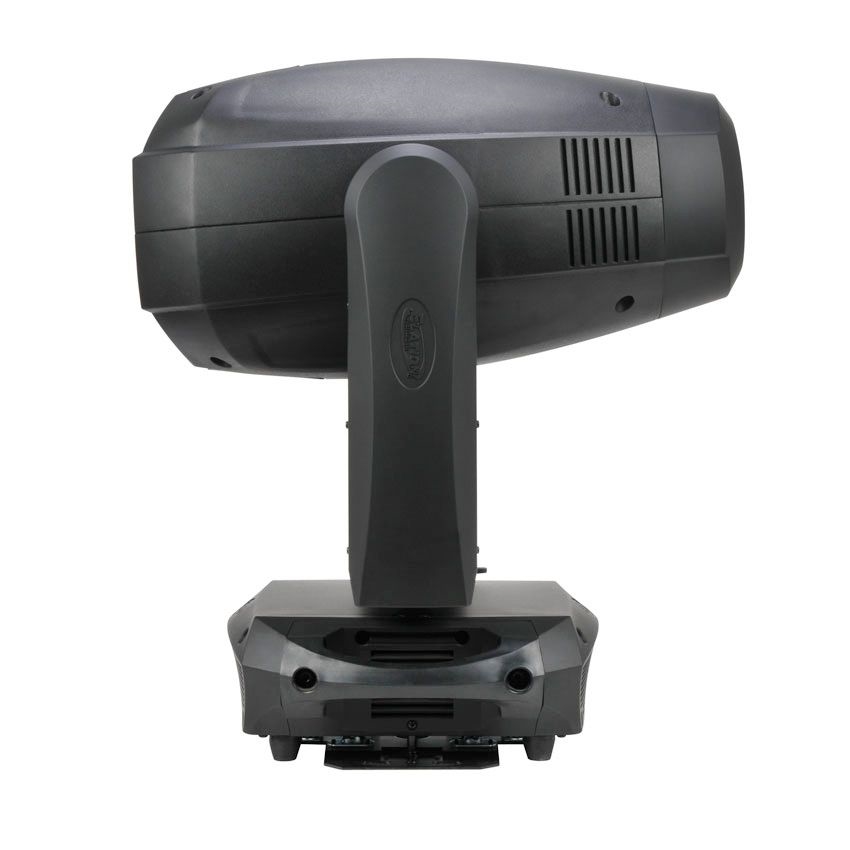

Patent Pending 3-in-1 Spot, Beam and Wash Luminaire
Independent Optical Systems without Compromising Performance
Innovative Auto Focus Function
Minimal Lux Loss in Spot Mode

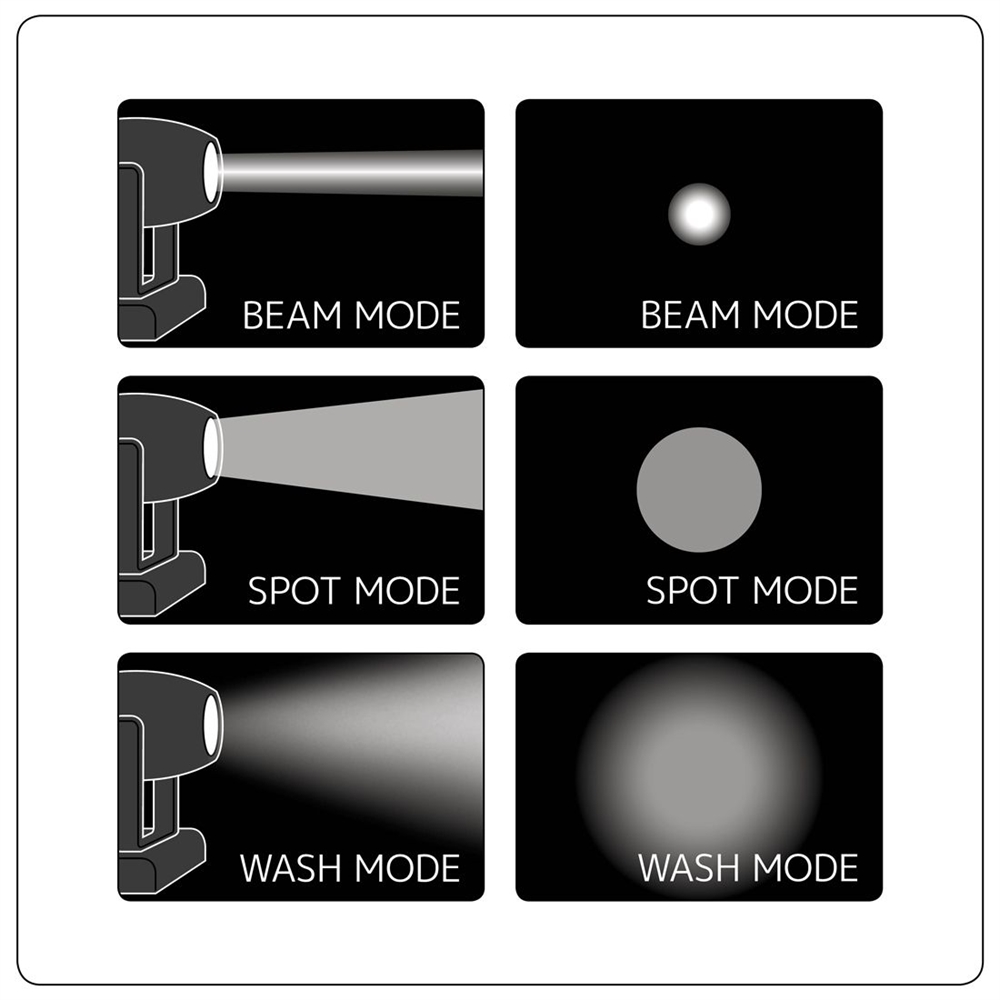

2.9° - 25° Spot, 1.8° - 18° Beam and 6° - 42° Wash Zoom Range
6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effects
Full CMY Color Mixing and Linear CTO Color Correction
Pan/Tilt Lock
Art-NET and sACN (DMX over Ethernet) Support
RDM – Remote Device Management
SOURCE
Philips™ MSD Platinum 20R 470W Lamp
23,000 Lumens, 7,800K, 80CRI
1,500 Hour Average Lamp Life*
PHOTOMETRIC DATA
11,262 Lumens Spot Mode / 19,133 Lumens Beam Mode
165,500 LUX 15,375 FC @ 10m (32.8’) (Spot)
360,000 LUX 33,444 FC @ 10m (32.8’) (Beam)
EFFECTS
6-Facet Linear and 8-Facet Rotating Prisms
Bi-Directional Animation Effect
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
True CMY-Flag Color Mixing
Linear CTO Color Correction
10 Dichroic Colors Including UV, CTO, CTB + White
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Glass & Metal Gobos
Size: OD 16.1mm / ID 10.0mm**
(6) Static-Stamped / Indexing Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel

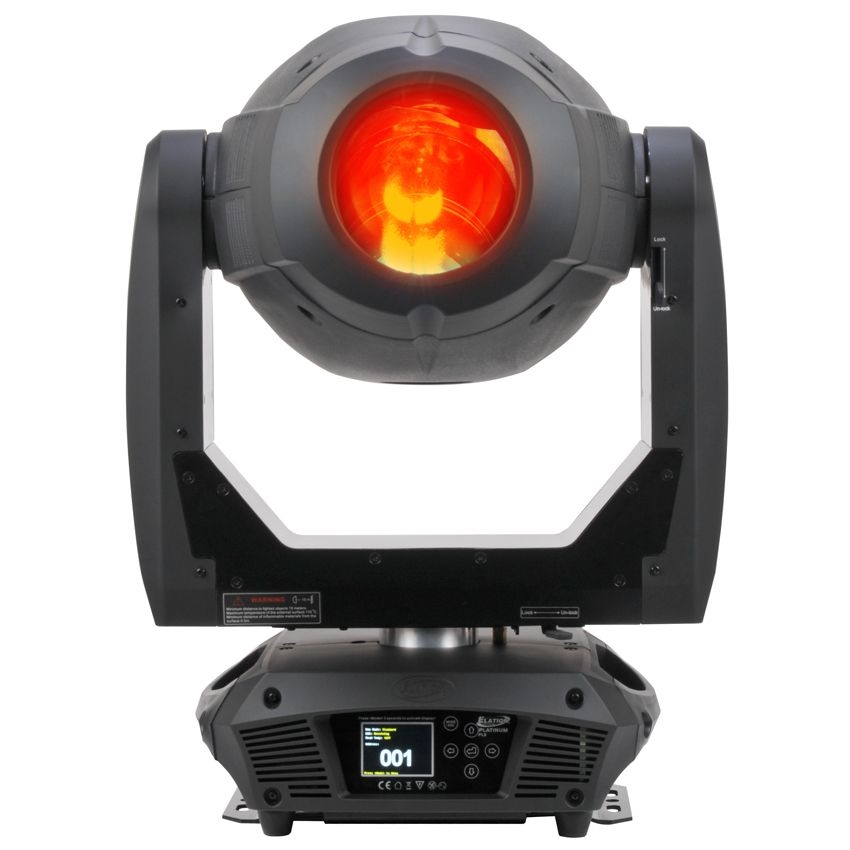

Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement

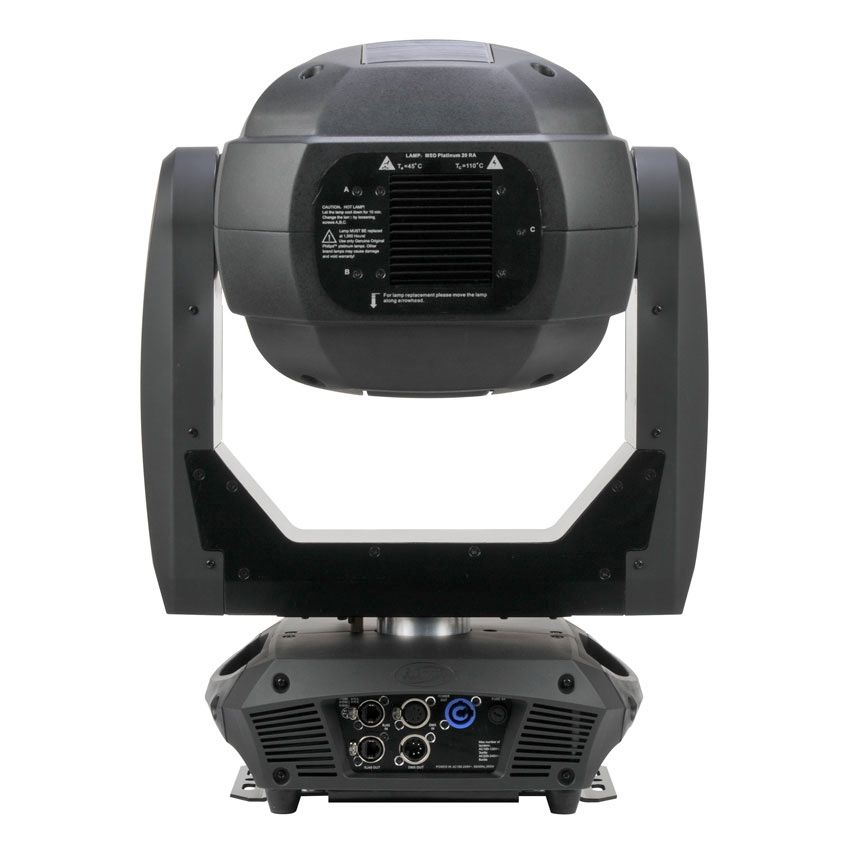

5pin XLR In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Locking Power Cable In
SIZE / WEIGHT
Length: 466mm (18.3”)
Width: 335mm (13.2”)
Vertical Height: 762mm (30.0”)
Weight: 34.0 kg (75.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
INCLUDED ITEMS
Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1227000013 WP-02 Outdoor Dome
1227000018 WP-06 Outdoor Dome
1322000054 E Loader III
1521000236 Touring Case 2x Platinum FLX
1521000237 PRO Case 2x Platinum FLX
AWARDS

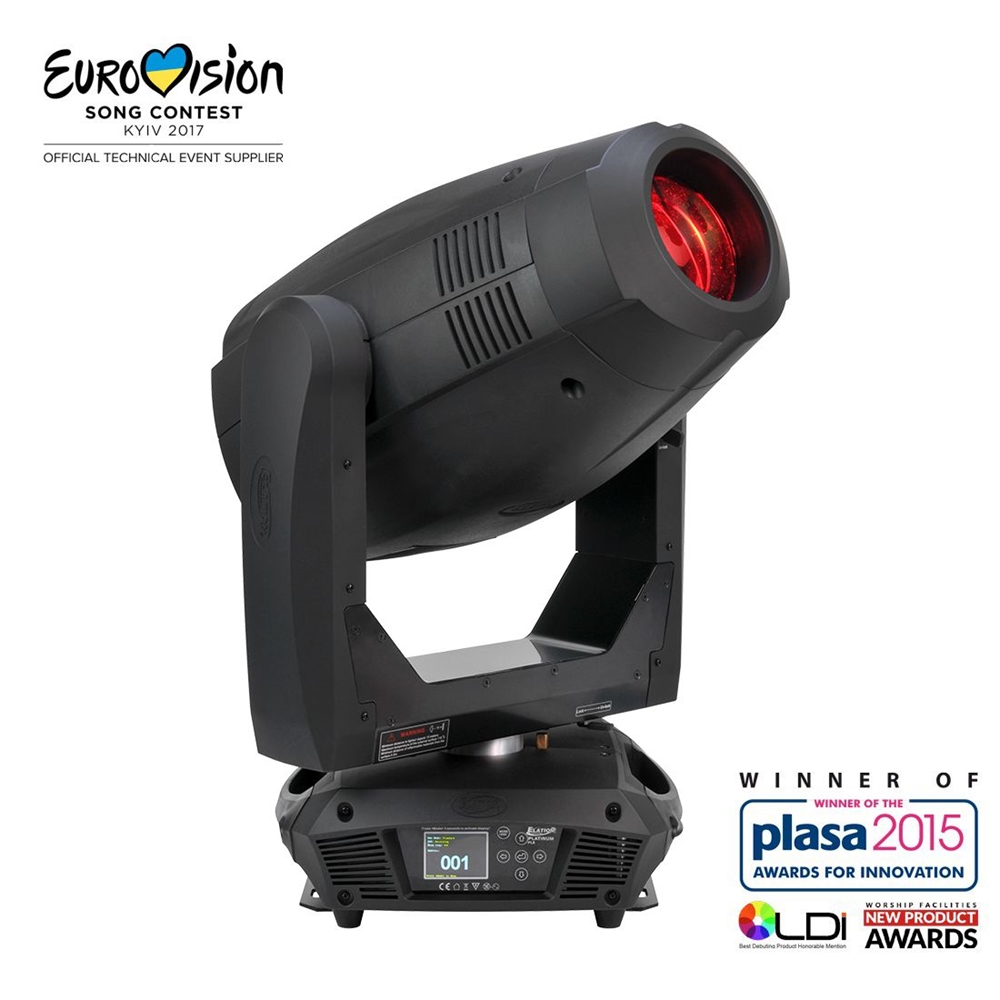

Plasa Award 2015 for Innovation
LDI Award 2015 Best Debuting Lighting Product
WFX Award 2015 New Product Award
