***Only on Special Order***
FEATURES

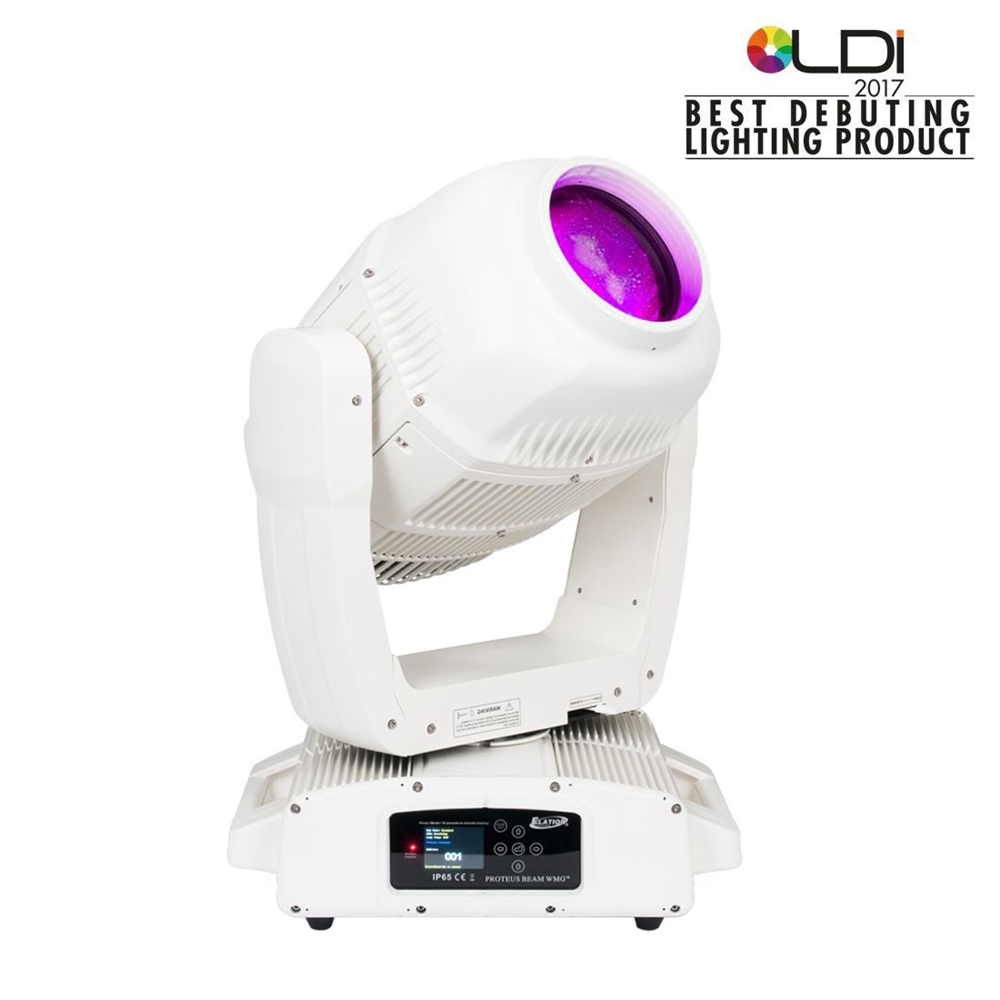

IP65 Rated Moving Head Beam Luminaire
Philips™ MSD Platinum 14R 280W 80CRI 7,800K Lamp
Precise 2.5° Beam Aperture and Advanced Optics
Revolutionary Internal Cooling System
Full CMY Color Mixing
13 Dichroic Colors including CTB, CTO, and UV
8 Rotating Interchangeable Metal and 13 Static-Stamped Metal Gobos
5 and 32 Facet Rotating Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver
SOURCE
Philips™ MSD Platinum 14R 280W 80CRI, 7,800K
1,500 Hour Average LAMP Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
136,800 LUX 12,709 FC @ 15m (49.2 ft) 2.5°
EFFECTS
5 and 32 Facet Rotating Prism and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto Focus
High Speed Mechanical Shutter and Strobe
Pan Angle: 540°/630°
Tilt Angle: 260°
COLOR
13 Dichroic Colors including CTB, CTO, and UV
Full CMY Color Mixing
GOBOS
(8) Interchangeable Rotating / Indexing Metal Gobos
(13) Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (28 total channels)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation E-Fly™ Internal Wireless DMX Transceiver
IP65 5pin XLR DMX In/Out
IP65 RJ45 ethernet In/Out (Art-NET, sACN)
IP65 Locking Power Cable In
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 445mm (17.1”)
Width: 454mm (17.87”)
Vertical Height: 680mm (26.77”)
Weight: 35.0kg (77.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
500W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
