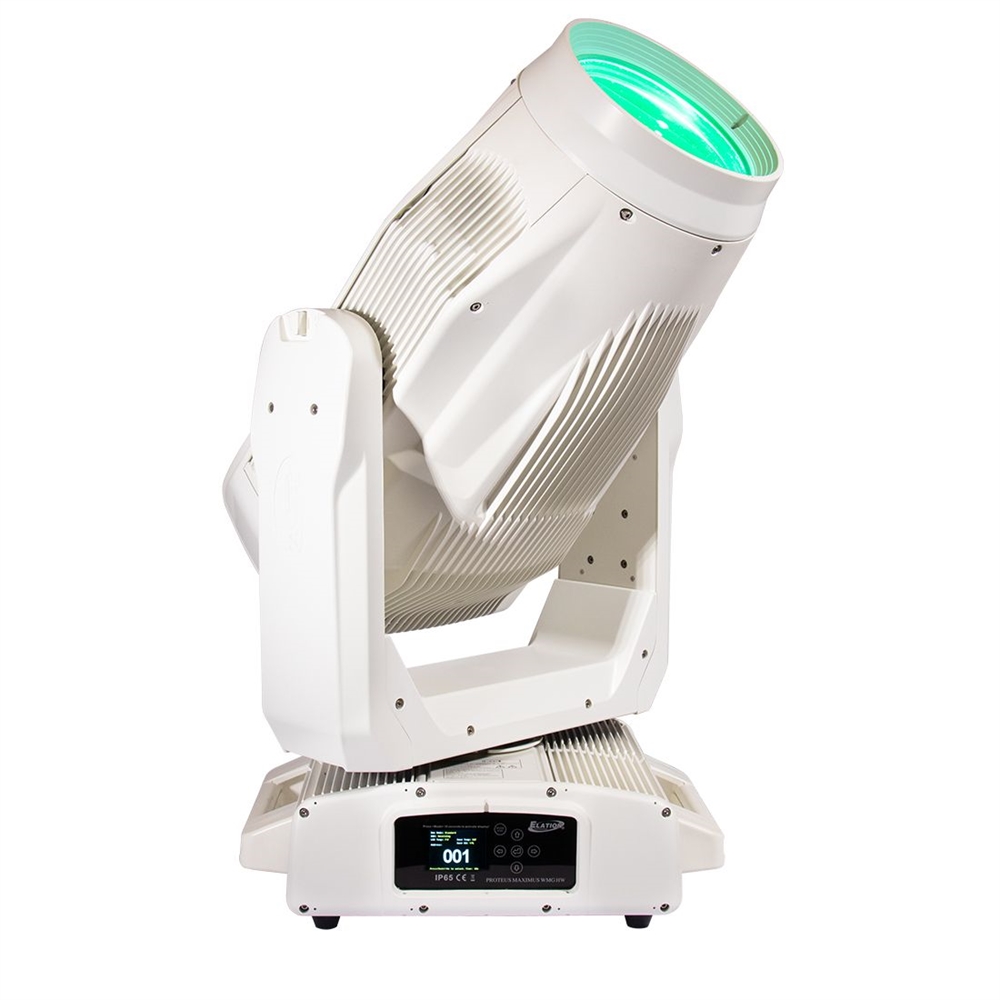

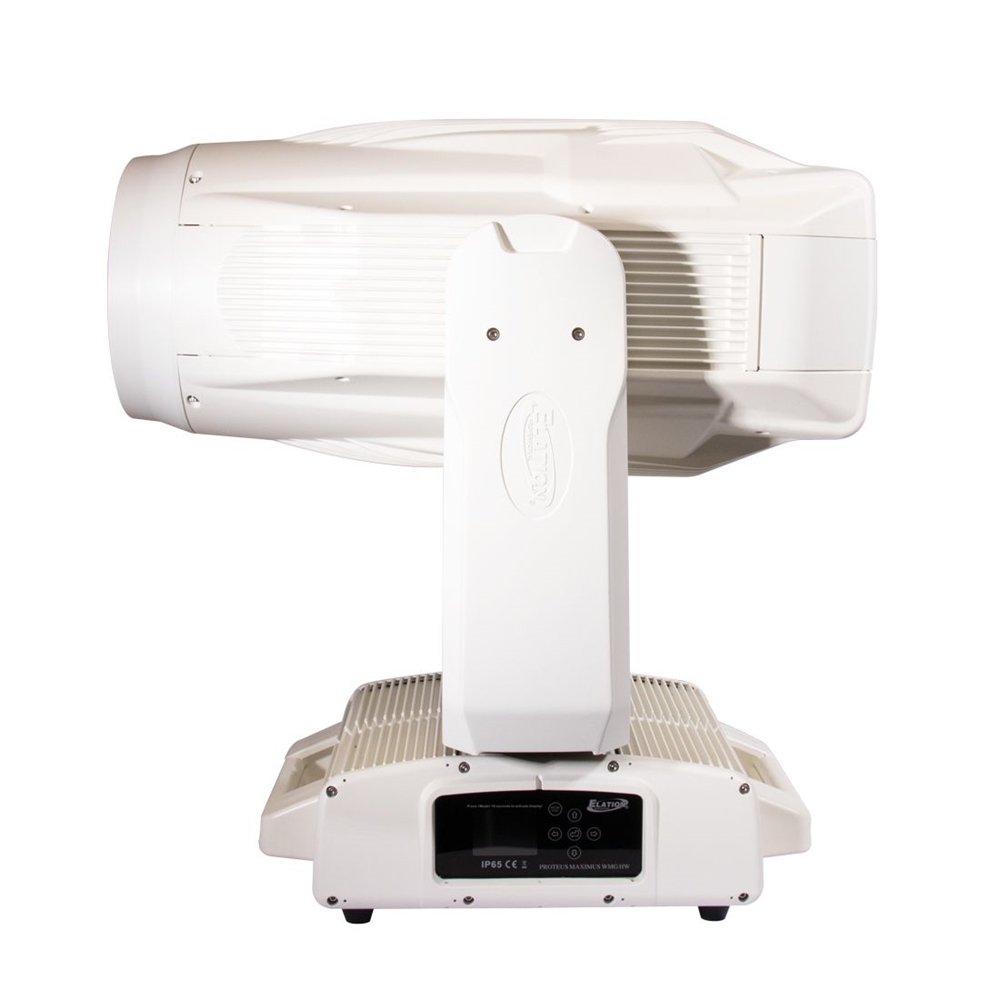

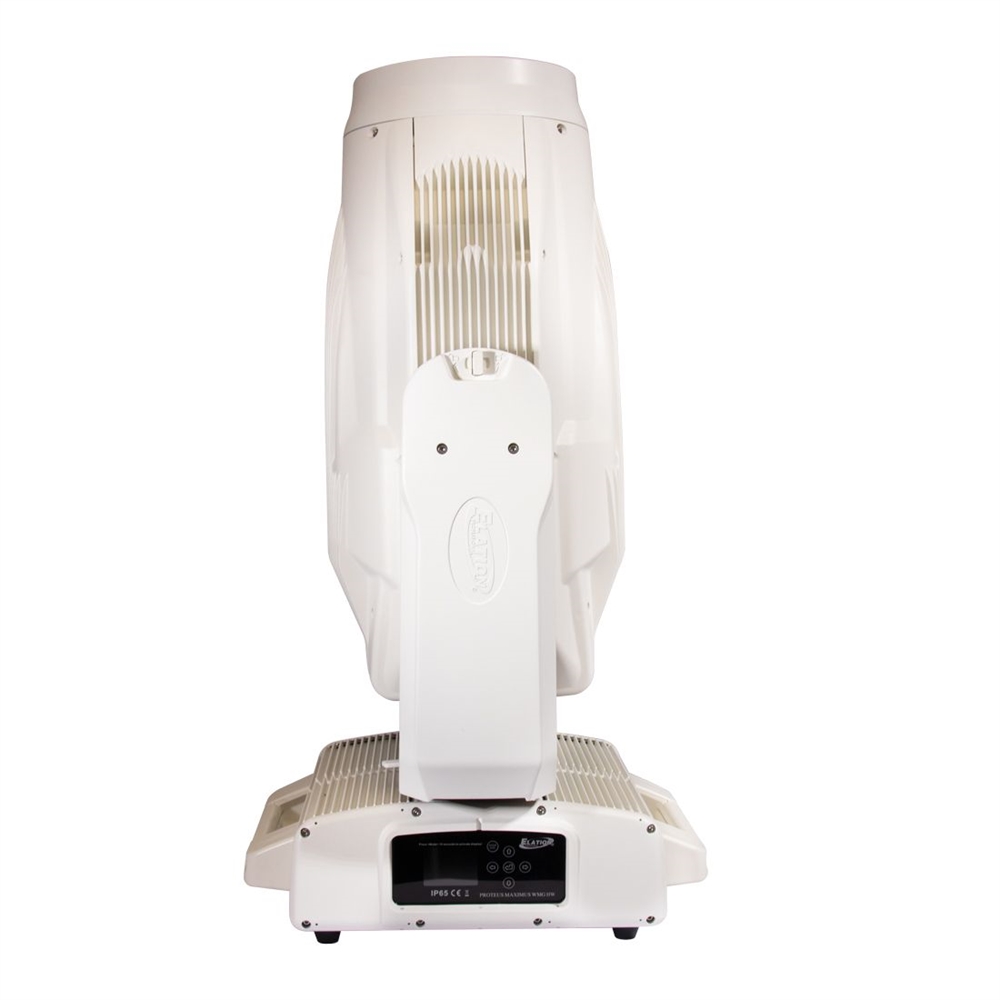

Elation Proteus MAXIMUS WMG, 950W 6,500K Bright White LED IP65

Fjernlager
Kontakt os om leveringstid
Bedømmelse for Elation Proteus MAXIMUS WMG, 950W 6,500K Bright White LED IP65
Produktet er endnu ikke bedømt

173.495,00DKK ved 1 stk.

The PROTEUS MAXIMUS™ an extremely bright IP65 rated all white housing LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.

***Only on Special Order***

FEATURES

High Efficiency 950W 6,500K White LED Engine
Up to 50,000 Total Lumen Fixture Output
CMY Color Mixing and Variable CTO
6 Position Color Wheel, High CRI, UV filter
Complete FX System featuring Rotating and Fixed Gobos, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 5.5° to 55° / Large 180mm Front Aperture
FIL (Foam In Lay) Polyurethane Foam Packaging Included

SOURCE

950W 6,500K Bright White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA

50,000 Total Lumen Output
CRI 70+ (82+ with HCRI Filter)
2:1 Hotspot Ratio

Zoom Range 5.5° - 55°
Beam Angle 4.8° - 41.2°
Field Angle 6.1° - 51

EFFECTS

Motorized Zoom (Large 180mm Front Aperture)
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°
Tilt Angle: 250°

COLOR

CMY Color Mixing
Linear CTO Color Correction
6 Dichroic Colors including High CRI Filter and UV

GOBOS

2 Gobo Wheels
6 Rotating / Indexing Interchangeable Glass Gobos
7 Static Glass Gobos

CONTROL / CONNECTIONS

2 DMX Channel Modes (37 / 61)
16-bit Pan, Tilt and Dimming Control
Motorized Focus and Auto-Focus Presets
DMX, RDM, Art-NET, sACN Protocol Support
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
Locking 5pin XLR DMX In/Out
IP65 locking RJ45 ethernet In/Out
IP65 locking power In
With Wired Digital Communication Network

SIZE / WEIGHT

Length: 458mm (18.0 in)
Width: 591mm (23.3 in)
Height: 825mm (32.5 in)
Weight: 53kg (117 lbs.)

ELECTRICAL / THERMAL

AC 100-240V 50/60Hz
Max Power Consumption 1,400W
-20°C to 45°C (-4°F to 113°F)

Dataark / Info Blad

Varenr.: M-1237000213
