FEATURES
Versatile Color Blinder, Strobe, Wash Luminaire

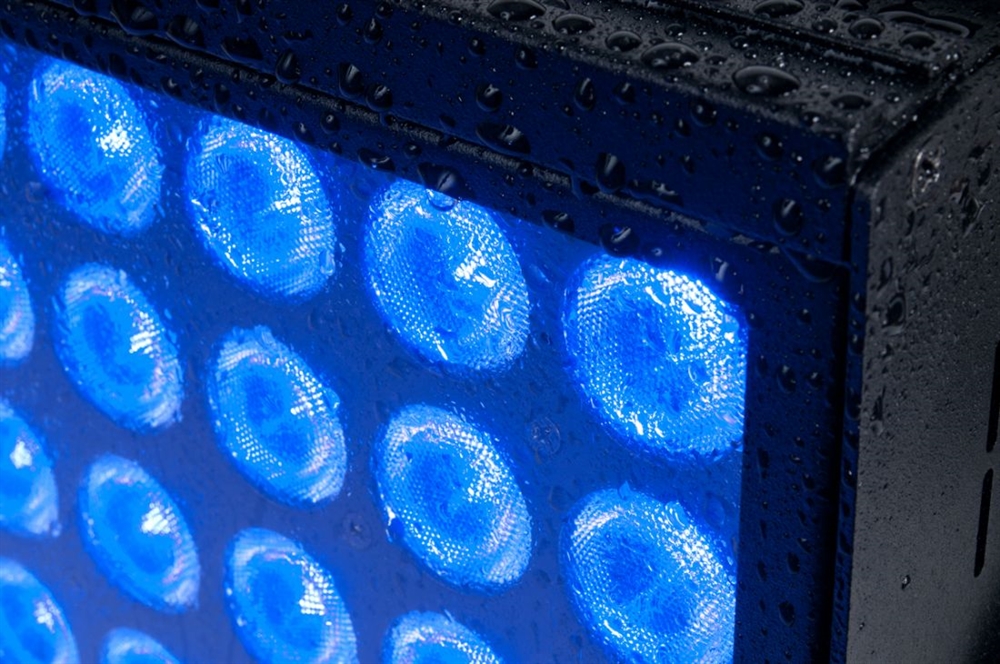

High Powered 1000W Air Cooled IPX4 Outdoor Rated
96 10W CREE RGBW 4-in-1 LEDs
31° Beam / 63° Field Angles
27,000+ Total Lumen Output
Brilliant Eye Candy Effects

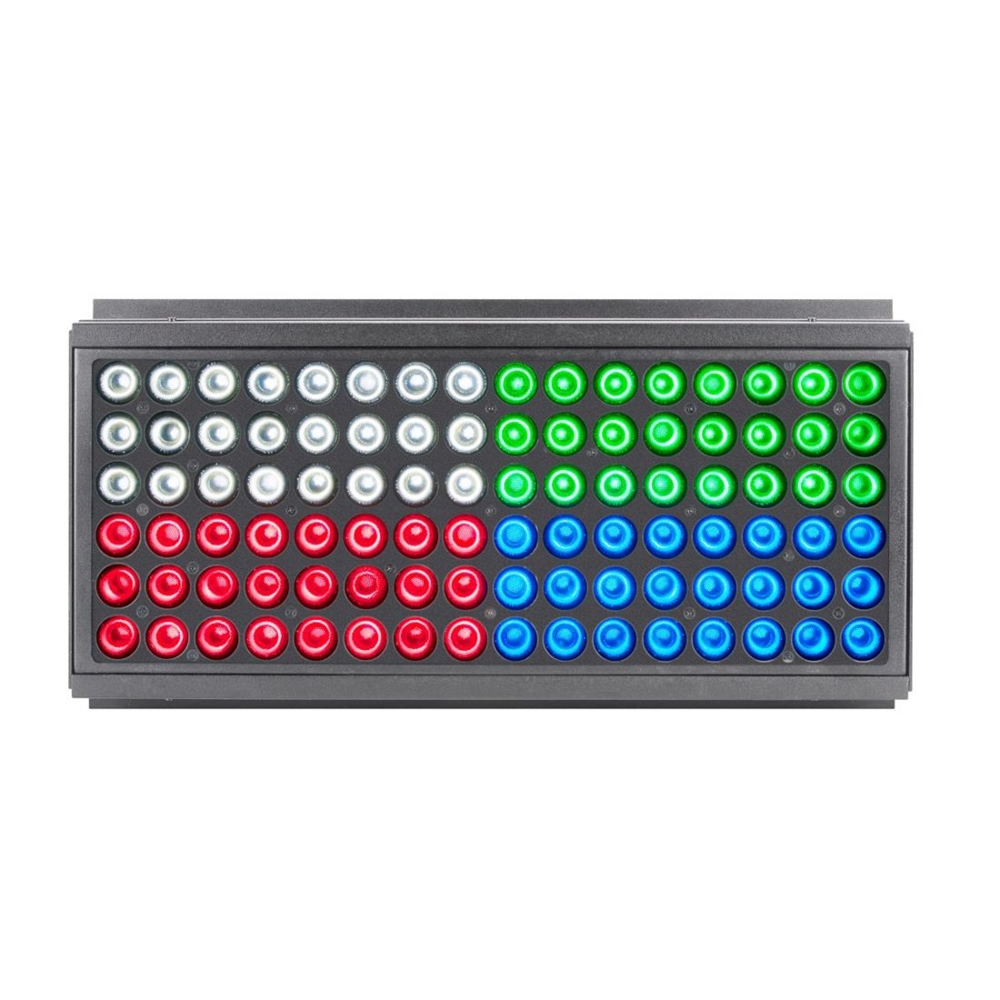

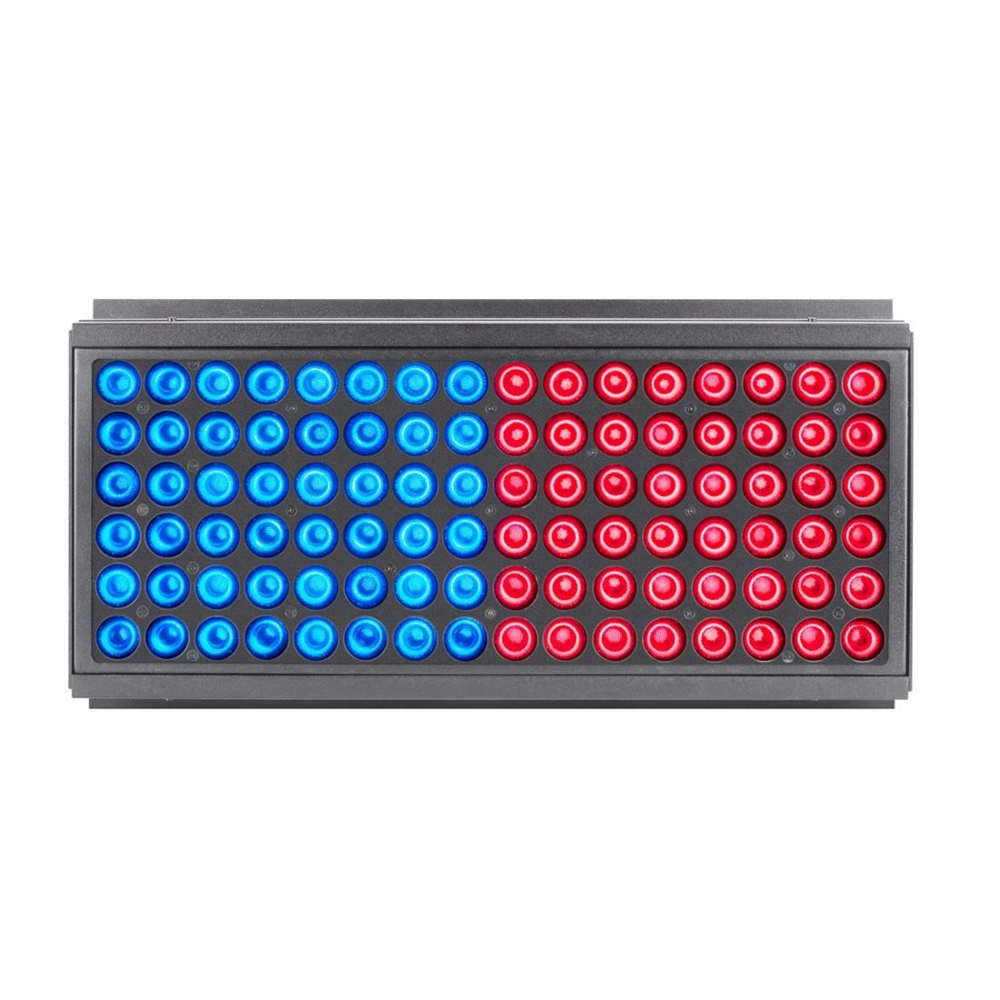

Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25fps) Adjustable Strobe
DMX, RDM, Kling-NET and Art-NET Protocol Support
8/16 Bit RGB and RGBW Smooth Color Mixing Modes

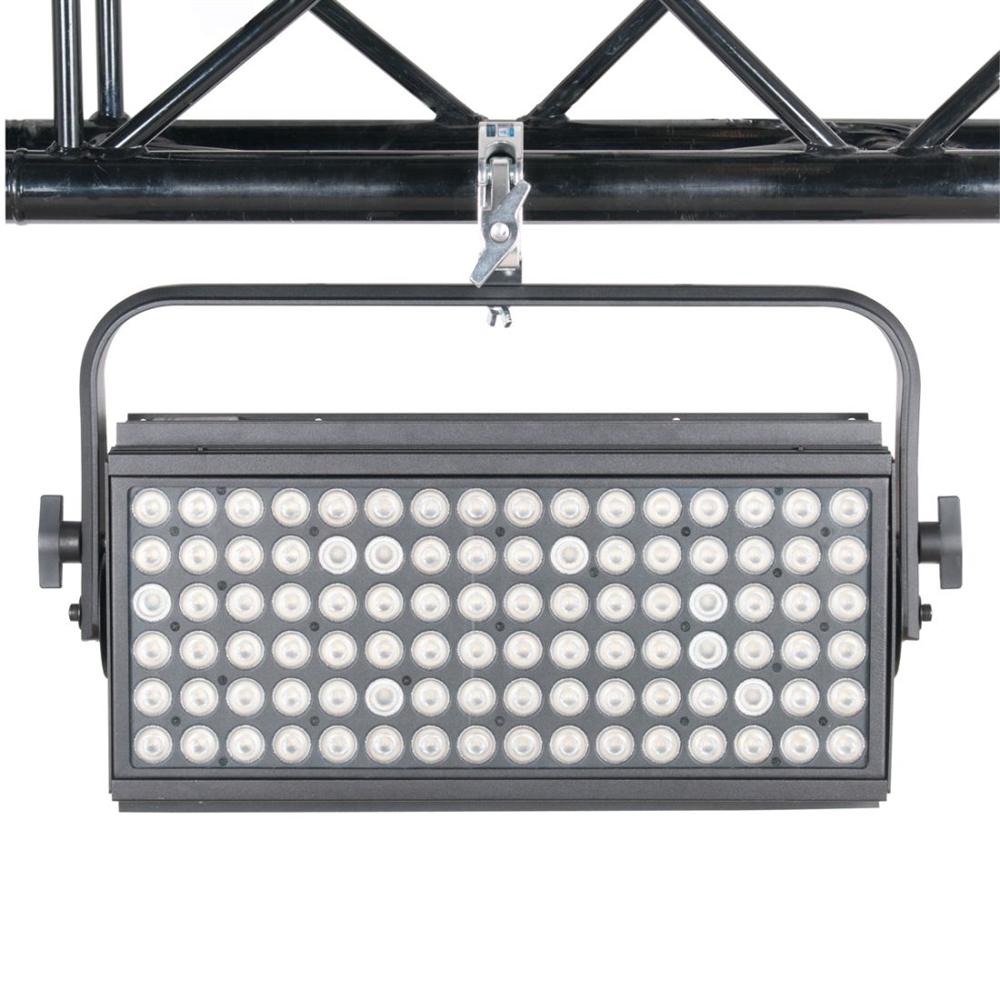

Adjustable/Removable Yoke Bracket w/3-Position Holes
Interlocking System for Multiple Unit Matrix Designs
SOURCE

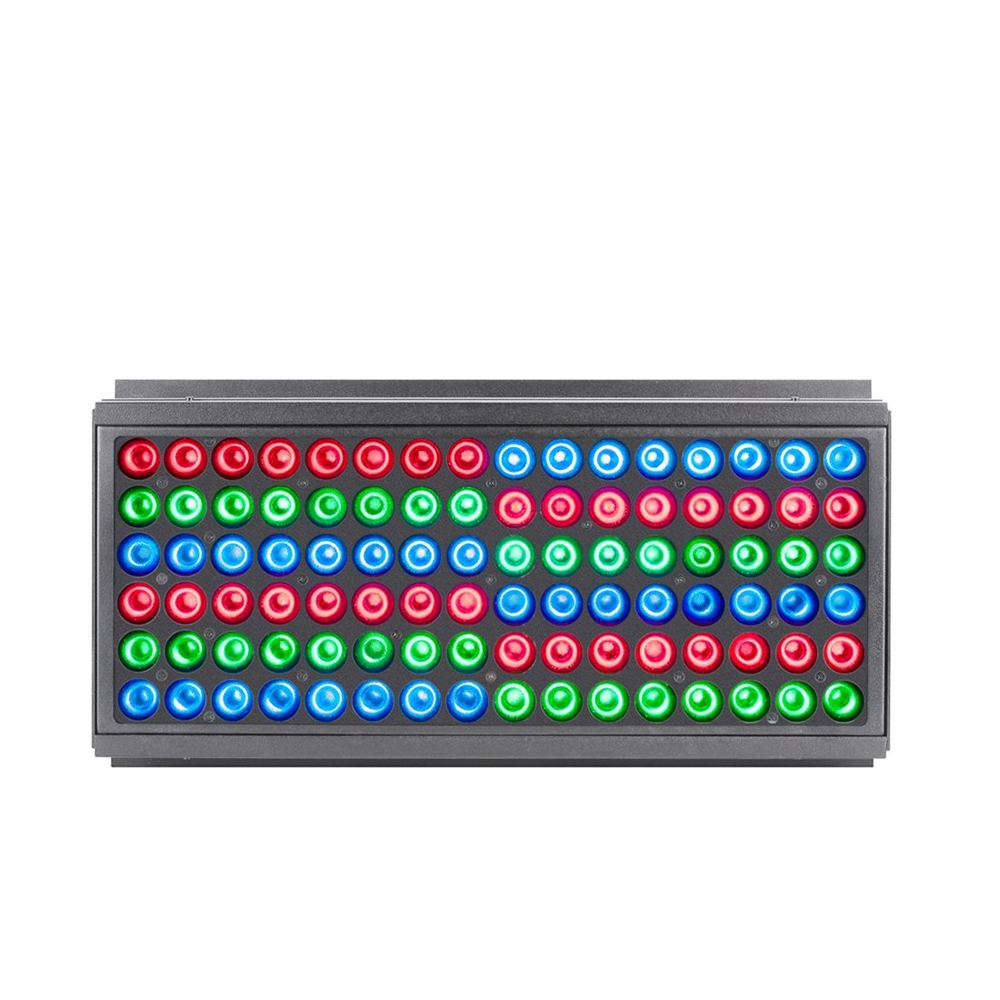

(96) 10W CREE 4-in-1 RGBW LEDs
15,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
31° Beam / 63° Field Angles
27,000+ Total Lumen Output
EFFECTS
Color Blinder, Strobe, and Wash
Brilliant Eye Candy Effects
Selectable Pixel Mapping Control Zones
Strobe Intensity, Duration, Rate, and FX Control
Super High Speed (1-25fps) Adjustable Strobe
8/16 Bit RGB and RGBW Smooth Color Mixing Modes
COLOR
RGBW

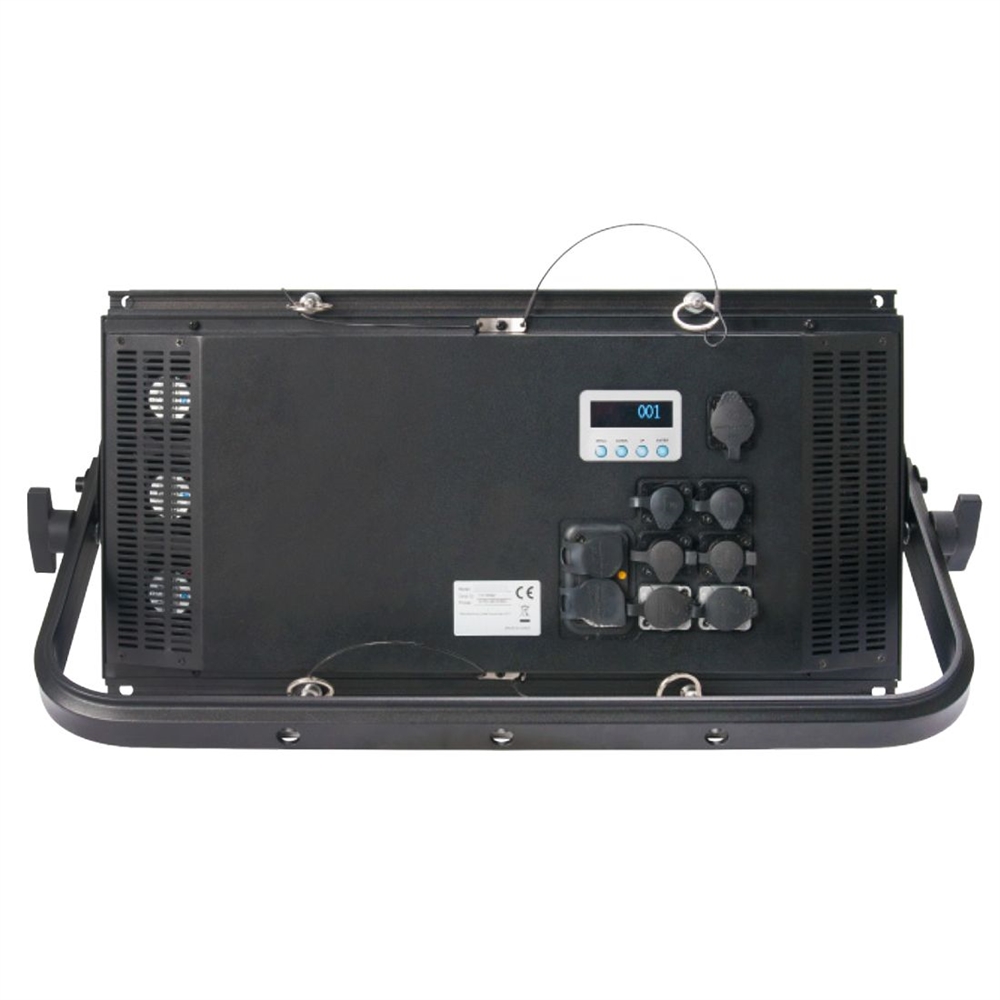

CONTROL / CONNECTIONS
Multiple DMX Channel Modes (57 total channels)

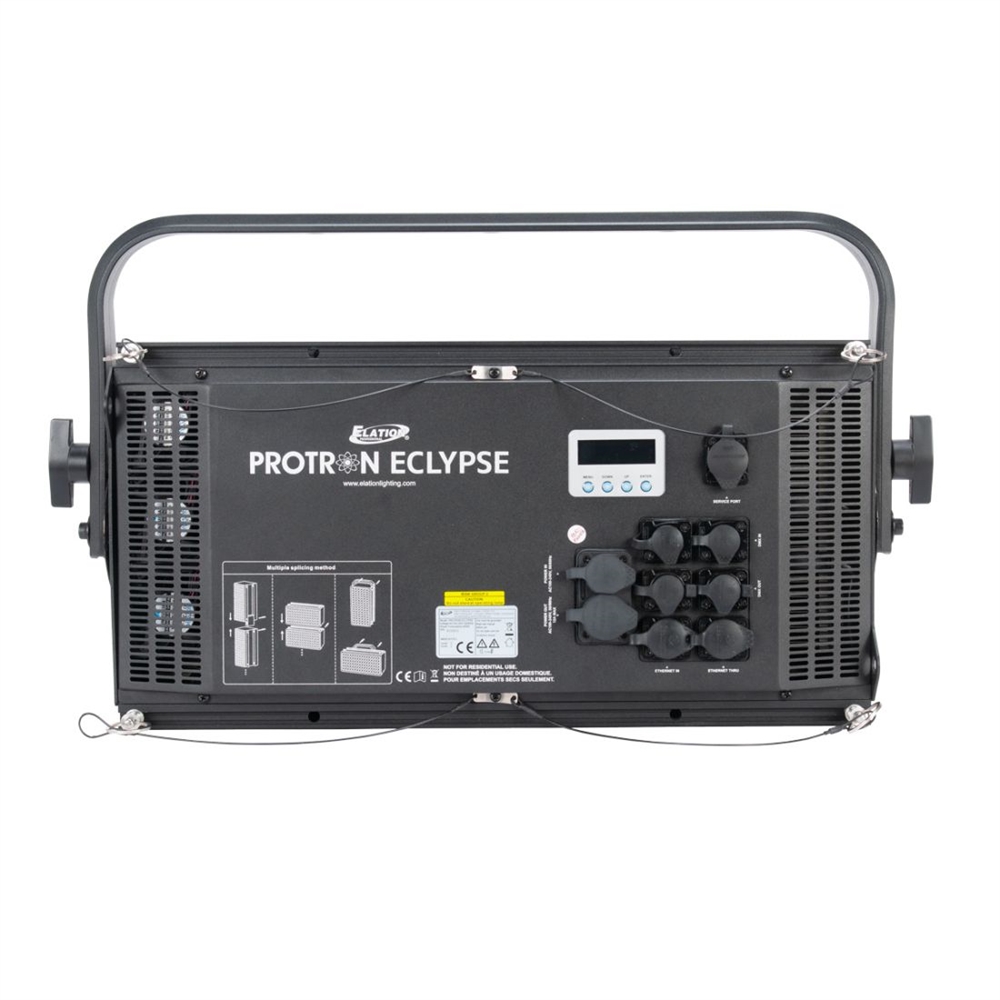

4 Button Touch Control Panel with OLED Menu Display
DMX, RDM, Kling-NET, and Art-NET Protocol Support
IP65 3/5pin DMX and RJ45 ethernet In/Out
IP65 Locking Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
SIZE / WEIGHT
Length: 24.9” (633mm)
Width: 7.0” (177.5mm)
Vertical Height: 14.4” (364.8mm)
Weight: 34.6 lbs. (15.7kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
843W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2874.63
