FEATURES

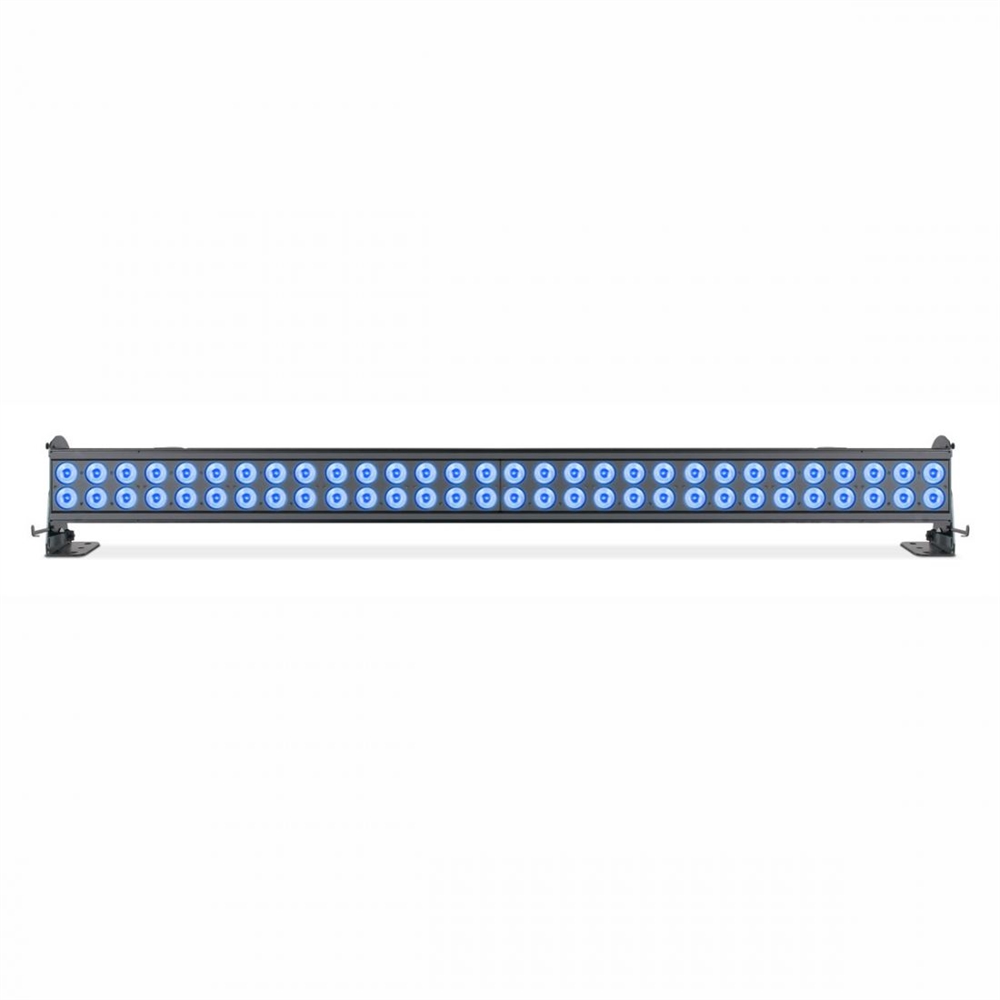

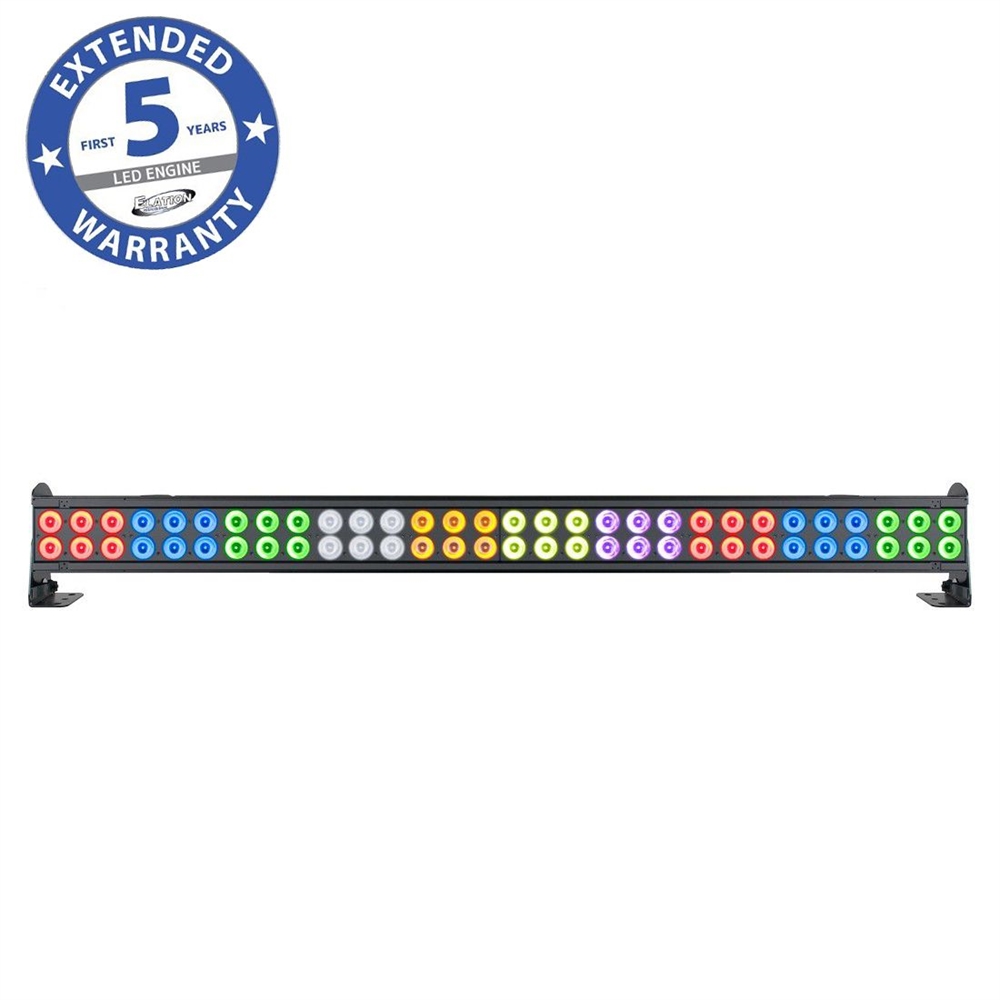

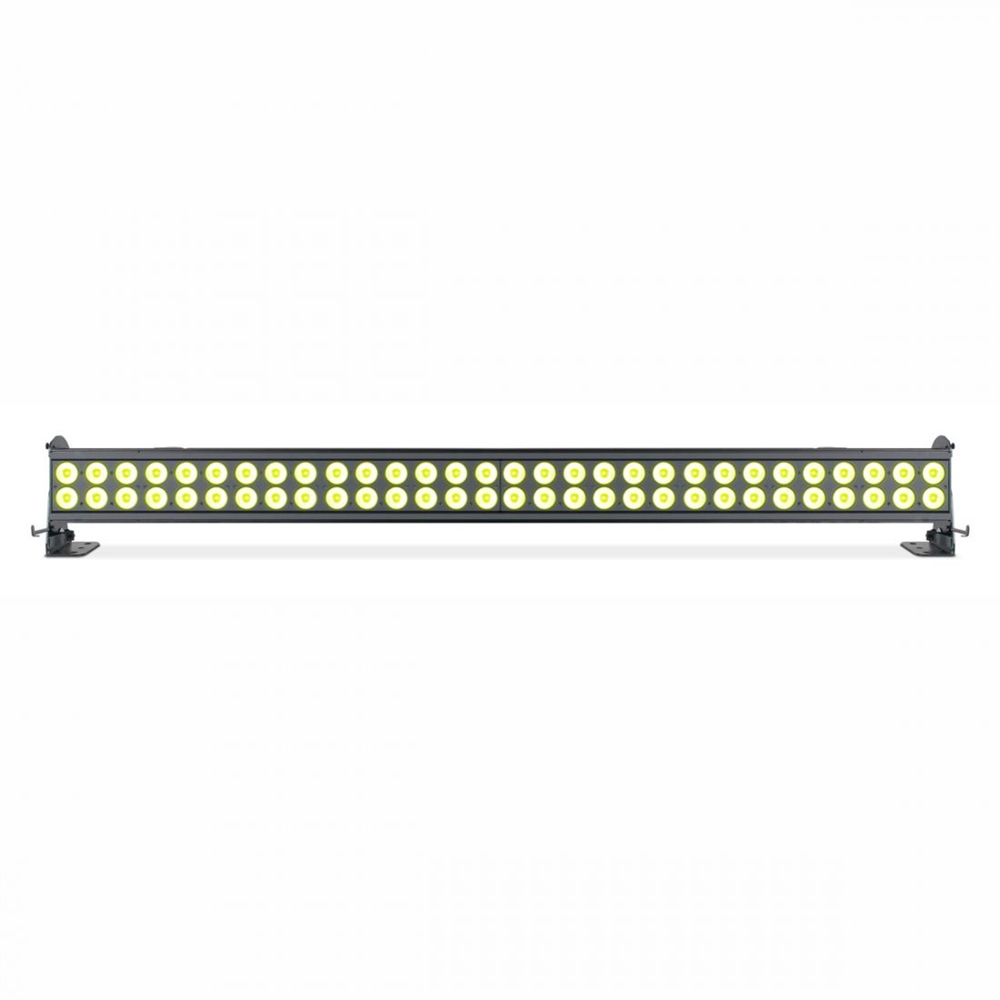

1.8m (6 Foot) Seven Color Batten Wash Luminaire
(60) 25W 7-in-1 RGBAW + Lime + UV (395nm) LEDs
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel Mode (RGB + Dynamic White, Amber, Lime, UV)
10 Pixel Mapping Zones with Pixel Flip Mode
Smooth Color Mixing, Internal Programs with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Modes
Adjustable LED Refresh Rate + Gamma Brightness
Flicker Free Operation for TV and FILM
Art-Net, Kling-Net, and RDM Protocol Support

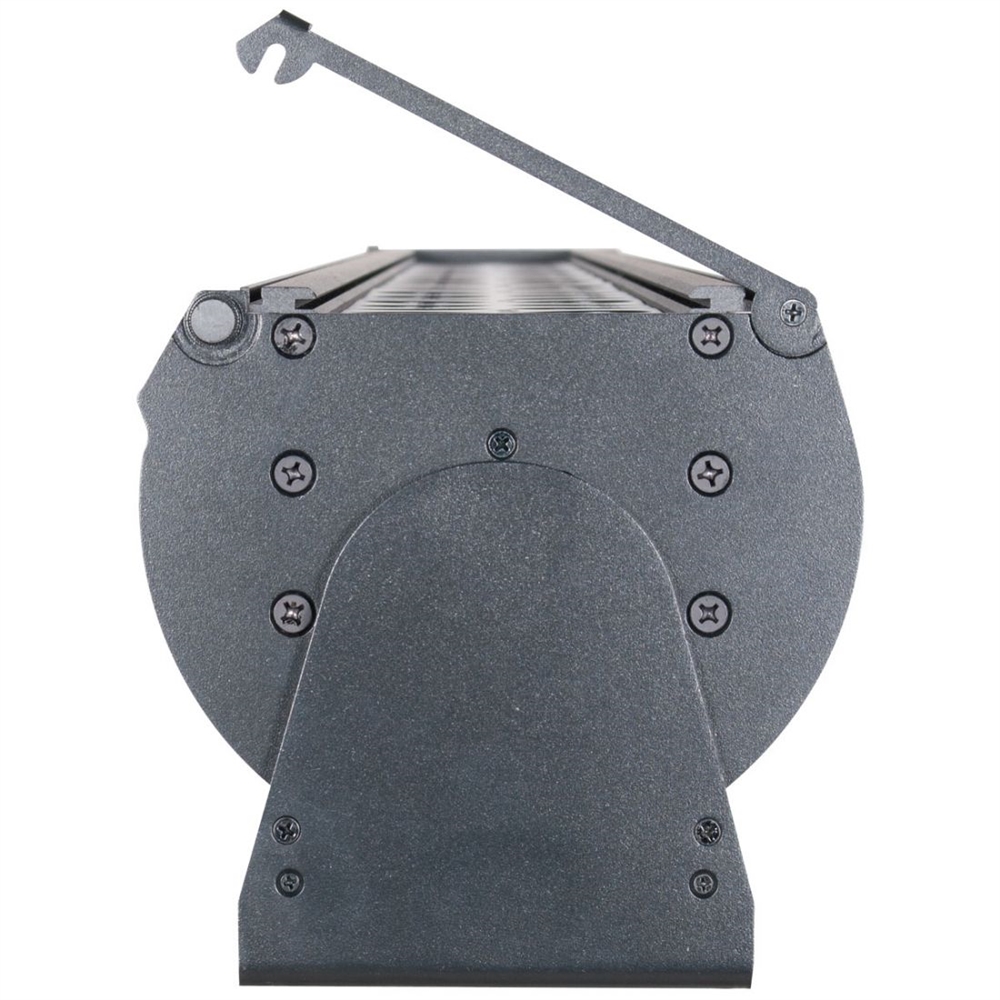

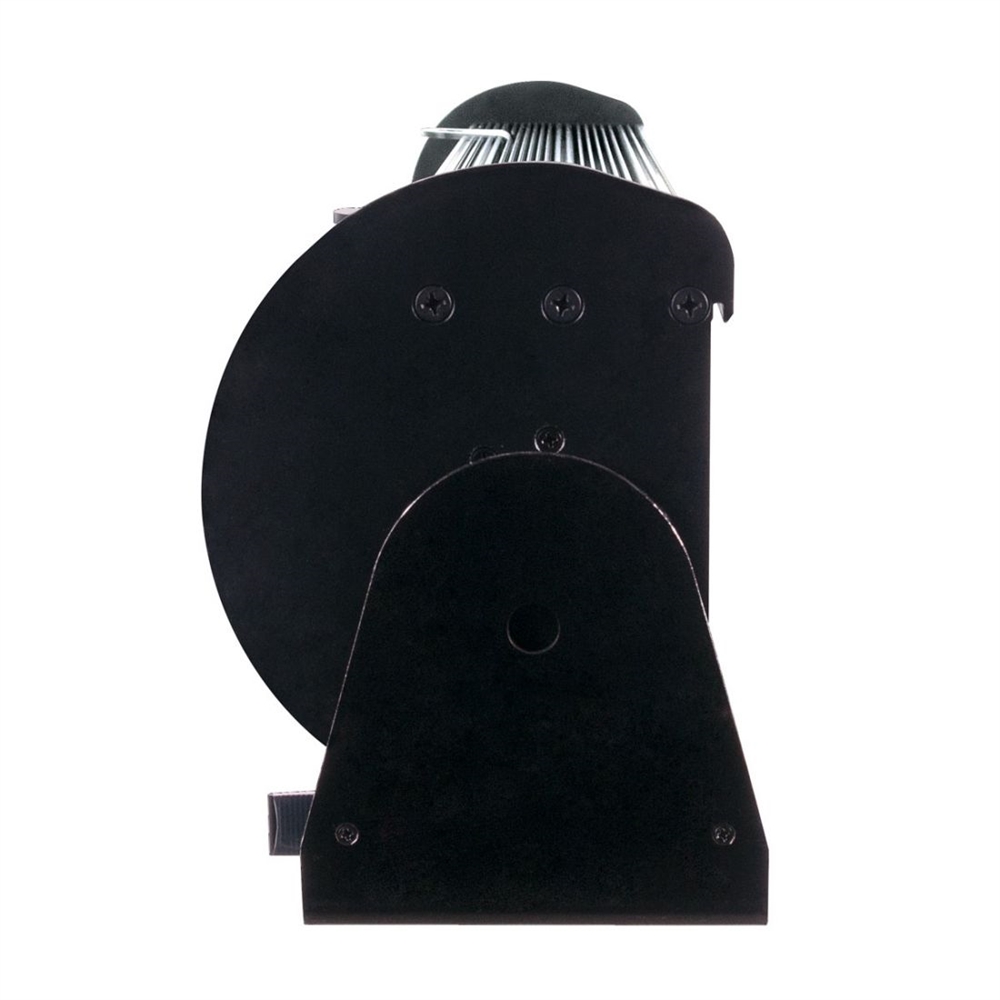

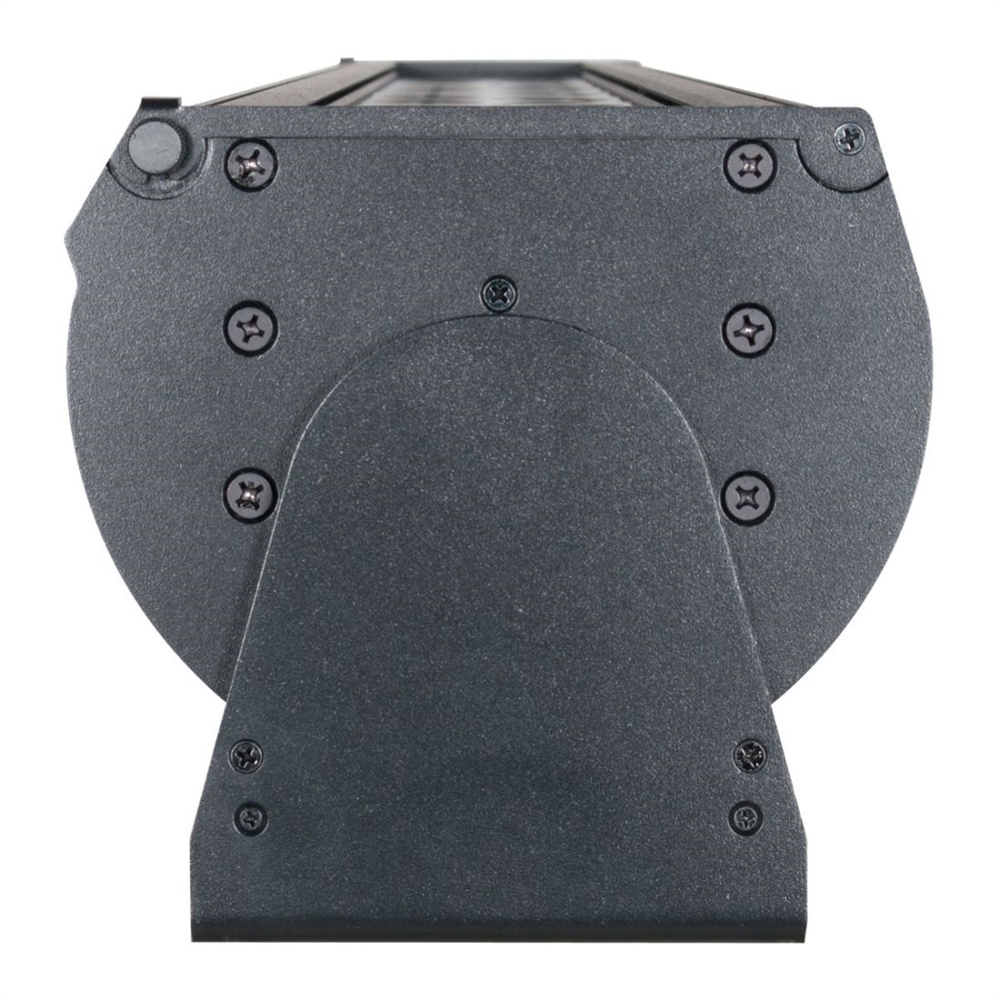

220° Manual Tilt Adjustable Mounting Brackets
Rugged Powder Coated Die-Cast Aluminum Exterior

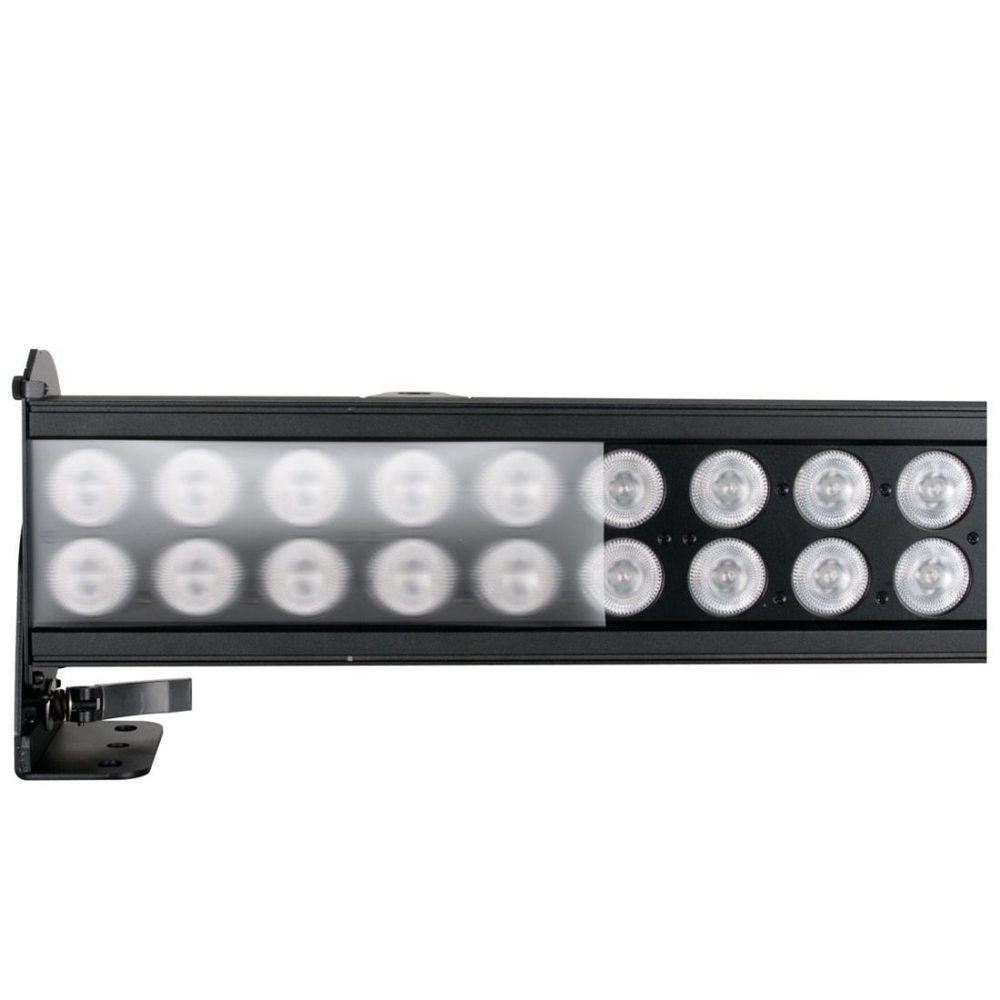

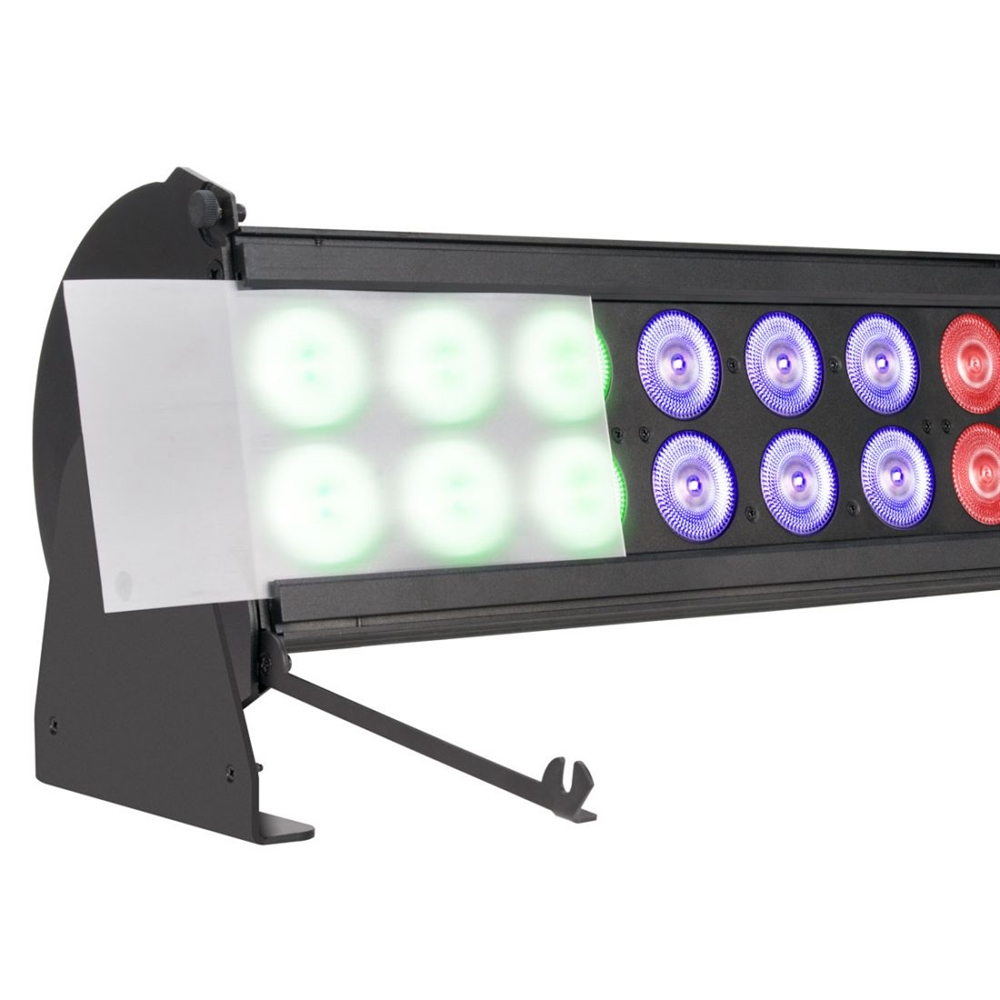

Integrated Gel / Frost Filter Slot
SOURCE
(60) 25W 7-IN-1 RGBAW + Lime + UV LEDs
50,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
11,261 LUX 1,046 FC @ 3m (9.8”)
EFFECTS
Individual Hue, Saturation, and Intensity Control
Special RGB SEVEN 3 Channel DMX Mode (RGB + Dynamic White, Amber, Lime, UV)
10 Pixel Mapping Zones with Pixel Flip Mode
12 Internal Program Macros with Speed and Fade Control
64 Unique 7-Color Macros
Selectable 16-bit Dimming Curve Mode
COLOR
RGBAW + Lime + UV (395nm)
CONTROL / CONNECTIONS
10 DMX Channel Modes (78 total channels)
DMX and Manual Control
4 Button Control Panel
180° Reversible OLED Menu Display
Adjustable Refresh Rate (900 - 25,000Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
Art-Net, Kling-Net, and RDM) Protocol Support

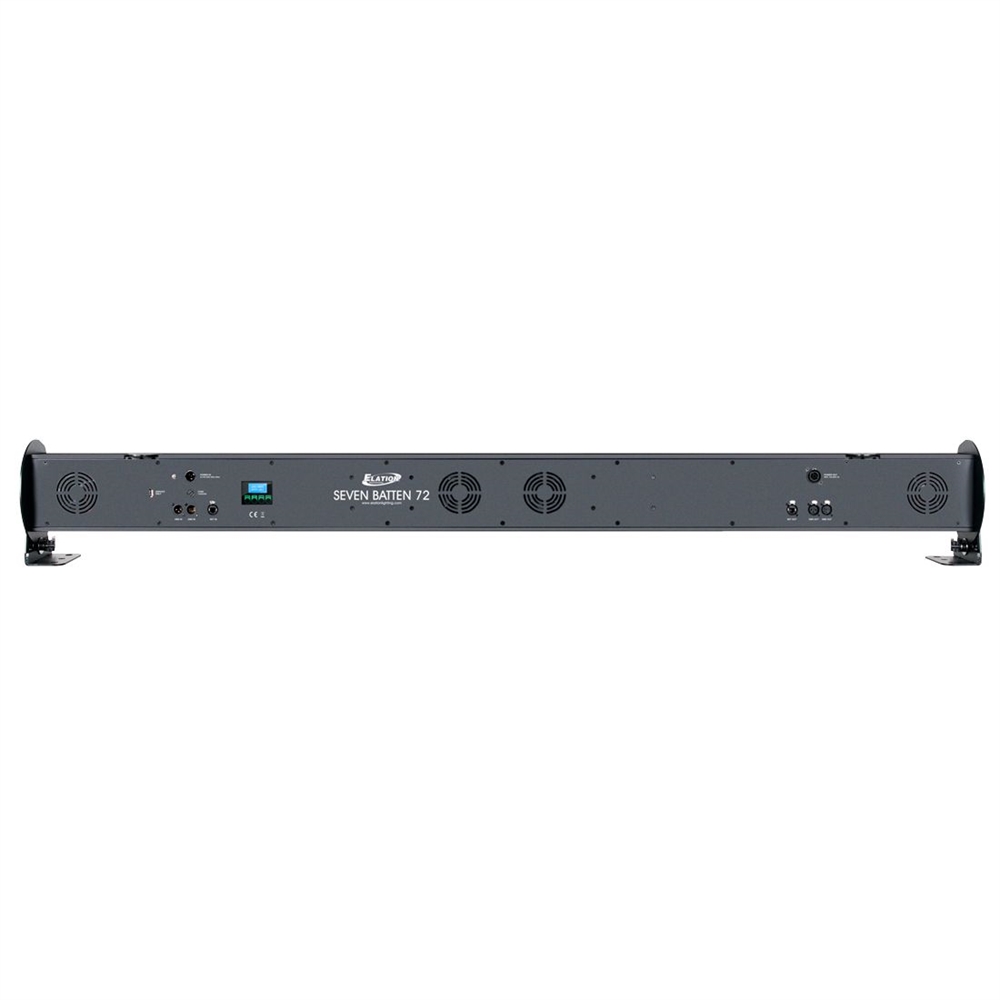

3/5pin DMX, RJ45 ethernet, and locking Power In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 1828.8mm (72.0”)
Width: 114.3mm (4.5”)
Vertical Height: 228.6mm (9.0”)
Weight: 26.3kg (58.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1000W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
OPTIONAL ACCESSORIES
Glareshield (see below in Related Products) - giving you further control of the light distribution.
