FEATURES

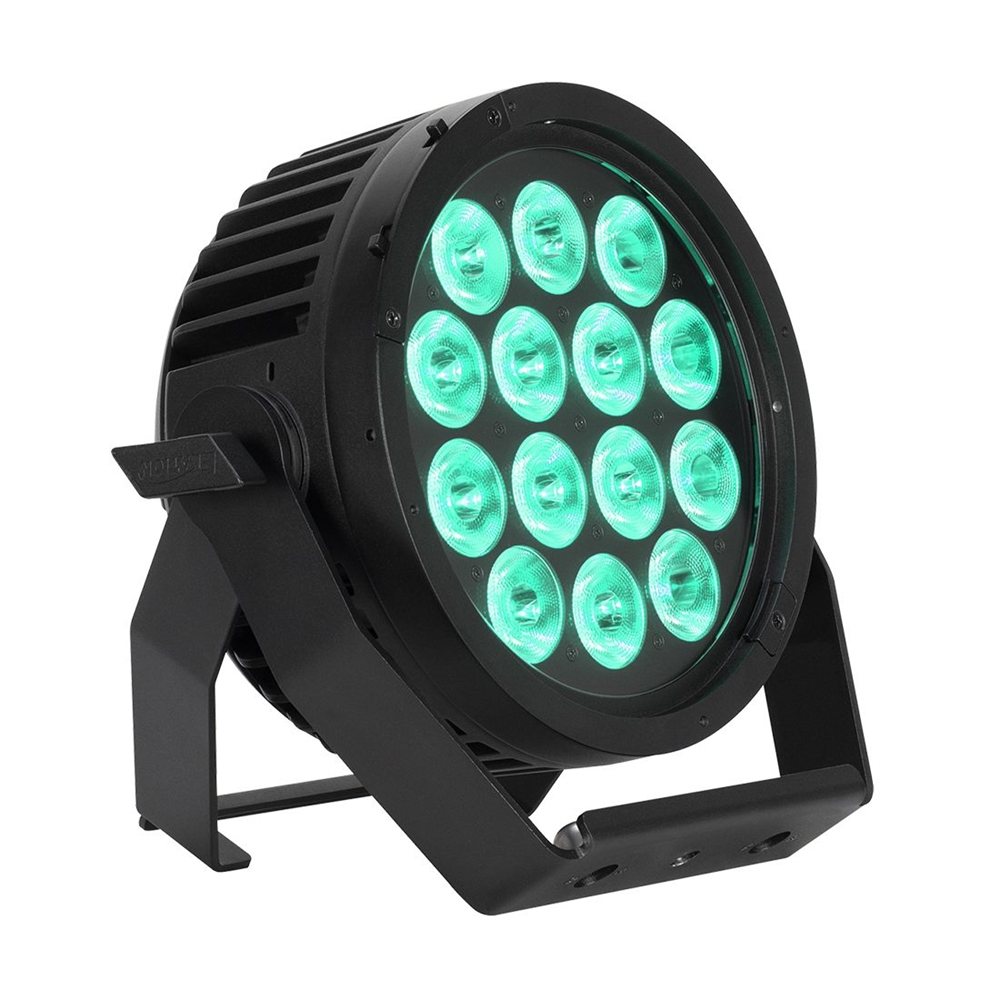

(14) 20W RGBLA+UV LED Array
7300 Lumens, 91.7 CRI
12° Beam Angle, 20° Lens Included

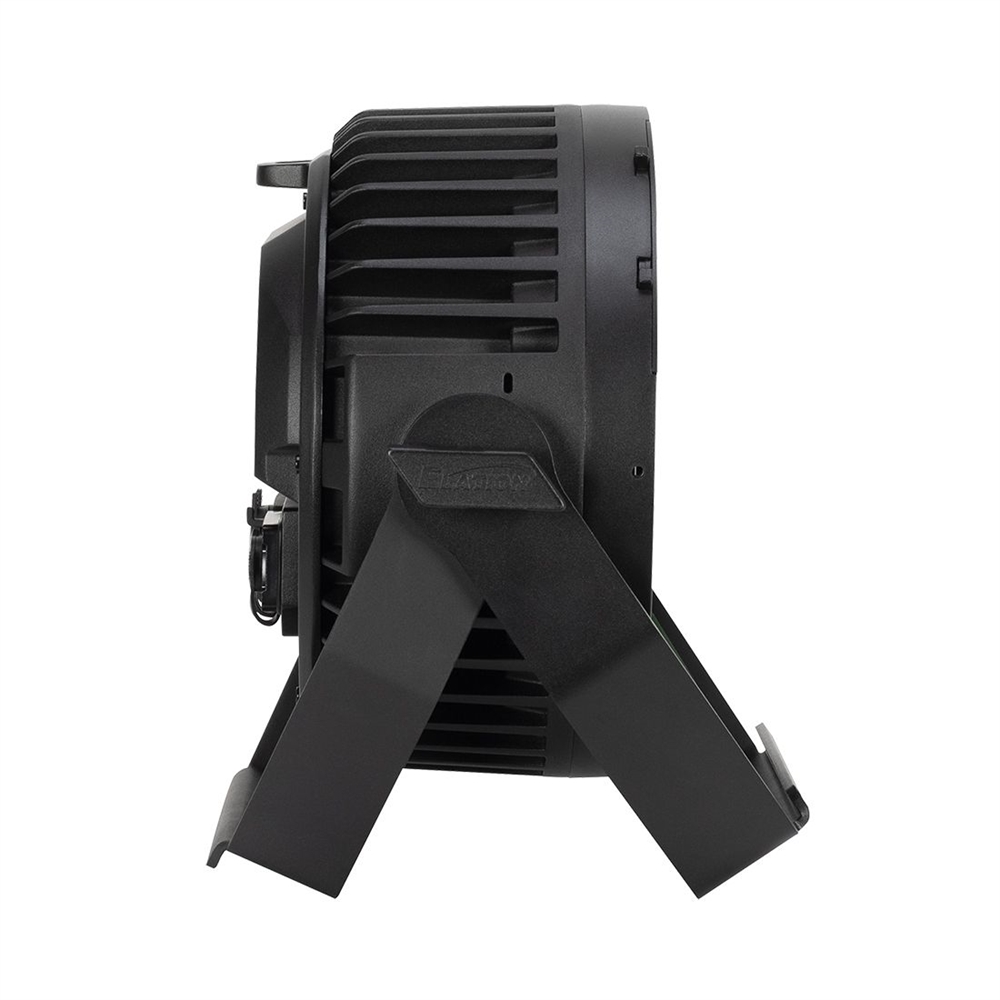

Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 10” Accessory Holder
IP65 Rated
SOURCE
(14) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
7300 Total Lumen Output
CRI - 91.7
EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR

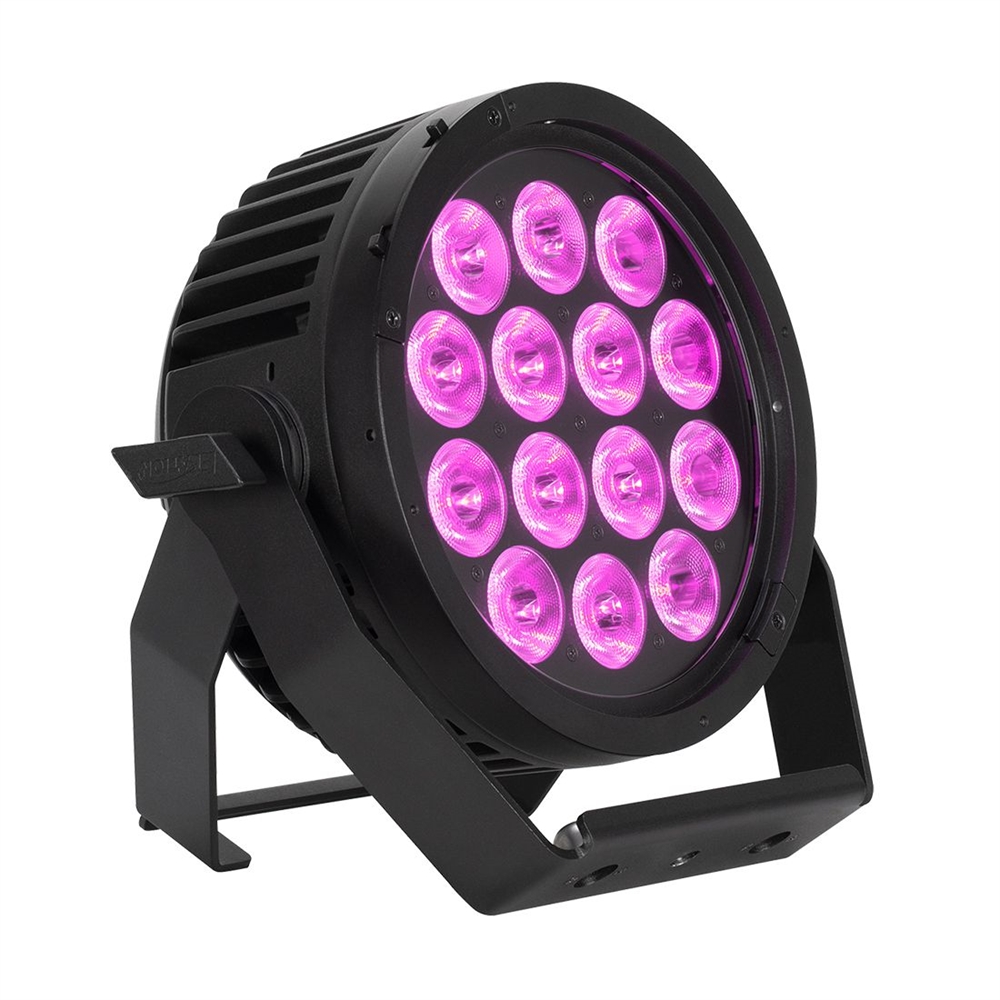

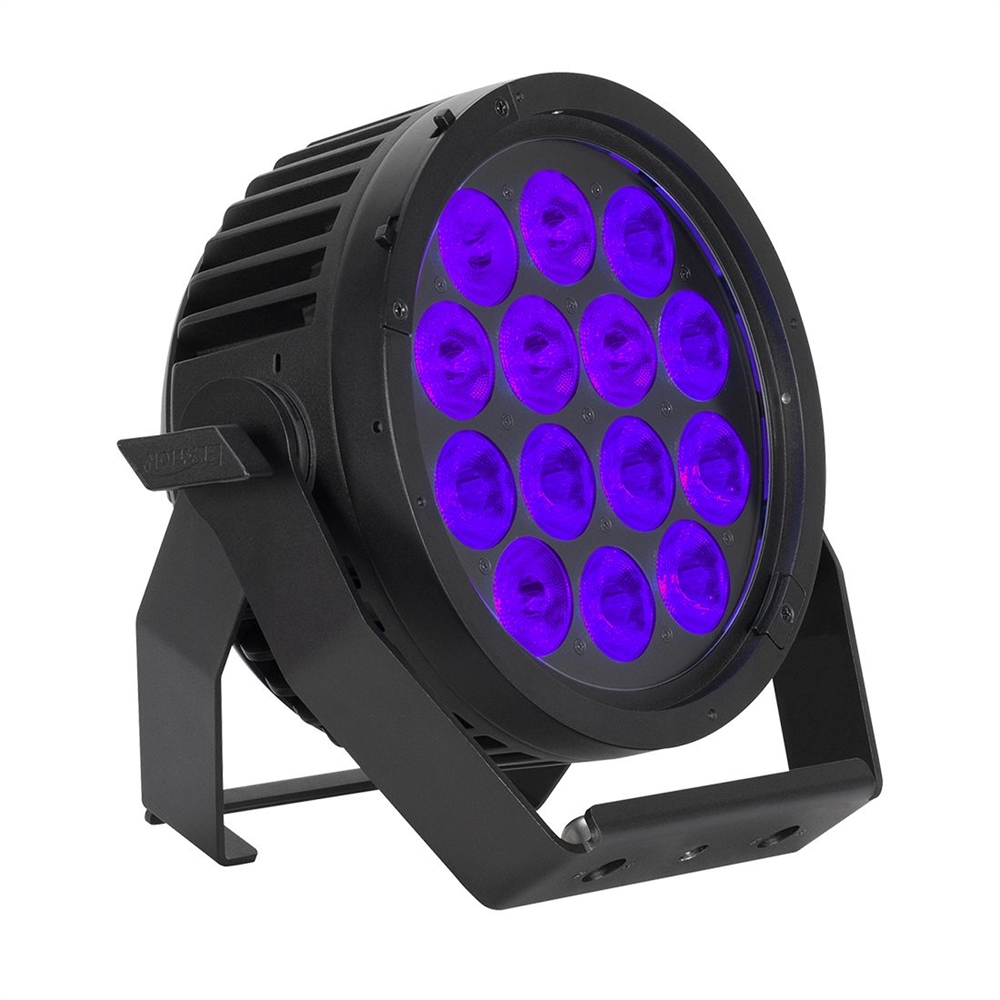

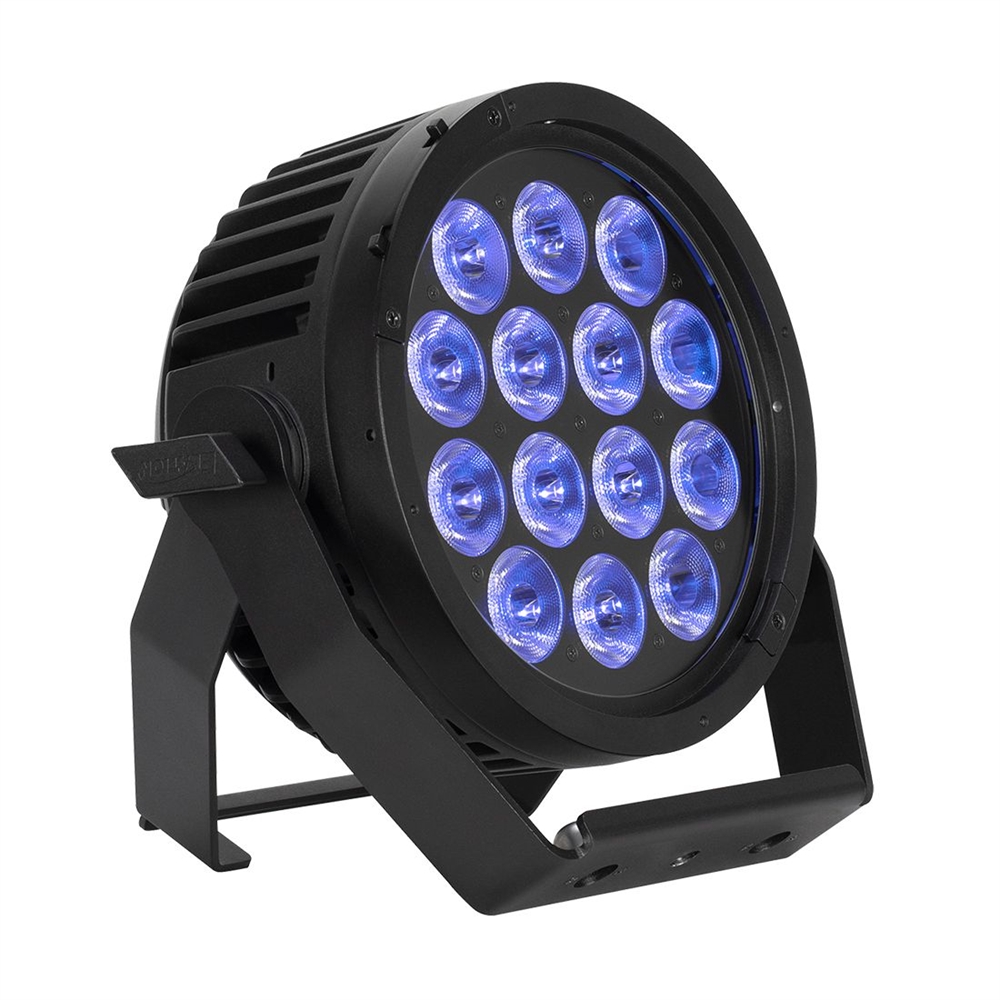

RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color

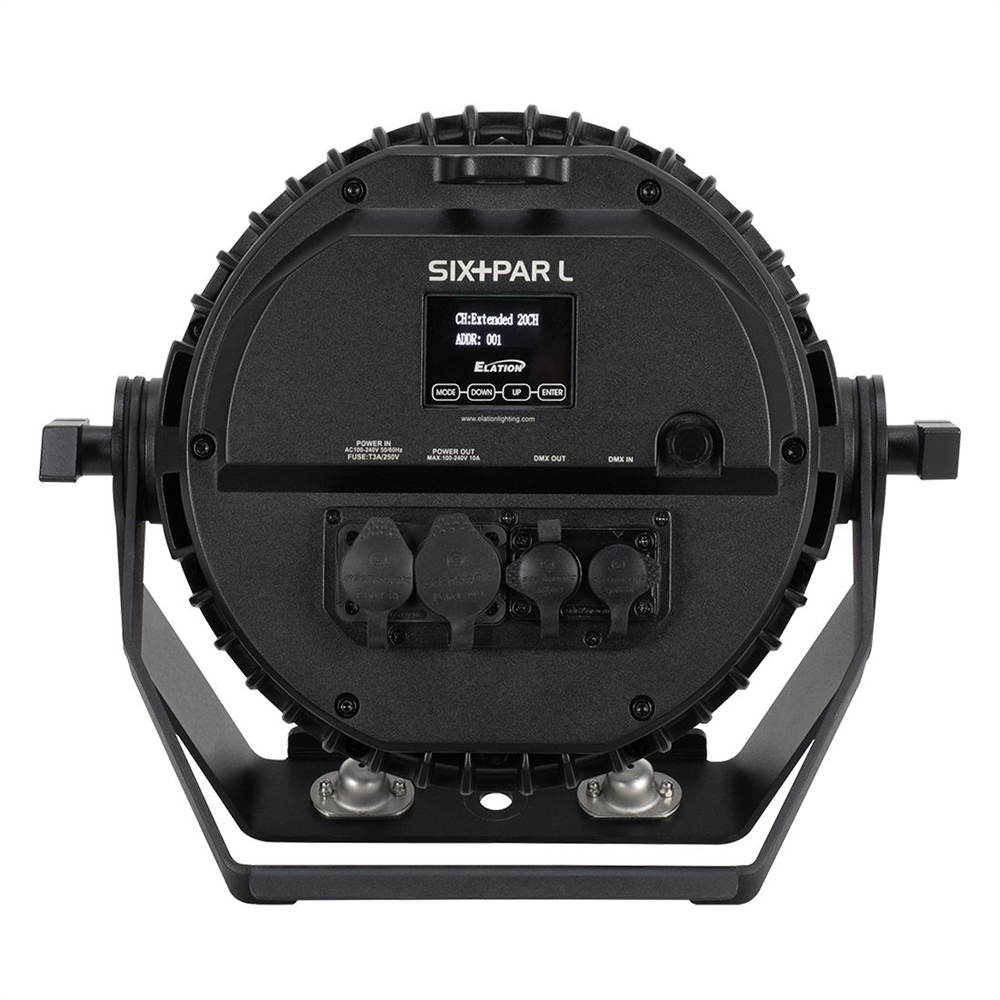

4 Button Control Panel, LED Display
RDM (Remote Device Management)

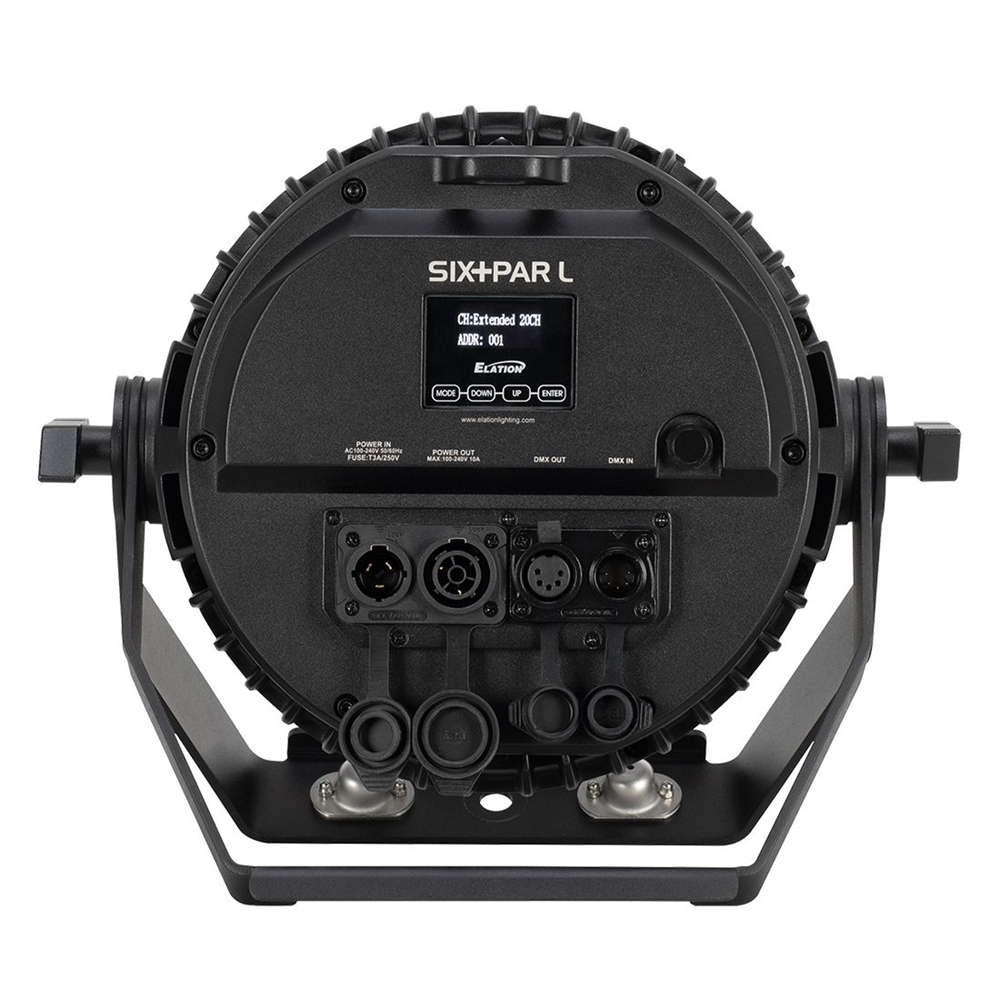

5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 342mm (13.47”)
Width: 266mm (10.48”)
Vertical Height: 260.5mm (10.26”)
Weight: 5.6kg (12.3lbs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
165W Max Power Consumption
Power Thru Capacity: 7 Units @110V, 16 Units @240V
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 562.65
INCLUDED ITEMS

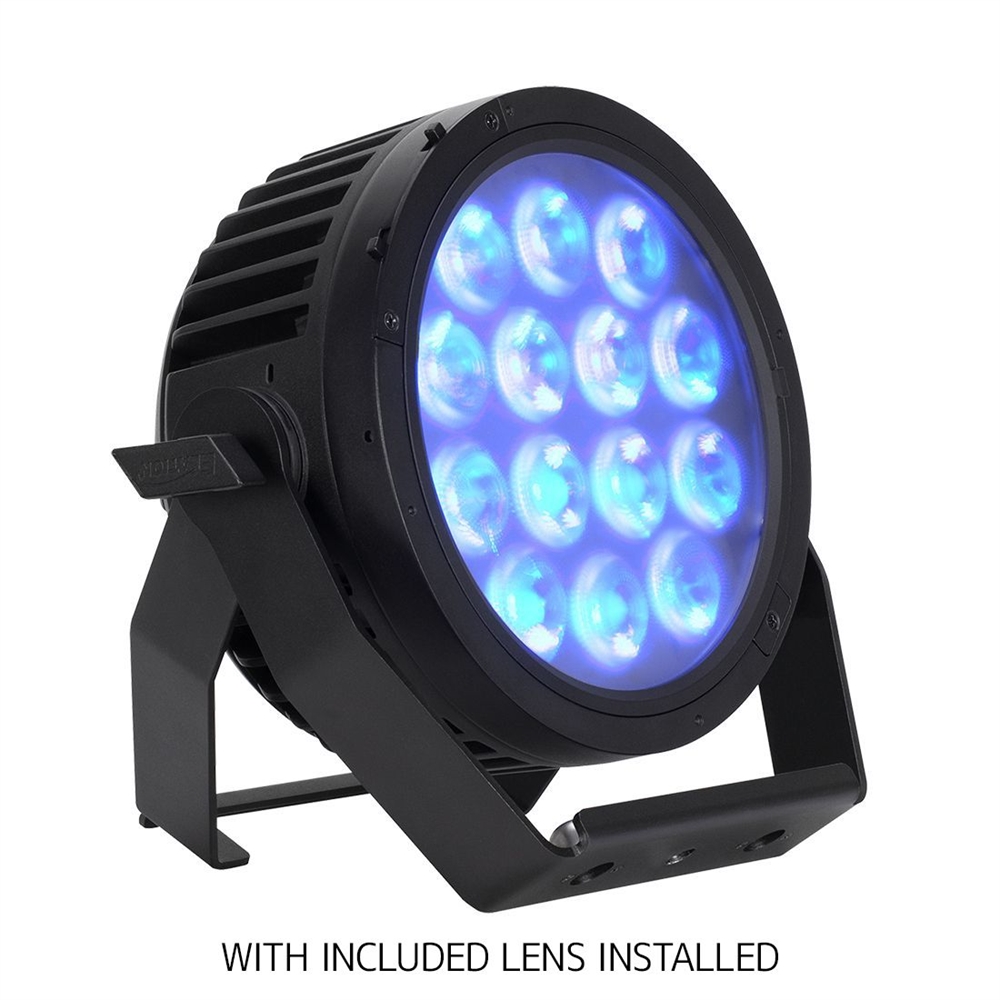

20° Lens
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
1223200100 60° Lens (SIX+L WFL)
1223200101 100° Lens (SIX+L XFL)
1223200099 1°x 40° Lens (SIX+L L140)
1223200098 10°x 60° Lens (SIX+L L1060)
1621000163 Gel Frame & Holder Kit (SIX+L GFK)
1236300104 HWP404 (4W Hardwire Plate)
1236300105 HWP202 (2W Hardwire Plate)
10" Black Barndoor
