FEATURES
(7) 20W RGBLA+UV LED Array
3200 Lumens, 93 CRI
12° Beam Angle, 22° Lens Included
Completely Fanless Cooling
16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate
Flicker Free Operation for TV and Film
Optional 7.5” Accessory Holder
IP65 Rated
SOURCE
(7) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
3200 Total Lumen Output
CRI - 93
EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
9 DMX Channel Modes (1ch, 3ch, 9ch, 6ch, 9ch, 11ch, 14ch, 14ch, 20ch)
4 SixPar Emulation DMX Channel Modes (6ch, 7ch, 8ch, 12ch)
Manual and DMX Controlled Dimmer and Color
4 Button Control Panel, LED Display
RDM (Remote Device Management)

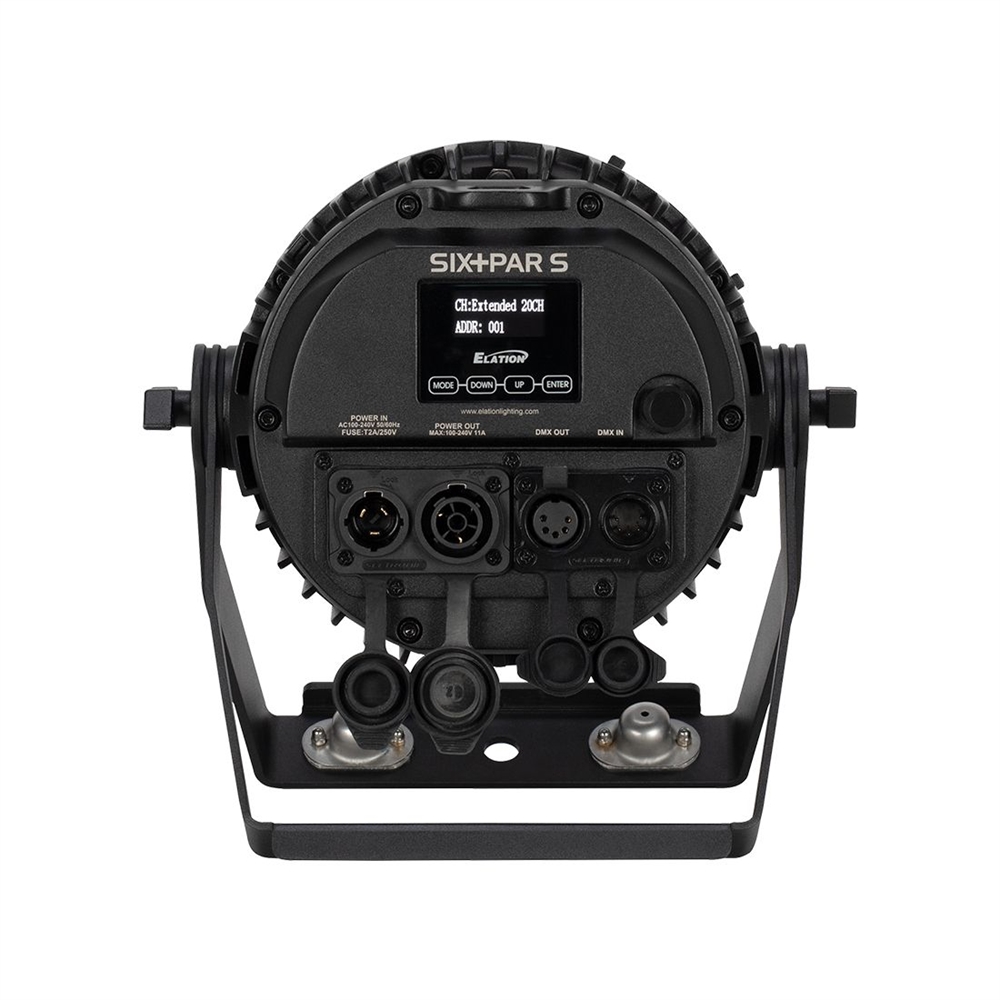

5pin DMX and IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 188mm (7,4)
Width: 247,1mm (9.7”)
Vertical Height: 230mm (9.1”)
Weight: 4.30kg (9.48lbs)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
100W Max Power Consumption
Power Thru Capacity: 12 Units @110V, 28 Units @240V
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%) 341
INCLUDED ITEMS

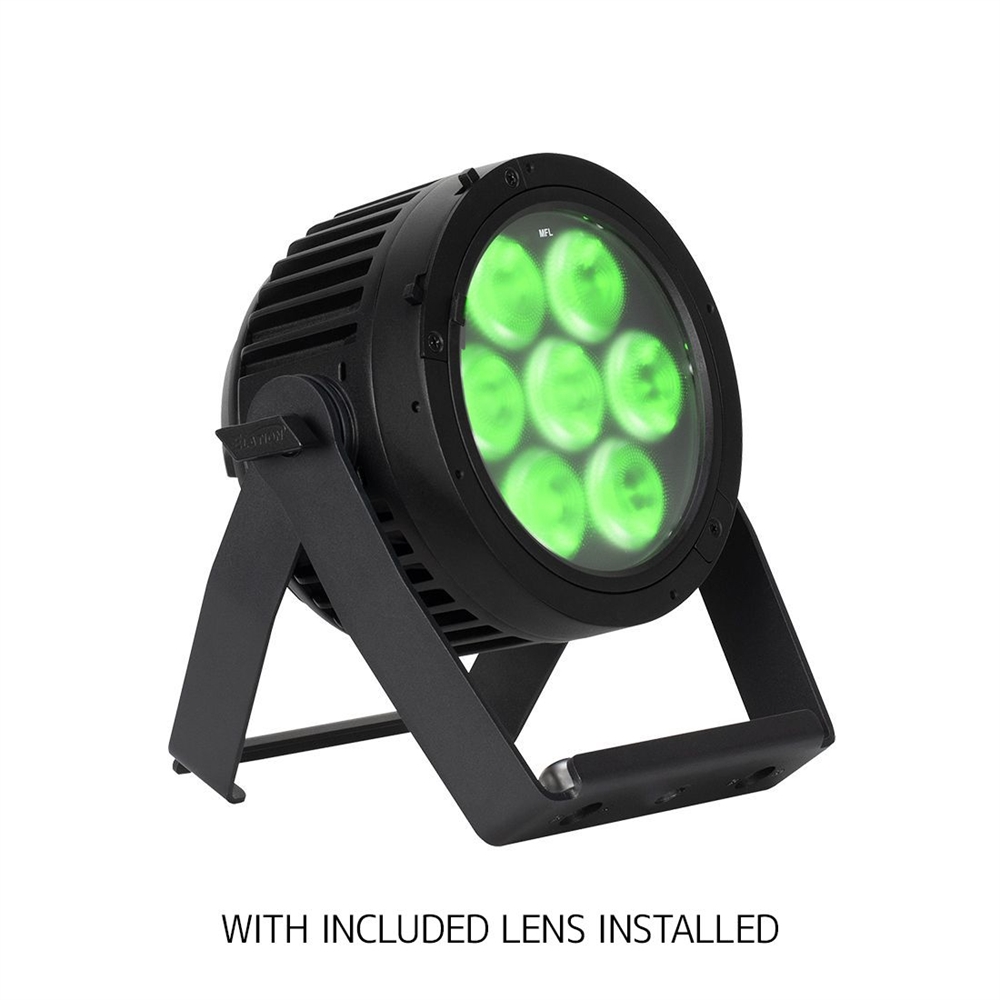

22° Lens
IP65 Locking Power Cable
OPTIONAL ACCESSORIES
1223200104 60° Lens (SIX+S WFL)
1223200105 100° Lens (SIX+S XFL)
1223200103 1°x 40° Lens (SIX+S L140)
1223200102 10°x 60° Lens (SIX+S L1060)
1621000164 Gel Frame & Holder Kit (SIX+S GFK)
1236100143 7.5" Barndoor
1236300104 HWP404 (4W Hardwire Plate)
1236300105 HWP202 (2W Hardwire Plate)
