FEATURES
IP65 Rated
12 x 12W 6-in-1 RGBAW+UV LEDs
25° Beam Angle
Pixel Control
Rugged Die-Cast Aluminum Exterior

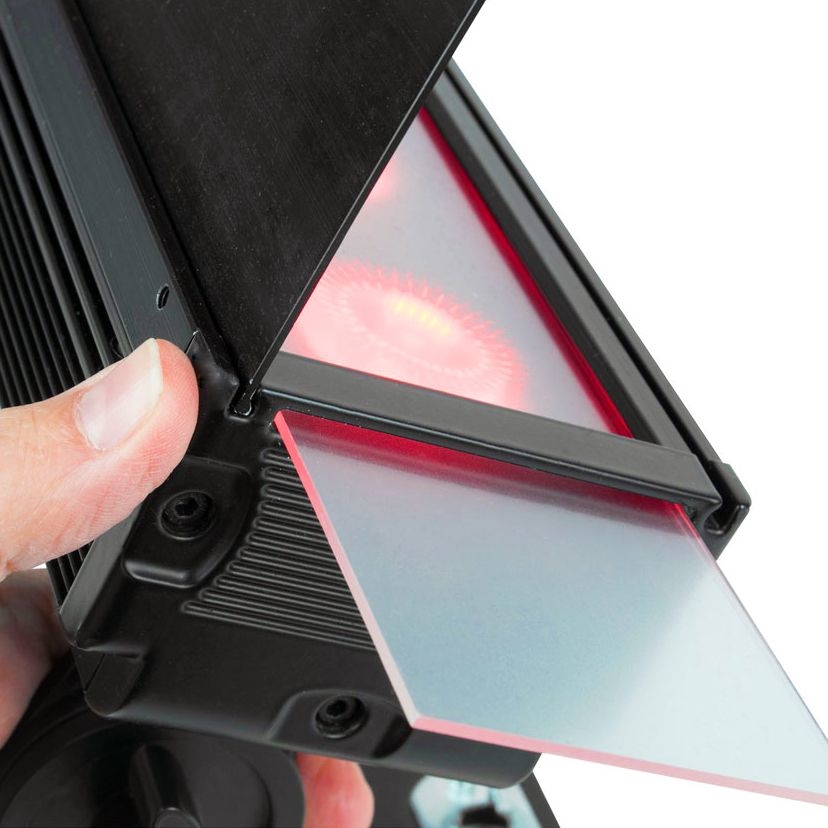

Glare Shield and (2) Lens Filters Included
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
7,149 LUX 664 FC @ 1m (3.3’) (25° Full ON)
EFFECTS
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves
COLOR

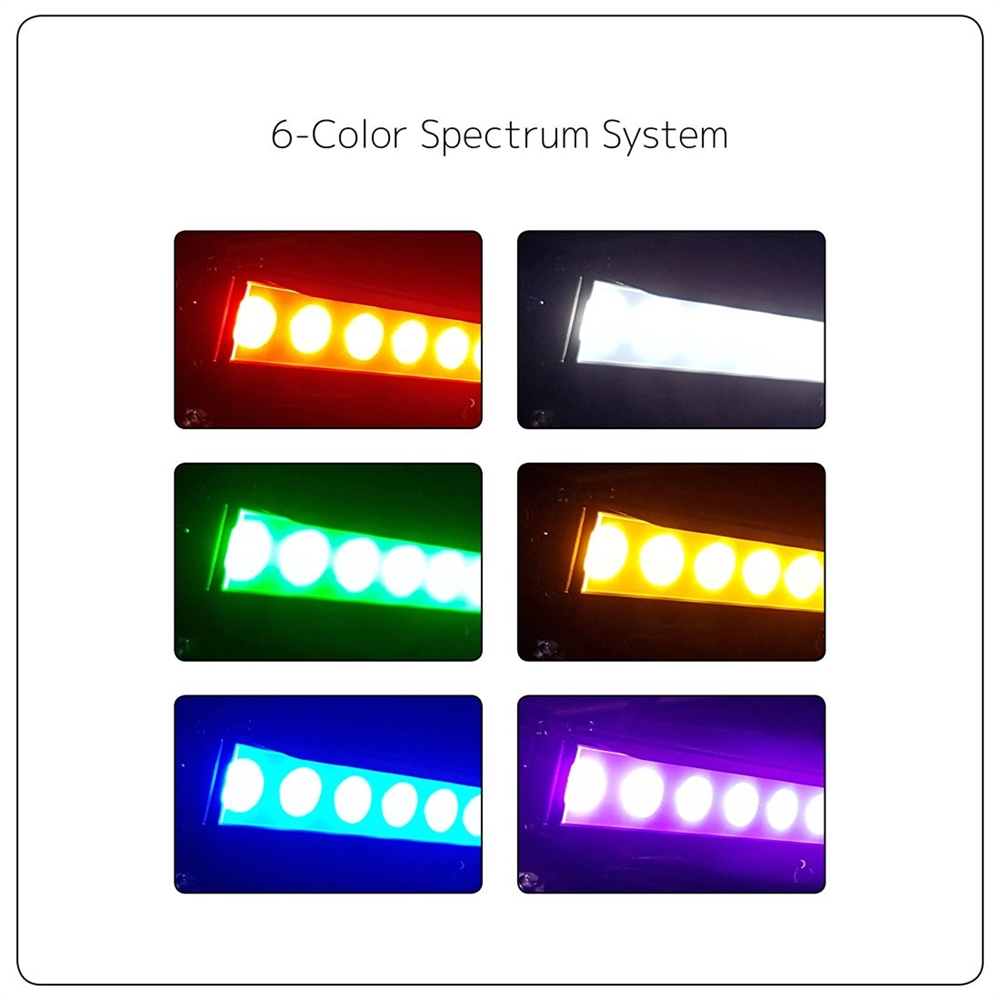

RGBAW+UV Multi-Chip LEDs
CONTROL / CONNECTIONS
(8) DMX Channel Modes (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)

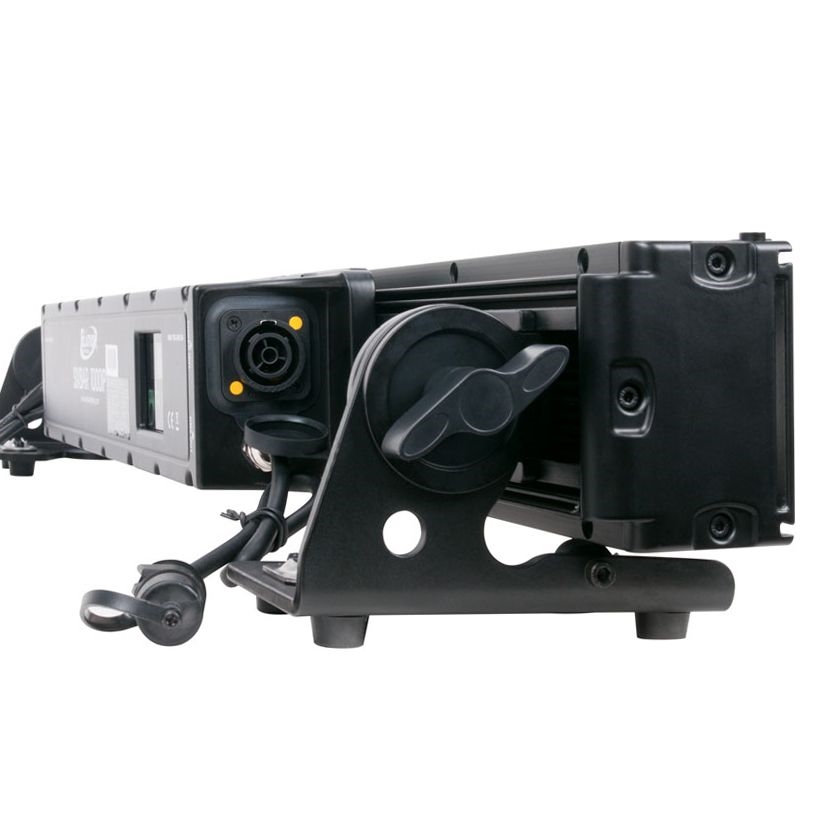

IP Rated 5pin DMX In/Out and IP65 locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 853mm (33.6”)
Width: 141.4mm (5.6”)
Vertical Height: 120.5mm (4.7”)
Weight: 8.6 kg (19.0 lbs.)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm
INCLUDED ITEMS
2 Frost Filters
Glare Shield
Mounting Screws for Glare Shield
