FEATURES
15° Beam 25° Field Angles
5 Variable Dimming Curve Modes

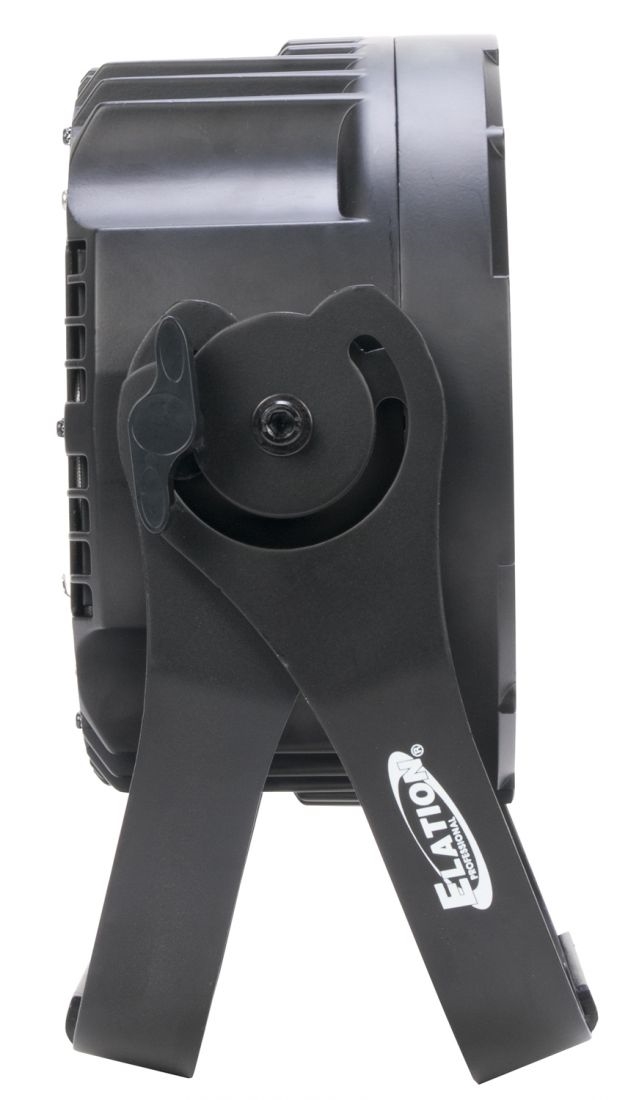

Dual Yoke / Floor Stand
Multiple Unit Power Linking
RDM - Remote Device Management
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SOURCE
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
22,250 LUX 2.067 FC @ 1m (3.3’) (15° Full ON)
EFFECTS
Electronic Strobe
Color and Chase Macros
Electronic Dimming: 0% - 100%
5 Variable Dimming Curve Modes

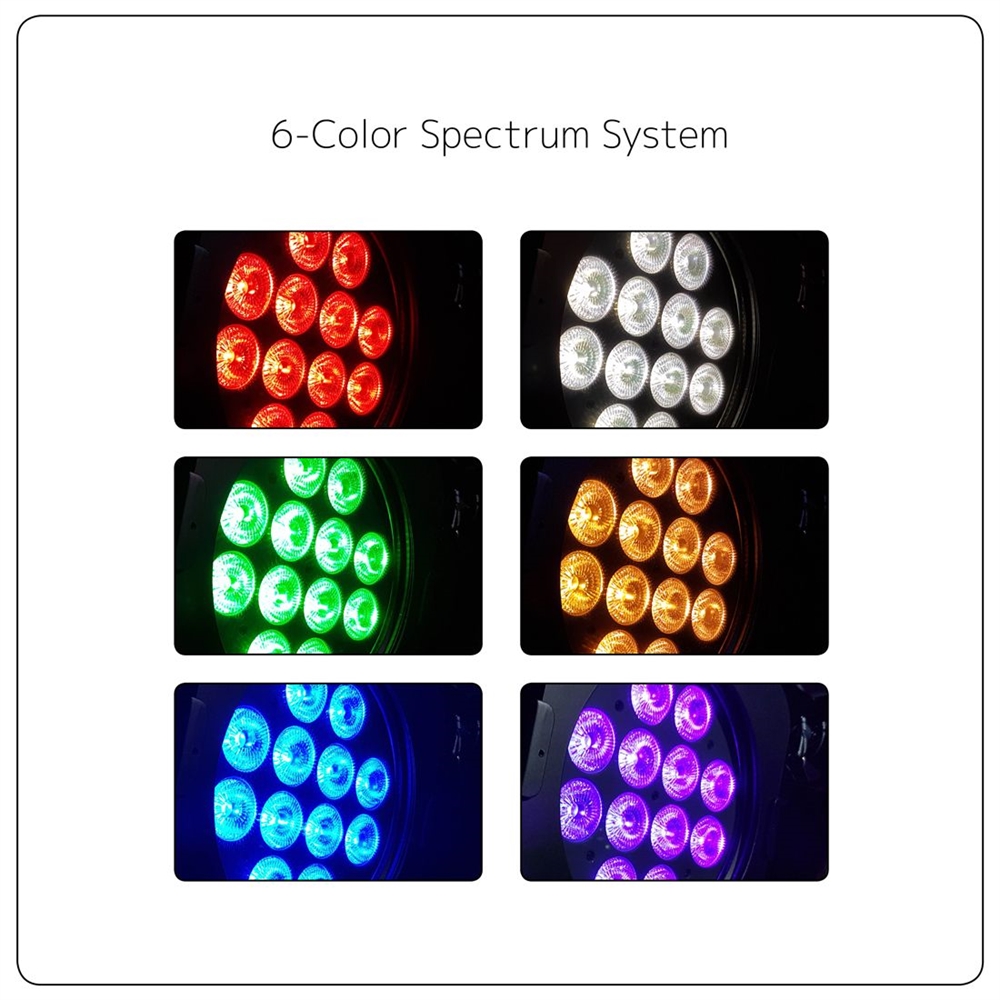

COLOR
RGBAW+UV Multi-Chip LEDs
CONTROL / CONNECTIONS
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch Control Panel LCD Menu Display

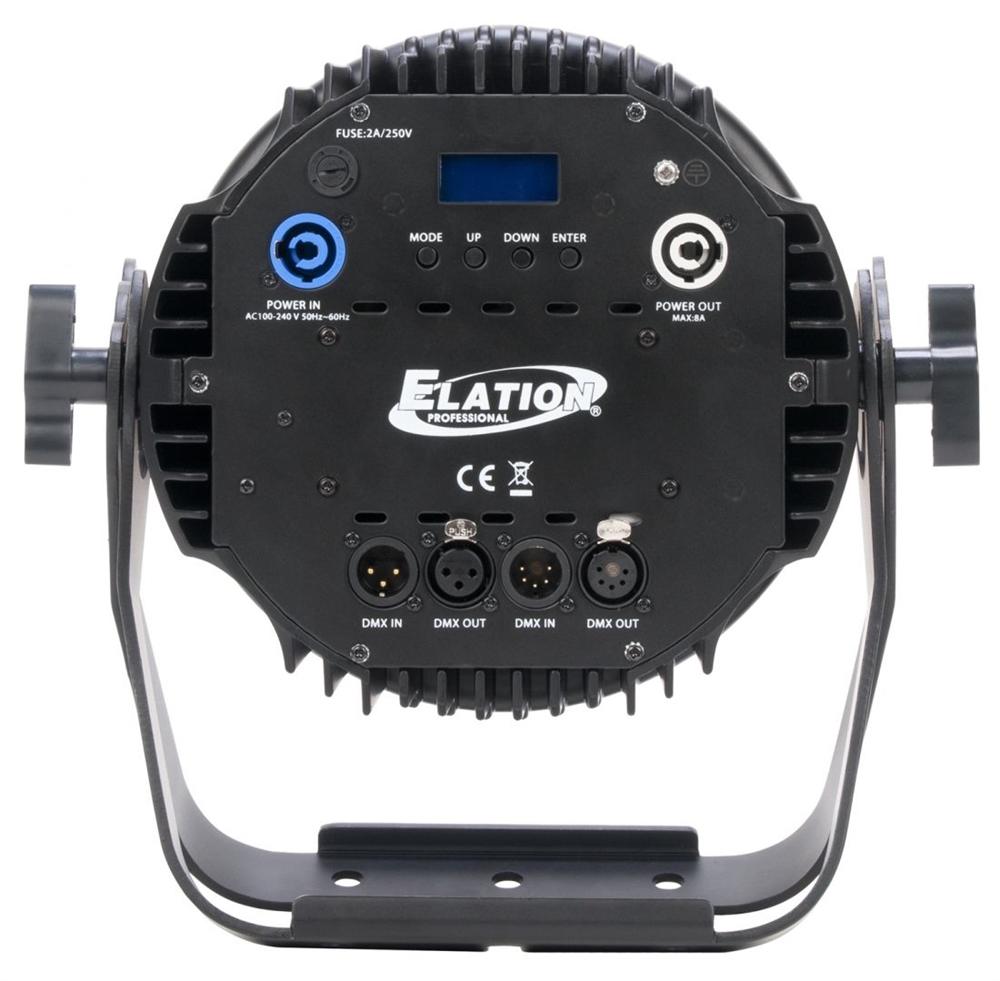

3/5pin DMX and IP65 locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 313mm (12.3”)
Width: 125mm (4.9”)
Vertical Height: 300mm (11.8”)
Weight: 5.18 kg (11.42 lbs.)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
150W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm
INCLUDED ITEMS
Twist Locking Power Cable

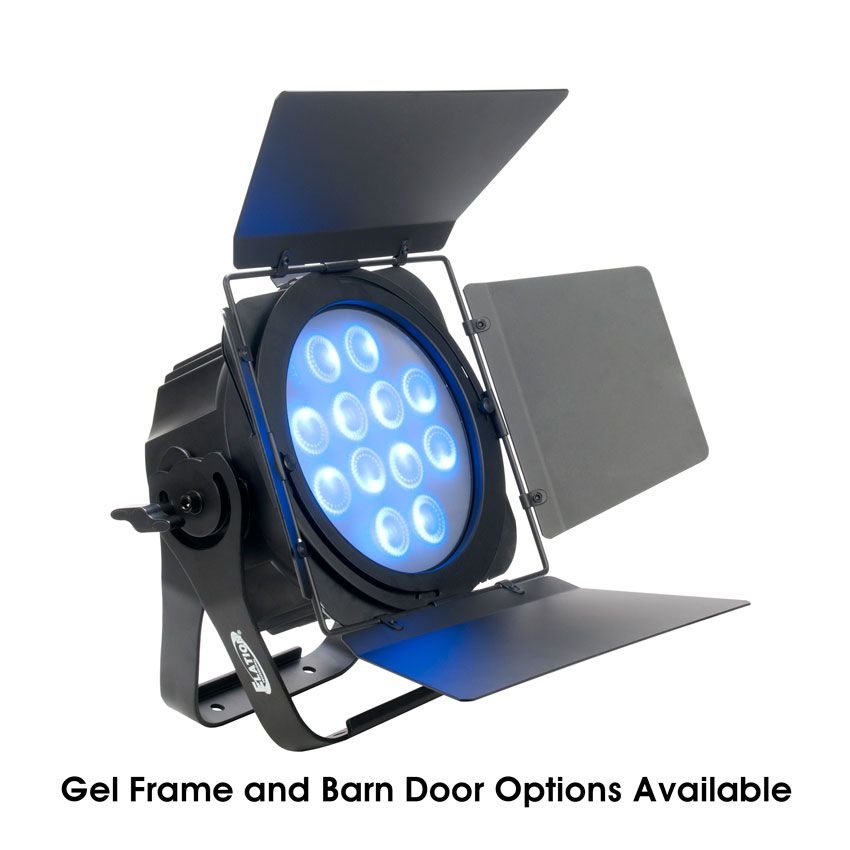

OPTIONAL ACCESSORIES
1621000056 SIXPAR200/GFH Gel Frame Holder
1621000059 SIXPAR/BD200 Barn Doors
1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
