FEATURES

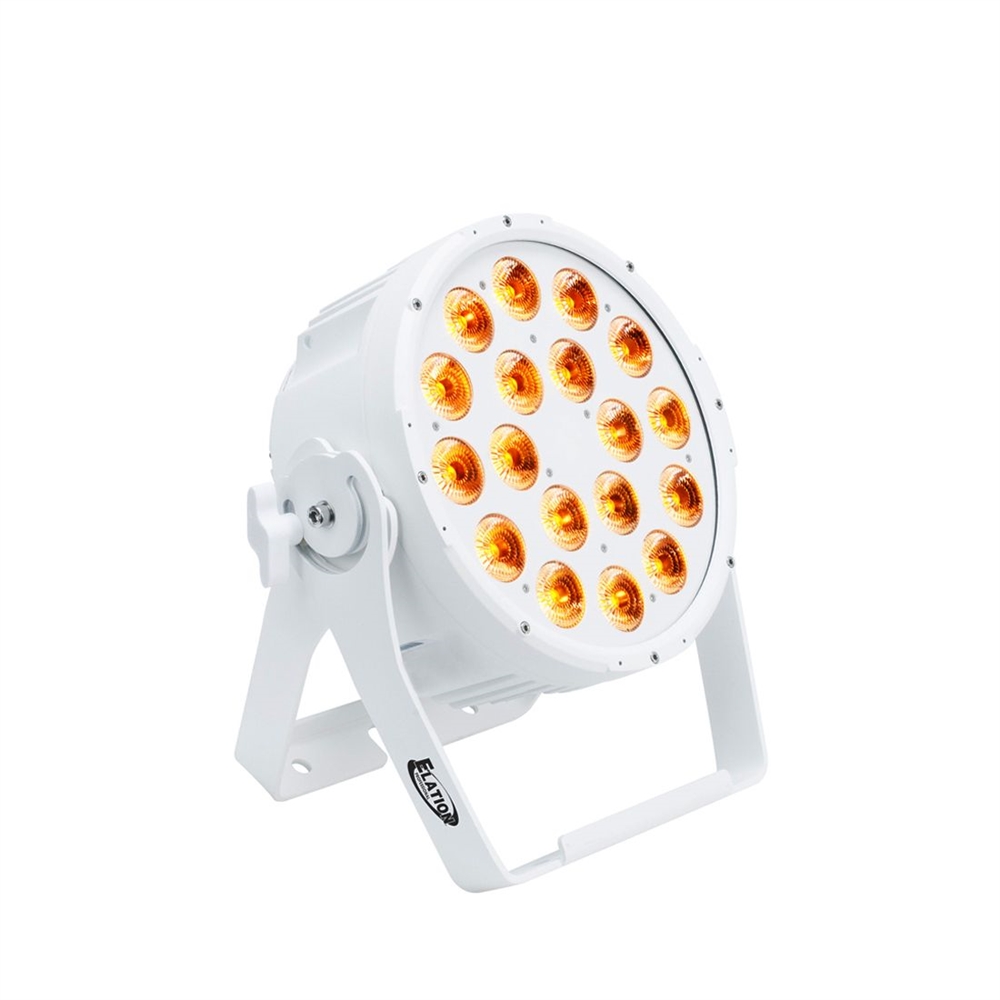

IP65 Outdoor Rated Par Luminaire
Special White Marine Grade Exterior Coating

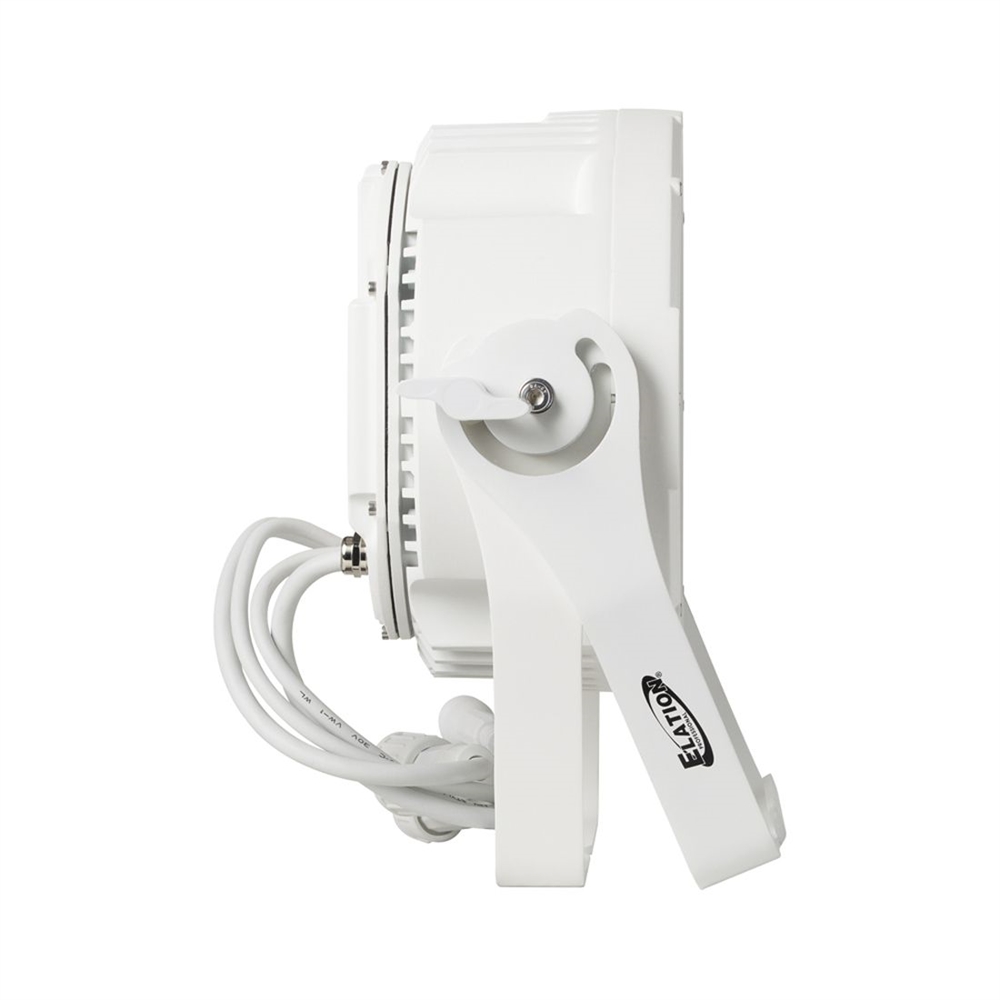

Rugged Die-Cast Aluminum Exterior with Dual Yoke / Floor Stand
(18) 12W 6-in-1 RGBAW+UV LEDs
23° Beam Angle
395nm UV Wavelength
Electronic Strobe and Variable Dimming Curve Modes
Manual and DMX-512 Control
RDM (Remote Device Management) Support
Multiple Unit Power Linking

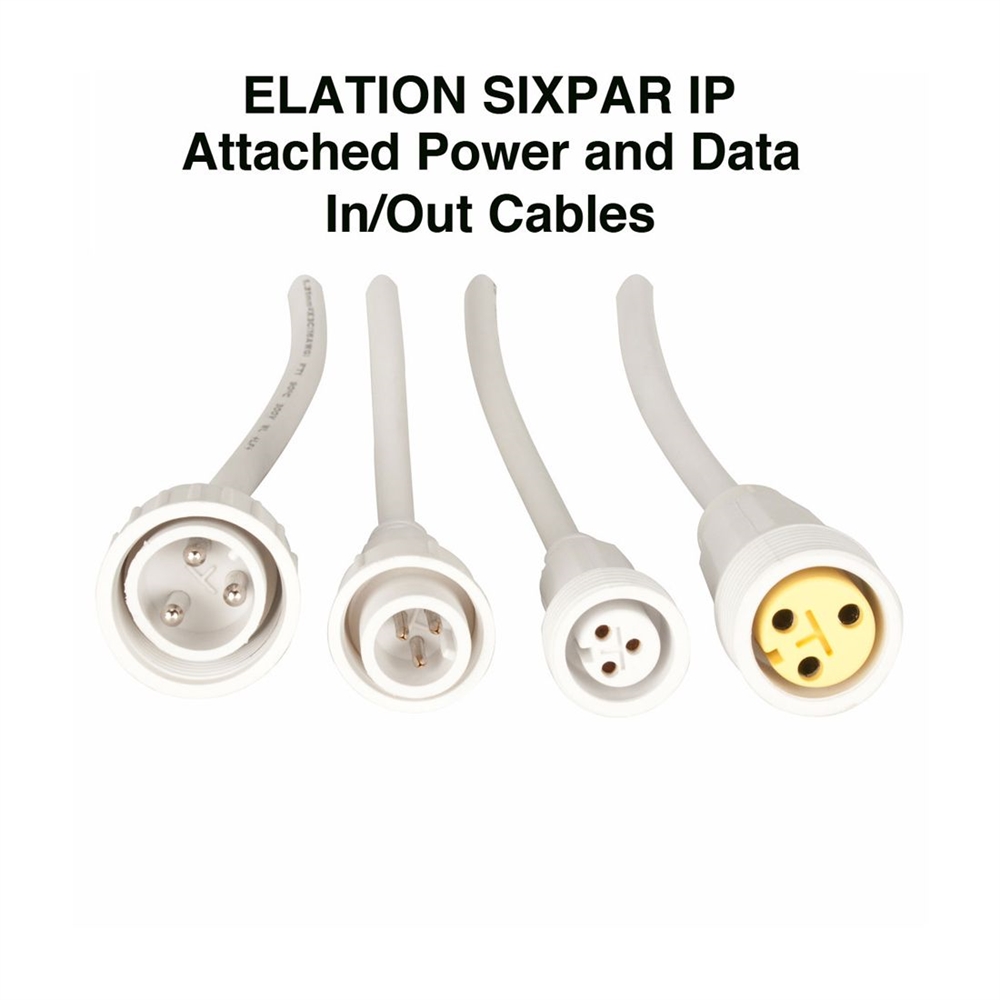

Proprietary IP Rated Power and Data In/Out Cables Attached
Optional Extended Length Proprietary IP Rated Power and Data Linking Cables and In/Out Adapters Available
SOURCE
(18) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.PHOTOMETRIC DATA
24,500 LUX 276 FC @ 3.3’ (1m) (15° Full On)
EFFECTS
Electronic Strobe
Variable Dimming Curves Modes
Internal Color and Color Chase Macros
COLOR

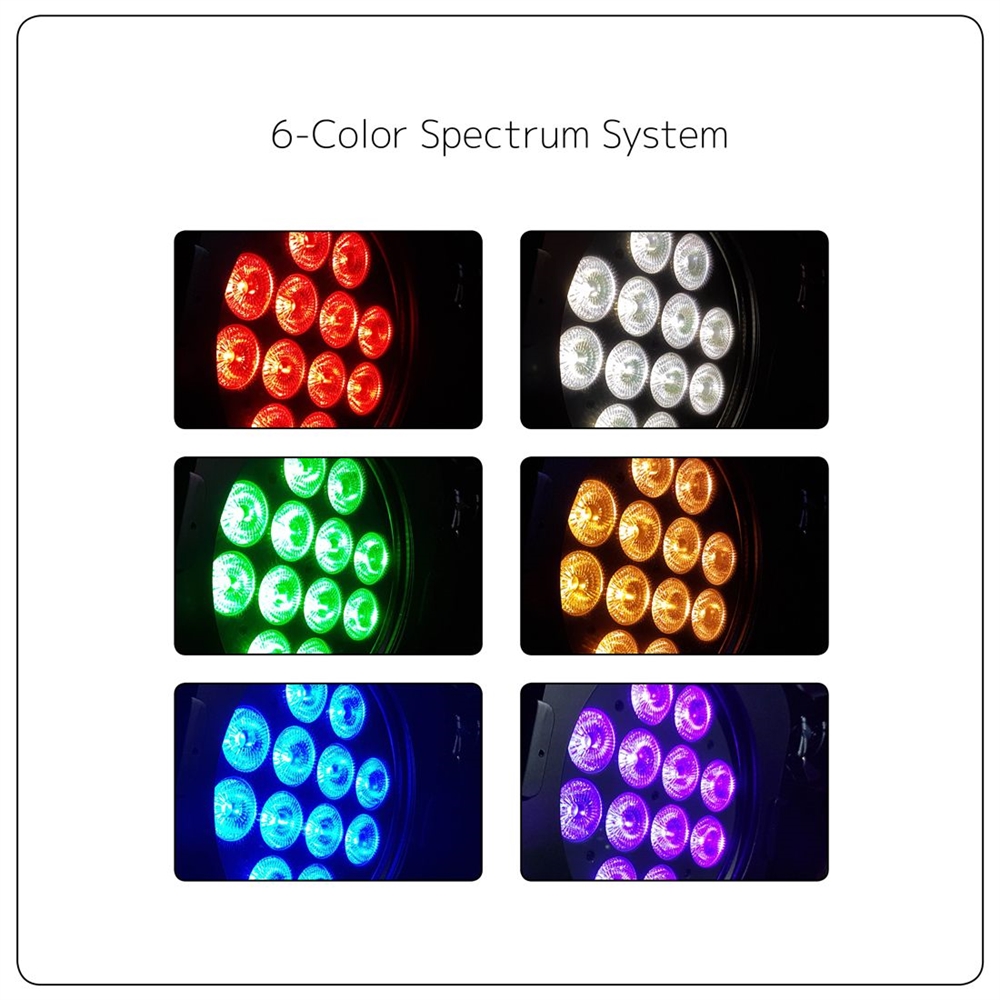

RGBAW+UV Multi-Chip LEDs
CONTROL / CONNECTIONS
Manual and DMX-512 Control
(4) DMX Channel Modes (6 / 7 / 8 / 12)
(4) Button Touch LCD Menu Display
Proprietary IP Rated locking 3pin XLR DMX In/Out Cables Attached
Proprietary IP Rated locking 3pin Power In/Out Cable Attached
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 365mm (14.4”)
Width: 157mm (6.2”)
Vertical Height: 365mm (14.4”)
Weight: 8.7 kg (19.2 lbs.)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
220W Max Power Consumption
Multiple Unit Power Linking
-15°C to 45°C (5°F to 113°F)
UV Wavelength: 395nm
INCLUDED ITEMS
Male CEE 7/7 to IP Female Power Cable 6.6 ft. (2m)
Male 5pin XLR to IP Female DMX Input Cable 3.3 ft (1m)
Female 5pin XLR to IP Male DMX Output Cable 3.3 ft (1m)
OPTIONAL ACCESSORIES
1621000057 SIXPAR300/GFH Gel Frame Holder
1621000060 SIXPAR/BD300 Barn Doors
1226100230 LSF 10°
1226100228 LSF 20°
1226100227 LSF 30°
1226100229 LSF 60x1°
1322000060 C-Loader II
1621000144 1M White Power Link Cable
1621000148 2M White Power Link Cable
1621000150 5M White Power Link Cable
1621000142 10M White Power Link Cable
1621000146 20M White Power Link Cable
1621000153 White Power IN CEE 7/7-IP Adapter Cable
1621000143 1M White Data Link Cable
1621000147 2M White Data Link Cable
1621000149 5M White Data Link Cable
1621000141 10M White Data Link Cable
1621000145 20M White Data Link Cable
1621000151 White DMX IN XLR5-IP Adapter Cable
1621000152 White DMX Out IP-XLR5 Adapter Cable
1621000154 White Terminator
