FEATURES
IP65 Rated 6-Color Par Wash Luminaire
5° to 45° Motorized Zoom
395nm UV LED Wavelength
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking
IP Rated locking DMX and power Connections
Flicker Free Operation for TV and FILM
SOURCE

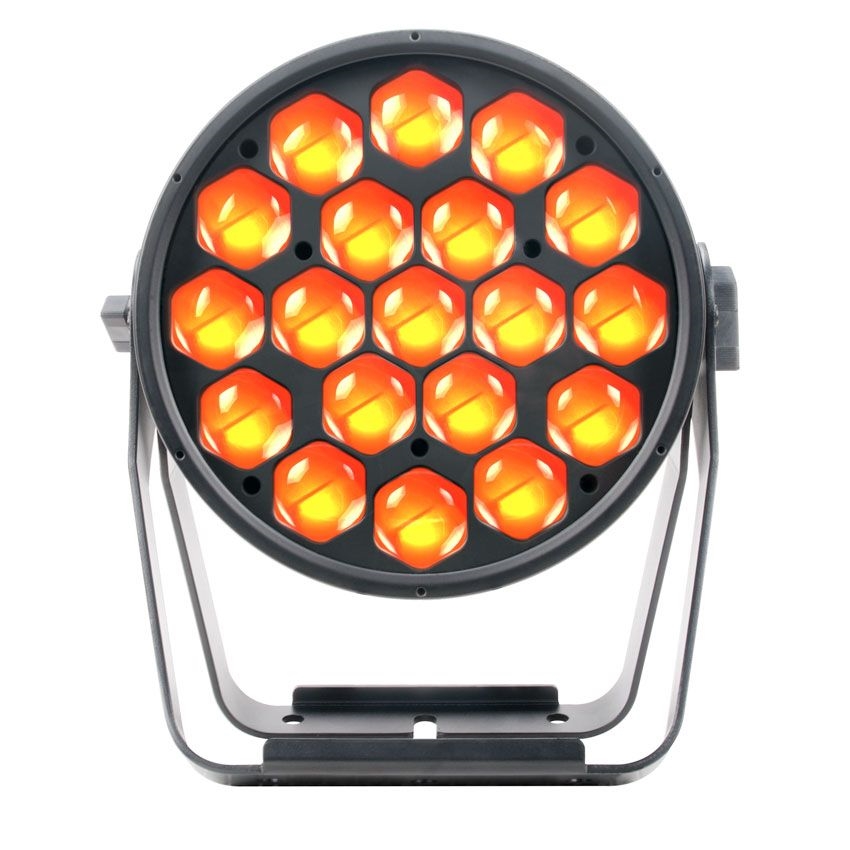

(19) 15W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
13,240 LUX 1,230 FC @9.8’ (3m) (5° Full ON)
831 LUX 77 FC @9.8’ (3m) (45° Full ON)

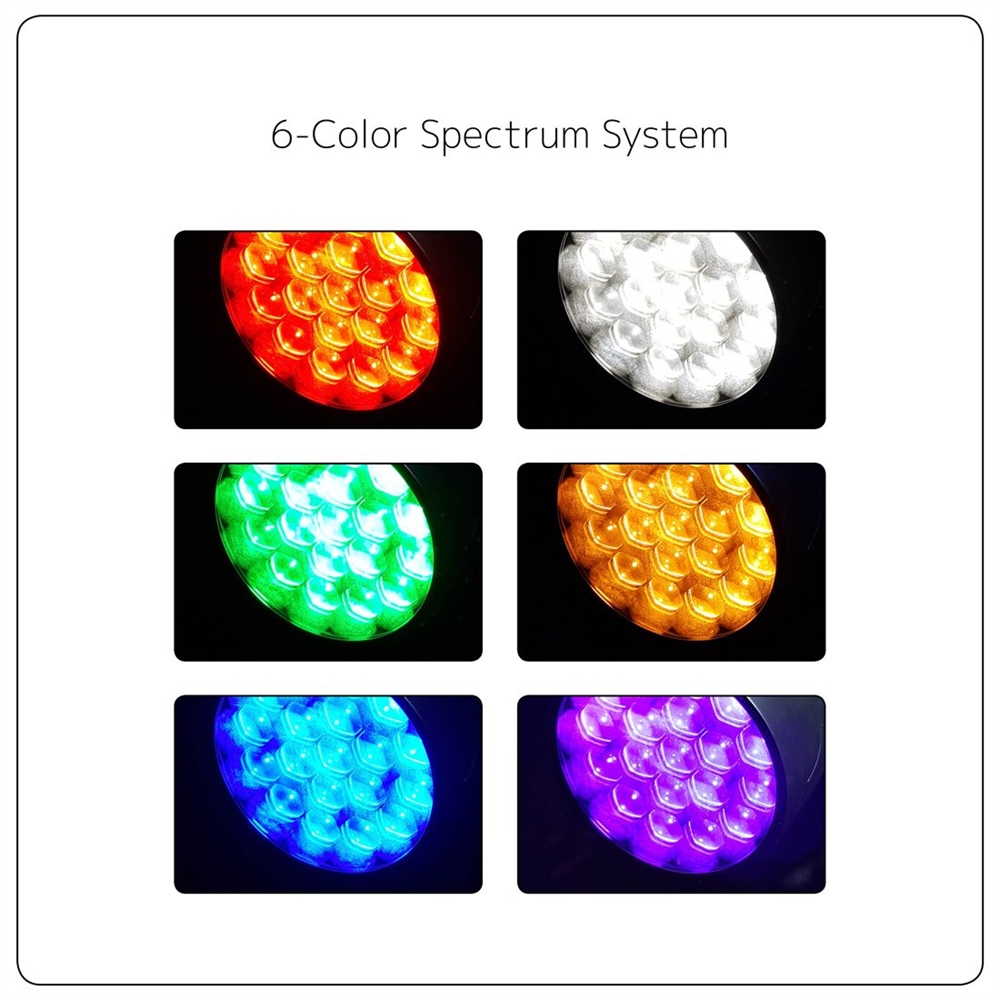

COLOR
RGBAW+UV
EFFECTS
5° - 45° Motorized Zoom
RGBWA + UV Color Mixing
Color and Chase Program Macros
Electronic Strobe and Variable Dim Curves
CONTROL / CONNECTIONS
4 DMX Channel Modes (14 Total Channels)
RDM (Remote Device Management)

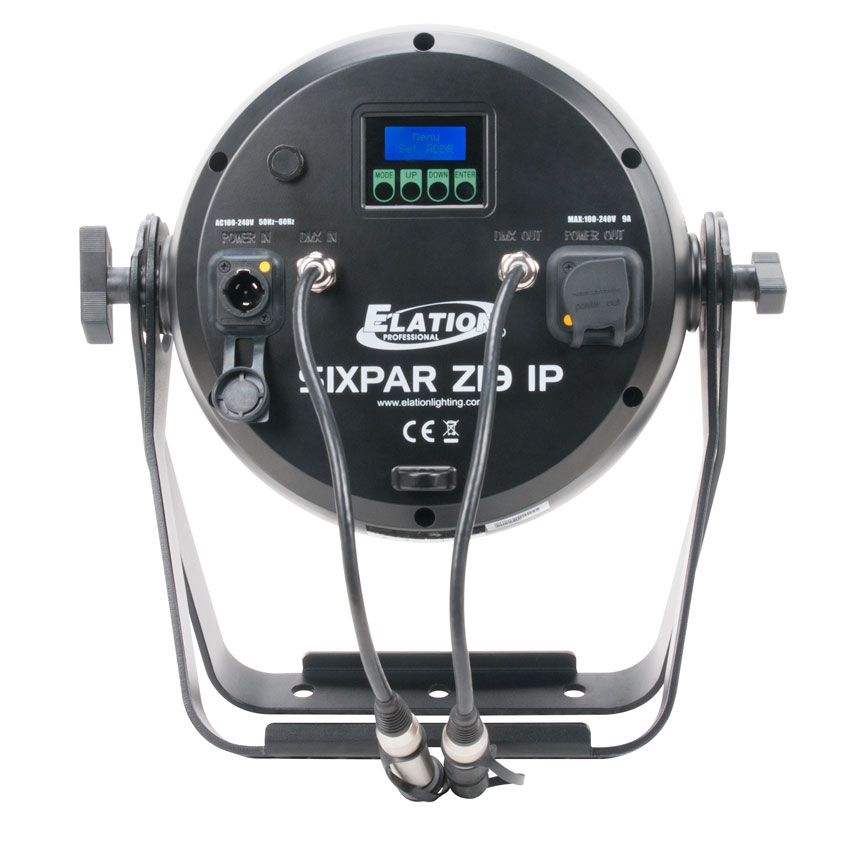

4 Button Touch Control Panel
180° Reversible LCD Menu Display
16 Bit High Resolution Dimming
IP Rated 5pin DMX and IP65 locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 15.9" (363mm)
Width: 12.0" (305mm)
Vertical Height: 15.6" (396mm)
Weight: 27 lbs. (12.2 kg)
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
288W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
