FEATURES

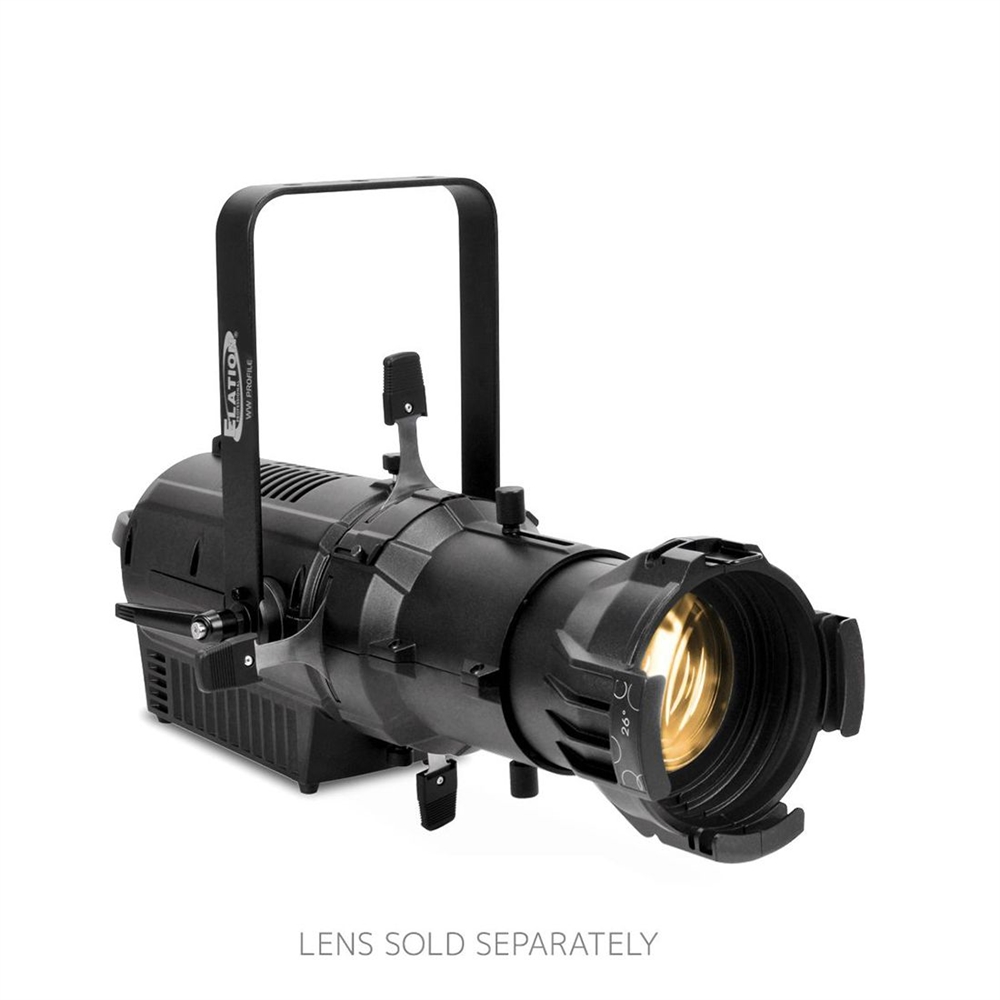

Very Efficient Warm White LED Profile
High CRI >94, 6,700 Total Lumens*

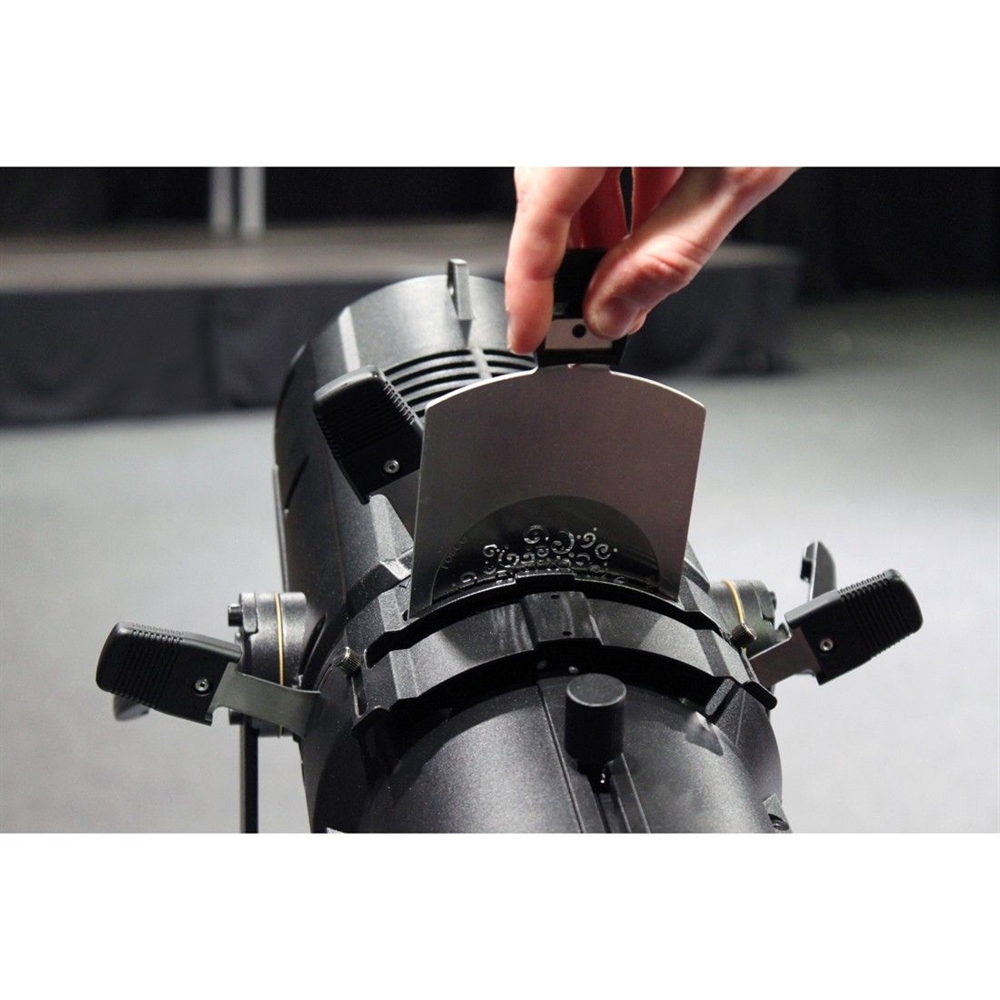

4-Blade Manual Framing Module in Rotatable Barrel
Adjustable Refresh Frequency and Gamma Brightness
Supports B Size Metal or HT Transparency Gobos
Supports Adjustable Iris
160W Max Power Consumption / 42 Lumens per Watt

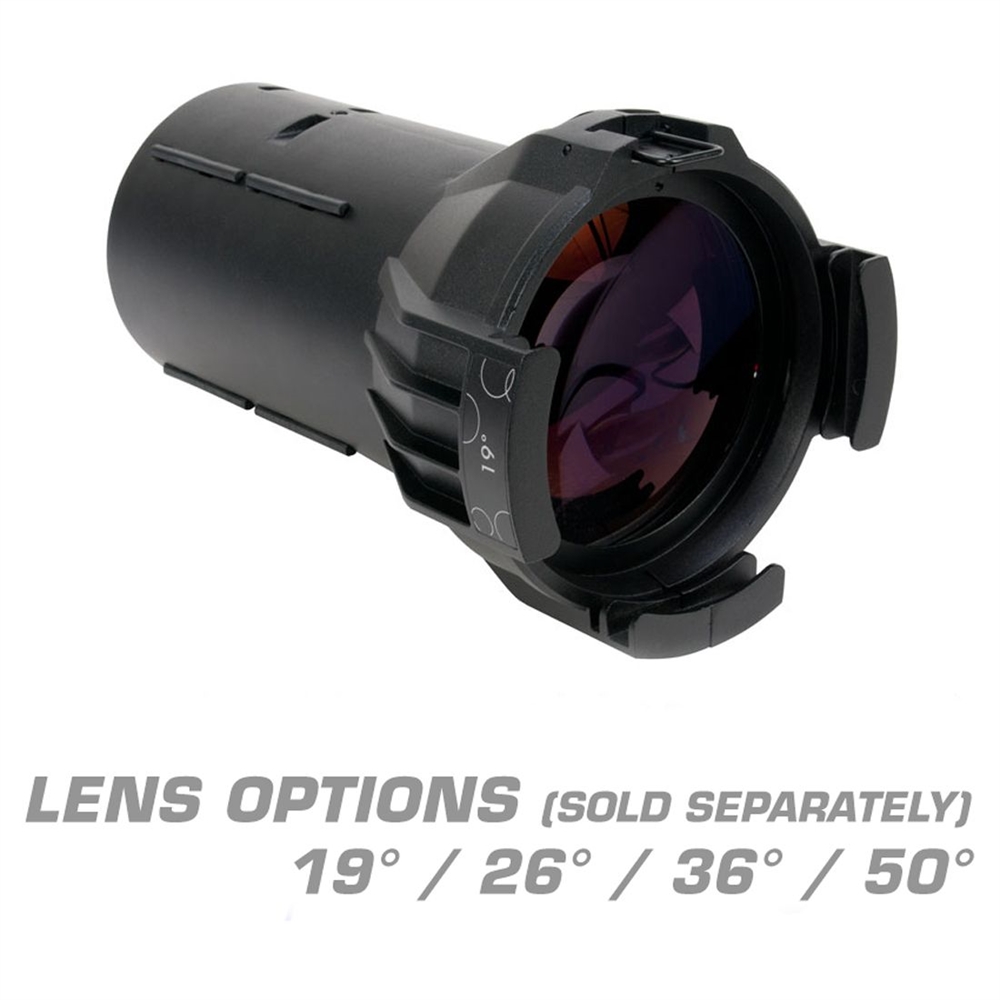

Interchangeable Lens Options (19°, 26°, 36°, 50°)**
Quiet Fan Cooling
Variable Dimming Curves
Flicker Free Operation for TV and Film
RDM – Remote Device Management
SOURCE
130W Warm White 3,000K LED Engine
6,700 Total Lumens*, >94CRI
50,000 Hour Average LED Life***
PHOTOMETRIC DATA
7,818 LUX 726 FC @ 8.2’ (2.5m)*
EFFECTS
Supports Adjustable Iris
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
GOBOS
Supports B Size Metal or HT Transparency Gobos
Gobo Size: OD 86mm / ID 64mm / Thickness 0.15mm
CONTROL / CONNECTIONS
(2) DMX Channel Modes (1 / 4)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
RDM (Remote Device Management)

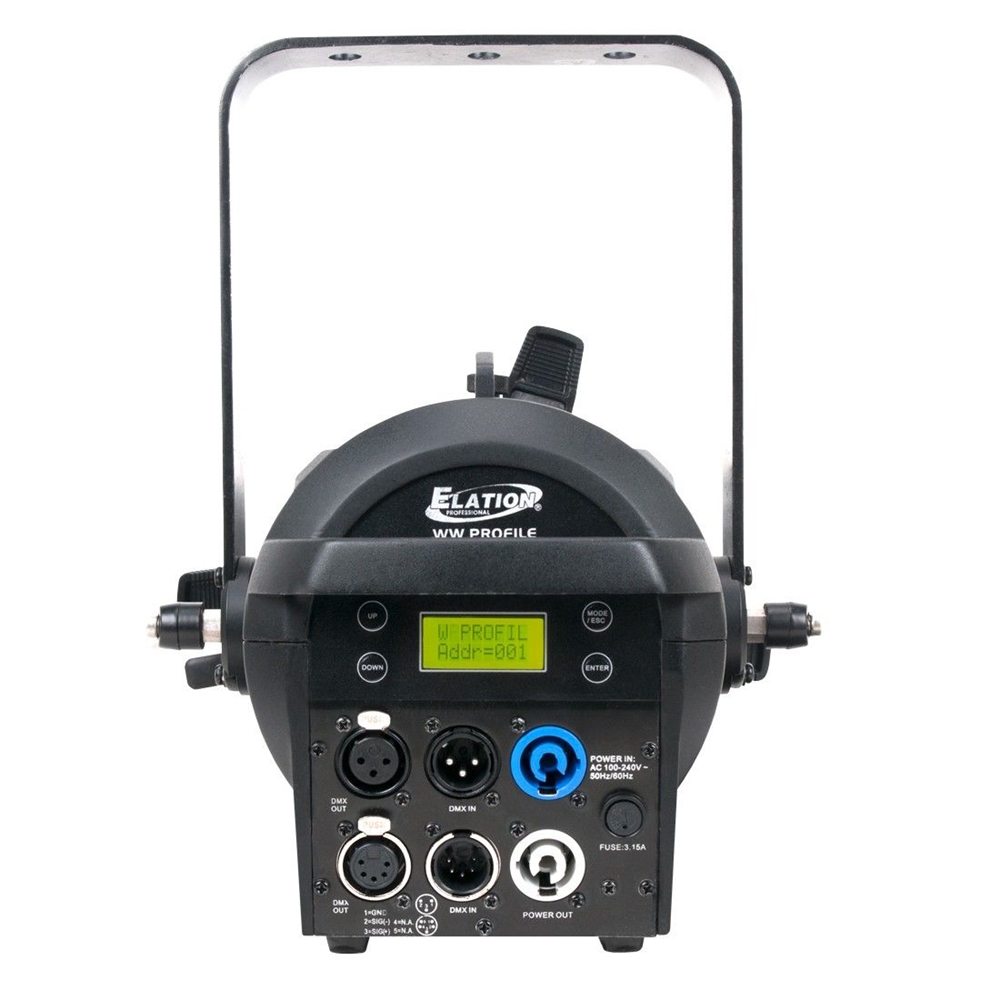

4 Button Control Panel
LCD Menu Display
Locking 3/5pin XLR Connector In/Out
Locking Power Connector In/Out
SIZE / WEIGHT
Length: 24.3” (618mm)
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
160W Max Power Consumption
Power Linking: 4pcs Max @120V / 9pcs Max @240V
14° to 113°F (-10° to 45°C)
OPTIONAL ACCESSORIES
1322000054 E Loader III
1236100117 PHDL19 Lens for LED Profile
1236100118 PHDL26 Lens for LED Profile
1236100119 PHDL36 Lens for LED Profile
1236100120 PHDL50 Lens for LED Profile
