FEATURES
IP65 Rated High Power Ellipsoidal
130W Warm White 3,000K LED Engine
>91CRI and 10,000+ Total Lumens Output

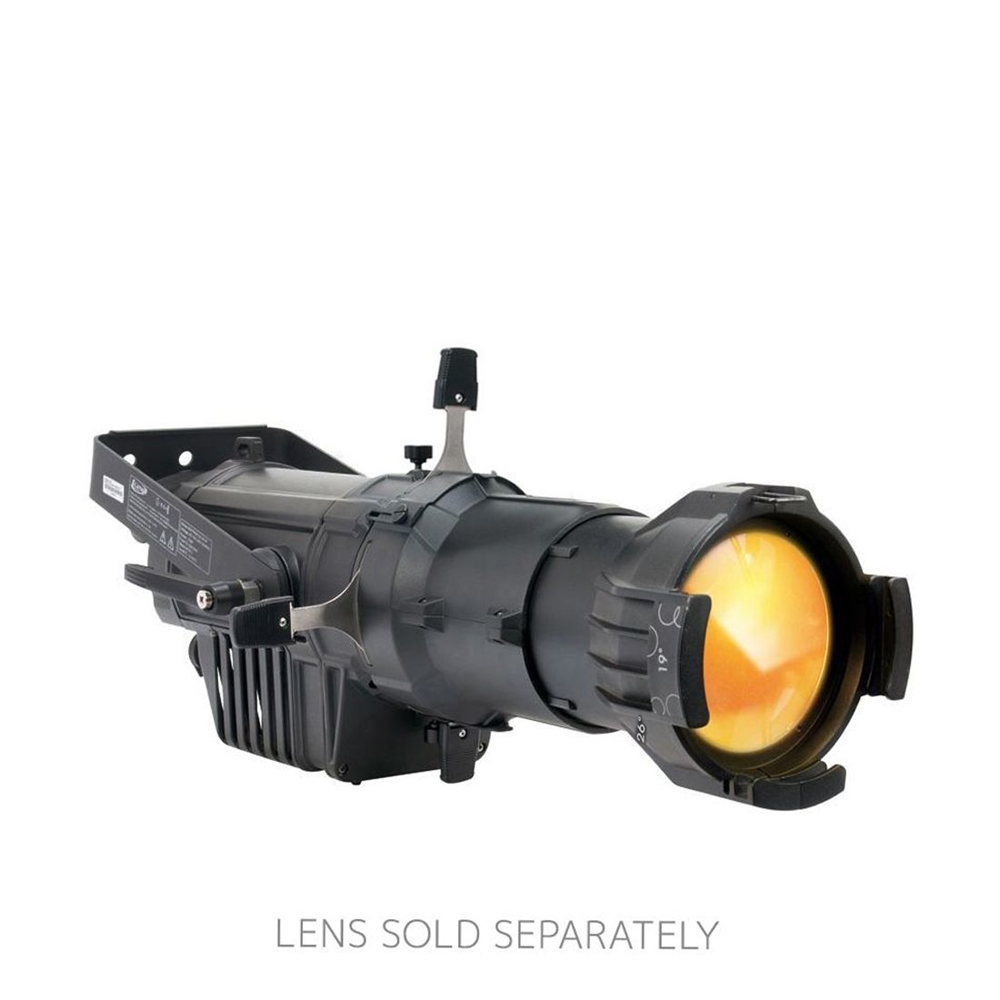

19°, 26°, 36°, 50° Lens Options (sold separately)
Supports B Size Metal Gobos (gobo holder not included)

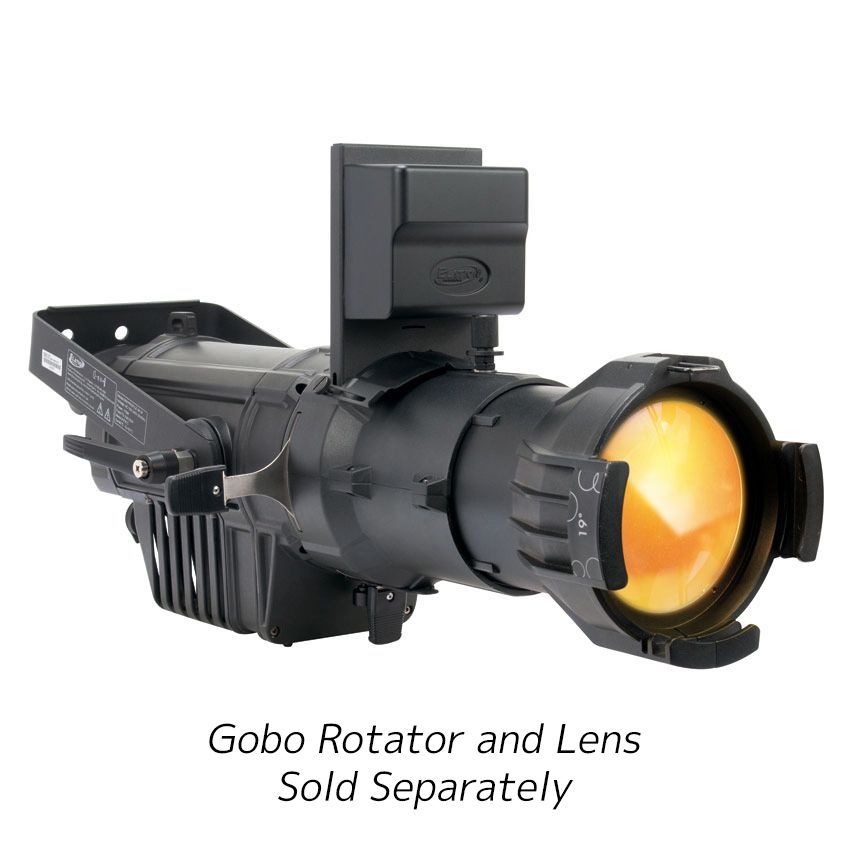

IP65 DMX Controlled Dual Gobo Rotator (sold separately)
(4) Blade Manual Framing Shutters
DMX Controlled Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
Flicker Free Operation for TV and FILM
Adjustable Refresh Frequency and Gamma Brightness
Quiet Fan Cooling
SOURCE
High Power 130W 3,000K Warm White LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
>91CRI | 10,000+ Total Lumens
EFFECTS
Electronic Strobe and 16bit Dimming
Selectable Dimming Curve Modes
COLOR
Warm White 3,000K LED
GOBOS
Supports “B” Size Metal Gobos**
IP65 Rated DMX Controlled Dual Gobo Rotator***
**Gobos and Holder not included.
***Rotator Sold Separately
CONTROL / CONNECTIONS
4 DMX Channel Modes (1 / 3 / 6 / 8)
Adjustable Refresh Rates
Adjustable Gamma Brightness

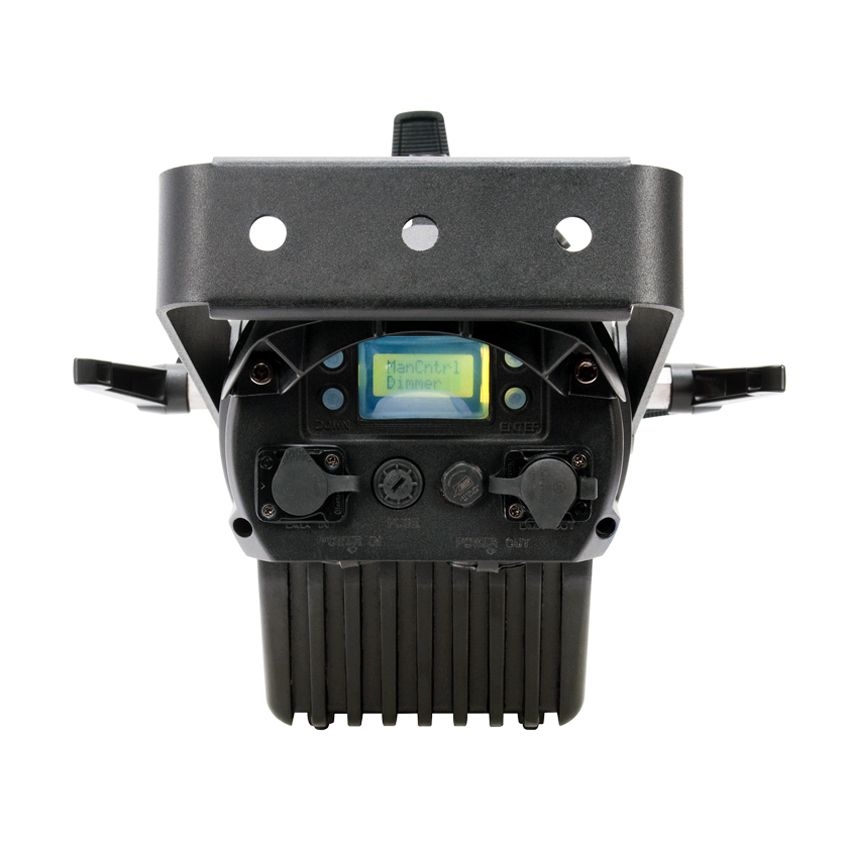

4 Button Control Panel / LED Menu Display
IP Rated 5pin DMX In/Out and IP65 locking power cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 300mm (11.79”)
Width: 554mm (21.78”)
Vertical Height: 460mm (18.11”)
Weight: 8.8kg (19.40 lbs.)
ELECTRICAL / THERMAL
Quiet Fan Cooling
AC 100-240V - 50/60Hz
170W Max Power Consumption
-10° to 45°C (14° to 113°F)
