FEATURES

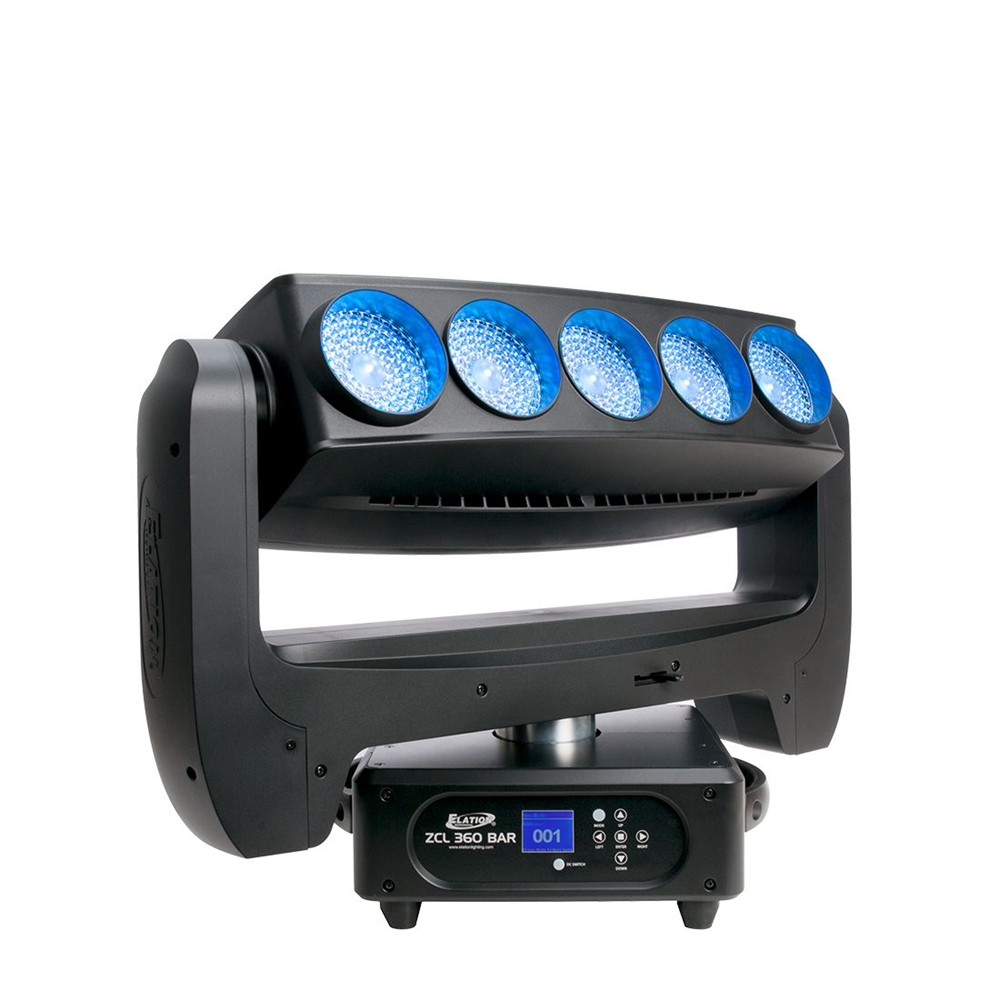

Versatile Moving Zoom Bar Effect Luminaire
Zooming Collimator Lens
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Wide 4° To 44° Zoom Range
(5) Pixel Control RGBW 4-in1 LEDs
Variable Dimming Curves
Flicker Free Operation for TV and Film
KlingNET™ and Art-NET (DMX over Ethernet)
RDM – Remote Device Management
SOURCE
(5) 60W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
25,230 LUX 2,344 FC @3m (9.8’) (Min. Zoom)
819 LUX 76 FC @3m (9.8’) (Max. Zoom)
EFFECTS
Individual Pixel Control
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe: 1-18fps
Dimming: 0% - 100%
Variable Dimming Curves
COLOR
RGBW
CONTROL / CONNECTIONS
(3) DMX Channel Modes (19 / 21 / 37)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
8 / 16 Bit Resolution Adjustable Movement
Locking 3/5pin XLR DMX In/Out
Locking RJ45 Ethernet In/Out (KlingNET™ / Art-NET)
Locking Power In/Out
SIZE / WEIGHT
Length: 638mm (25.11”)
Width: 260mm (10.24”)
Vertical Height: 459mm (18.0”)
Weight: 24.0 kg (53.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
530W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
OPTIONAL ACCESSORIES
1521000297 Touring Case 2x ZCL 360 Bar
1521000298 Touring Case 4x ZCL 360 Bar
1521000299 PRO Case 2x ZCL 360 Bar
1521000300 PRO Case 4x ZCL 360 Bar
1322000060 C-Loader II
