FEATURES
IP65 Rated Dust and Water Protection
Multi-Color LED Bar Effect Luminaire
5x 60W RGBW LEDs
Zooming Collimator Lens
Pixel Controlled LEDs
4° To 44° Motorized Zoom

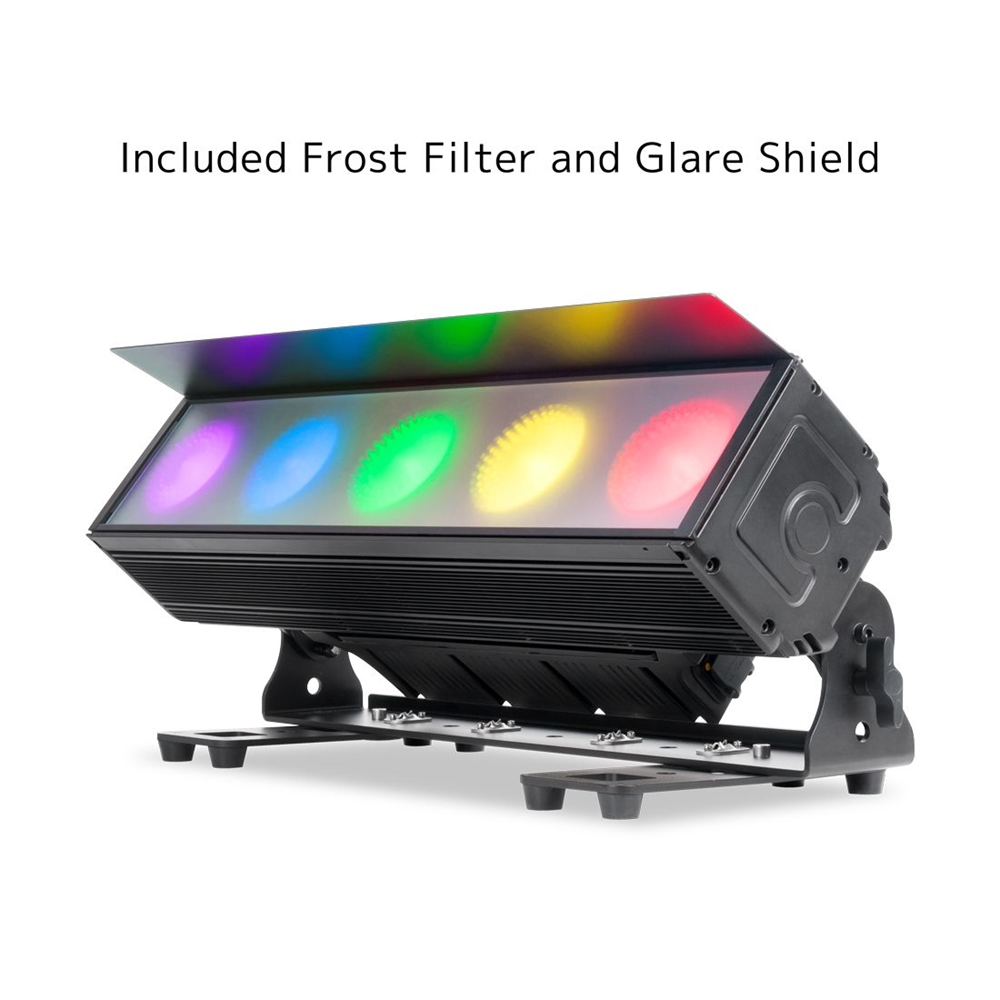

Included 2 Frost Filters and Glare Shield
Quick Lock Mounting Options
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
5x 60W RGBW Multi-Chip LEDs
4,452 Total Output Lumens
100,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
8,500 LUX 791 FC @3m (9.8’) (Min. Zoom)
691 LUX 64 FC @3m (9.8’) (Max. Zoom)
EFFECTS
Pixel Controlled LEDs
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW Multi-Chip LEDs
CONTROL / CONNECTIONS
6 DMX Channel Modes (5 - 28)
DMX Support
RDM (Remote Device Management)
8 / 16 Bit Dimming Control
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
IP65 Rated 5-pin DMX Whip Cables
Locking Power Cable In/Out
SIZE / WEIGHT
Length: 670mm (26.4”)
Width: 158mm (6.2”)
Vertical Height: 298mm (11.7”)
Weight: 19.5 kg (43.0 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
390W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
INCLUDED ITEMS
Glare Shield
Medium Frost
Heavy Frost
Locking IP65 Power to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1322000060 C-Loader II
