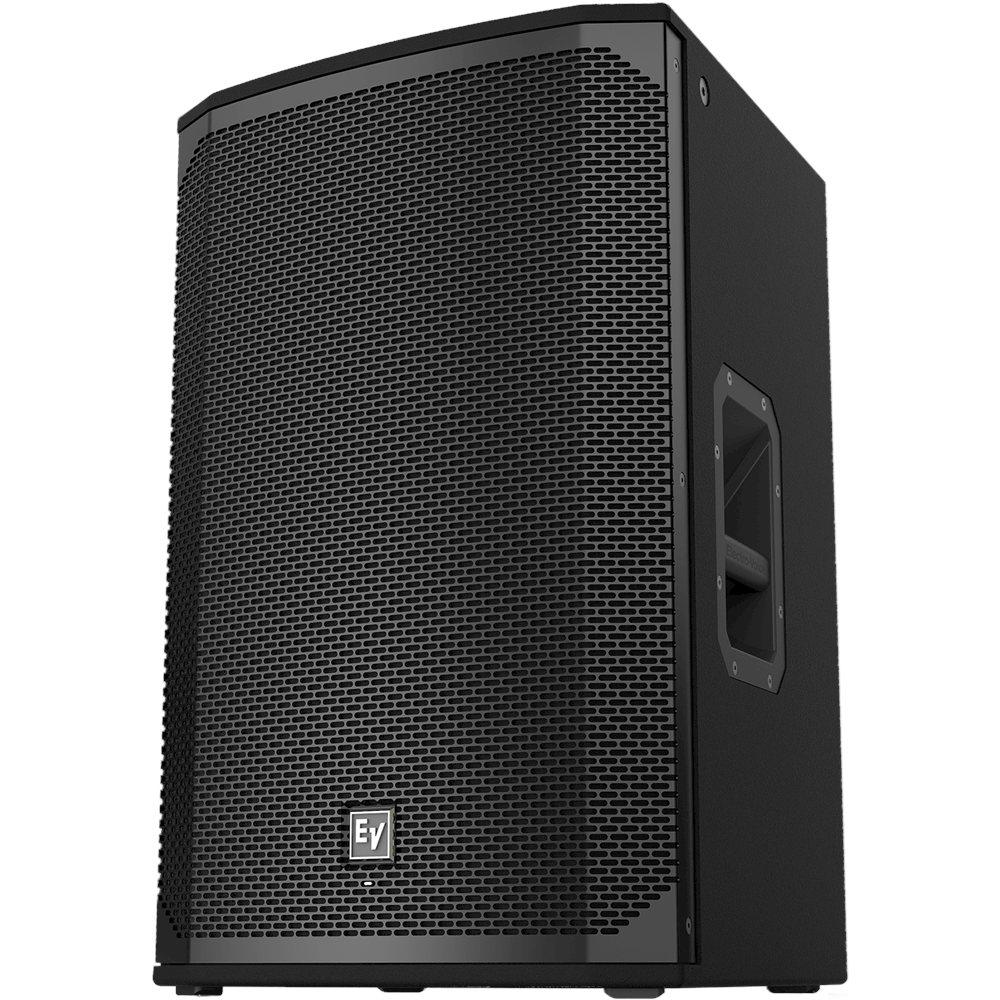

Electro Voice EKX-15, 15" 2-vejs passiv højttaler

• EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
• EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
• Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
• Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
• 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

SuspensiAxial Sensitivity (SPL, 1 W @ 1 m) 96 dB Full Space Measurement
Maximum SPL 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance 8 Ω
Power Handling (Continuous / Peak) 400 W/1600 W
Frequency Response (-3 dB) 75 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB) 50 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency 50 Hz
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 60 °
LF Transducer EVS-15M 381 mm (15 in)
HF Transducer DH-1M 1-inch titanium compression driver
Crossover Frequency 1.6 k Hz
Minimum Impedance 7.2 Ω
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grill 18 AWG steel with powdercoaton (8) M10 threaded mounting points
Height 685 mm (26.97")
Width 432 mm (17.01")
Depth 429 mm (16.89")
Weight Net 23.2 kg (51.15 lbs)
Shipping Weight 28.2 kg (62.17 lbs)
