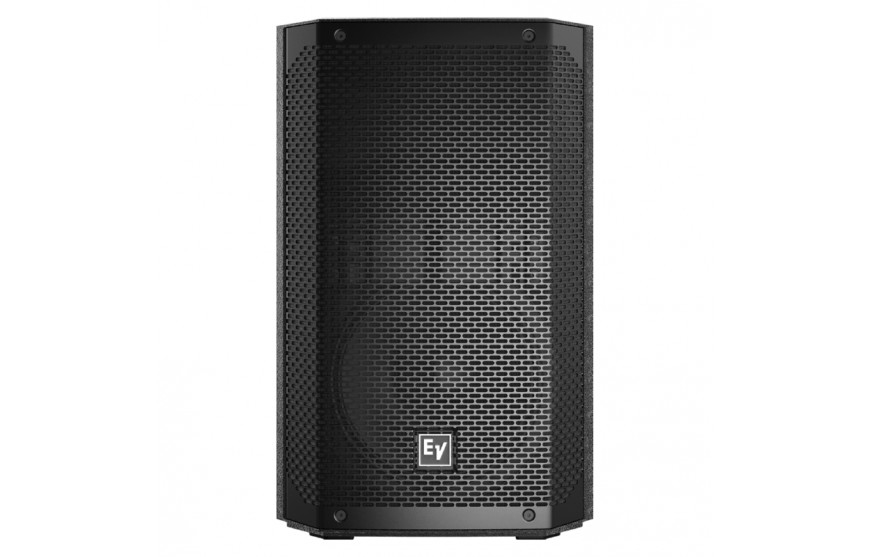

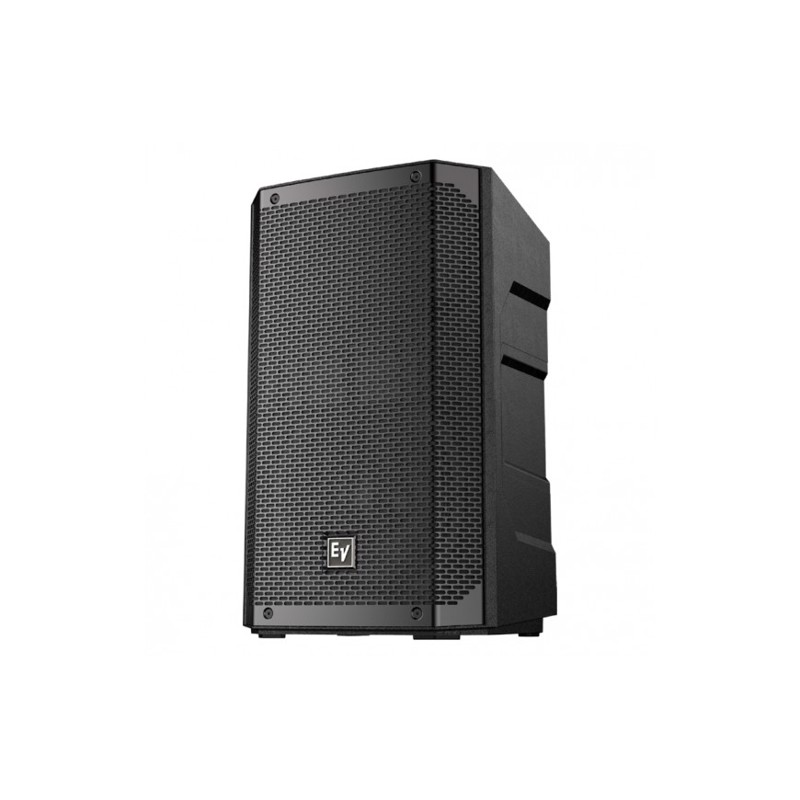

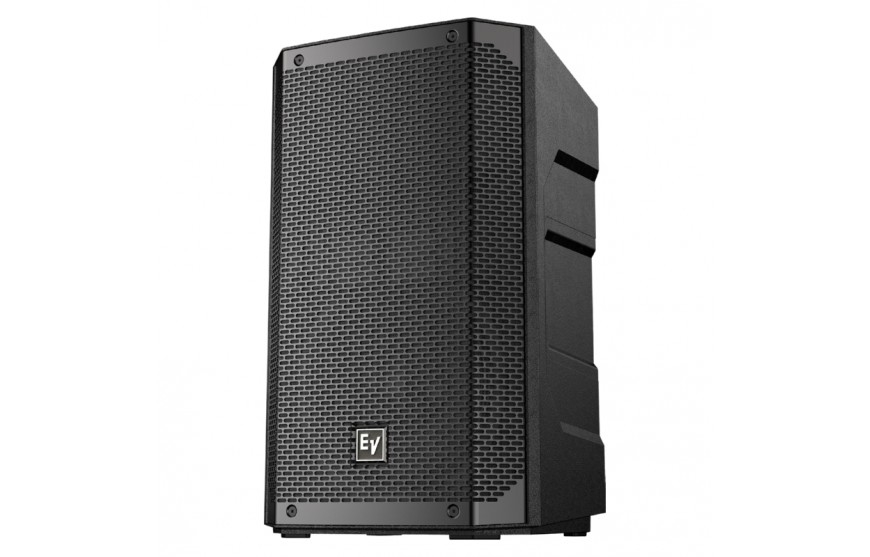

ELX200-10
10" Passive Loudspeaker
- 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1C (1 inch exit) titanium compression driver for extended transparent high-frequency response.
- High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.
Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a goto for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.
EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Available Color |
Black or White |
Axial Sensitivity (SPL, 1 W @ 1 m) |
90dB |
Connector Type |
Dual NL4 |
Coverage (Nominal -6 dB) H |
90° |
Coverage (Nominal -6 dB) V |
60° |
Crossover Frequency |
2 kHz |
Enclosure Material |
Polypropylene Composite |
Family |
ELX200 |
Frequency Range (-10 dB) |
49 Hz - 22 kHz |
Frequency Response (-3 dB) |
65 Hz - 20 kkHz |
Grille |
18 AWG steel with powdercoat |
HF Transducer |
DH-1C 1-inch titanium compression driver |
LF Transducer |
EVS-10M 254 mm (10 in) |
Max. SPL/1m (calc) |
127dB |
Minimum Impedance |
7.2Ω |
Nominal Impedance |
8Ω |
Power Handling (Continuous / Peak) |
300 W/1200W |
Power Rating |
1200W |
Recommended High-Pass Frequency |
55Hz |
Shipping Weight |
15.3kg (33.73 lbs) |
Speaker Type |
Full-Range |
Suspension |
(3) M10 suspension points |
Woofer Size |
10inch |
