Weight: | 20,27 kg |
41700700 EUROLITE AKKU PAR 6 QCL |
Power supply: | 100-240 V AC, 50/60 Hz |
IP classification: | IP20 |
Power connection: | Battery/battery pack |
| Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x P-Con (gray), mounting version |
LED: | 6 x high-power 4 W 4in1 QCL RGBW (homogenous color mix) |
DMX channels: | 6; 11 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Cooling fan: | No, cooling by convection |
Control: | IR remote control included |
| DMX |
| Stand-alone |
| Sound to light via Microphone |
| QuickDMX via USB (optional) |
Beam angle (1/2 peak): | 18° |
Beam angle (1/10 peak): | 36° |
Housing color: | Black |
Width: | 17,7 cm |
Height: | 21,1 cm |
Depth: | 14,3 cm |
Weight: | 2,52 kg |
Device |
Battery pack type: | 1 x Lithium ion 14,8 V, 4400 mAh, 65,12 Wh |
Battery pack: | battery operation up to 12h depending on program used recharging time 3,5h |
Remote control |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
Legal specifications |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
70064704 EUROLITE QuickDMX USB Wireless Transmitter/Receiver |
Power supply: | 5 V DC |
IP classification: | IP20 |
Power connection: | Mains input USB A (M) connectable version |
DMX channels: | Input 512 Output 512 |
DMX output: | 1 x USB, type A |
Control: | QuickDMX via USB (optional) |
| QuickDMX built-in |
| DMX |
Color: | Black |
Carrier frequency: | 2,4 GHz |
Modulation: | GFSK |
Parallel mode: | max. 6 Transmitter |
Width: | 8,6 cm |
Height: | 1,1 cm |
Depth: | 4 cm |
Weight: | 0,01 kg |

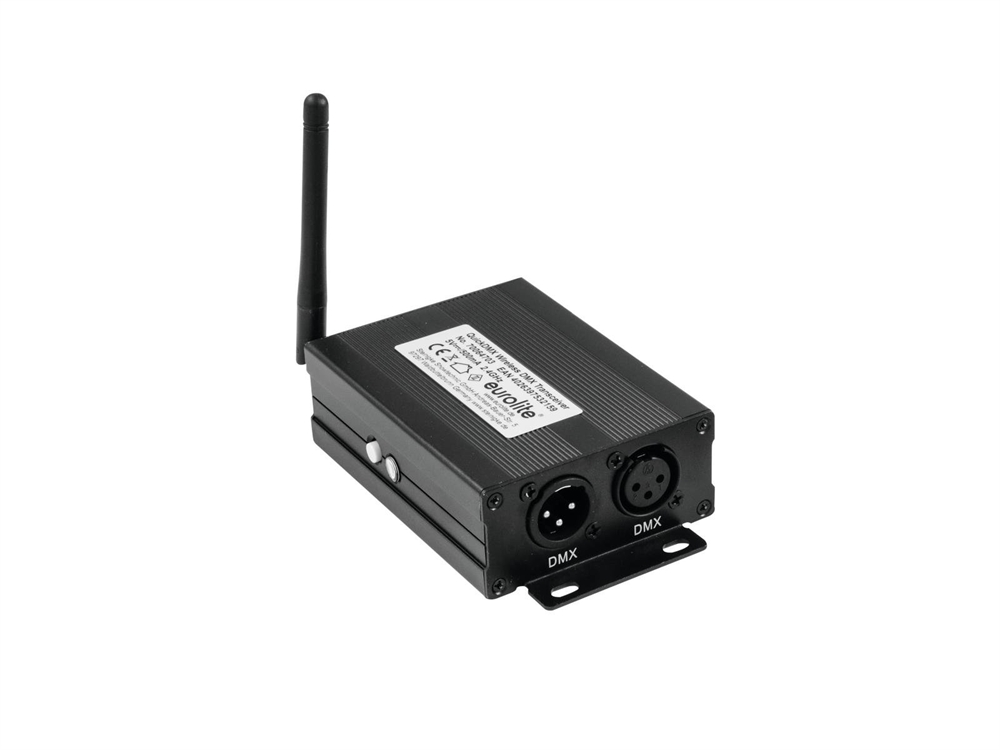

70064703 EUROLITE QuickDMX Wireless Transmitter/Receiver |
Power supply: | 100-240 V AC, 50/60 Hz 5 V DC 500 mA |
IP classification: | IP20 |
Power connection: | Mains input Micro USB (F) mounting version Power supply cord for USB A mains connection (provided) |
DMX channels: | Input 512 Output 512 |
DMX input: | 1 x 3-pin XLR (M) mounting version |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | QuickDMX built-in |
| DMX |
Color: | Black |
Carrier frequency: | 2,4 GHz |
Modulation: | GFSK |
Parallel mode: | max. 6 Transmitter |
Range: | 400 m |
Width: | 21,2 cm |
Height: | 7,5 cm |
Depth: | 10 cm |
Weight: | 0,29 kg |

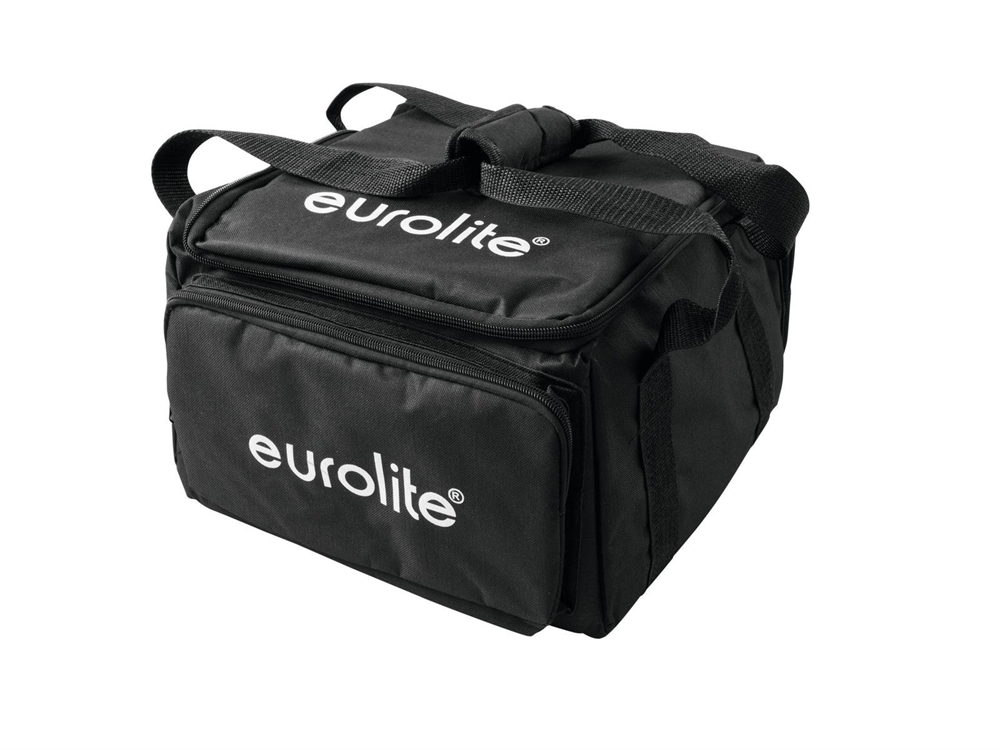

30130501 EUROLITE SB-4 Soft Bag M |
Maximum load: | 25 kg |
Color: | Black |
Material: | Textile |
Additional dimensions: | Compartment dimensions 14 cm x 14 cm x 19 cm |
| Inside dimensions 29 cm x 29 cm x 19 cm |
Width: | 30 cm |
Height: | 20 cm |
Depth: | 33 cm |
Weight: | 0,51 kg |

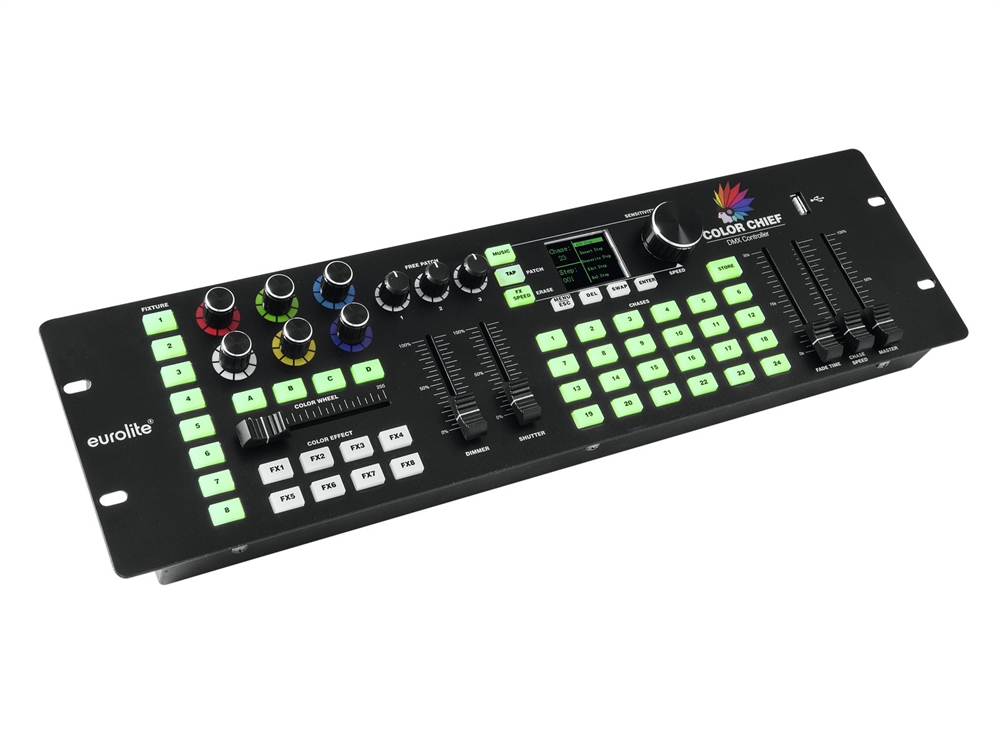

70064575 EUROLITE DMX LED Color Chief Controller |
Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
Power consumption: | 10 W |
IP classification: | IP20 |
Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
Programs: | 24 Sequences |
DMX channels: | Output 240 |
DMX output: | 1 x 3-pin XLR (F) mounting version |
Control: | Sound to light via Microphone |
| Sound to light via RCA (f) mounting version |
| DMX |
Color: | Black |
Housing color: | Black |
Available storage media: | USB devices (FAT 32) |
USB port: | Typ A |
Housing design: | (19") 48.3 cm rack installation 3 U |
Width: | 48,3 cm |
Height: | 8,5 cm |
Depth: | 13,35 cm |
Weight: | 2,25 kg |

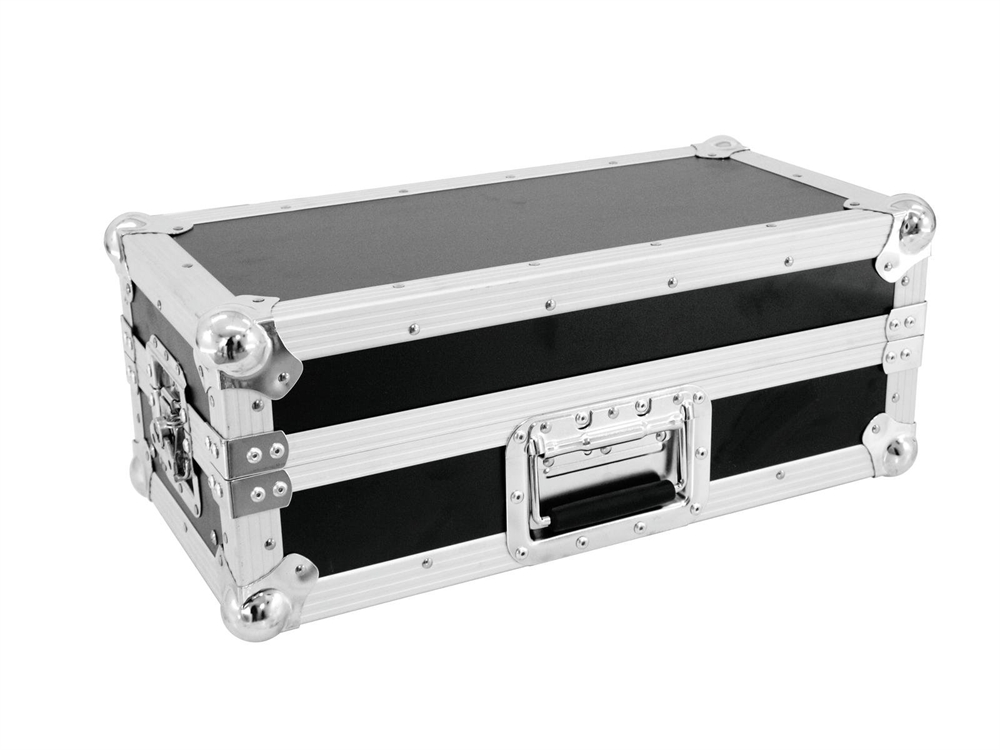

30111570 ROADINGER Mixer Case Pro MCA-19, 4U, bk |
Maximum load: | 25 kg |
Color: | Black laminated |
Material: | Glued plywood 7 mm |
Mounting width: | 483 mm (ca. 19") |
Mounting height: | approx. 176 mm (4 U) |
Mounting depth: | 105 mm |
Housing design: | 4 U |
Width: | 54 cm |
Height: | 23,5 cm |
Depth: | 27 cm |
Weight: | 5,70 kg |
