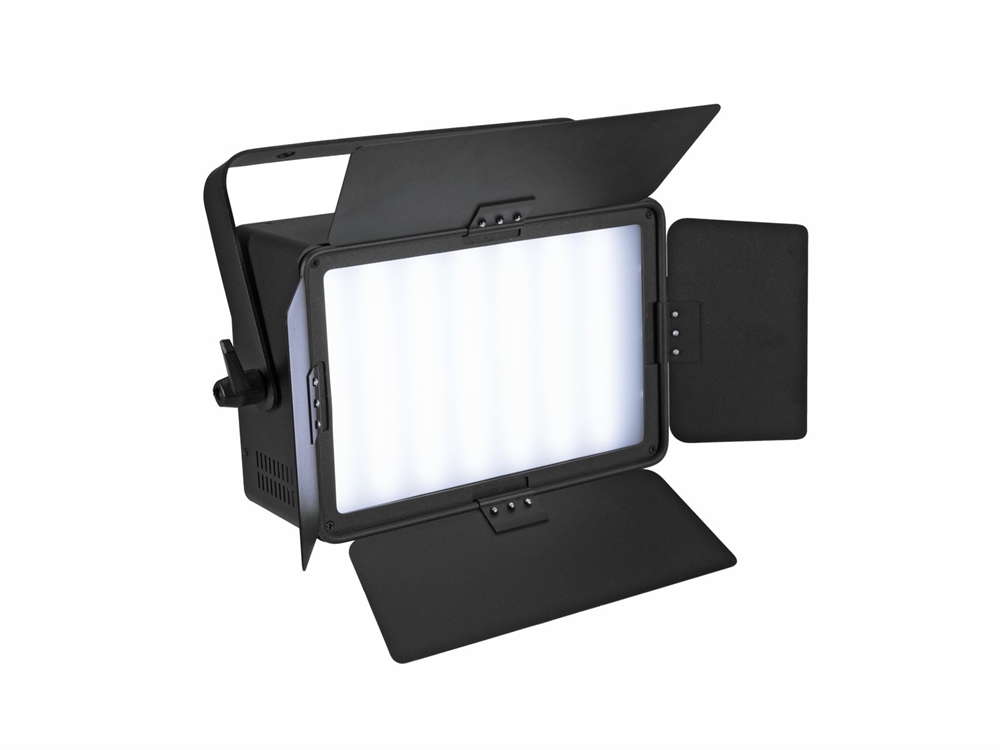

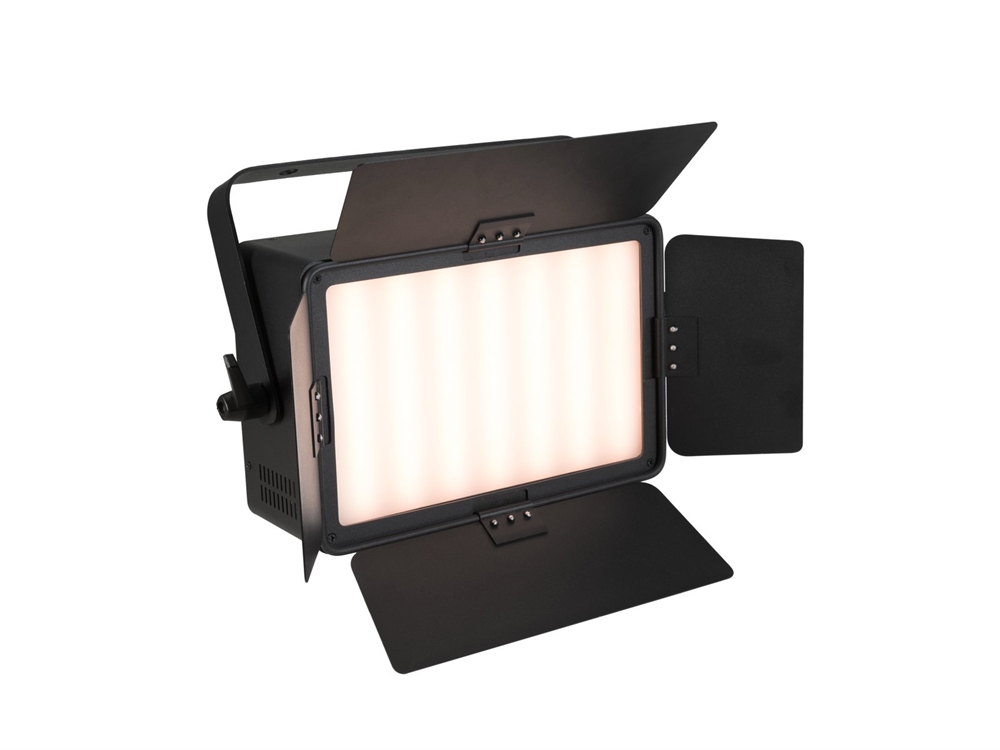

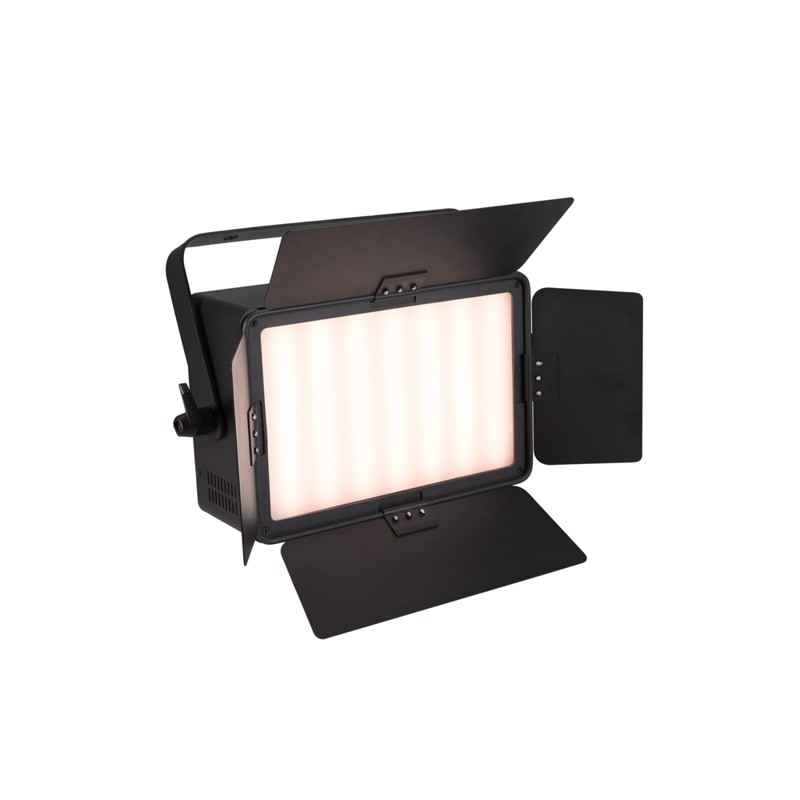

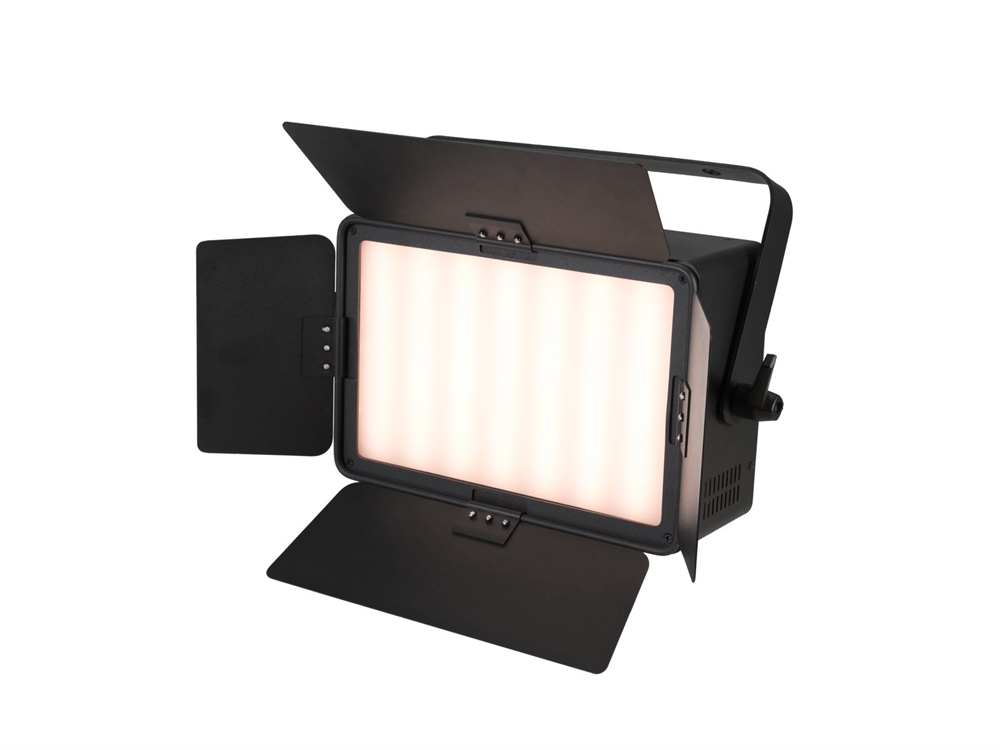

EUROLITE AKKU PLL-168 WW/CW Panel

Battery-powered surface light with 168 dual white LEDs, QuickDMX port and barn doors

EUROLITE AKKU PLL-168 WW/CW Panel

Battery-powered surface light with 168 dual white LEDs, QuickDMX port and barn doors

High-grade surface light with 168 super bright, white LEDs
Cordless, flexible and versatile
Ideal for photography, film, stage and trade fair lighting
Variable color temperature 2800-6500 K
38 preset color temperatures
Electronic dimmer (0-100%)
Quick color temperature and brightness setting via rotary dials
Strobe effect 0-20 Hz
Variable PWM frequency (pulse-width modulation)
Auto, music, master/slave and DMX mode
Built-in auto and music show programs

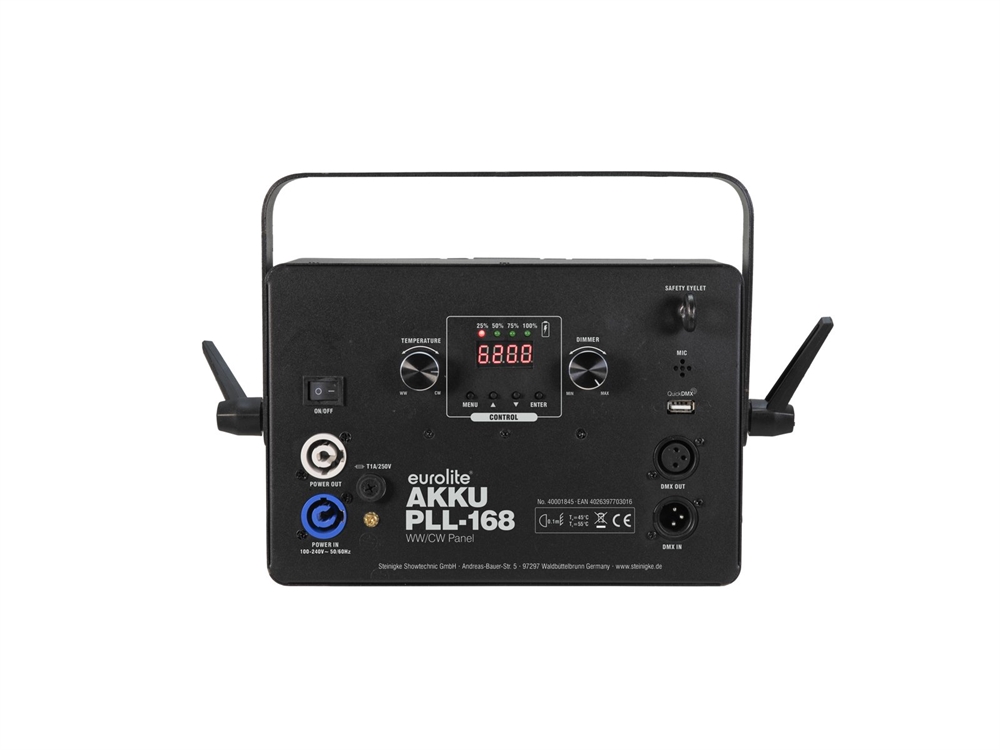

Control panel with LED display for easy configuration
Operation via mains connection or built-in lithium-ion battery with up to 8 hours use (depending on setting)
Energy-saving mode
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (accessory)

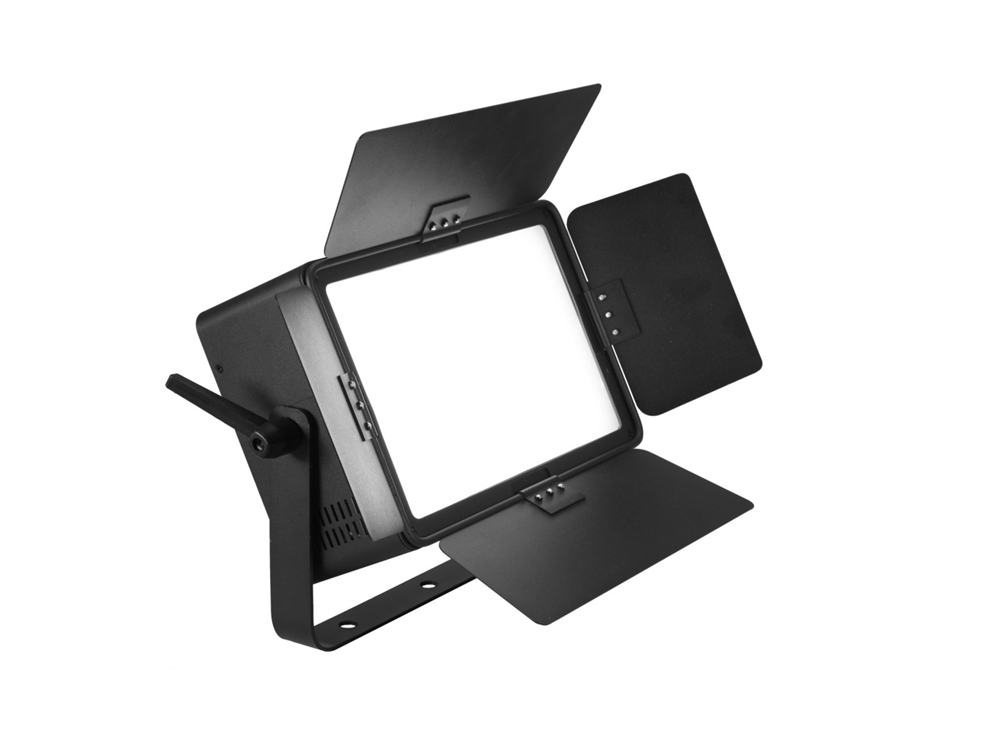

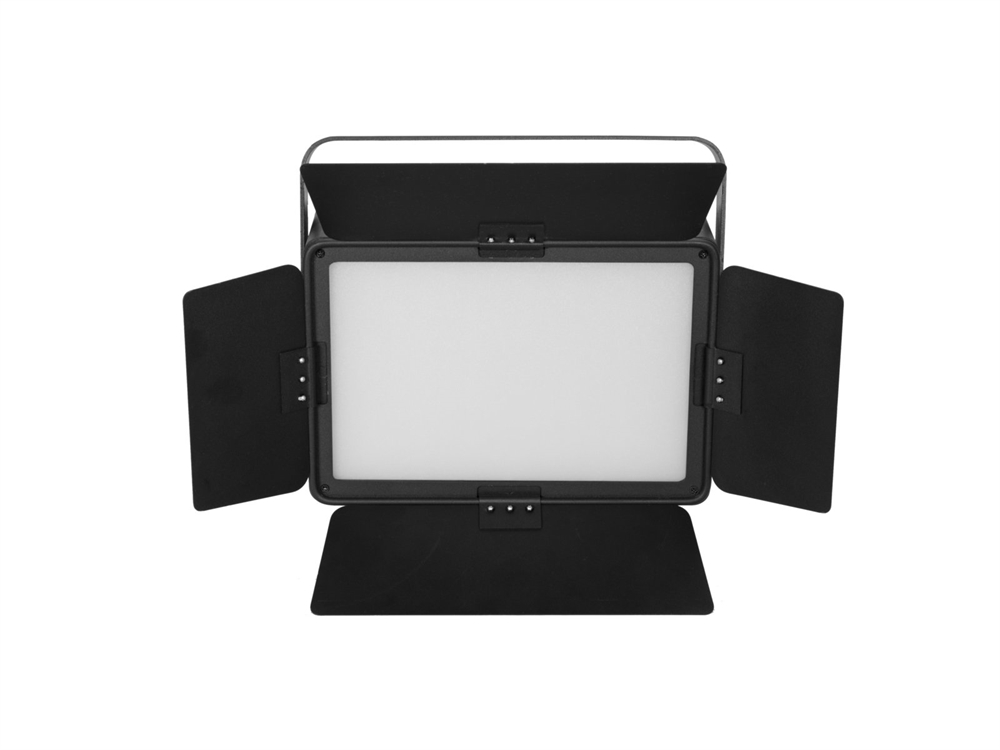

Four barn doors to avoid blinding the audience and for protection during transport
Slim, rugged metal housing

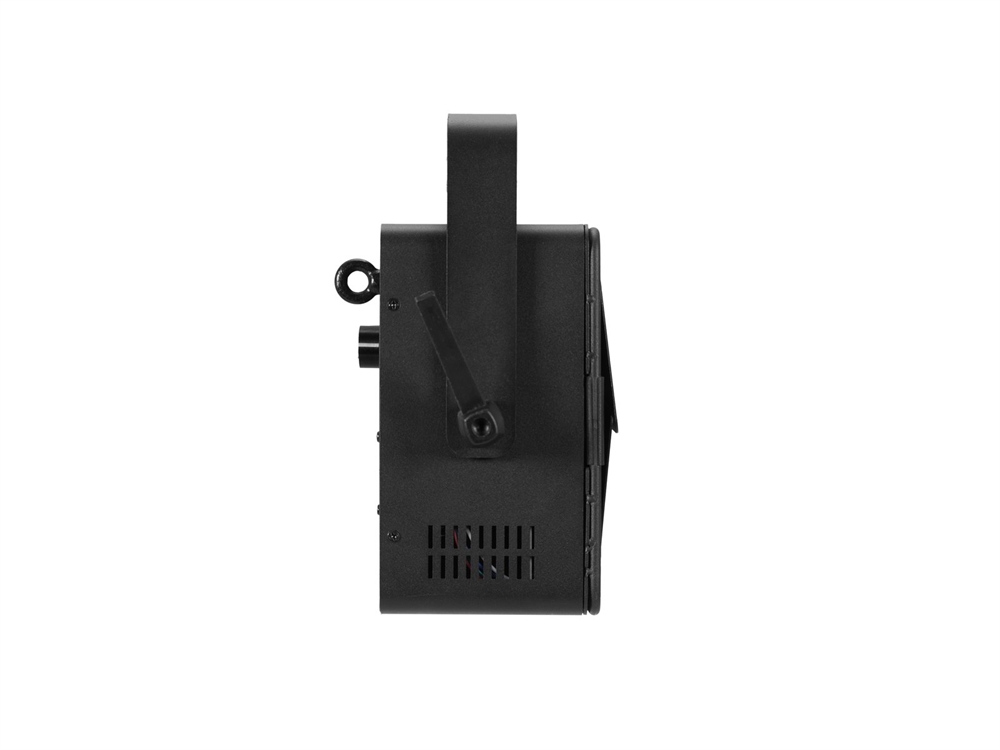

Swivel mounting bracket
Mains input and output for power linking up to 8 units
LED: 84 x SMD 2835 0,5 W cold white (CW)
LED: 84 x SMD 2835 0,5 W warm white (WW)
Can be operated in 2; 4; 6 CH mode
The device is cooled by passive convection
Controlling by stand-alone; Sound to light via Microphone; Master/slave function; DMX; Quick select potentiometer for brightness and color temperature; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free projection
Very high color rendering index (CRI)

Power supply:	100-240 V AC, 50/60 Hz
IP classification:	IP20
Protection class:	Class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Fuse:	5 x 20 mm, T 1 A Fuse replaceable
Battery pack type:	1 x lithium ion 22,2 V, 4400 mAh, 97,68 Wh
Battery pack:	Battery operation up to 8h depending on program used Recharging time 4h
Lamp type:	LED lamp
LED:	84 x SMD 2835 0,5 W cold white (CW) 84 x SMD 2835 0,5 W warm white (WW)
Color temperature:	2800K - 6500K adjustable
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 6
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection
Control:	Stand-alone; Sound to light via Microphone; Master/slave function; DMX; Quick select potentiometer for brightness and color temperature; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color rendering index (CRI) more than:	90 Ra
Housing color:	Black
Display type:	4 digits 7-segment LED display
Dimensions:	Width: 35,7 cm Depth: 11,7 cm Height: 22,0 cm
Weight:	3,50 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Varenr.: E-40001845
