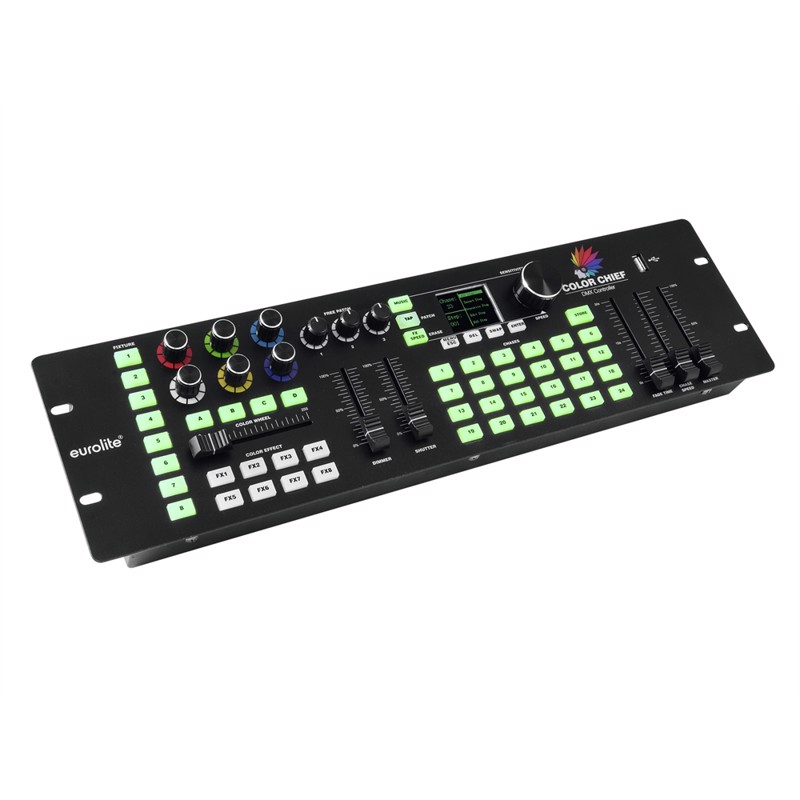

EUROLITE DMX LED Color Chief Controller

På lager
På lager, 3-5 hverdage
Bedømmelse for EUROLITE DMX LED Color Chief Controller
Produktet er endnu ikke bedømt

2.039,00DKK ved 1 stk.

Vis uden moms

Betal med XpresPay

DMX lighting desk with innovative control concept for LED spotlights

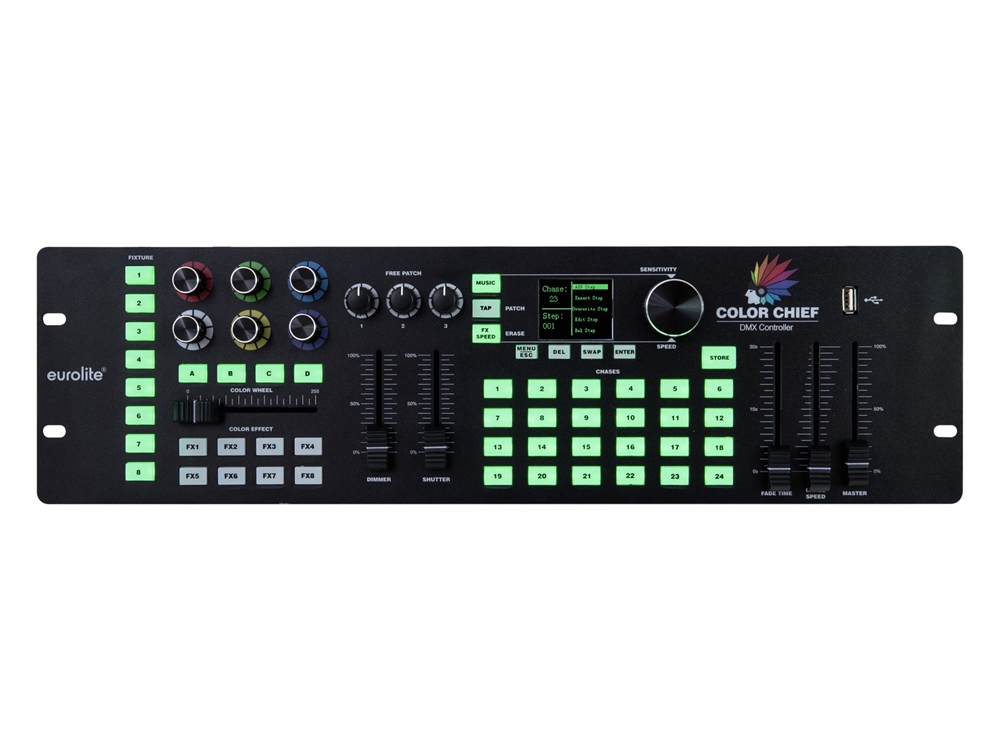

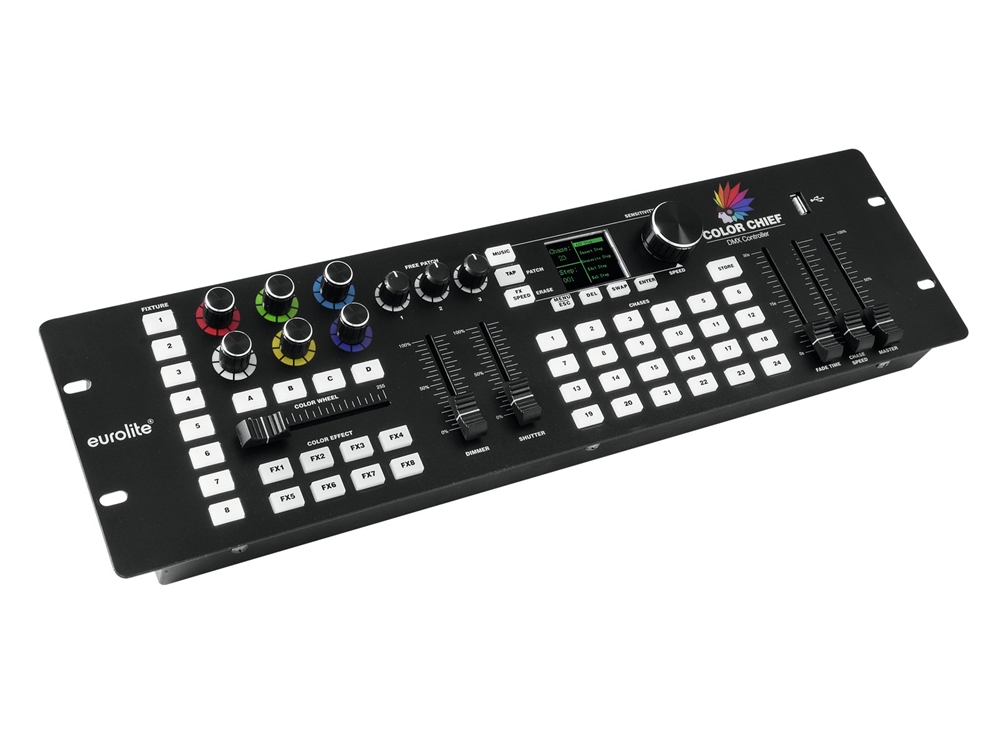

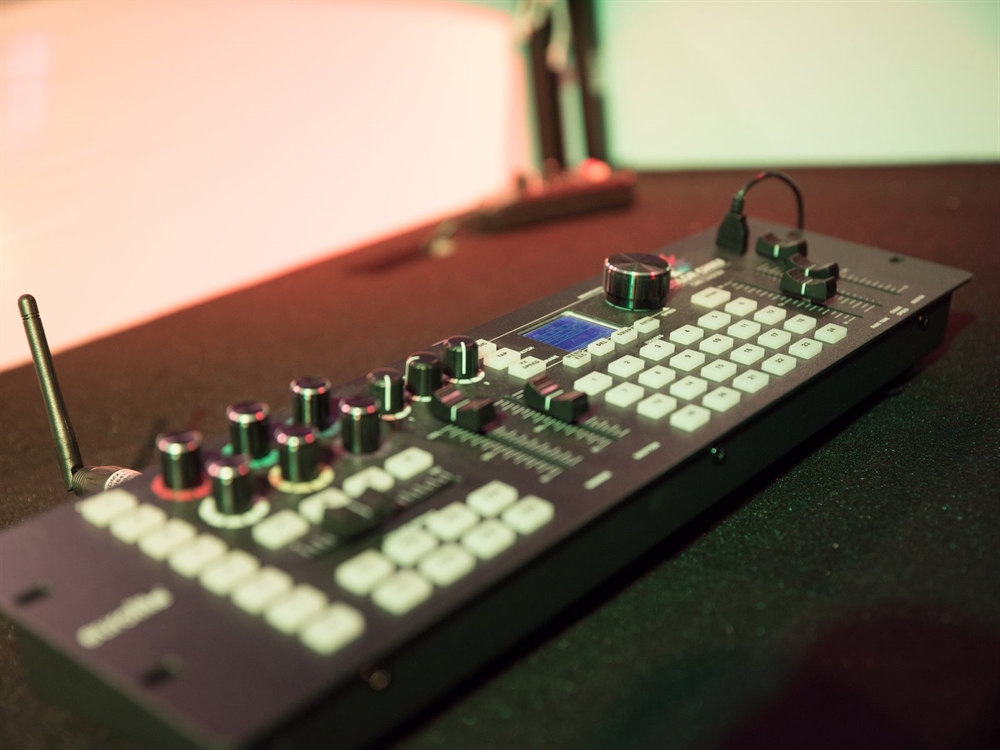

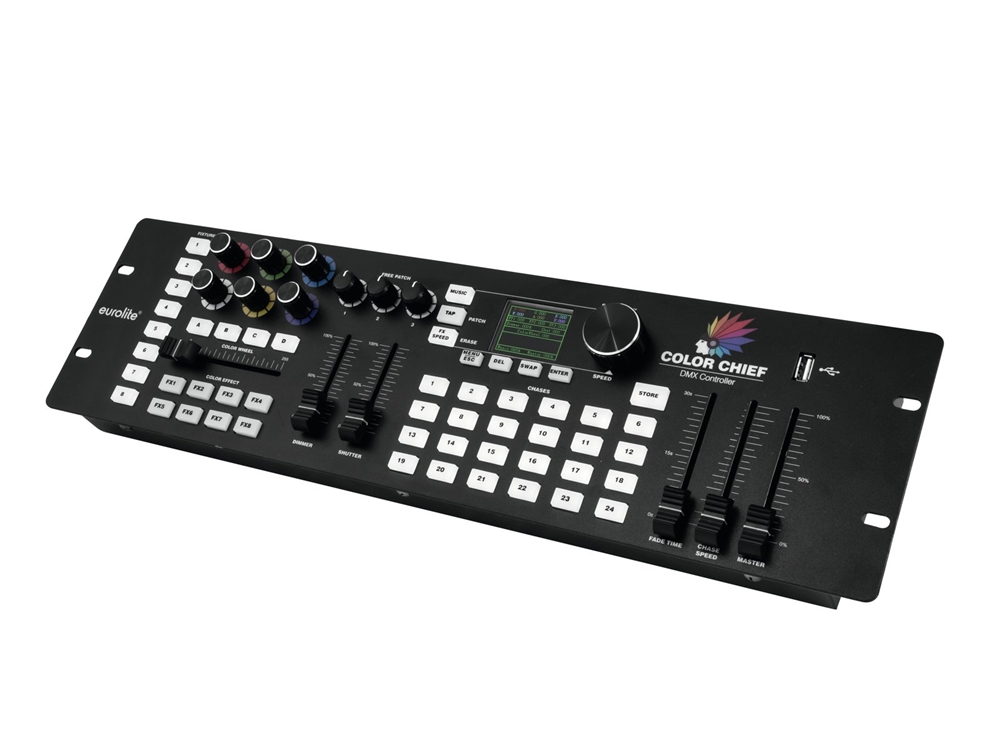

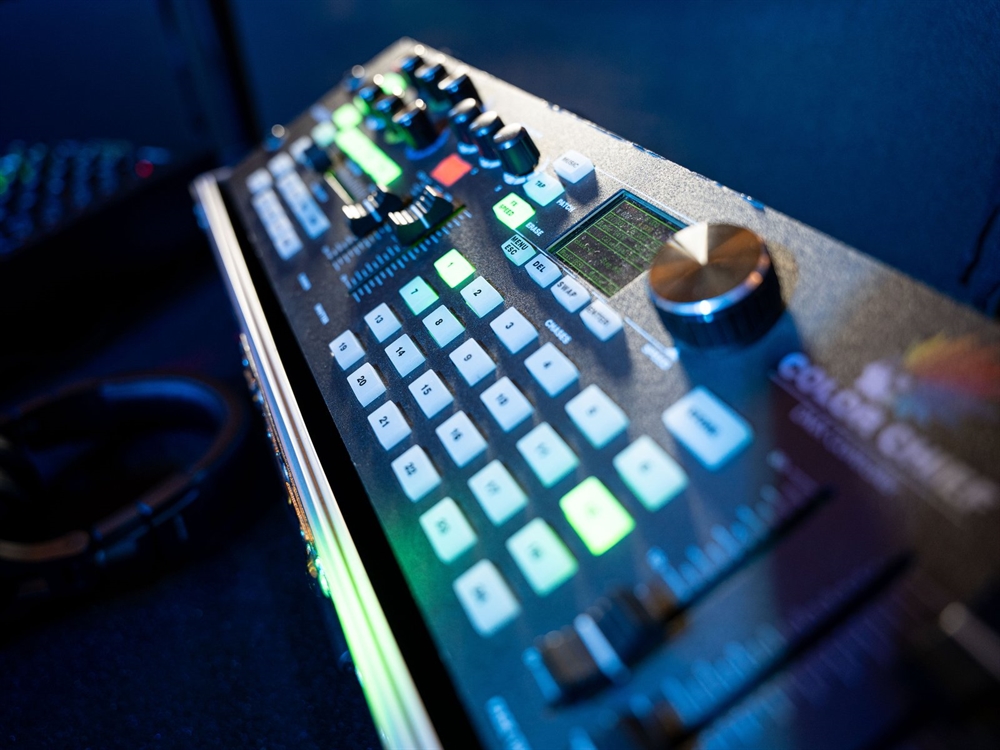

EUROLITE DMX LED Color Chief Controller

Color Chief

Innovative control concept for colored spot lights

The Color Chief offers you an innovative control concept combining easy handling with astounding results. The DMX controller has been developed especially for both colored spot lights and simpler light effects. What makes the Color Chief so special is that it cannot only control individual spot lights but also fixtures with up to 4 individual segments. Thus you can easily control your KLS system or your light bars with 4 segments. Altogether, the Color Chief can control a total of 8 spot lights with up to 4 segments each.

The power of colors

As the name suggests, the Color Chief’s strong suit is its colors. It supports up to 6 colors, thus it does not matter whether you have a simple RGB spot light or a complex light effect unit with red, green, blue, amber, white and UV. Spot lights with individual colors, e.g. white light spot lights, can be integrated as well. The Color Chief’s clear design makes it particularly easy to be always in control.

Smart color effects

Do you have a color effect with only one channel for various colors? Thanks to the color wheel function, this is not a problem for the Color Chief. The 8 already recorded smart color effects make the configuration even easier for you. It has never been easier to create such impressive color effects.

Special features

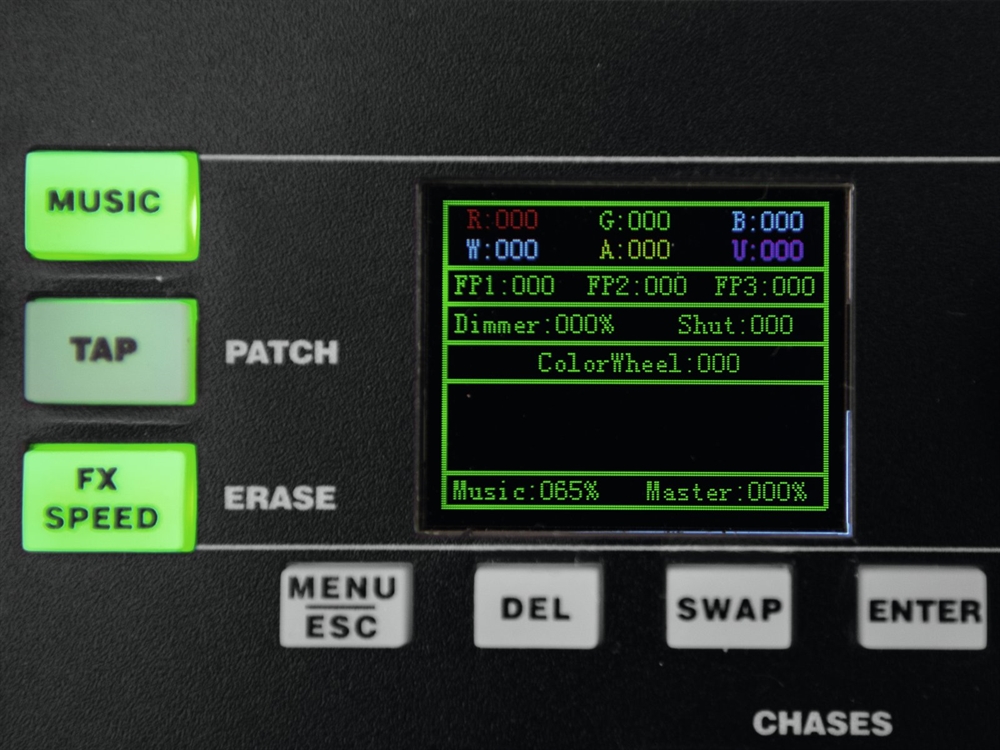

Of course, the Color Chief offers more than color control. You can also adjust the dimmer, shutter and three free channels, thus you can also control simple beam effects, lasers and projectors.

Easy memory procedure

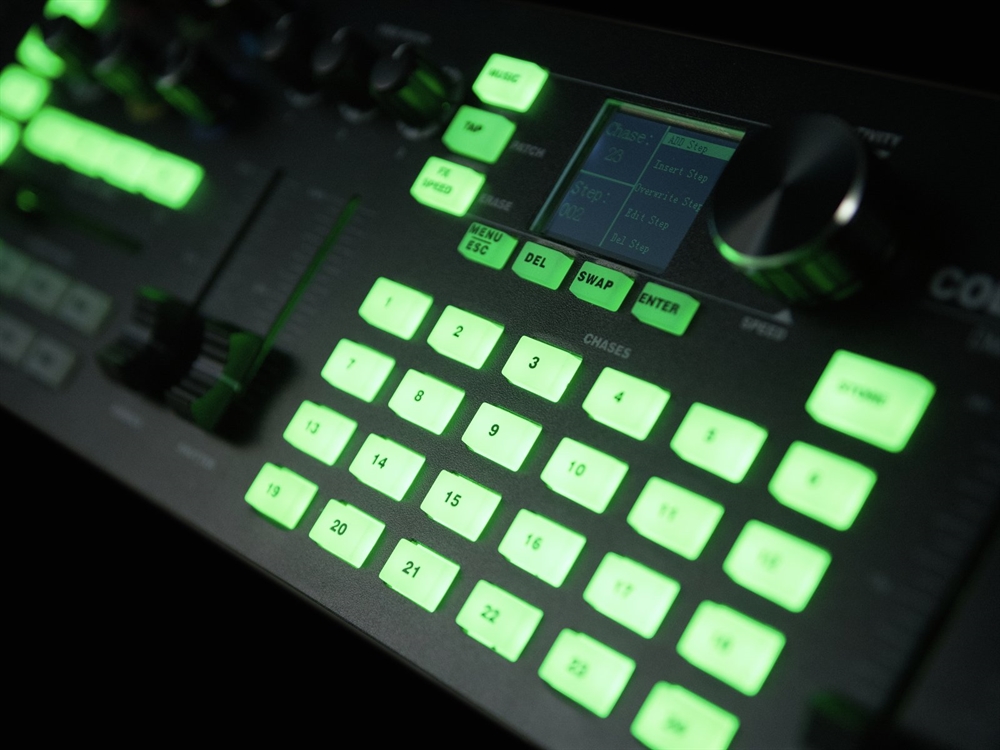

Memorizing your scenes is just as easy. When you have created a nice scene and want to memorize it as a new step you just press the Store button. This way you can easily create individual scenes and chases which can be stored on up to 24 memory banks. However, you can also easily add steps at any position, edit previously memorized scenes or delete steps.

Simultaneously running chases

With the Color Chief you can run more than one chase, thus you can use several chases and scenes simultaneously. What is more, every chase can have its own running time and fade time, i.e. you can determine for each chase how fast it should run and if the fade effect should be hard or soft. Of course, you can change these settings anytime.

Everything safe

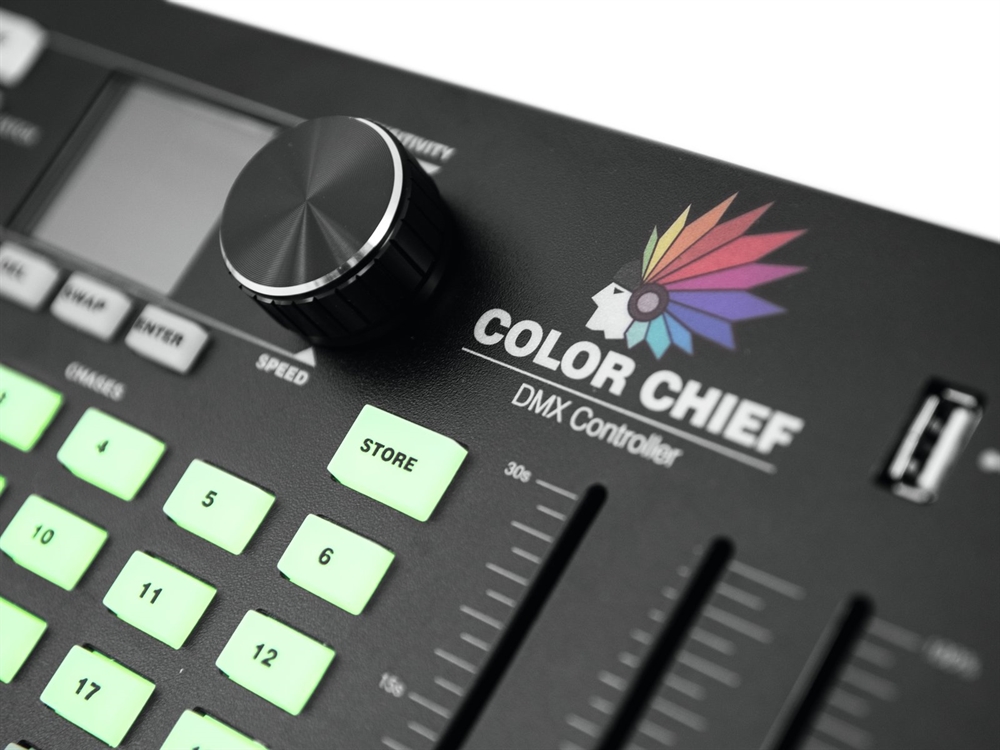

The Color Chief has a USB interface that can be used to memorize the entire control panel with all its settings and programs. You can memorize up to 24 complete setups on a USB flash drive. This way you can easily manage different shows or fixture arrangements.

DMX lighting desk with innovative control concept for LED spotlights

Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
For 8 devices or device groups, each with up to 4 segments
Each device can occupy up to 30 channels
Quick and easy programming
Additional fixtures can be configured manually
8 color effects directly selectable
3 additional channels available per fixture (e.g. for rotations)
Color wheel selection and simulation
24 memory spaces for scenes and chases
Several chases can be run simultaneously
USB port for storing program data
Sound control via audio signal or TAP button

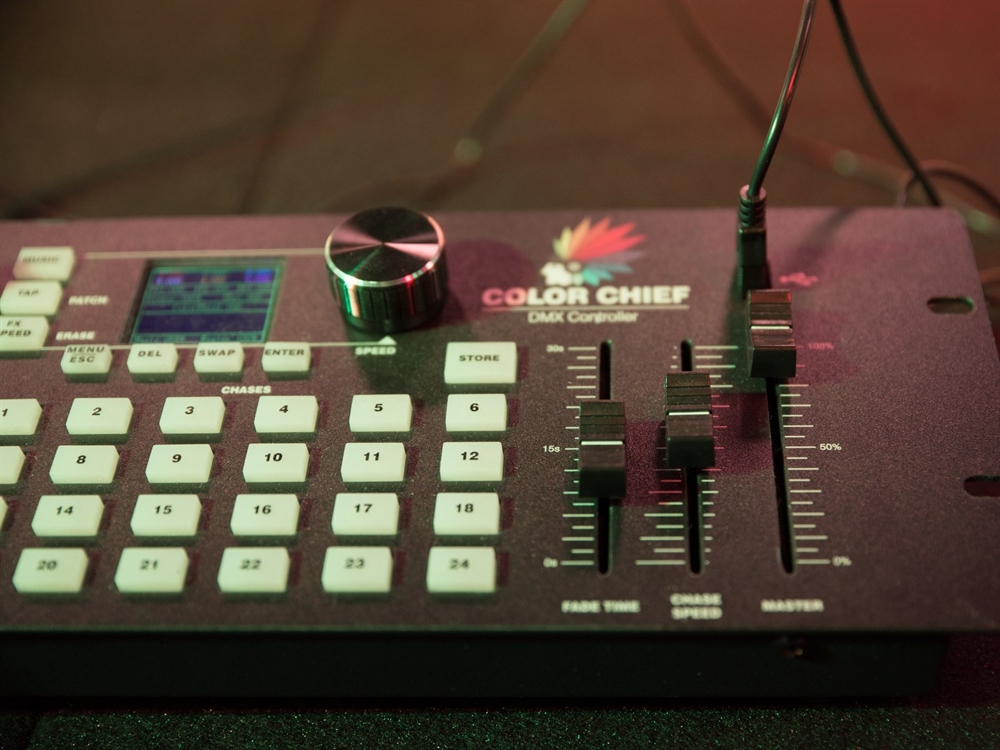

Master dimming, fade time and run time easily adjustable
Firmware update via USB
Programmable 24 sequencens
Can transmit up to 240 DMX channels
Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone

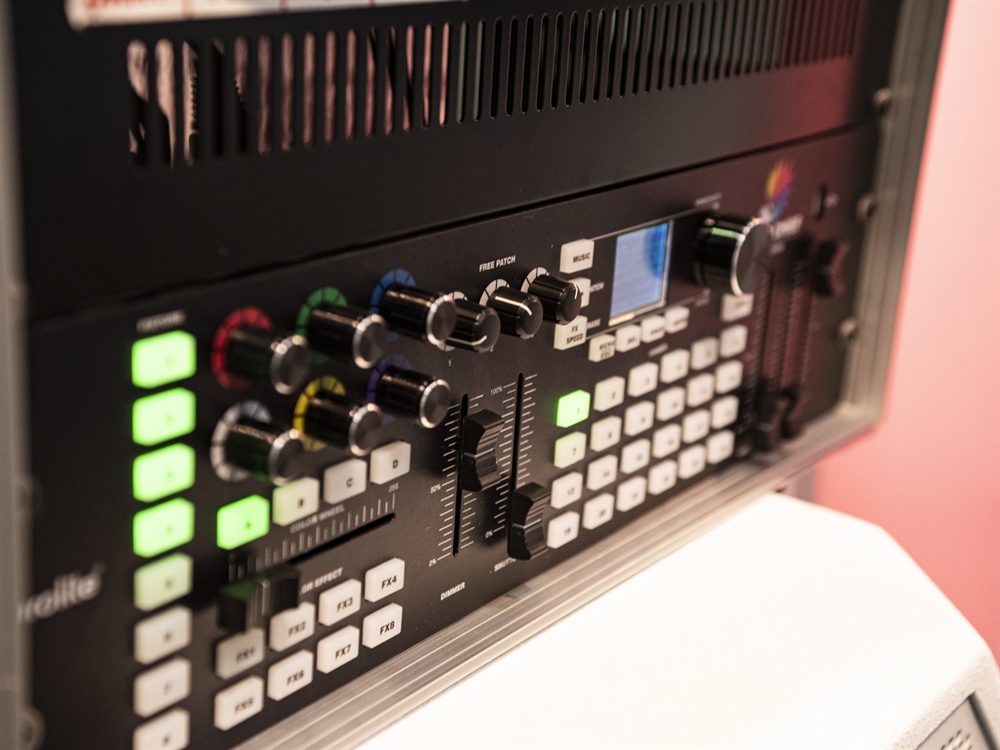

(19") 48.3 cm rack installation 3 U
Desktop console housing

Package contents

1 x controller, 1 x user manual, 1 x external mains adapter

Power supply:	100-240 V AC, 50/60 Hz 9 V DC 800 mA
Power consumption:	10 W
IP classification:	IP20
Power connection:	Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Programs:	Programmable 24 Sequences
DMX channels:	Output 240

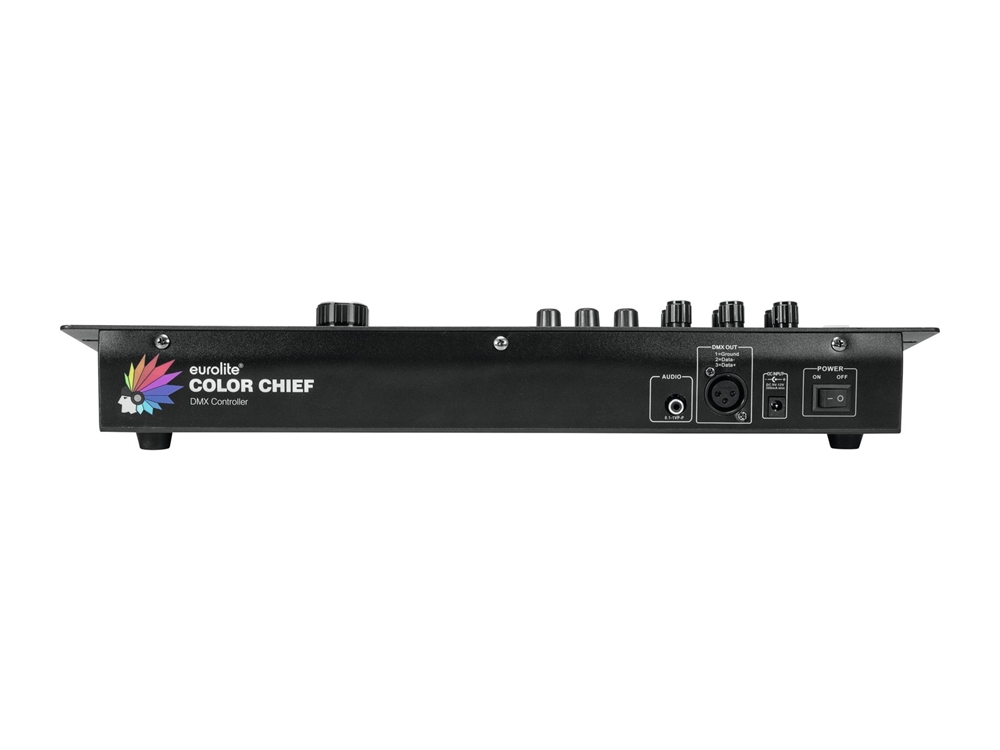

DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
Housing color:	Black
Available storage media:	USB devices (FAT 32)
USB port:	Typ A
Color:	Black
Housing design:	(19") 48.3 cm rack installation 3 U Desktop console housing
Dimensions:	Width: 48,3 cm Depth: 13,35 cm Height: 8,5 cm
Weight:	2,25 kg
