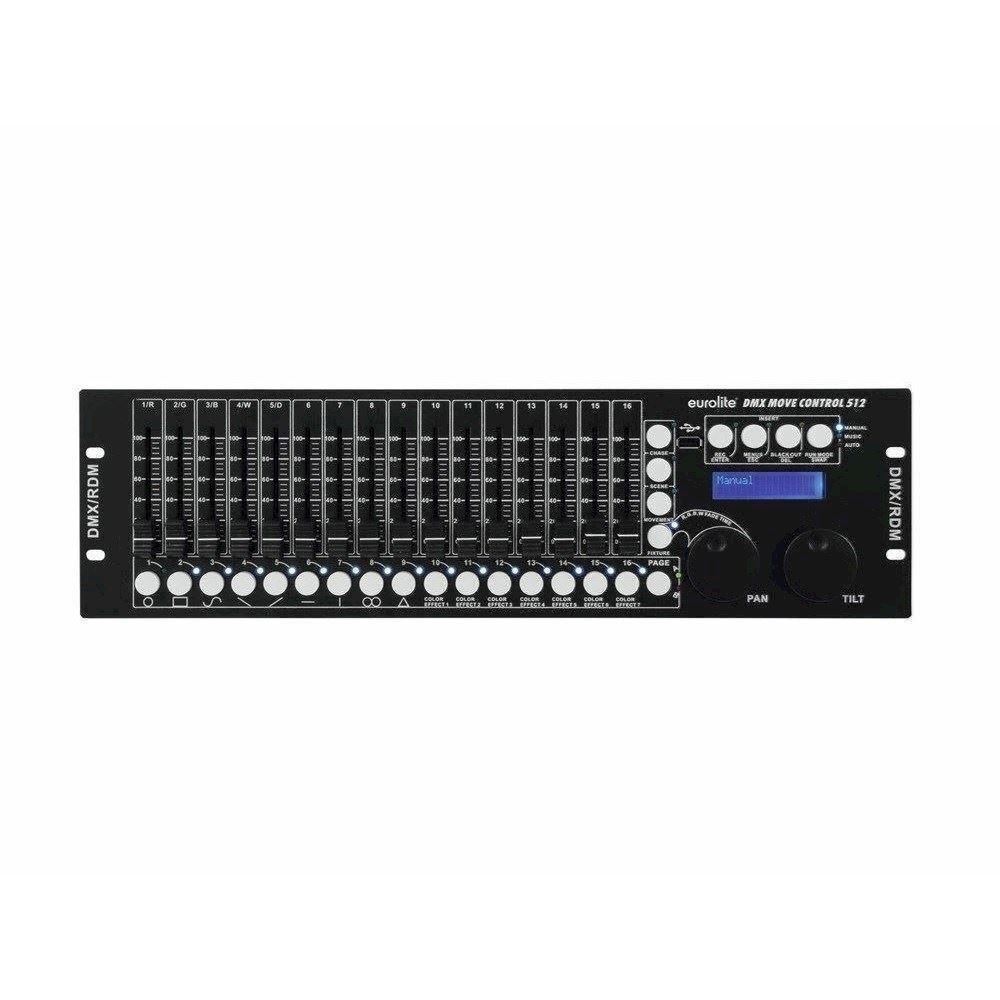

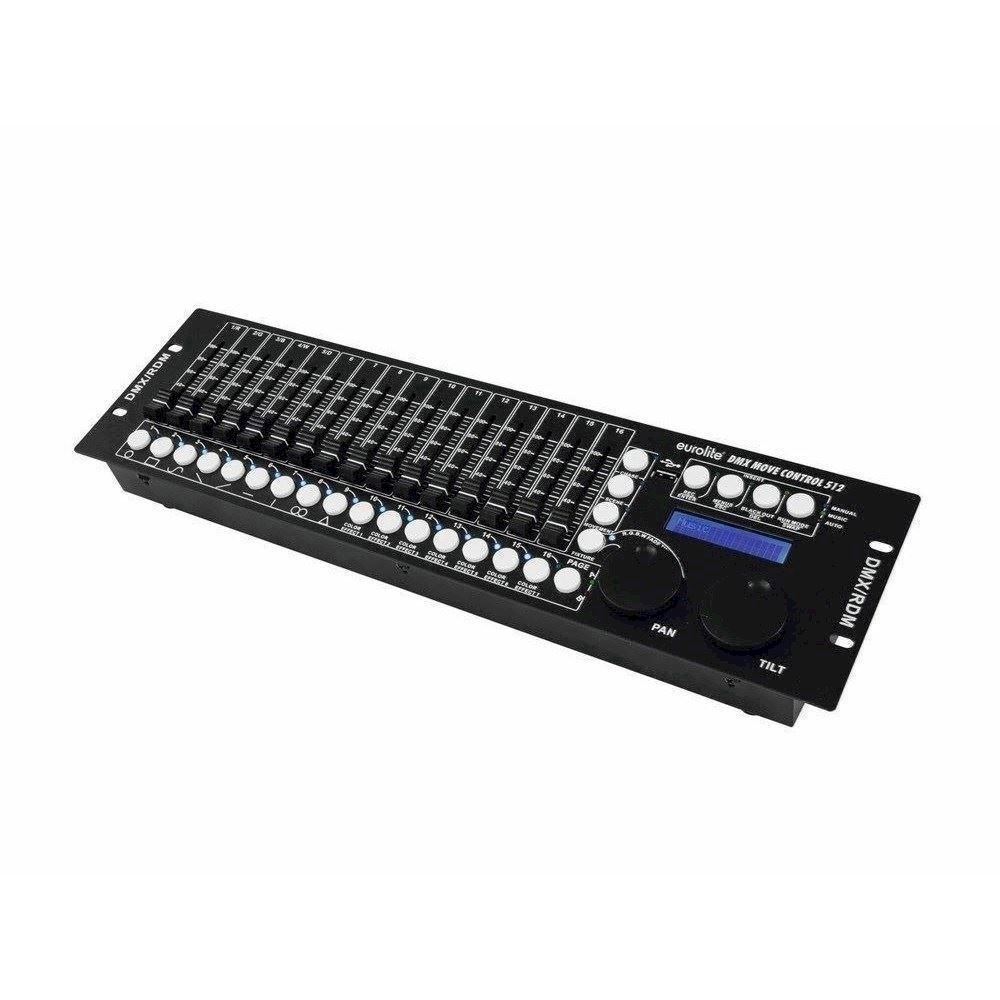

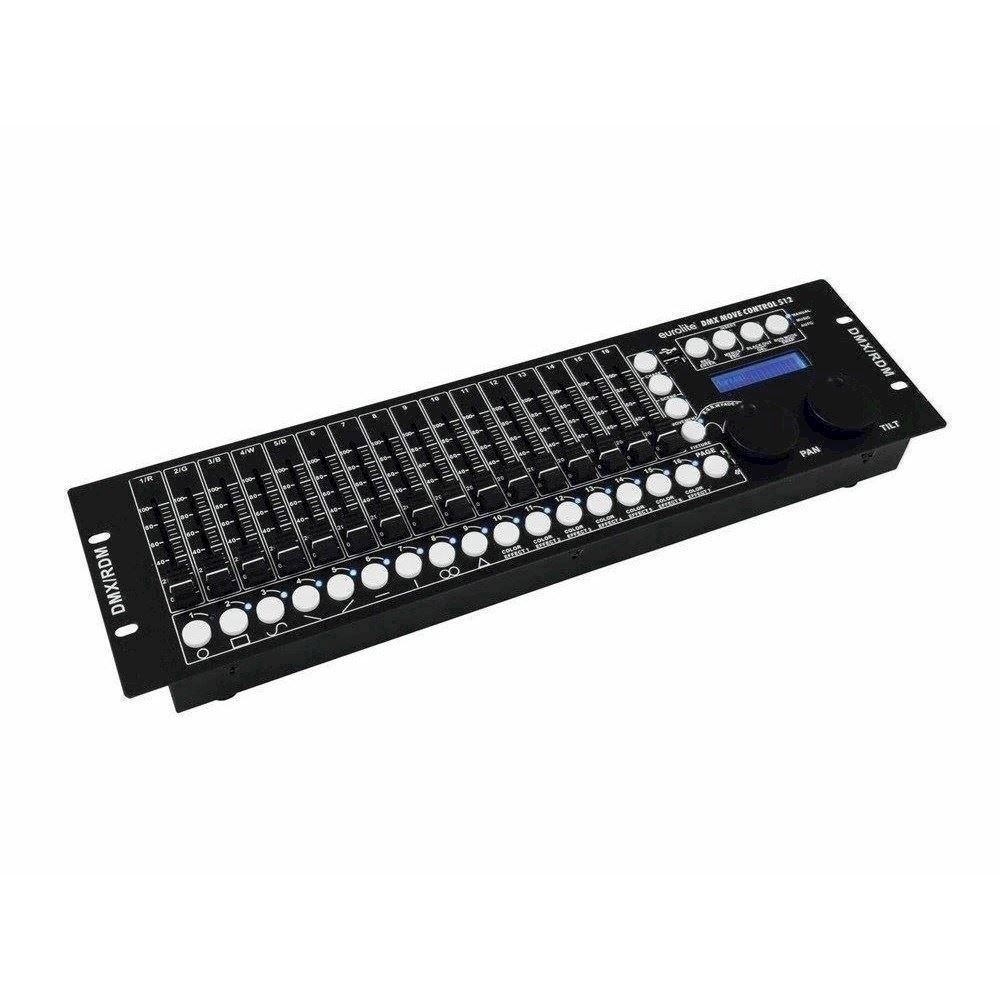

EUROLITE DMX Move Controller 512

Controller with color & motion effects (28 fixtures, 18 control channels each)

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
• For 28 fixtures with 18 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
• 32 programmable chases with 100 scenes each can be stored
• Manual, time-controlled or sound-controlled chase running mode
• 32 programmable scenes
• 2 DMX fixture levels can be controlled, each with up to 18 channels
• 16 DMX channel faders
• 2 jog wheels for pan/tilt
• Blackout function
• Sound control via built-in microphone
• Backlit LCD (2 x 16 characters)
• RDM support (DMX address setup and identify)

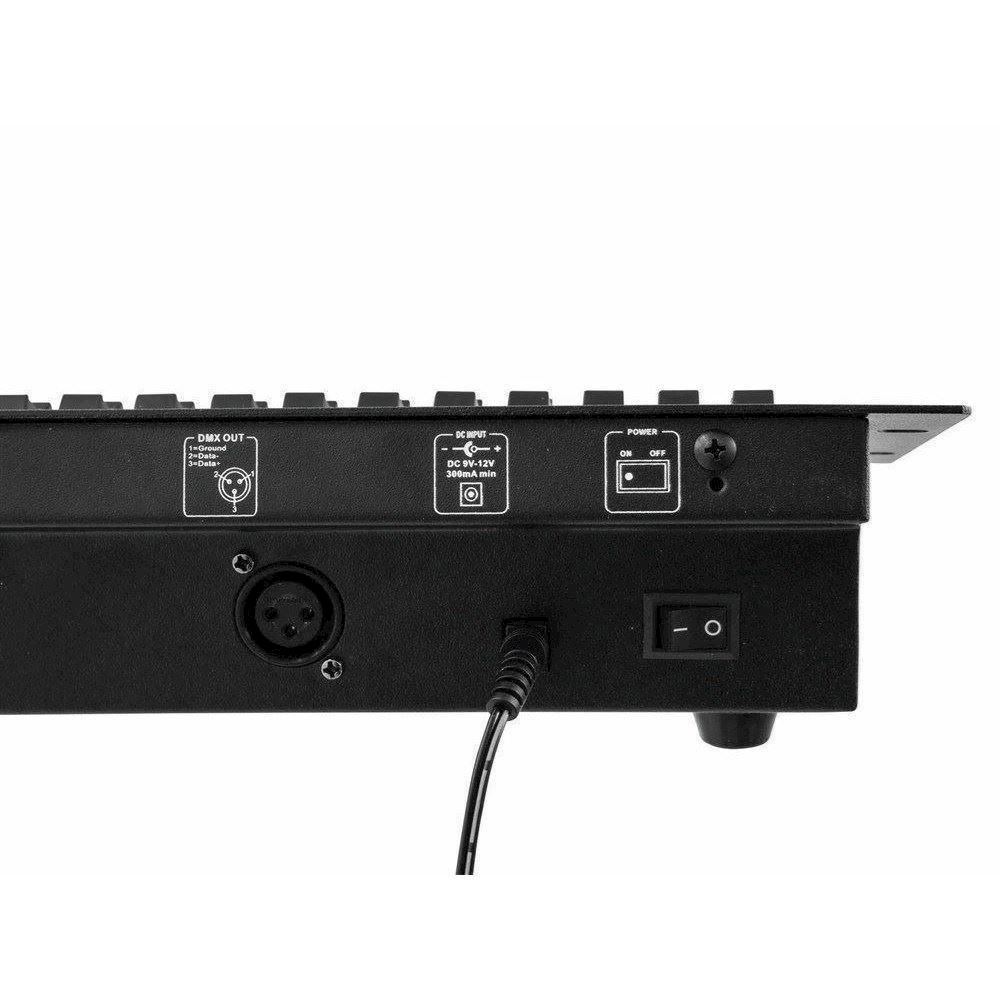

• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Rack installation with 3 units
• Controller useable for: RGB
• Controller useable for: RGBA
• Controller useable for: RGBW
• Controller useable for: RGBA+RGBW
• Controller useable for: RGBWA
• Controller useable for: RGBWA+UV
• Controller useable for: RGB+WA
• Controller useable for: CW/WW
• Controller useable for: W/A
• Controller useable for: RGBW+UV
• Controller useable for: RGBA+CW/WW
• Controller useable for: CW
• Controller useable for: WW
• Controller useable for: RGB+UV
• Controller useable for: Colour wheel
• Controller useable for: Controls DMX-effects
• Controller useable for: Controls Moving Lights
• Controller useable for: Controls KLS classic
• Controller useable for: Controls KLS in general
• Controller useable for: RGB/A/W/L/UV
• Controller useable for: RGB/A/W/L
• Controller useable for: RGBAL
• Controller useable for: CW/WW/A
